Measure&control temp range:-50~50celsius
Double screen
Double sensors
Control compressor&defroster
Auto or Mannual control

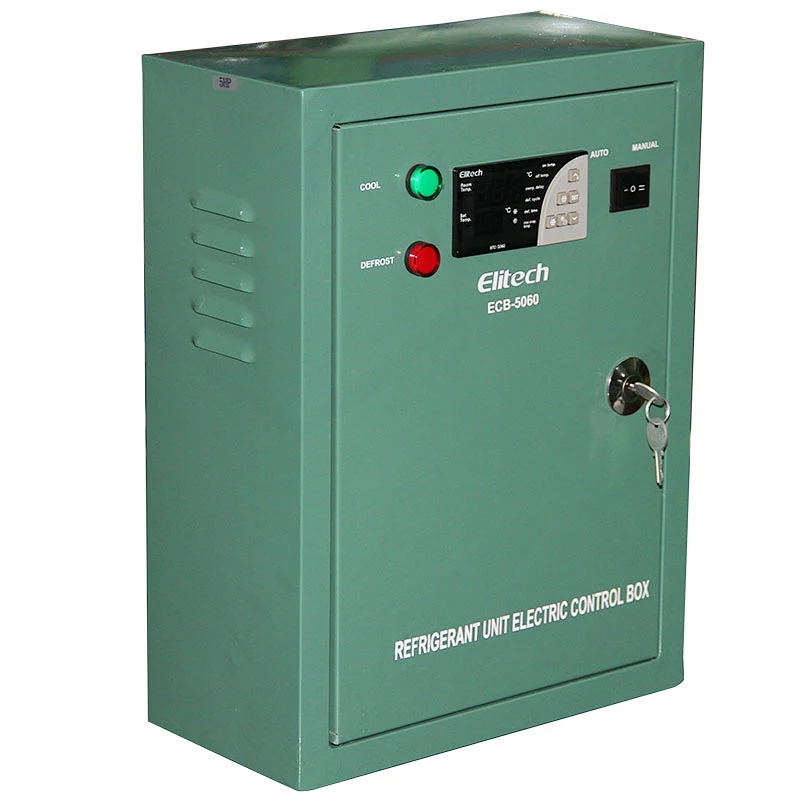

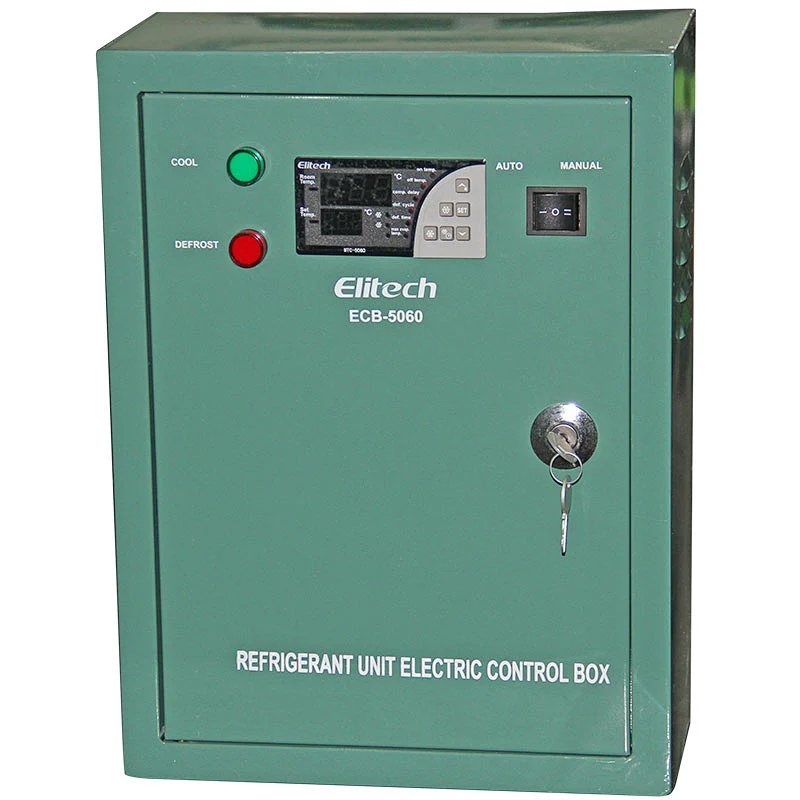

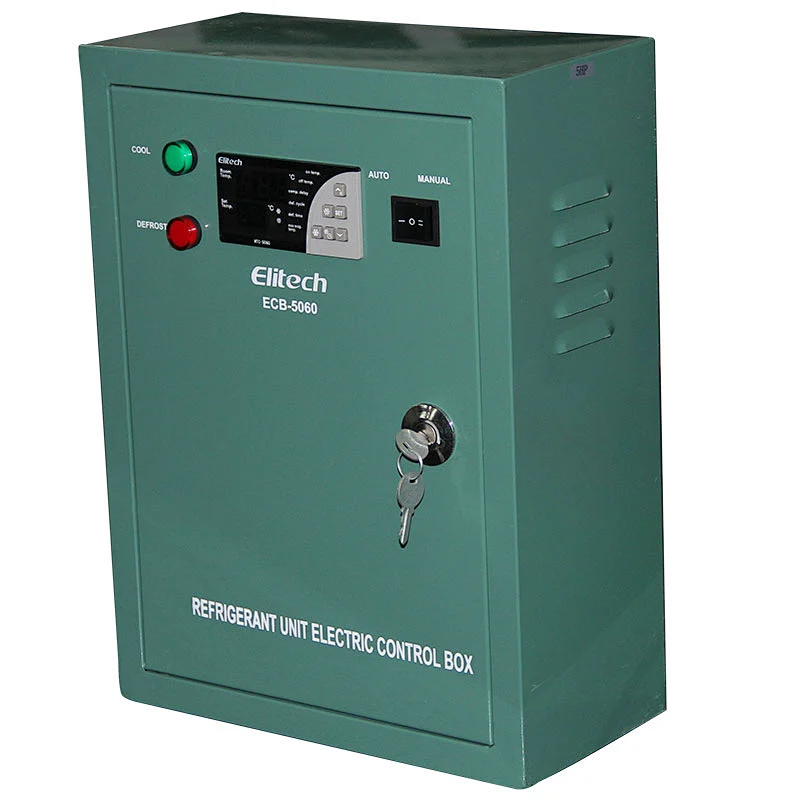

Refrigeratory Electric Control Box ECB-5060 Instructions:
Functions and features:
ECB-5060 is specially designed for refrigerating unit. Double-screen display with both the current temperature and setting temperature; measuring temperature by double sensors; manage and control compressor and defroster separately ; Auto and manual control optional; Defrosting over temperature protection; Crank heating; when Sensor error, compressor turns on/off with proportional time; easy operation and visual display, stable and reliable performance.
Specification:
Product size: 300X400X150mm

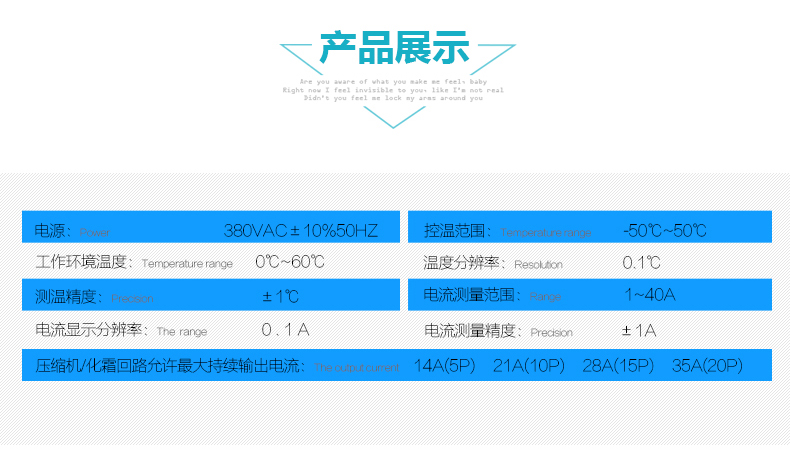

Technical parameters:
Power supply: Three-phase five-wire (or three-phase four-wire), 380 VAC ±10%, 50Hz
Temperature measuring and controlling range: -50~+50oC
Compressor start-up delay protection time: 0~120 minutes (Adjustable)
Max. capacity of controlling the compressor (KW): 11
Max. capacity of controlling the defroster (KW): 11
Accuracy: ±1oC
Resolution: 0.1
