• Place of Origin:Guangdong, China
• Brand Name:Elitech
• Model Number:ECB-1000L
• Color:gray
• Temperature measuring range::-40~90°C
• Return difference::1~15°C
• Accuracy of temp.:±1°C
• Display accuracy::0.1°C
• Compressor delay time::0~9 min. (adjustable)
• Temperature calibration::-5~+5°C
• Heating type::electric-heating and heating-pump adjustable
• Cooling relay output::10A/220VAC
• Heating relay output::10A/220VAC
• version:Chinese/English, please advice

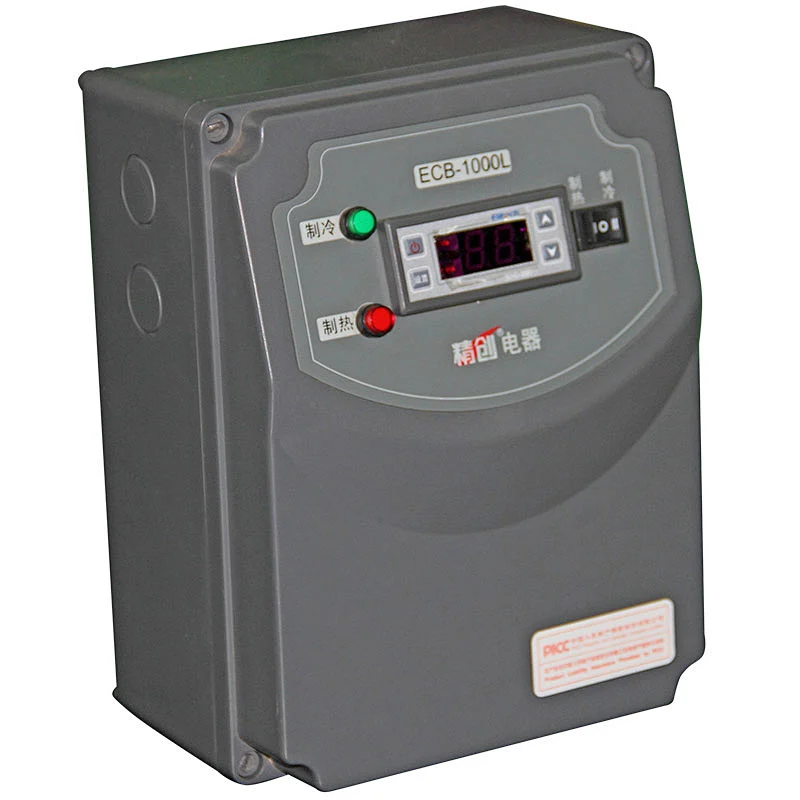

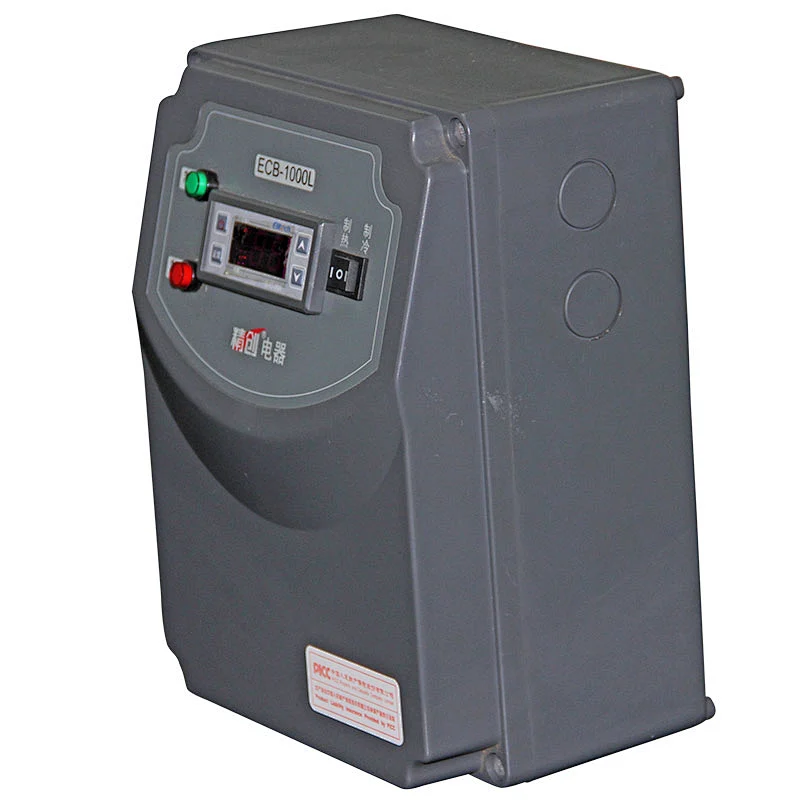

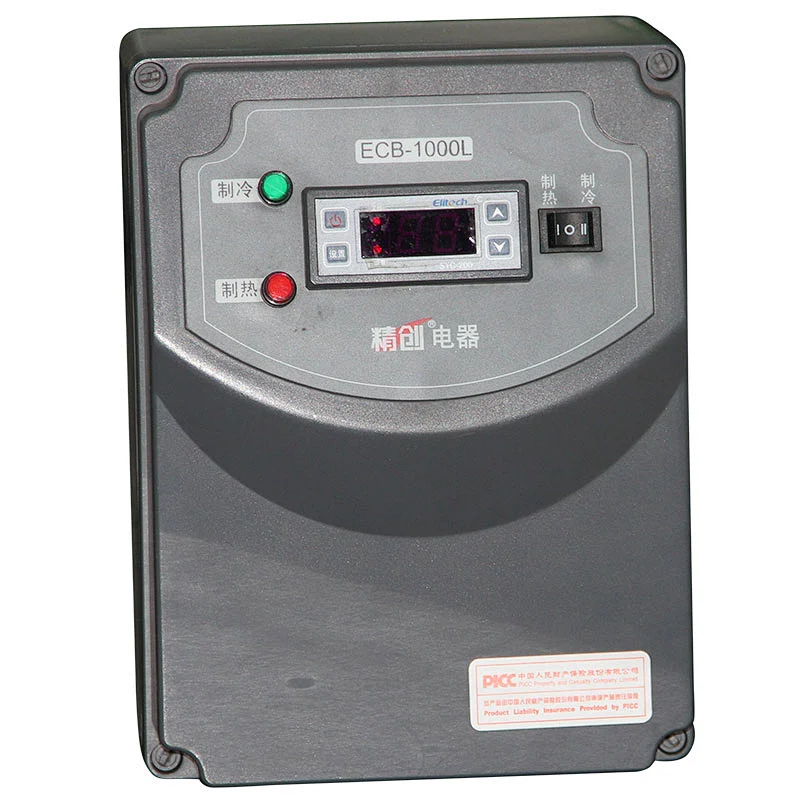

Electric control box,model number:ECB-1000L

Specification:

An electric control box with elegant appearance, which is especially designed for seafood machine and water chiller; Stable performance and easy-to-operate; ABS material with security and water-proof and anti-shake functions. Set parameters can be modified while the device is running. Switch between auto and manual mode. Automatically control to realize alternation between cooling and heating. Compressor startup delay protection.
Specification:
Product size: 250×190×139 (mm)

Technical parameter:

Temperature measuring range: -40~90°C
Return difference: 1~15°C
Accuracy of temp. measurement and control: ±1°C
Display accuracy: 0.1°C
Compressor delay time: 0~9 min. (adjustable)
Temperature calibration: -5~+5°C
Heating type: electric-heating and heating-pump adjustable
Compressor working time when sensor error: 0~99 min.
Compressor end time when sensor error: 0~99 min.
Cooling relay output: 10A/220VAC
Heating relay output: 10A/220VAC
Sensor error or alarm output when exceeding temp. limits: LED flashes

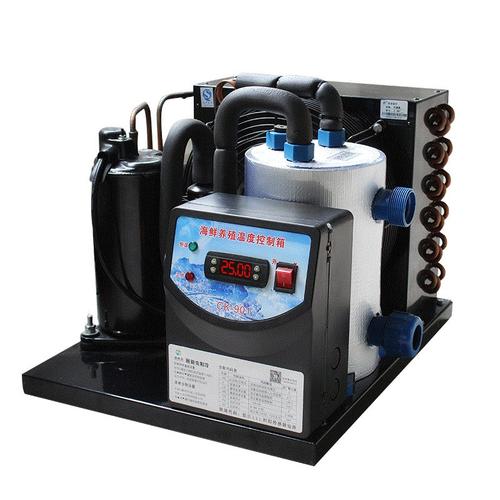

Reference seafood machine and water chiller;
