Place of Origin:Jiangsu, China
Brand Name:Elitech
Model Number:ECB-5080
Color:Green
Accuracy:±1°c
power:5-25HP
Power supply::three-phase five-wire (or three-phase four-wire) 380VAC±10% /50Hz
Measure temperature range::-40 ~ 50 ° C
Compressor delay protection time::adjustable from 0 to 9 minutes
function 1:Sensor fault and over temperature alarm function
function 2:Compressor delay adjustable
Condition:Two settings for temperature and hysteresis
Size::300*400*150mm

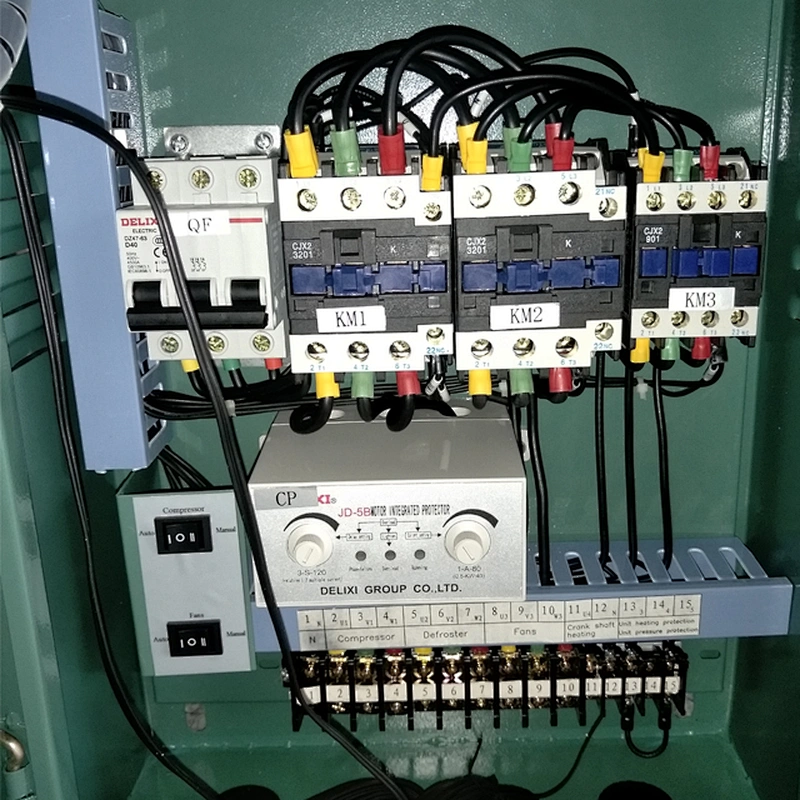

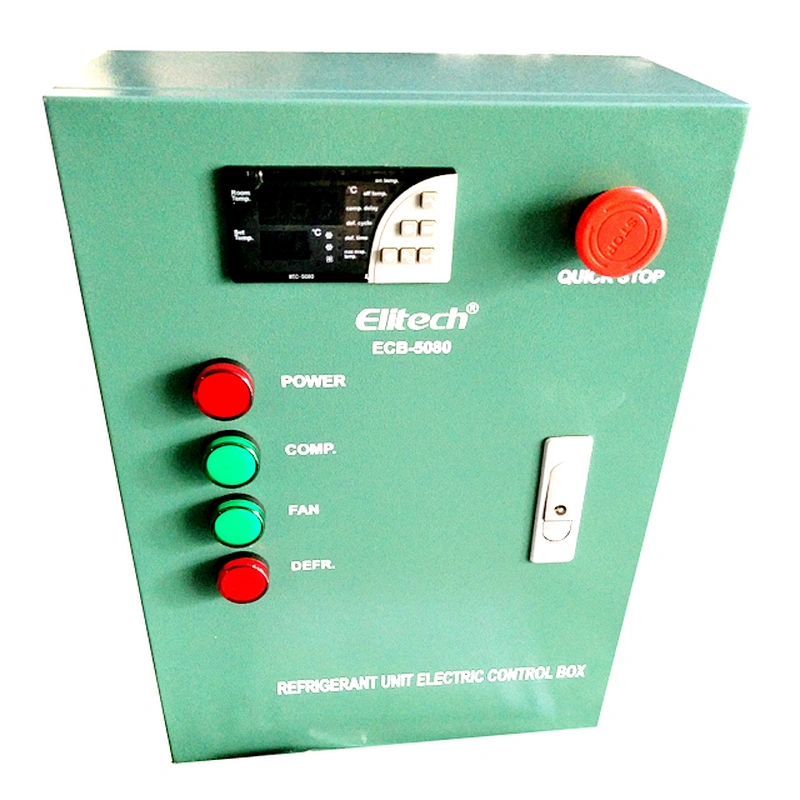

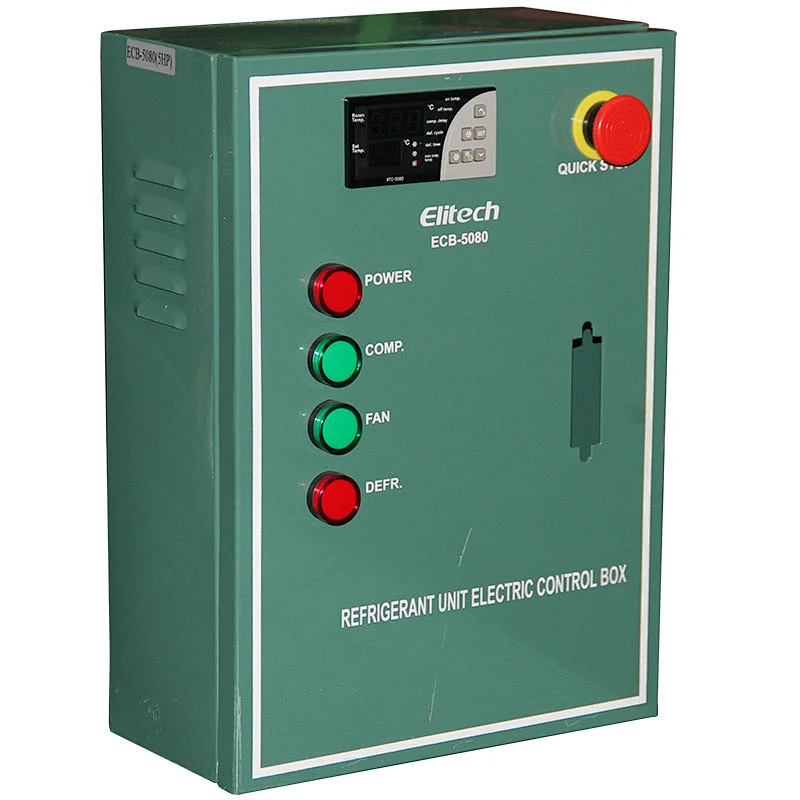

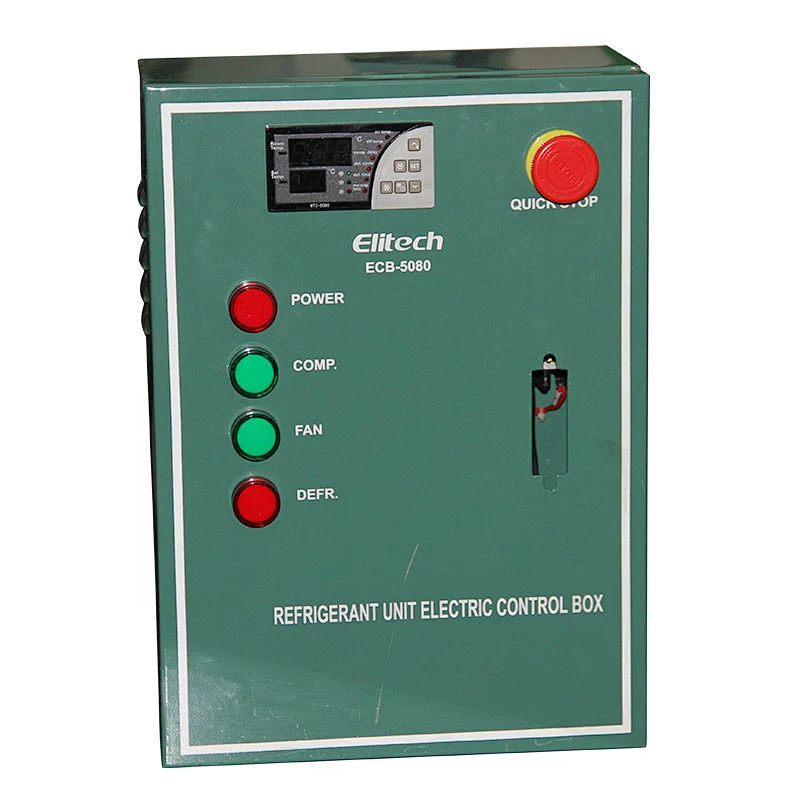

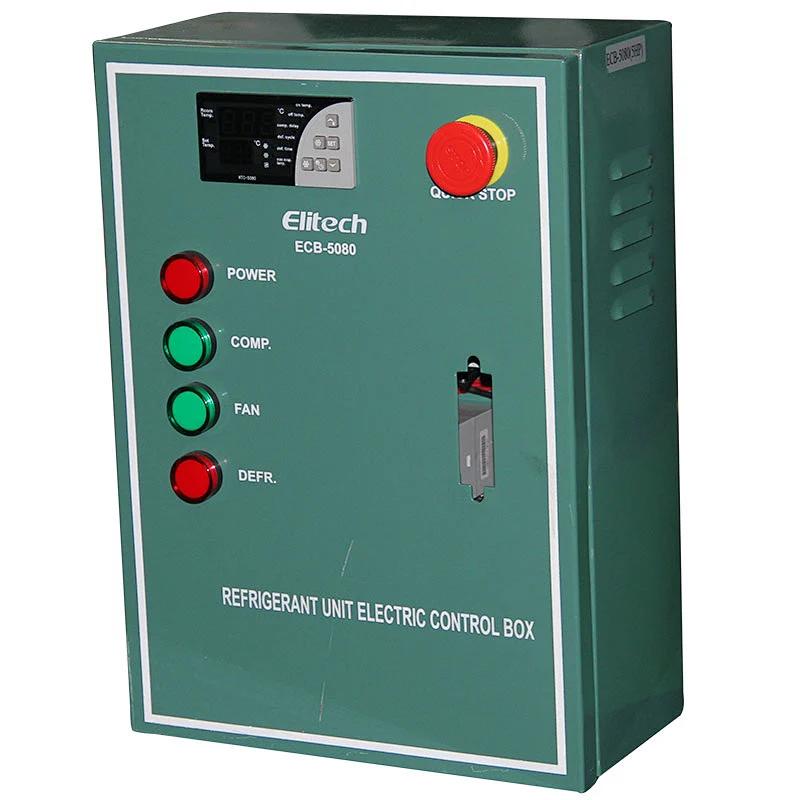

Double screen operation ECB-5080 Cold storage Temperature electric control box

The electric control box is a product specially designed by our company for the refrigeration unit. Dual sensor control, moderate function, comprehensive protection, convenient operation, stable and reliable performance, is a multi-function electronic control box with high cost performance.

Technical Parameters:
1,Power supply: three-phase five-wire (or three-phase four-wire) 380VAC±10% /50Hz
2,Measure temperature range: -40 ~ 50 ° C
3,Measurement temperature control accuracy: ±1 °C
4,Compressor delay protection time: adjustable from 0 to 9 minutes
5,Control the maximum capacity of the compressor fan (KW): 5.5 11 15
6,Control the maximum capacity of the defroster (KW): 5.5 7.5
7,Double menu management mode: user menu and manager menu settings, ordinary users only need to
Two settings for temperature and hysteresis;
8,Double temperature sensor, temperature control of compressor and defroster, respectively, safer and more energy efficient;
9, Single point temperature adjustment, back temperature control, more convenient operation
10,Compressor comprehensive protection function
11,With automatic and manual control
12,Sensor fault and over temperature alarm function
13,Compressor delay adjustable
