Place of Origin:China
Brand Name:Elitech
Model Number:ECB-1000Q
Color:Ash black
Application:small and medium size cold storage
Technical parameters::Power Supply: 220VAC±10%,50/60Hz
Power Consumption::Less than 5W
Temperature Measuring Range::-45°C~99°C
Accuracy::±1°C T
temperature Controlling Range:-40°C~90°C
Resolution::0.1°C/1°C or 1F
Relay Capacity of Compressor::Compressor 50A/240VAC Max.
Alarm 5A/220VAC Storage Temperature::-20°C~75°C
Work Temperature::-5°C~60°C

Product Description

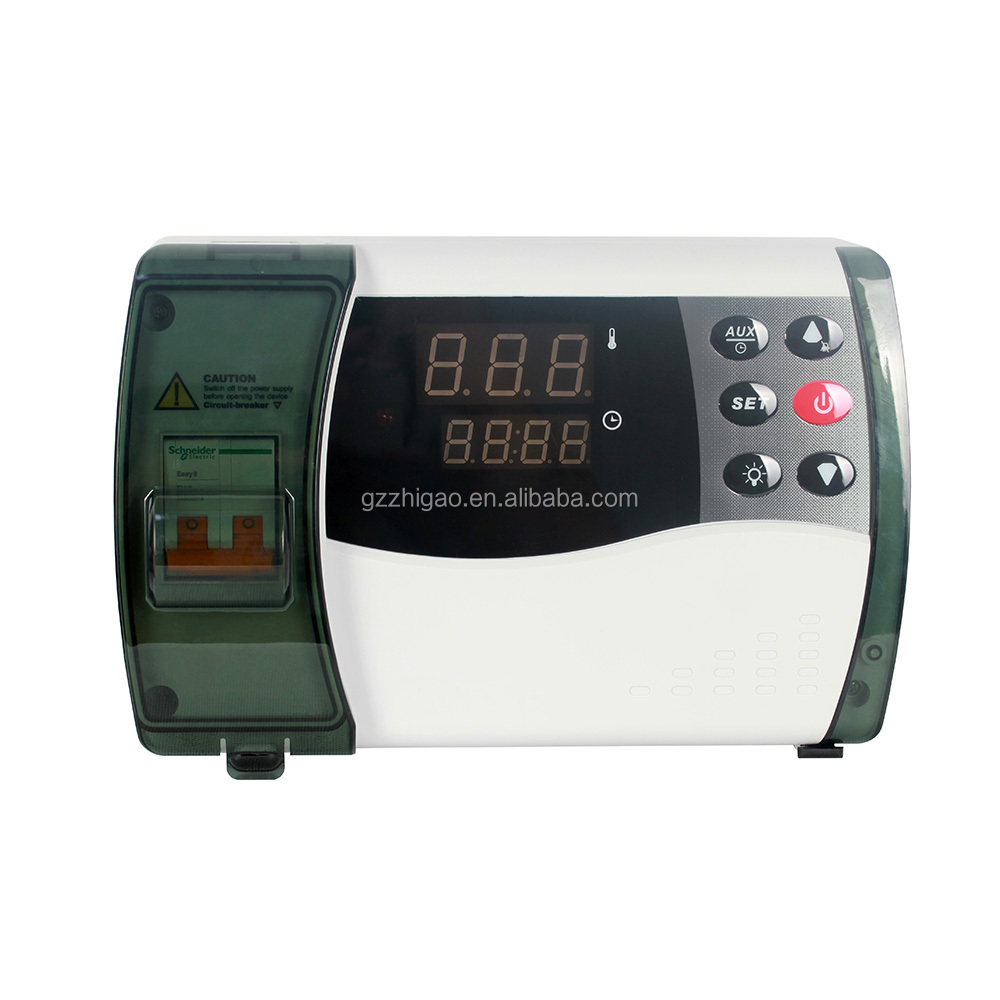

Multi-Purpose Electric Control Box UECB-1000Q is widely used for the small and medium size cold storage, with the function of refrigeration, defrost, fan, light control, alarm and time display.
Large display area shows all necessary information directly controls heavy loads with up to 3HP relay Icon LEDs status display password protection avoids accidental tampering by personnel .
Real-Time-Clock really schedules and fixes defrost time defrost force function energy save function at night.

Specifications:

1) Technical parameters: Power Supply: 220VAC±10%,50/60Hz
2) Power Consumption: Less than 5W
3) Temperature Measuring Range: -45°C~99°C
4) Accuracy: ±1°C T
5) temperature Controlling Range -40°C~90°C
6) Resolution: 0.1°C/1°C or 1F
7) Relay Capacity of Compressor: Compressor 50A/240VAC Max.
8) capacity of controlling the compressor: 3P Defrost 8A/220VAC Fan 5A/220VAC Max.
9) capacity of controlling the fan: 500W Light 5A/220VAC Max. capacity of controlling the light: 300W
10) Alarm 5A/220VAC Storage Temperature: -20°C~75°C
11) Work Temperature: -5°C~60°C
12) Sensor Type: NTC(10KΩ/25°C,B-3435K)

Technical parameters: Power Supply: 220VAC±10%,50/60Hz	Technical parameters: Power Supply: 220VAC±10%,50/60Hz
Power Consumption:	Less than 5W
Temperature Measuring Range:	-45°C~99°C
Accuracy:	±1°C T
Temperature Controlling Range	-40°C~90°C
Relay Capacity of Compressor:	Compressor 50A/240VAC Max.
capacity of controlling the compressor:	3P Defrost 8A/220VAC Fan 5A/220VAC Max
Resolution:	0.1°C/1°C or 1F
