• Place of Origin:Guangdong, China
• Brand Name:Elitech
• Model Number:ECB-3000
• Color:White color
• Temperature measuring:-50~+50°C
• Resolution::±1°C T
• Return difference::1~+25°C
• Defrost time::0-255 minutes
• Defrost cycle::0-120 hours
• Application:mini-type cold storage
• Max. capacity defroster (KW)::5.5
• controlling the defrost (KW)::5.5
• Power:380VAC ±10%, 50Hz

Brief introduction

1. Temperature measure &control :-50~+50 celsius
2. 3-load:compressor,fan,defrost
3. Power:3-phase,4 or 5 wires
4. Double sensors Protection

Functions and features:

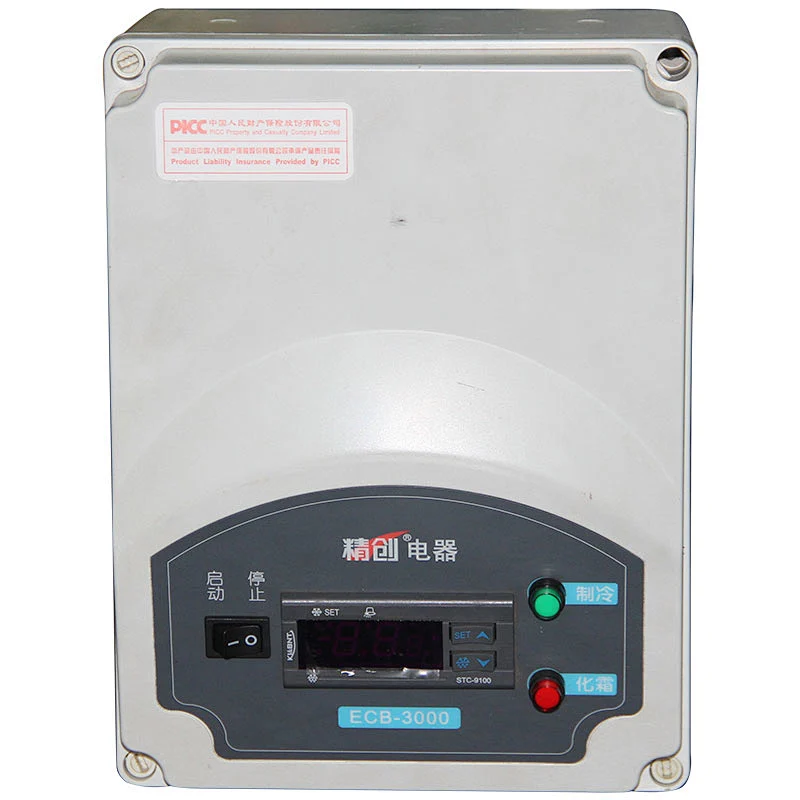

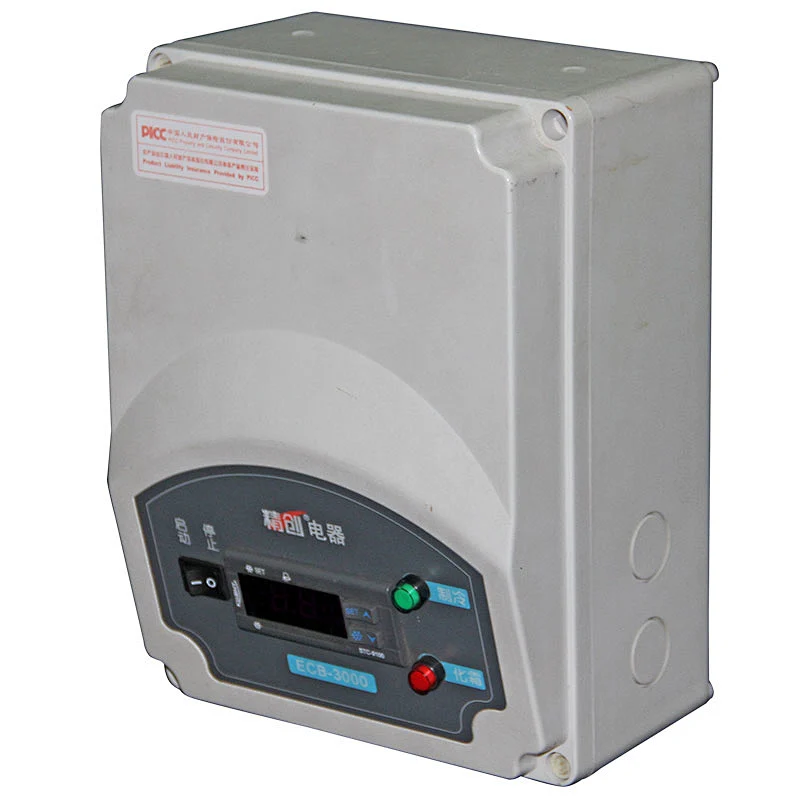

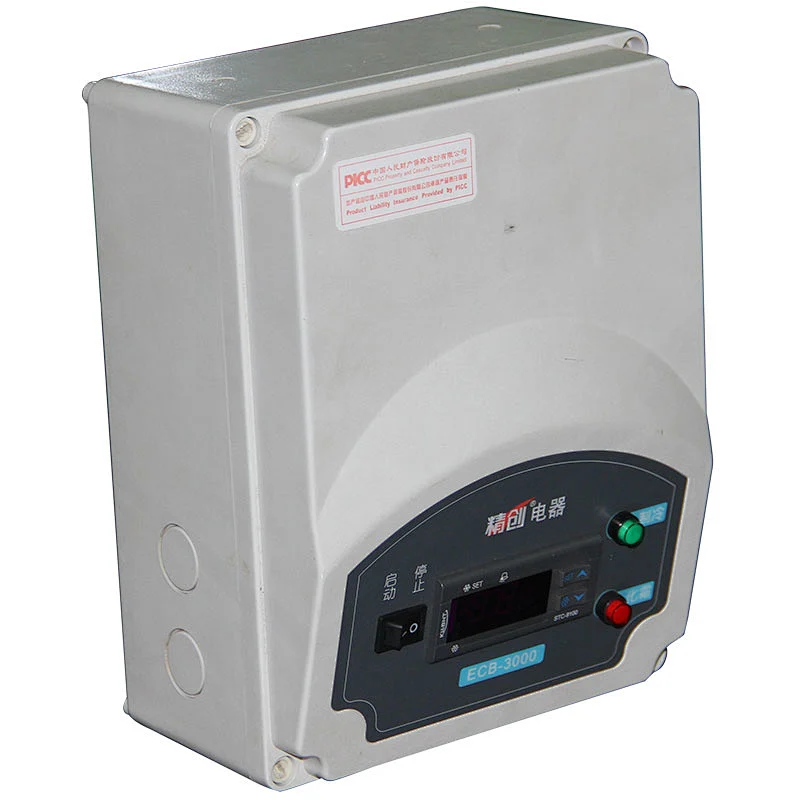

ECB-3000 is a new optimizing product especially designed for mini-type cold storage. Easy parameters setting and operation reliable performance, complete functions. ABS fire-proof plastic material for security and good water-proof ability. Modifying parameters even when the machine is running. Auto and manual switch function, while in manual operation, it can control fan, compressor and defrost separately. compressor start-up delay protection. Fan start-up delay. Auto defrost and enforced defrost. Main control units are famous brand with high reliability.

Specification:
Product size: 250X190X139mm

Technical parameter:
1. Power supply: Three-phase five-wire (or three-phase four-wire), 380VAC ±10%, 50Hz
2. Temperature measuring and controlling range: -50~+50^oC
3. Resolution: 0.1
4. Return difference: 1~+25^oC
5. Defrost time: 0-255 minutes
6. Defrost cycle: 0-120 hours
7. Compressor start-up delay protection time: 0~50 minutes (Adjustable)
8. Defrost thermal protection relay connected temperature: 50^oC
9. Defrost protection relay connected temperature: 40^oC
10. Max. capacity of controlling the compressor and fan (KW): 5.5
11. Max. capacity of controlling the defroster (KW): 5.5
