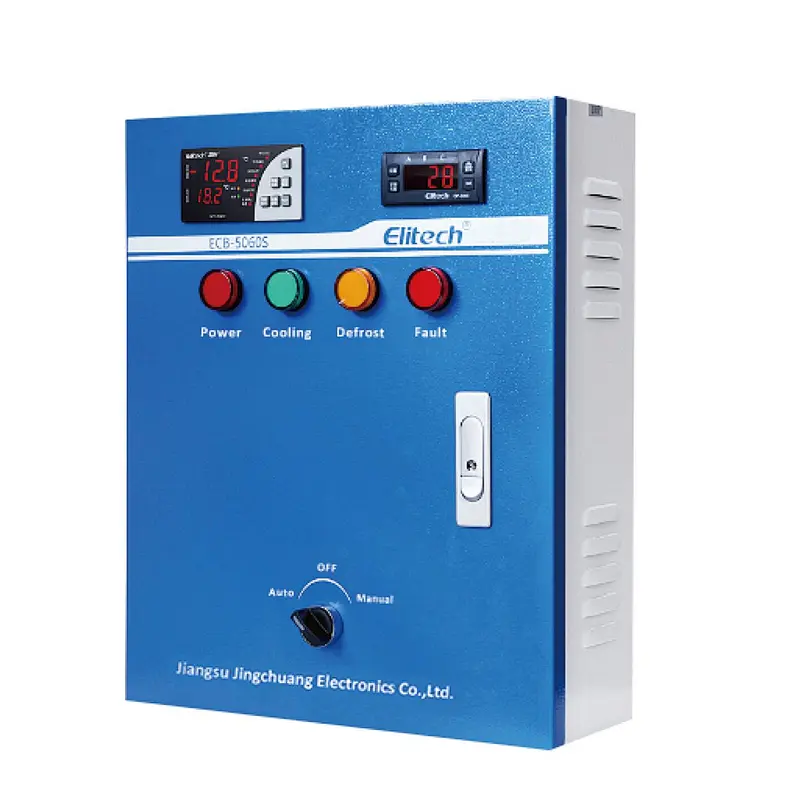

Elitech Electric control box ECB-5060S
Applicable compressor power:5HP,10hp,15hp,25hp and 30HP(it's recommeded to use one specificaton larger when using medium and high temperature cold storage)

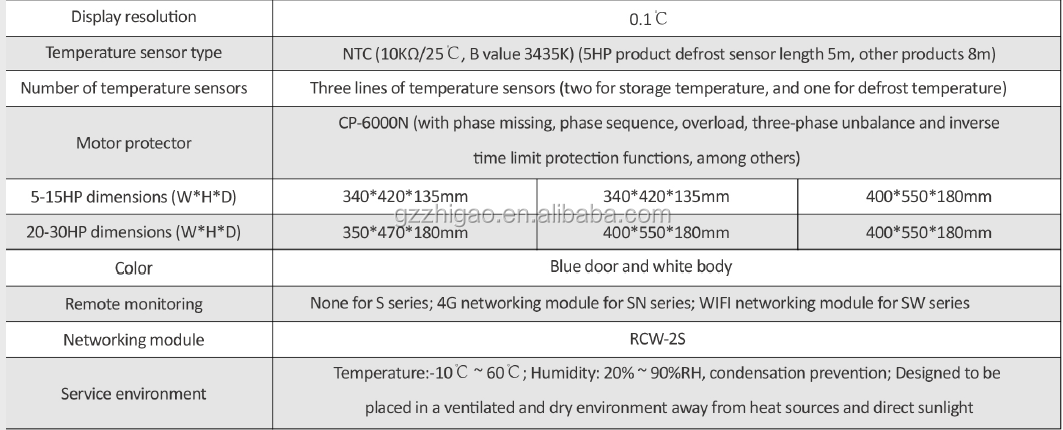

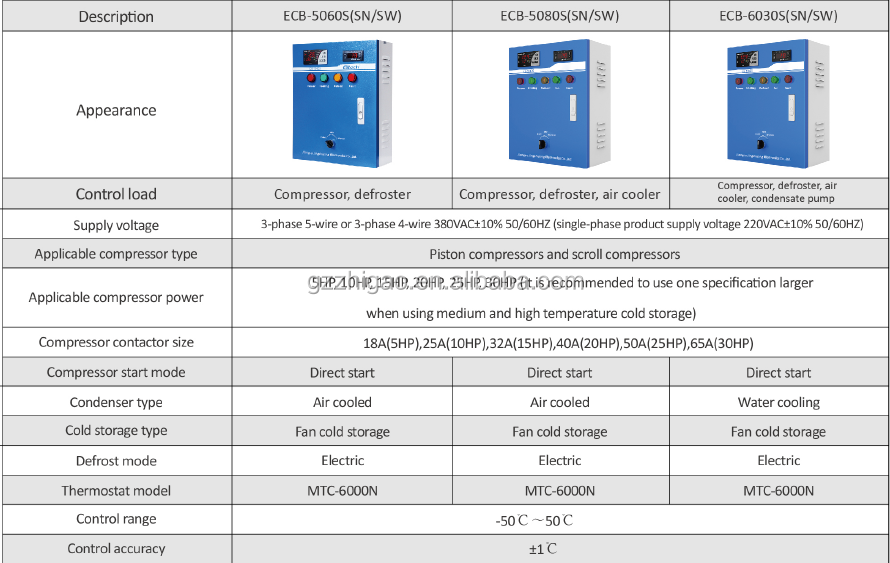

Technical parameters:
Power supply: Three-phase five-wire (or three-phase four-wire), 380 VAC ±10%, 50Hz
Temperature measuring and controlling range: -50~+50oC
Compressor start-up delay protection time: 0~120 minutes (Adjustable)
Max. capacity of controlling the compressor (KW): 11
Max. capacity of controlling the defroster (KW): 11
Accuracy: ±1oC
Resolution: 0.1
Compressor start mode: Direct start
Cold storage type: Fan cold storge
Defrost mode: Electric
Thermstat model MT-6000N
Control range:-50C~50C
Control accuracy:
Control load: compressor,defroster
Feature:
