广州制高冷冻设备有限公司About UsRoom1305, No.236 the sixth Zhongshan Road,Yuexiu district, GuangzhouGuangzhou Zhigao Freeze Equipment Co., Ltd. is a professional manufacture and trading company with over 20 years experiences to provide OEM and one-stop shopping for customers. We have over 24000m2 workshop,show room, retail shops and offices in Guangzhou.The company's leading products include air condensers, various air coolers, refrigeration units and condensing units, etc. They are widely used in hotels, restaurants, supermarkets, food, health, medicine, agriculture and other industries. The products are sold all over the china and in Vietnam, Thailand, Pakistan, Australia , South Africa and other overseas countries. We look forward to working with yo
Application Field | ||
Textile paper industry : waste gas and liquid heat recover | ||
Chemistry : heating ,cooling ,evaporator ,condenser | ||
Power Industry : transformer oil cooler ,turbine oil cooler | ||
Metallurgy Industry : rolling mill,continuous casting machine, oxygenerator oil cooler,circulating watering cooling. | ||
District Heating : steam-water heating heat exchanger, intermediate heat exchange station heat exchanger ,secondary system water heating system. | ||
Refrigeration & air-conditioner & HAVC: evaporator, condenser ,gas superheater, liquid subcooler, heat regenerator | ||

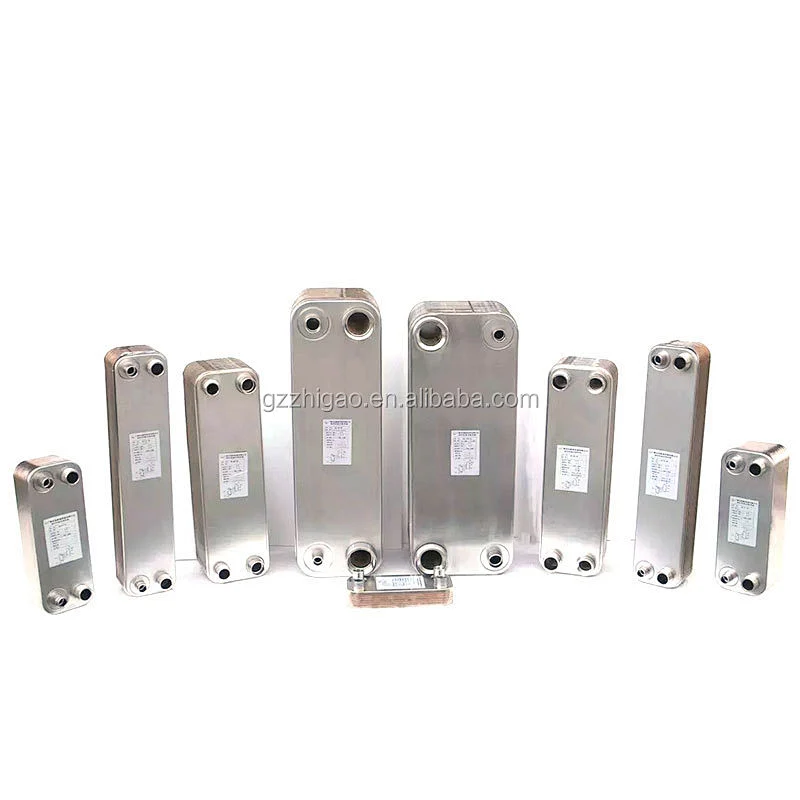

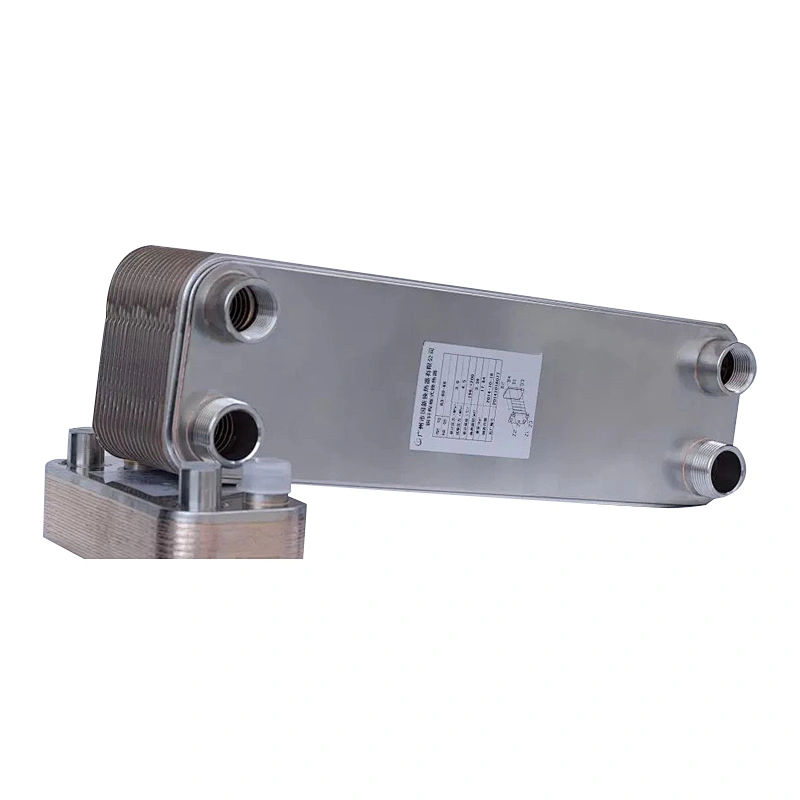

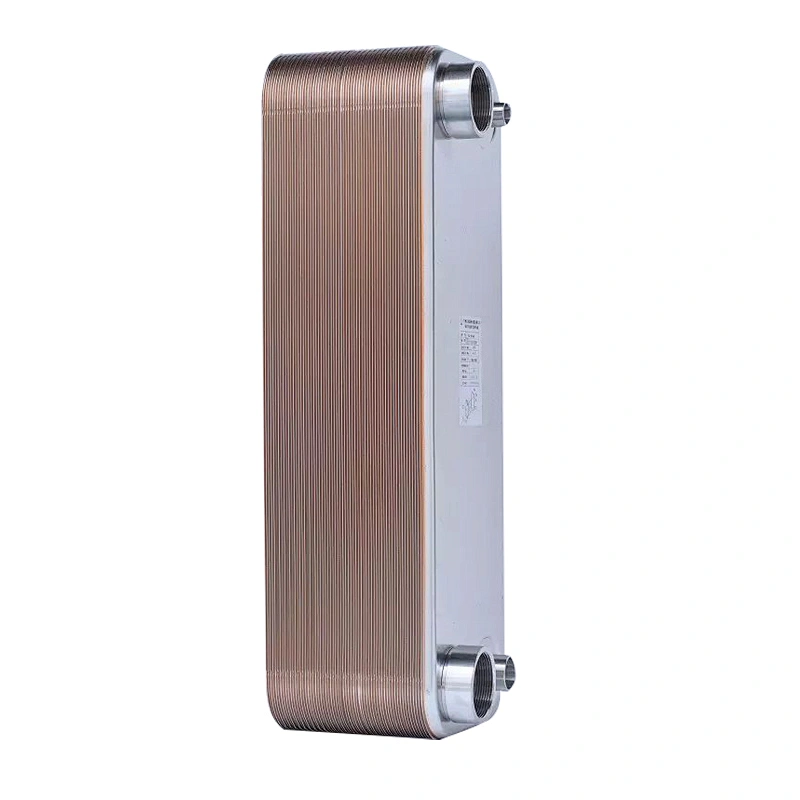

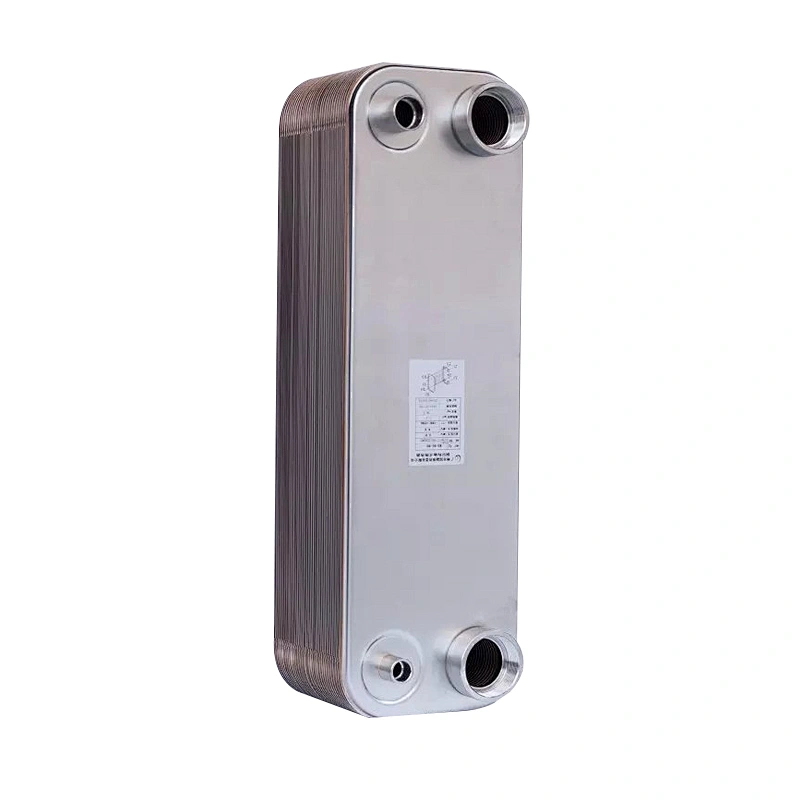

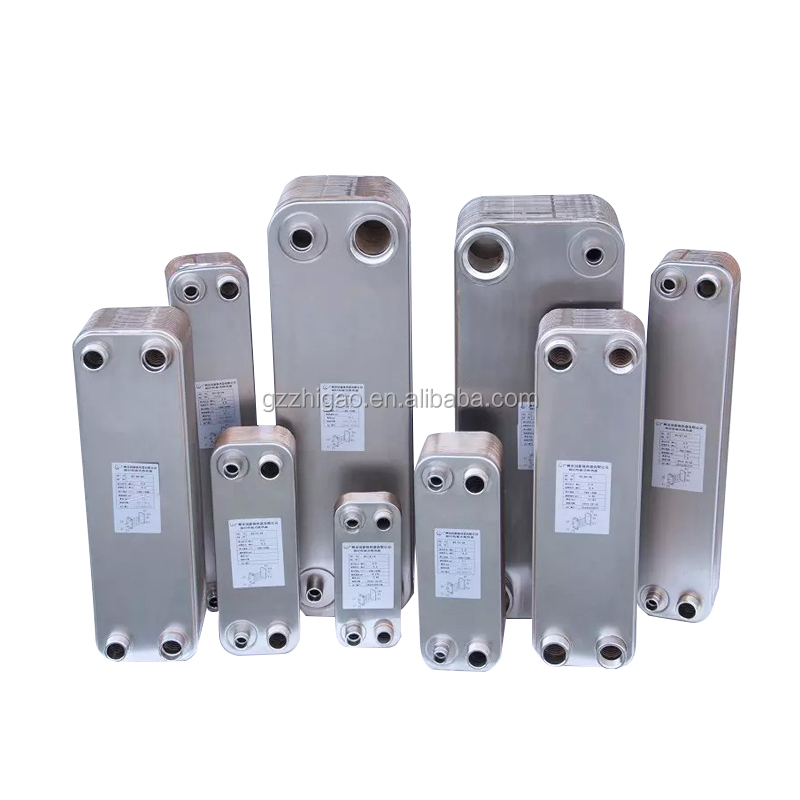

Meet Compressor Horse Power(HP) | Model | Size(mm) | Working Temperature | Working Pressure | Heating Exchange Surface |
5HP | B3-52-26 | 527*111*71 | ﹤200℃ | ﹤3．0MPa | 1.30m2 |
6HP | B3-52-30 | 527*111*81 | ﹤200℃ | ﹤3．0MPa | 1.51m2 |
7HP | B3-52-34 | 527*111*91 | ﹤200℃ | ﹤3．0MPa | 1.72m2 |
8HP | B3-52-38 | 527*111*100 | ﹤200℃ | ﹤3．0MPa | 1.92m2 |
10HP | B3-52-46 | 527*111*119 | ﹤200℃ | ﹤3．0MPa | 2.34m2 |
12HP | B3-52-56 | 527*111*143 | ﹤200℃ | ﹤3．0MPa | 2.86m2 |
15HP | B3-52-68 | 527*111*172 | ﹤200℃ | ﹤3．0MPa | 3.48m2 |
