Applicable Industries:Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Food Shop, Construction works , Food & Beverage Shops
Showroom Location:None
Video outgoing-inspection:Not Available
Machinery Test Report:Not Available
Marketing Type:Hot Product 2019
Warranty of core components:Not Available
Core Components:plate
Condition:New
Place of Origin:Guangdong, China
Brand Name:Guoxin
Structure:Plate Heat Exchanger
Liquid Flow Rate:2.5m/s
Maximum Working Pressure:3.0MPa
Voltage:220V
Weight:6 KG
Dimension(L*W*H):311*111 mm
Warranty:Normal
Working Temperature Range:Lower 200 °C
Key Selling Points:High Safety Level
Type:Evaporaor/Condenser
Application:Heating,cooling ,evaporator and condenser
Material:Stainless Steel
Test pressure::4.5/6.7
Designed pressure:3.0/4.5mpa
Shape:welded plate

Circulating Watering Cooling Oxygenerator Oil Cooler Stainless Steel Welded Plate Heat Exchanger Domestic Heat Exchanger

Product Description

How Welding plate heat exchanger work :

Welding plate heat exchanger is composed of a series of stamping forming of stainless steel plate;Of the way as shown in the figure below,two adjacent plate rotate 180 degree combination form channel,then the pure copper or nickel solder,in vacuum brazing furnace,stainless steel corrugated plate piece in the group of brazing plate heat exchanger,Channel is formed between sheets,Angle of pore distribution on the edges to alternate flows in two different media channels,numerous provides a good mechanical strength,contact point and edge contact point by copper brazing sealing,to ensure that booth sizes completely isolated among medium and the outside world.

Application Field

Textile paper industry:waste gas and liquid heat recover
Chemistry : heating ,cooling ,evaporator ,condenser
Power Industry :transformer oil cooler ,turbine oil cooler
Metallurgy Industry :rolling mill,continuous casting machine, oxygenerator oil cooler,circulating watering cooling.
District Heating : steam-water heating heat exchanger, intermediate heat exchange station heat exchanger ,secondary system water heating system.

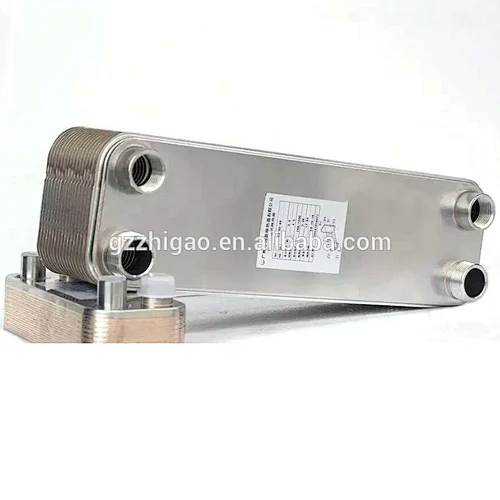

Refrigeration & air-conditioner & HAVC: evaporator, condenser ,gas super heater, liquid sub-cooler, heat regenerator

Specification

Meet Compressor Horse Power(HP)	Model	Size(mm)	Working Temperature	Working Pressure	Heating Exchange Surface
B3-27-16	*31111147*	﹤200℃	﹤3．0MPa	0.39m2	1HP
B3-27-24	*31111167*	﹤200℃	﹤3．0MPa	0.62m2	2HP
B3-27-34	*31111191*	﹤200℃	﹤3．0MPa	0.90m2	3HP
B3-27-42	311111110	﹤200℃	﹤3．0MPa	1.12m2	4HP
