Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location:None
Video outgoing-inspection:Not Available
Machinery Test Report:Not Available
Marketing Type:Hot Product 2019
Warranty of core components:Not Available
Core Components:stainless steel plate
Condition:New
Place of Origin:Guangdong, China
Brand Name:GUOXIN
Structure:Plate Heat Exchanger
Liquid Flow Rate:2.5m/s
Maximum Working Pressure:3.0MPa
Voltage:220V
Weight:10kg
Dimension(L*W*H):1125*450*50mm
Warranty:Normal
Working Temperature Range:lower 200°C
Key Selling Points:Long Service Life
Type:Evaporaor/Condenser
Application:Heating,cooling ,evaporator and condenser
Material:Stainless Steel
Hose power:<3HP
test pressure::4.5/6.7
designed pressure:3.0/4.5mpa
Shape:welded plate
After Warranty Service:No service
Local Service Location:None

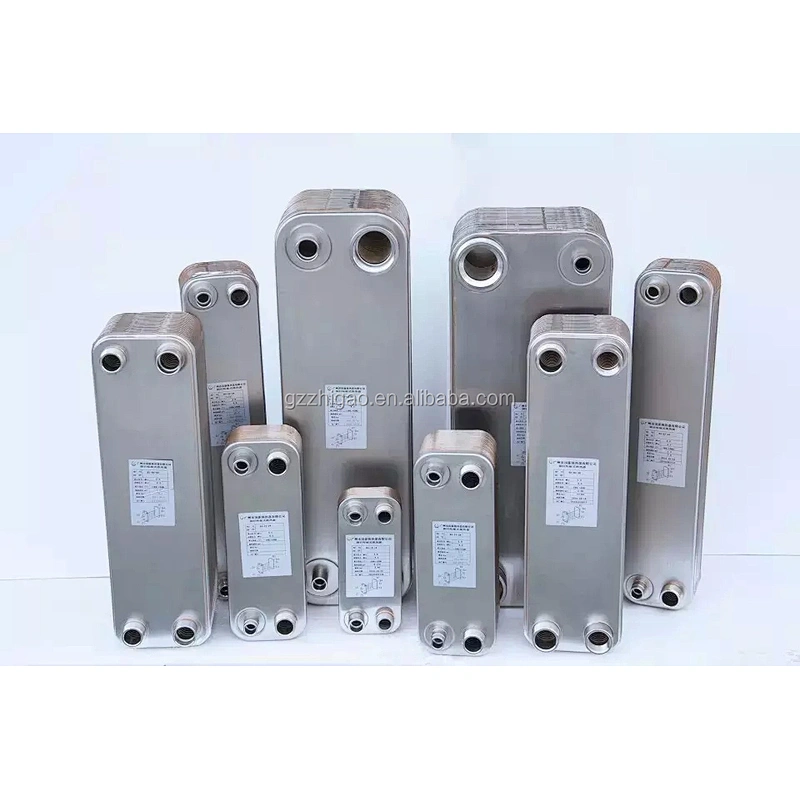

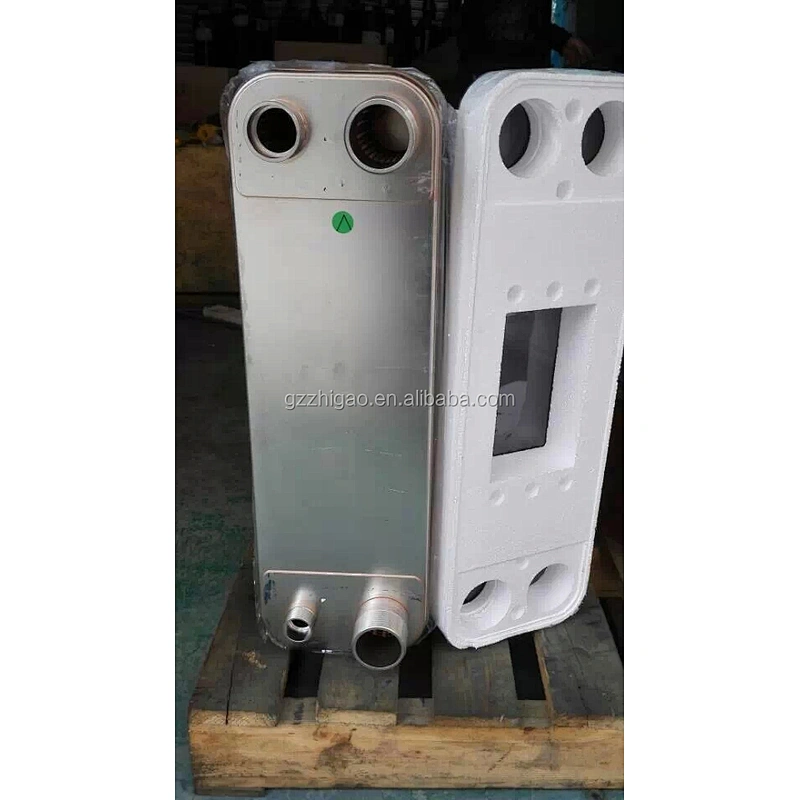

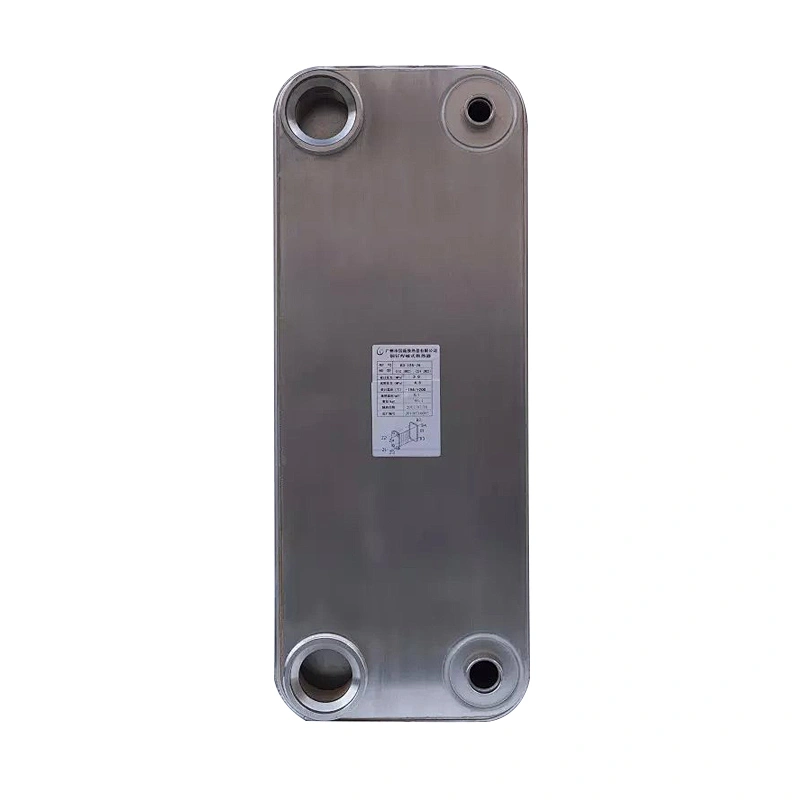

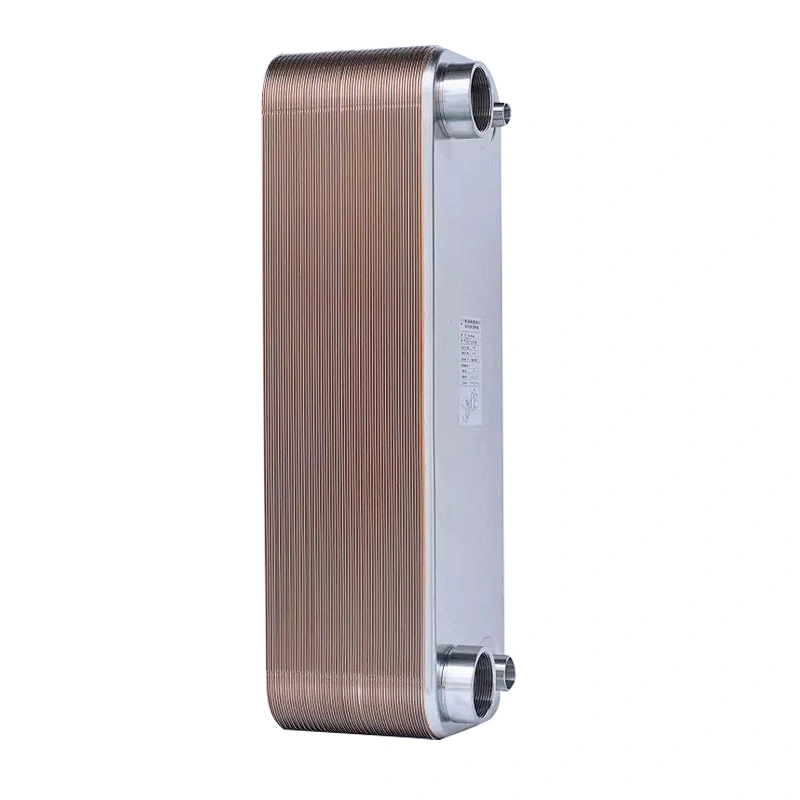

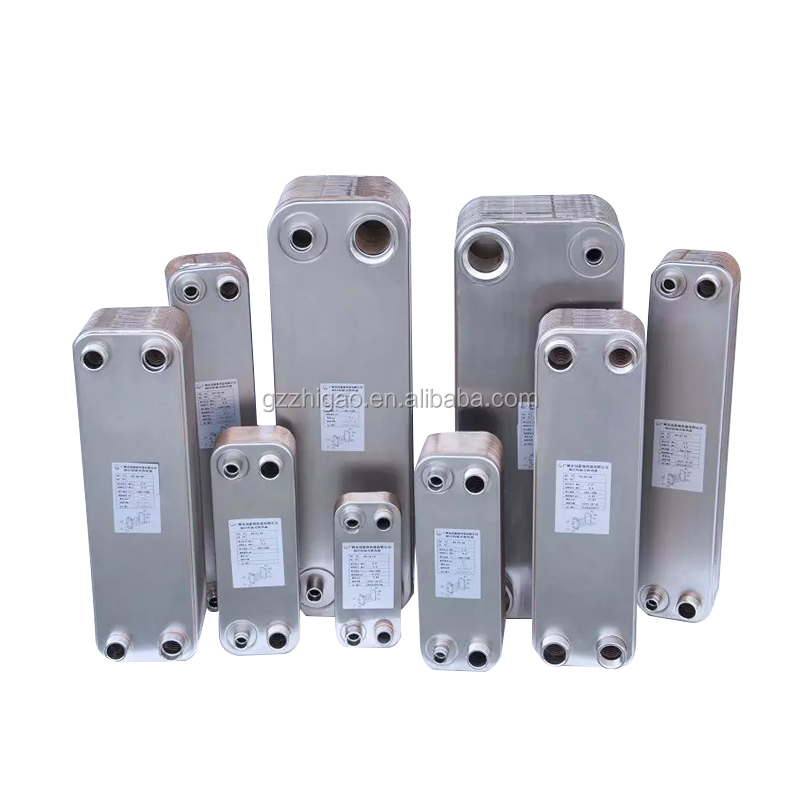

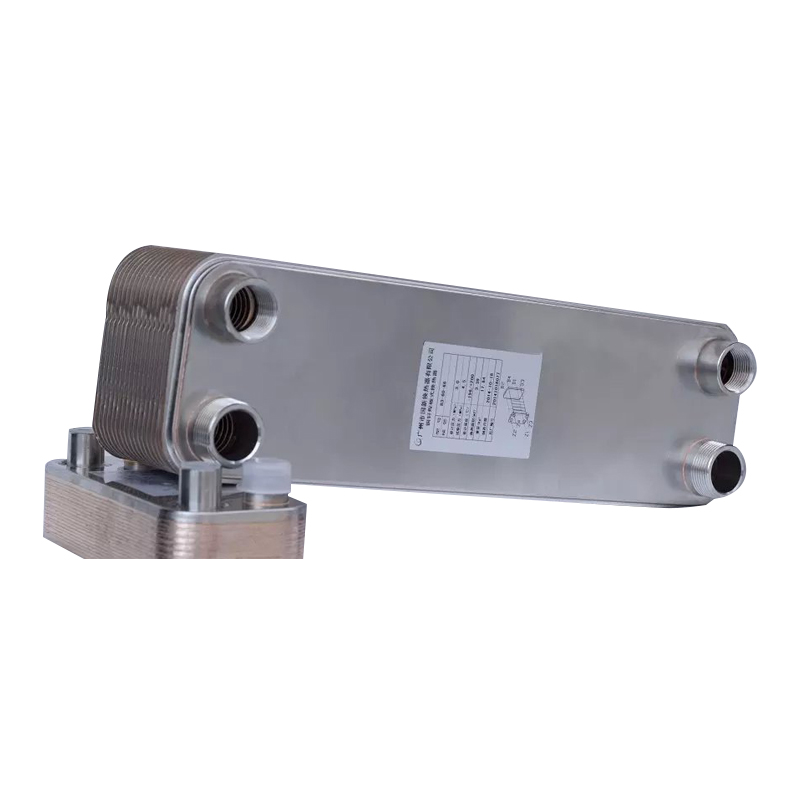

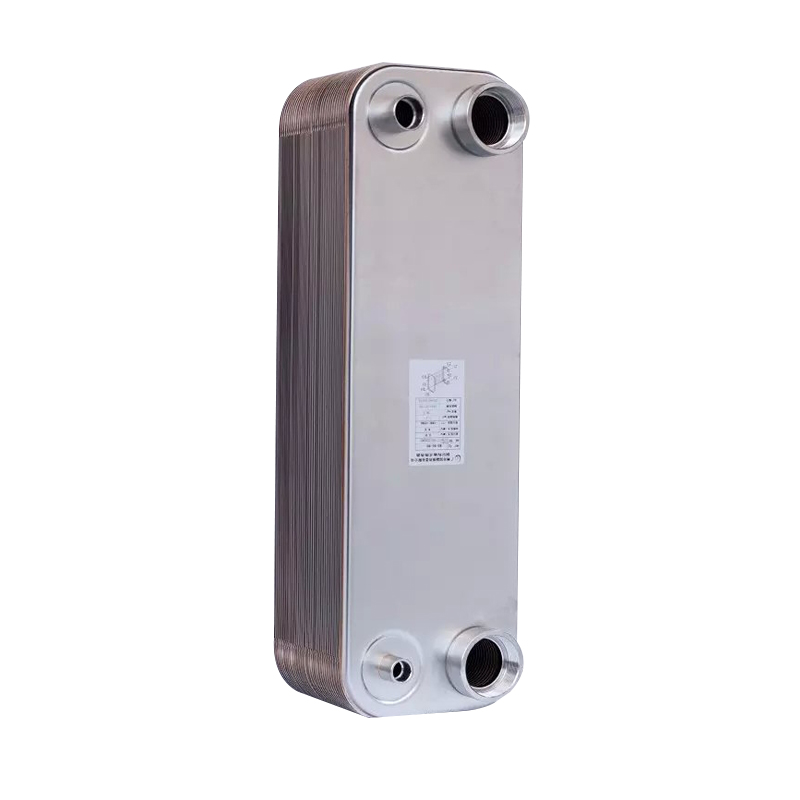

Steam-water Heating Heat Exchanger District heating machine spare part Brazed Plate Heat Exchanger 1HP to 40HP

Specification

Meet Compressor Horse Power(HP)	Model	Size(mm)	Working Temperature	Working Pressure	Heating Exchange Surface
<1HP	B3-16-16	*2229250*	﹤200℃	﹤3．0MPa	0.24 m2
<2HP	B3-16-24	*2229270*	﹤200℃	﹤3．0MPa	0.37 m2
<3HP	B3-16-30	*2229285*	﹤200℃	﹤3．0MPa	0.46 m2
1HP	B3-27-16	31111147	﹤200℃	﹤3．0MPa	0.39m2
2HP	B3-27-24	31111167	﹤200℃	﹤3．0MPa	0.62m2
3HP	B3-27-34	31111191	﹤200℃	﹤3．0MPa	0.90m2
4HP	B3-27-42	311111110	﹤200℃	﹤3．0MPa	1.12m2
5HP	B3-52-26	52711171	﹤200℃	﹤3．0MPa	1.30m2
6HP	B3-52-30	52711181	﹤200℃	﹤3．0MPa	1.51m2
7HP	B3-52-34	52711191	﹤200℃	﹤3．0MPa	1.72m2
8HP	B3-52-38	527111100	﹤200℃	﹤3．0MPa	1.92m2
10HP	B3-52-46	527111119	﹤200℃	﹤3．0MPa	2.34m2
12HP	B3-52-56	527111143	﹤200℃	﹤3．0MPa	2.86m2
15HP	B3-52-68	527111172	﹤200℃	﹤3．0MPa	3.48m2
20HP	B3-95-54	617192141	﹤200℃	﹤3．0MPa	5.04m2
25HP	B3-95-66	617192169	﹤200℃	﹤3．0MPa	6.18m2
30HP	B3-95-80	617192203	﹤200℃	﹤3．0MPa	7.51m2

Product Description

How Welding plate heat exchanger work

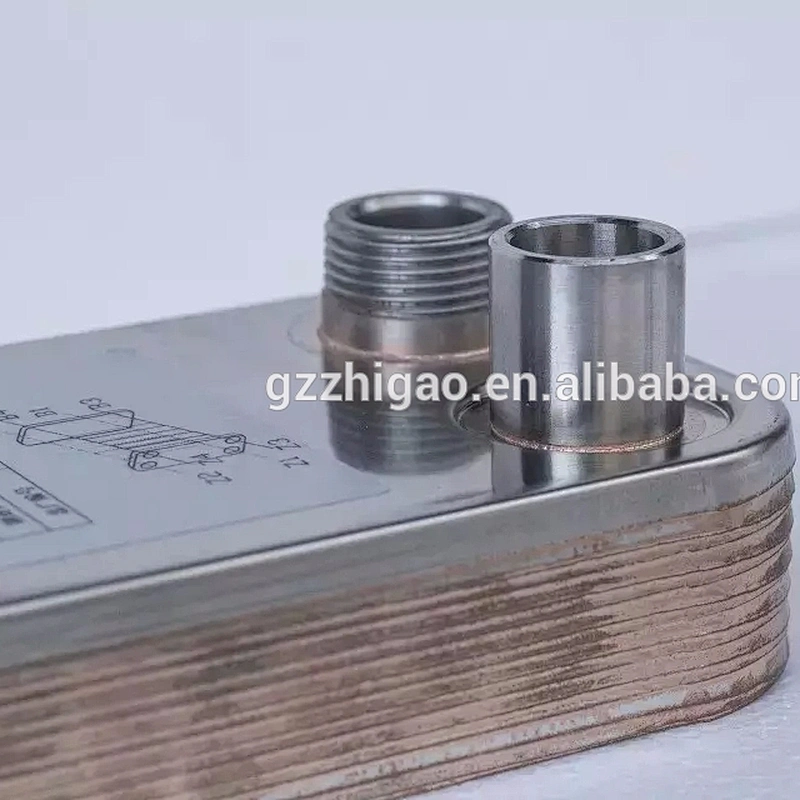

Welding plate heat exchanger is composed of a series of stamping forming of stainless steel plate;Of the way as shown in the figure below,two adjacent plate rotate 180 degree combination form channel,then the pure copper or nickel solder,in vacuum brazing furnace,stainless steel corrugated plate piece in the group of brazing plate heat exchanger,Channel is formed between sheets,Angle of pore distribution on the edges to alternate flows in two different media channels,numerous provides a good mechanical strength,contact point and edge contact point by copper brazing sealing,to ensure that booth sizes completely isolated among medium and the outside world.

Application Field1.Textile paper industry : waste gas and liquid heat recovery 2.Chemistry: heating ,cooling ,evaporator ,condenser 3.Power industry ,transformer oil cooler ,turbine oil cooler4.Metallurgy industry : rolling mill,continuous casting machine, oxygenerator oil cooler,circulating watering cooling.5.District heating : steam-water heating heat exchanger, intermediate heat exchange station heat exchanger ,secondary system water heating system.6.Refrigeration & air-conditioner and HAVC, evaporator, condenser ,gas super heater, liquid sub-cooler, heat re-generator
