Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location:None
Video outgoing-inspection:Not Available
Machinery Test Report:Not Available
Marketing Type:Hot Product 2019
Warranty of core components:Not Available
Core Components:stainless steel plate
Condition:New
Place of Origin:Guangdong, China
Brand Name:GUOXIN
Structure:Plate Heat Exchanger
Liquid Flow Rate:2.5m/s
Maximum Working Pressure:3.0MPa
Voltage:220V
Weight:12 KG
Dimension(L*W*H):527*111*119 mm
Warranty:Normal
Working Temperature Range:lower 200°C
Key Selling Points:Long Service Life
Type:Evaporaor/Condenser
Application:Heating,cooling ,evaporator and condenser
Material:Stainless Steel and copper
Hose power:10HP
Test pressure:4.5/6.7 mpa
Designed pressure:3.0/4.5mpa
Shape:welded plate
After Warranty Service:No service
Local Service Location:None
Certification:ce

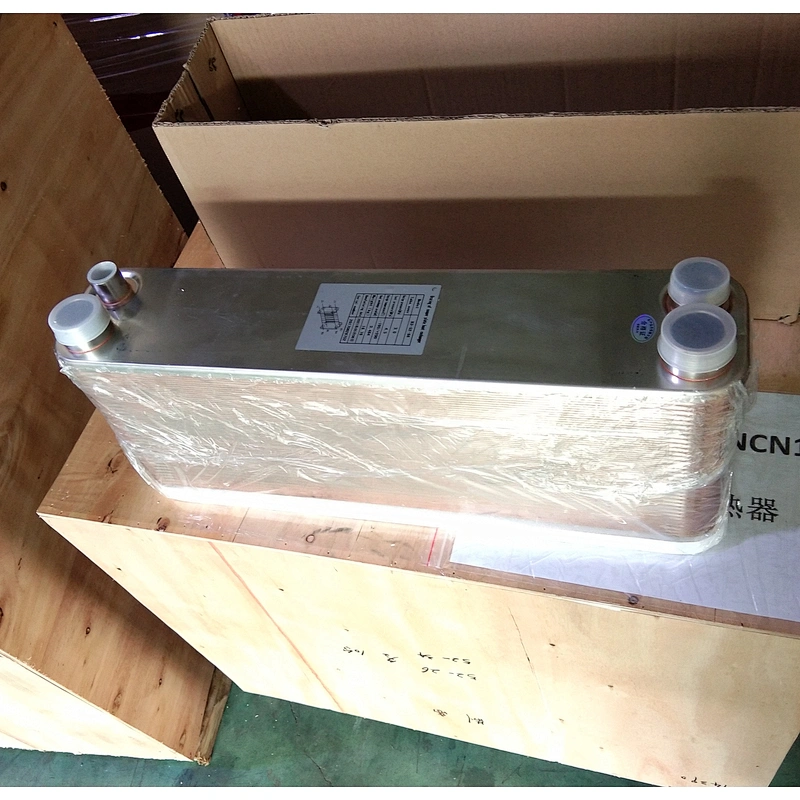

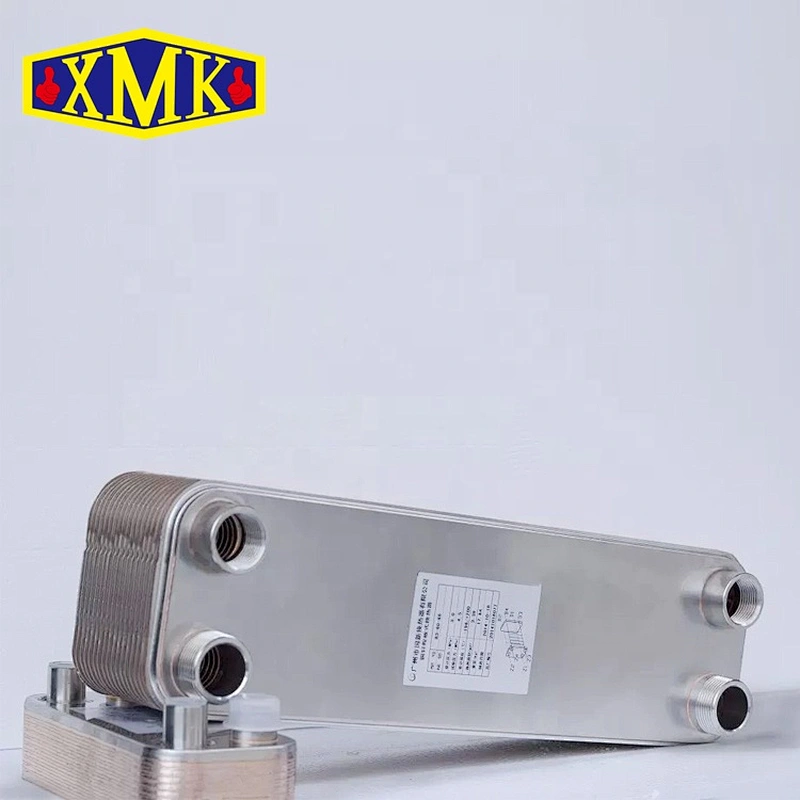

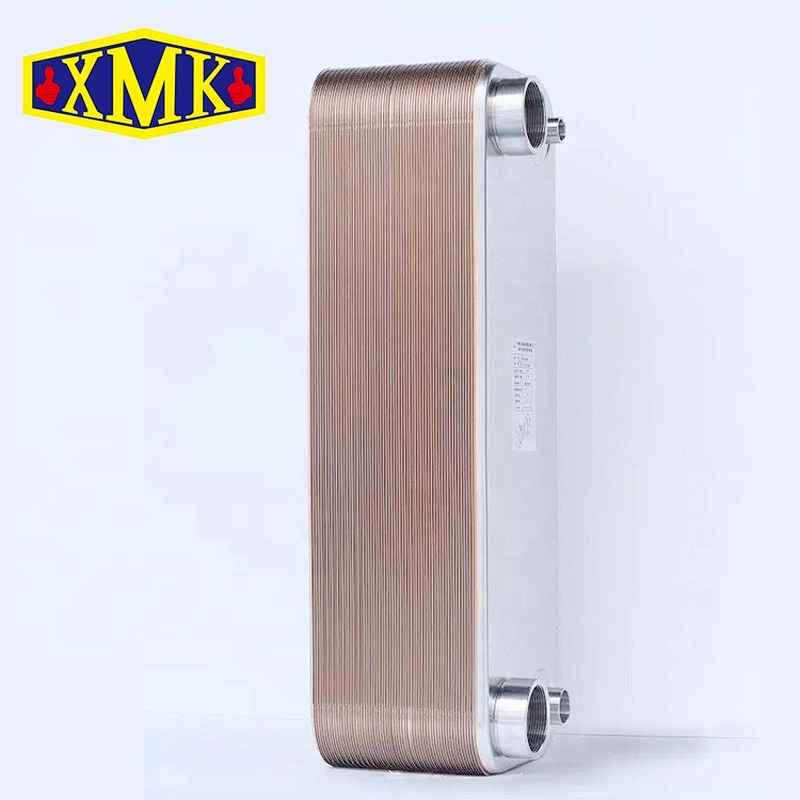

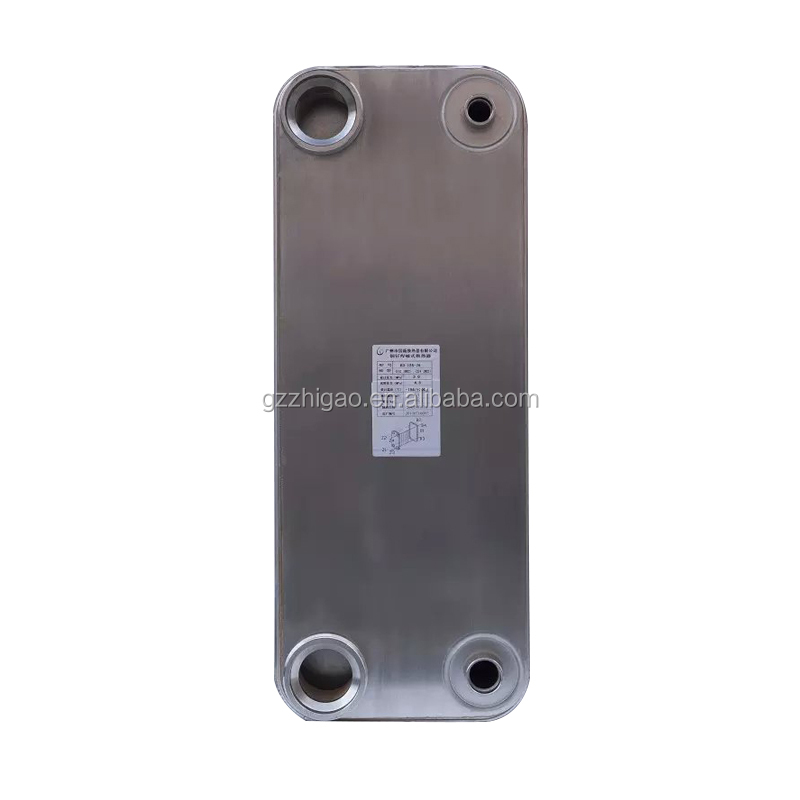

Stainless steel plate heat exchanger refrigerator plate heat exchanger 10HP

Product Description

Heat Transfer Characteristics.

1.Compact structure ,easy to install2.Light weight, only about 20 to 30% of the tube and shell heat exchanger3. Durable, able to bear high temperature and high pressure4.Dirt coefficient is low, the high turbulence reduces the dirt coefficient, thus reducing the washing time.5.High heat transfer efficiency, less water consumption

Application Field1.Textile paper industry : waste gas and liquid heat recovery 2.Chemistry: heating ,cooling ,evaporator ,condenser 3.Power industry ,transformer oil cooler ,turbine oil cooler4.Metallurgy industry : rolling mill,continuous casting machine, oxygenerator oil cooler,circulating watering cooling.5.District heating : steam-water heating heat exchanger, intermediate heat exchange station heat exchanger ,secondary system water heating system.6.Refrigeration & air-conditioner and HAVC, evaporator, condenser ,gas super heater, liquid sub-cooler, heat re-generator

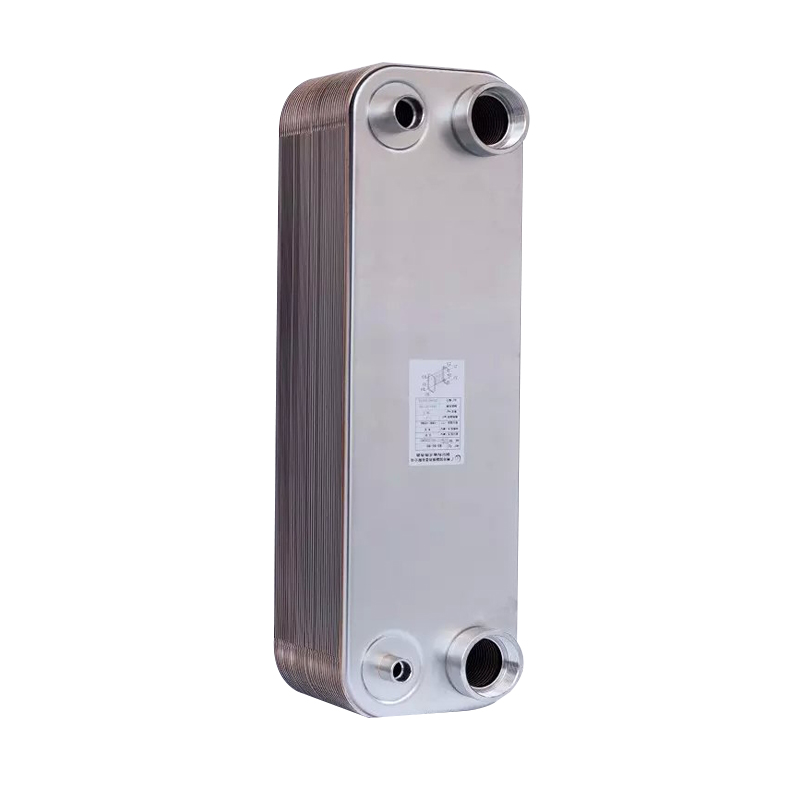

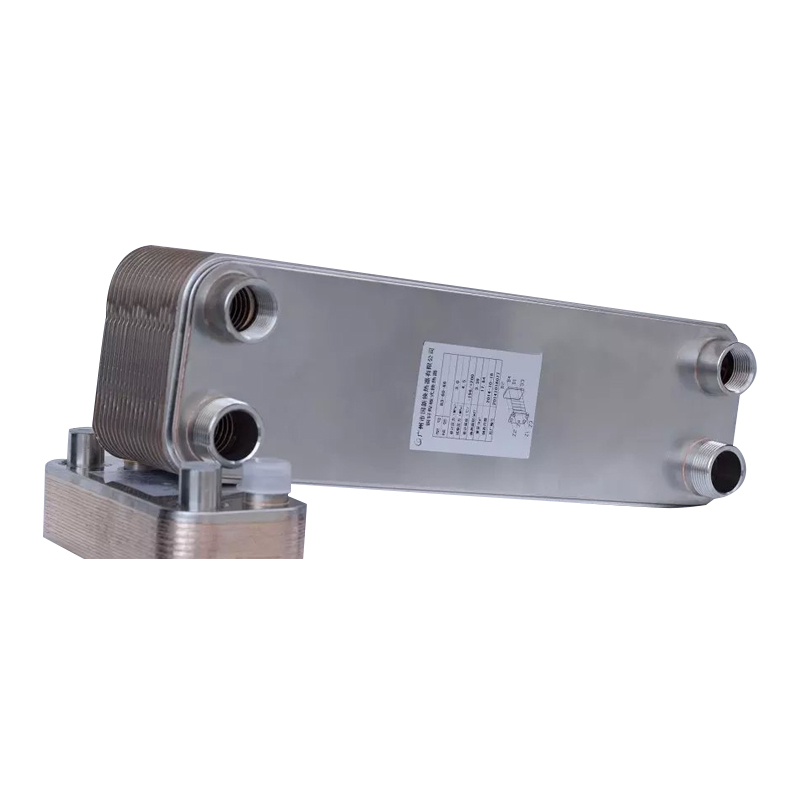

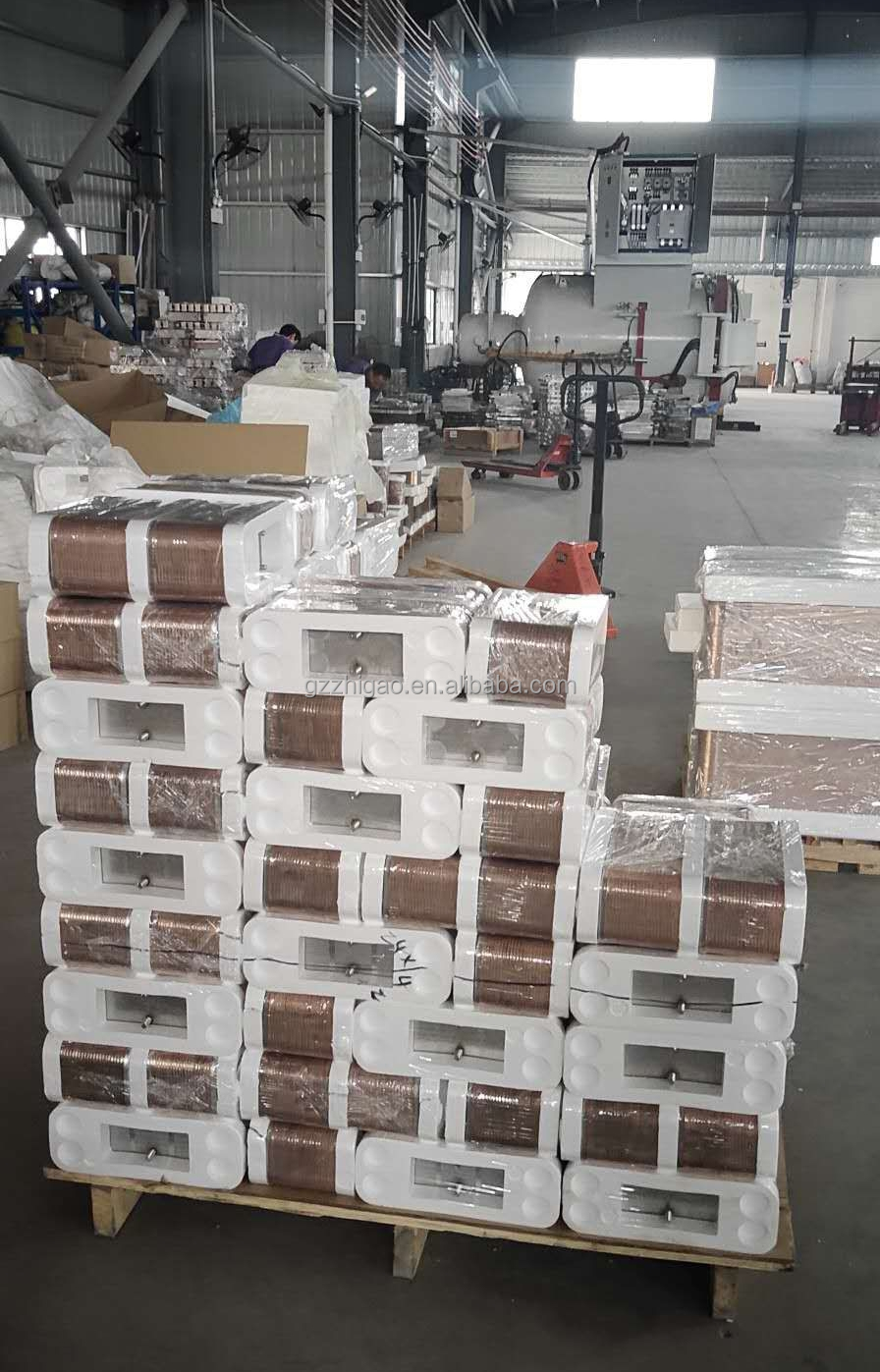

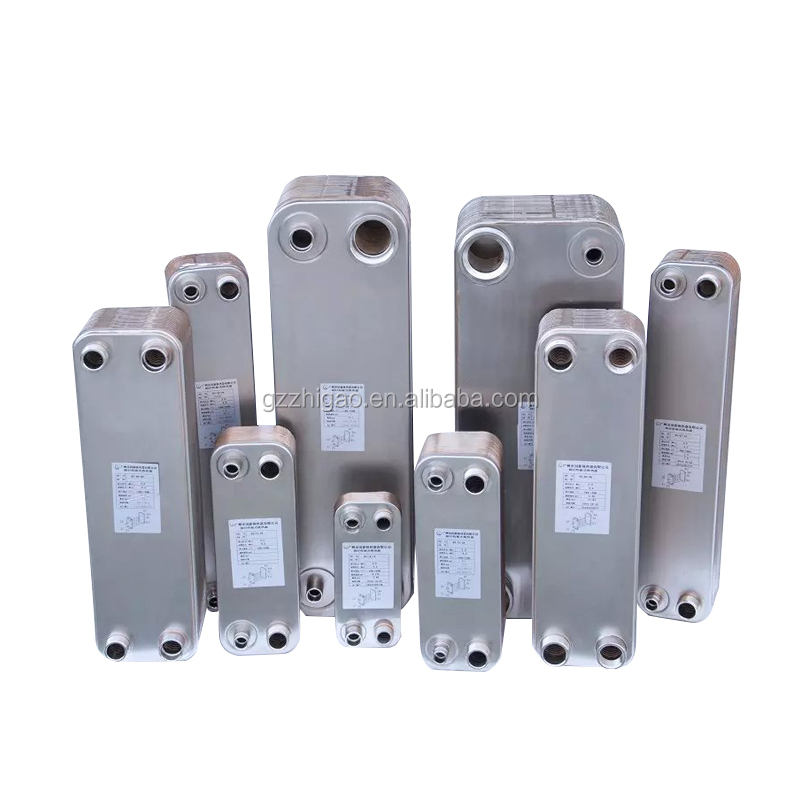

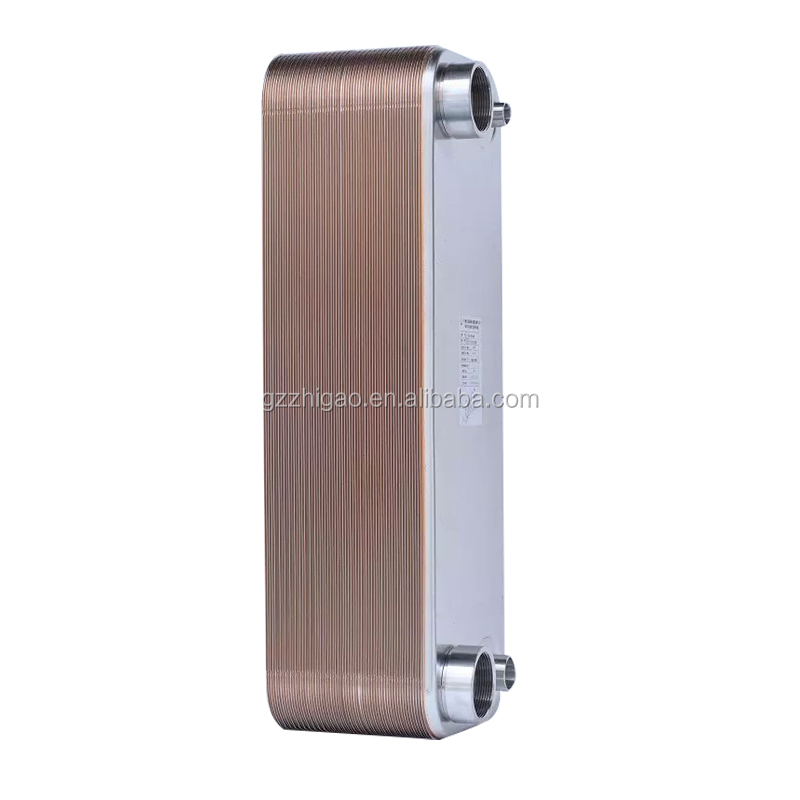

Details Images

Specification

Meet Compressor Horse Power(HP)	Model	Size(mm)	Working Temperature	Working Pressure	Heating Exchange Surface
<1HP	B3-16-16	2229250	﹤200℃	﹤3．0MPa	0.24 m2
<2HP	B3-16-24	2229270	﹤200℃	﹤3．0MPa	0.37 m2
<3HP	B3-16-30	2229285	﹤200℃	﹤3．0MPa	0.46 m2
1HP	B3-27-16	31111147	﹤200℃	﹤3．0MPa	0.39m2
2HP	B3-27-24	31111167	﹤200℃	﹤3．0MPa	0.62m2
3HP	B3-27-34	31111191	﹤200℃	﹤3．0MPa	0.90m2
4HP	B3-27-42	311111110	﹤200℃	﹤3．0MPa	1.12m2
5HP	B3-52-26	52711171	﹤200℃	﹤3．0MPa	1.30m2
6HP	B3-52-30	52711181	﹤200℃	﹤3．0MPa	1.51m2
7HP	B3-52-34	52711191	﹤200℃	﹤3．0MPa	1.72m2
8HP	B3-52-38	527111100	﹤200℃	﹤3．0MPa	1.92m2
10HP	B3-52-46	*527111119*	﹤200℃	﹤3．0MPa	2.34m2
12HP	B3-52-56	527111143	﹤200℃	﹤3．0MPa	2.86m2
15HP	B3-52-68	527111172	﹤200℃	﹤3．0MPa	3.48m2
20HP	B3-95-54	617192141	﹤200℃	﹤3．0MPa	5.04m2
25HP	B3-95-66	617192169	﹤200℃	﹤3．0MPa	6.18m2
30HP	B3-95-80	617192203	﹤200℃	﹤3．0MPa	7.51m2
