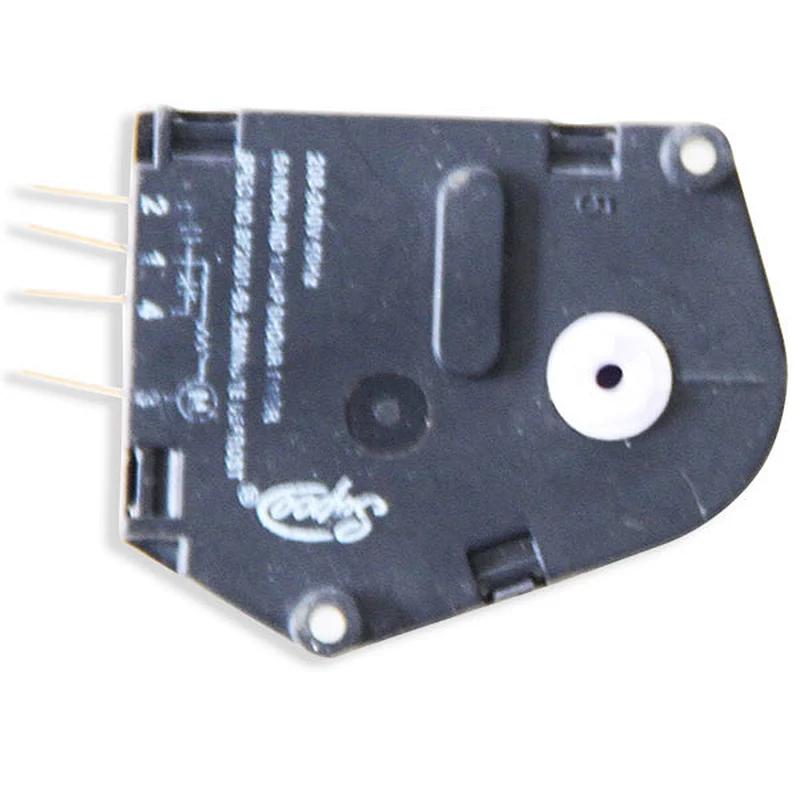

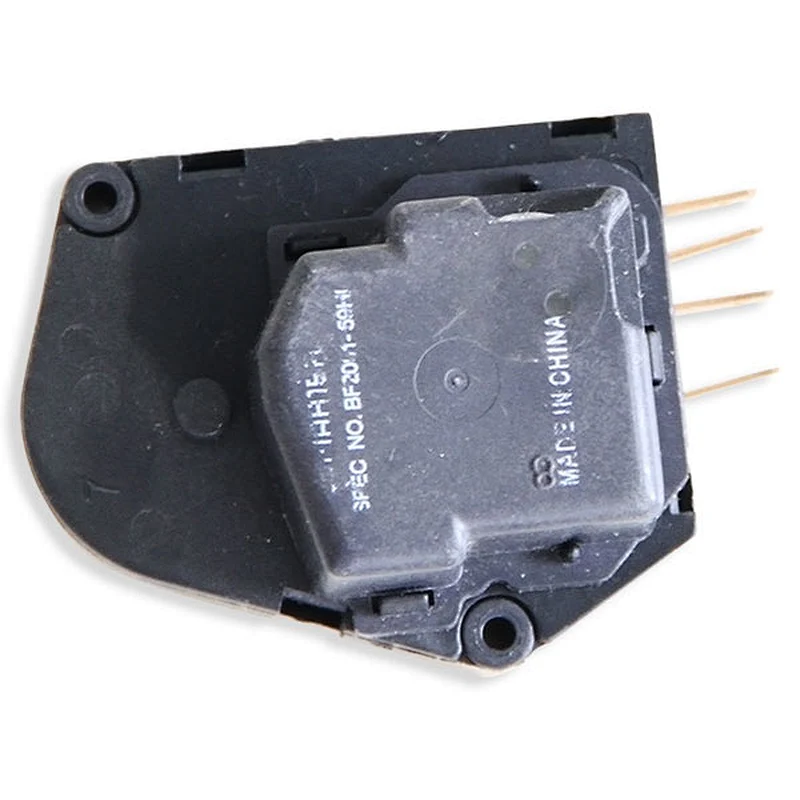

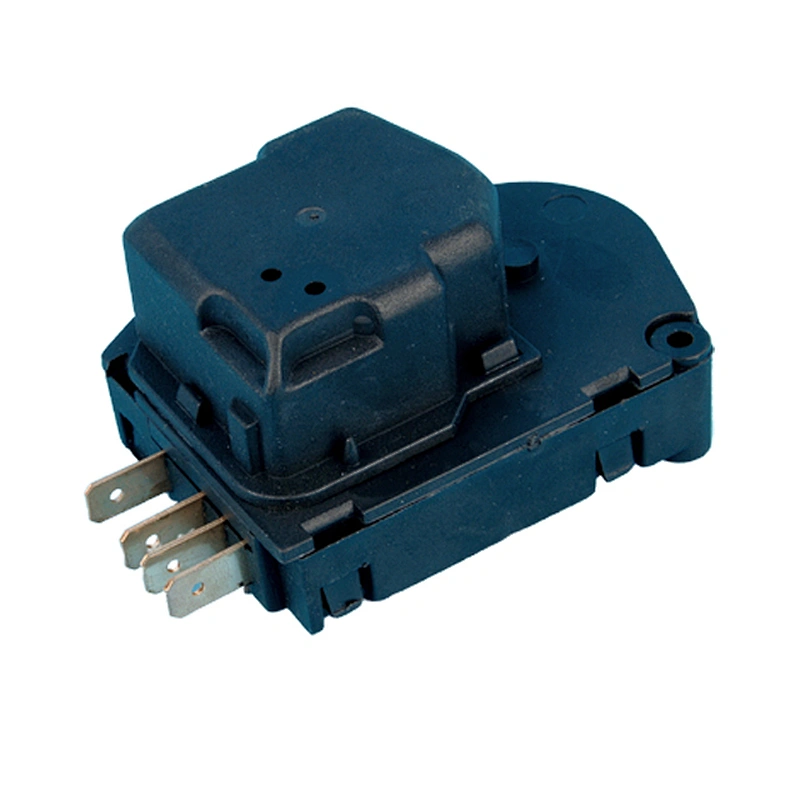

TMDC625-1 Defrost Timer
206-240V, 50/60Hz
5A
6 Hour and 25 Minute

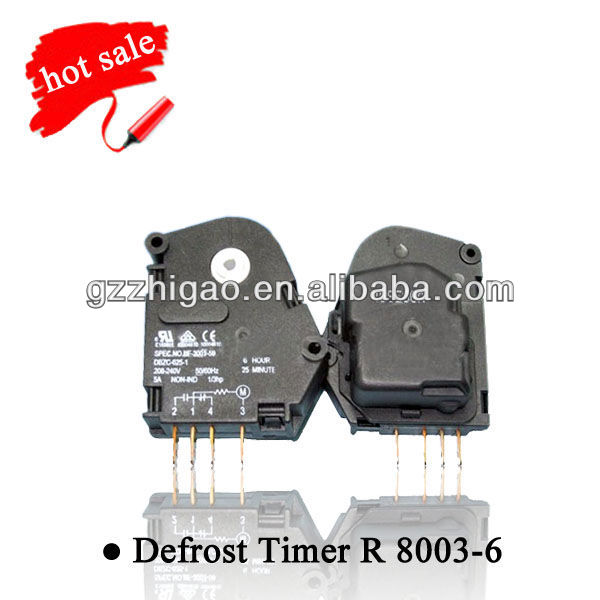

Defrost Timer (R 8003-6 Hour Timer)
freezer defrost timer,refrigerator timer is designed to control the defrosting time for freezing system device application.
freezer defrost timer,refrigerator timer is designed to control the defrosting time for freezing system device application.
Defrost timer( series) driven by mini-ACS(Alternating Current Synchronous) motors, good timing, little power consumption, low noise; high capacity switch design, better loading capacity; sophisticated structure, suitable for installing inside or outside

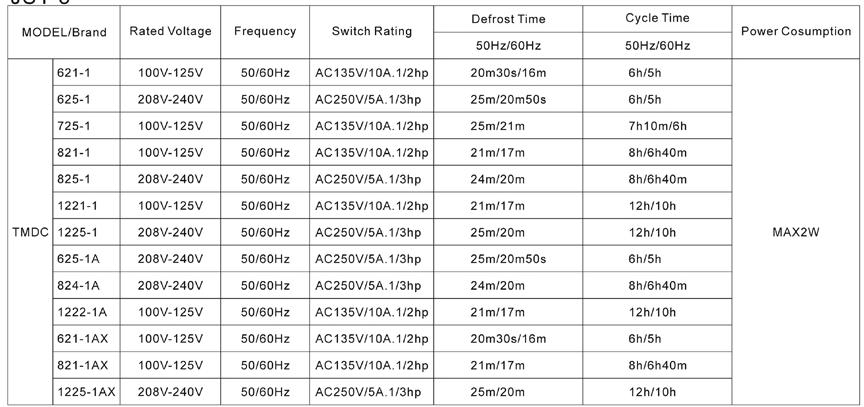

refrigerator defrost Timer parameters
Specification:
Voltage 100-125V
frequency 50/60HZ
Defrot time:20m/16m/30s
Cycle time:6h/5h
Switch rating:135V/10A,1/2hp
power cosumption:max 2w
Package:100 pcs / carton
Electric parameters: 220V 50/60Hz 3W 110V 50/60Hz 3W
Operating Time: 8H
Defrosting Time: 15minutes
Working Life: more than 100,000 times defrosting.
