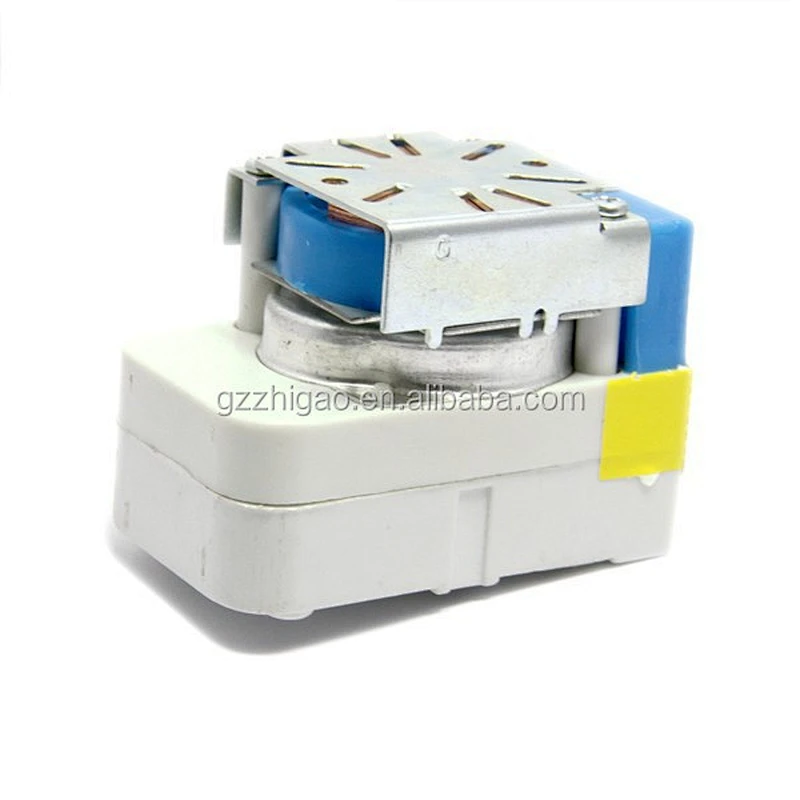

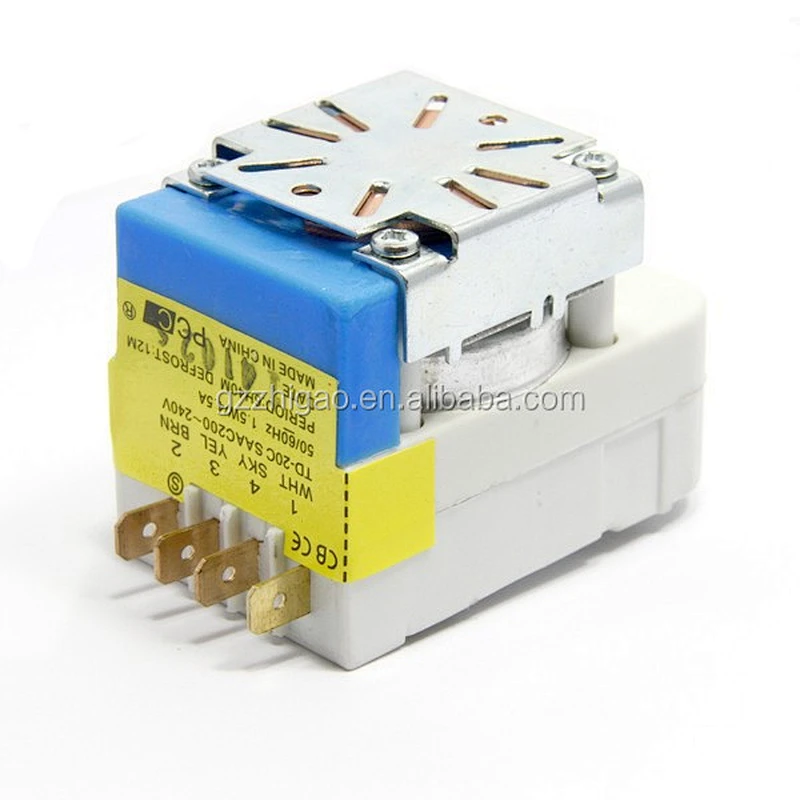

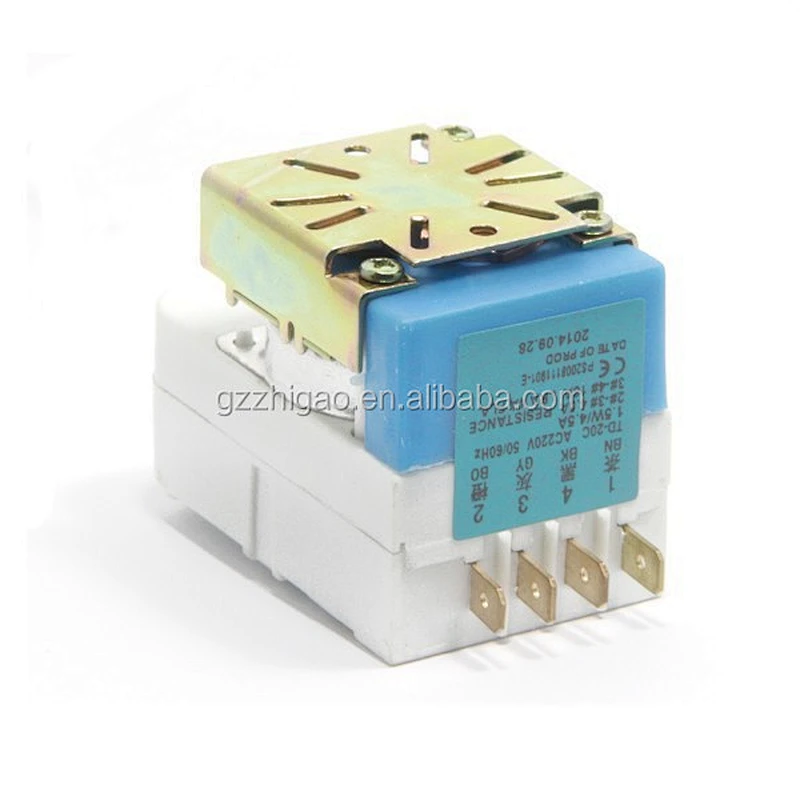

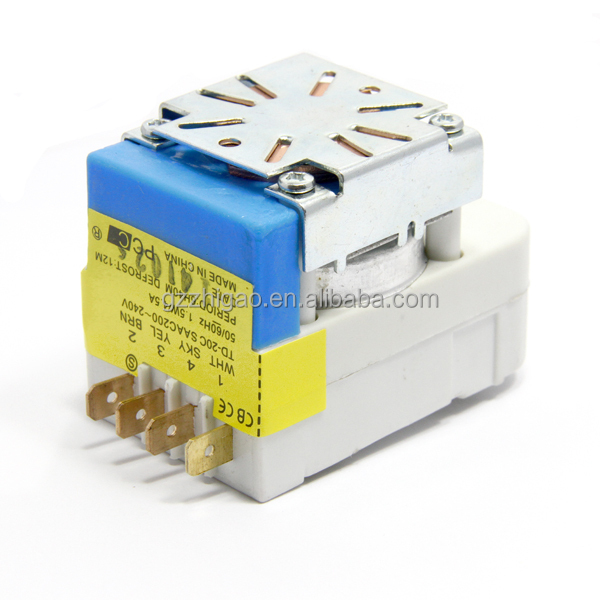

R 8008 TD-20C Samsung Defrost Timer
200-240V, 50/60Hz
5A
7 Hour and 2 Minute
freezer defrost timer,refrigerator timer is designed to control the defrosting time for freezing system device application.
freezer defrost timer,refrigerator timer is designed to control the defrosting time for freezing system device application.
Defrost timer( series) driven by mini-ACS(Alternating Current Synchronous) motors, good timing, little power consumption, low noise; high capacity switch design, better loading capacity; sophisticated structure, suitable for installing inside or outside

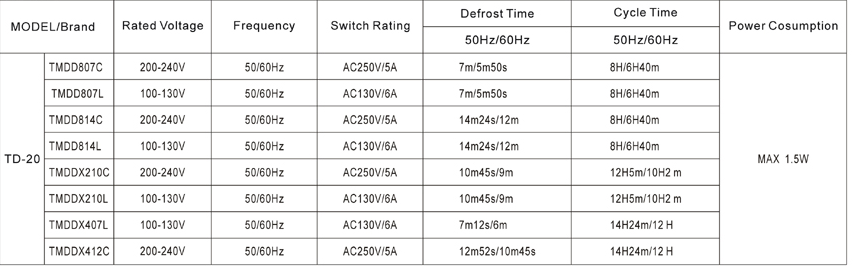

refrigerator defrost Timer parameters
Specification:
Electric parameters: 220V 50/60Hz 3W 110V 50/60Hz 3W
Operating Time: 8H
Defrosting Time: 15minutes
Working Life: more than 100,000 times defrosting.
| Voltage rating | Frequency | Incoming current | Input Power | Load | |

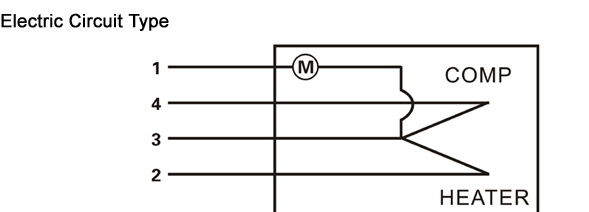

| 3-2(Connecting defrosting loop) | 3-4(Connecting compressor ) | ||||
| AC200-240V | 50/60Hz | 15mA | 1.8W/1.5W | 250V 6A | 1/3hp1/2hp |
| AC100-120V | 50/60Hz | 15mA | 1.8W/1.5W | 125V 10A | 1/3hp |
| AC100-130V | 50/60Hz | 18mA | 1.8W/1.5W | 140V 15A | 1/3hp |
| Number | Item Number(factory number) | Export Item number |
| 1 | JS1-6-807 | TMD-D-807C* |
| 2 | JS1-6-807 | TMD-D-807MT* |
| 3 | JS1-6-807 | TMD-D-807CT* |
| 4 | JS1-6-807 | TMD-D-807L |
| 5 | JS1-6-807 | TMD-D-807GCT |
| 6 | JS1-6-814 | TMD-D-814CSA* |
| 7 | JS1-6-814 | TMD-D-814LSA |
| 8 | JS1-6-814 | TMD-D-814LSPC |
| 9 | JS1-6-1206 | TMD-D-1206CNX* |
| 10 | JS1-6-1210 | TMD-D-1210NS* |
| 11 | JS1-6-1210 | TMD-D-1210CNS* |
| 12 | JS1-6-1210 | TMD-D-1210NT |
| 13 | JS1-6-1210 | TMD-D-1210LND |
| 14 | JS1-6-1210 | TMD-D-1210LNTC |
| 15 | JS1-6-1407 | TMD-D-1407LVM |
| 16 | JS1-6-1412 | TMD-D-1412CVD* |
| 17 | JS1-6-1412 | TMD-D-1412LVD |
| 18 | JS1-6-1412 | TMD-D-1412GVD |
