After-sales Service Provided:None
Warranty:None
Type:Refrigerator Parts
Application:Commercial, Household
Power Source:Electric
Place of Origin:Zhejiang, China
Brand Name:OEM
Model Number:TMDF702KA2
Condition:New
color:white
Voltage:220V
frequency:50/60HZ
Defrot time:2m/24s/2m
Cycle time:8h46m/7h19m
Switch rating:250V/5A
power cosumption:max 1.7w
Package:100 pcs / carton
Model number:TMDF702KA2

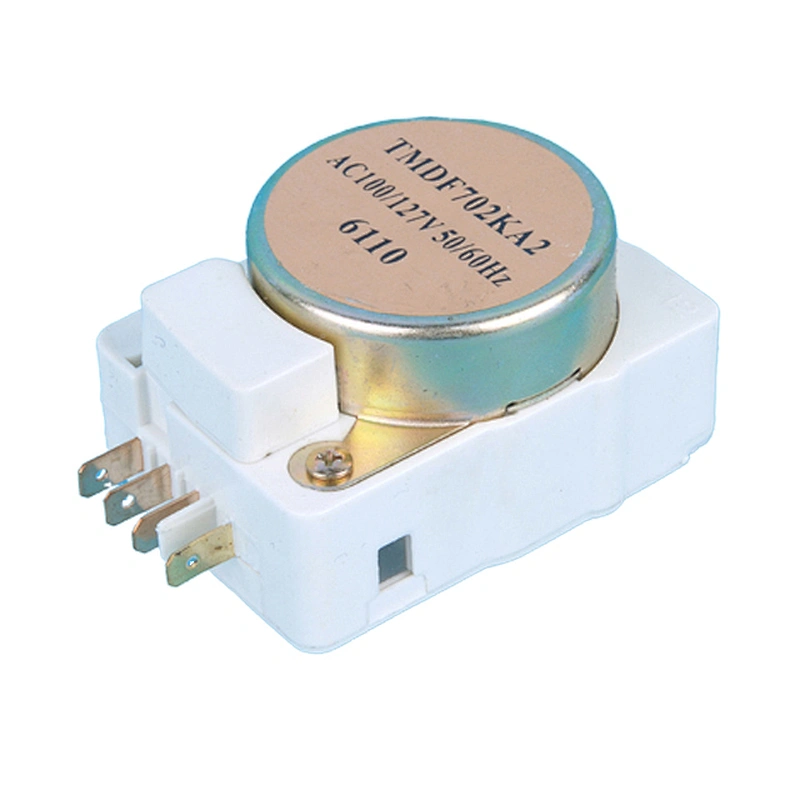

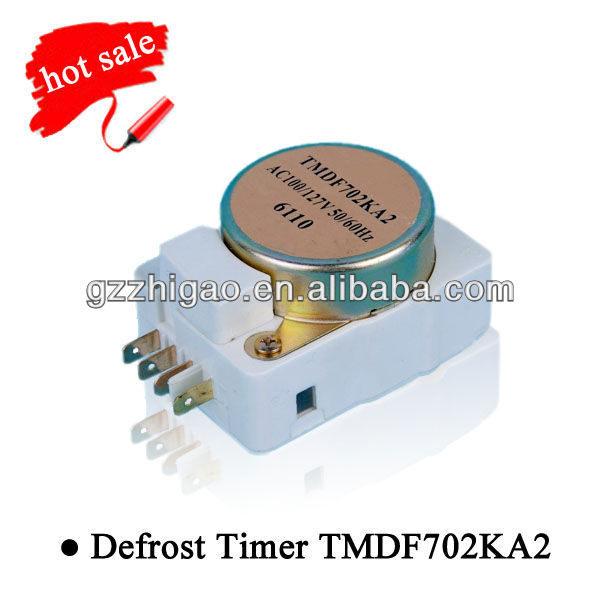

Defrost Timer TMDF702KA2:

TMDF 702KA2

Voltage 220V
frequency 50/60HZ
Defrot time:2m/24s/2m
Cycle time:8h46m/7h19m
Switch rating:250V/5A
power cosumption:max 1.7w
Package:100 pcs / carton

Defrost timer(Refrigerator defrost timer,refrigerator timer)

The refrigerator defrost timer is special designed for export customer to controlling defrosting timer.

The defrost timer is applicable for controlling defrost timing in the refrigerating systems of the refrigerator and other freezer.Defrost timer( series) driven by mini-ACS(Alternating Current Synchronous) motors, good timing, little power consumption, low noise; high capacity switch design, better loading capacity; sophisticated structure, suitable for installing inside or outside refrigeratorTime parameters

Tech specification is as below.

Application: refrigerator &other freezers.

Rated voltage: AC208~240V 50/60HZ

Cycle time(T1): 6Hours/8H/10H

Operating Temp range: Minus 10 degrees Celsius---60 degrees Celsius.

Defrost time(T2): 21Min/25MIN/30MIN

Also we can design and produce according to your requirement.

Specifications:

1 Particular blocking design and optimized the structure ensure the product to work stably with long term.

2 Synchronous gearbox provides extremely quiet operation.

3 Positioning freedom , can be mounted in any plane.

4 Plastics cover, completely enclosed, without screws, requires no earth grounding.
