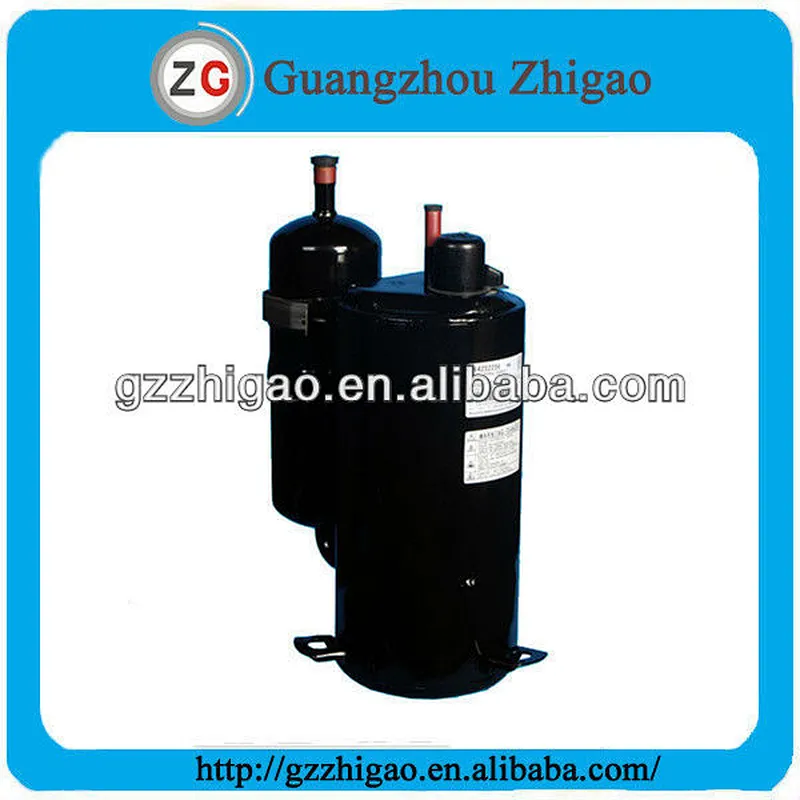

R410A Rotary compressor, Panasonic Compressor 5PS108EAA22
Product description
1. Panasonic Rotary compressor
2. Used Refrigerant R410A
3. Voltage: 220-240V/50HZ
4. Cooling capacity: 2535W
5. Run Capacitor: 30uF/440V
6.Technical sheet:
| Model | 5PS108EAA22 |
| Voltage | 220V-240V |
| Frequency | 50Hz |
| Phase Condition | 1 phase |
| Work Condition | T1 |
| Refrigerant | R410A |
| Refrigerating Capacity (W) | 2515W/2535W |
| In-put Power | 880W |
| Run Capacitor | 30 μF |
| Voltage | 440V |
7. We can supply more Panasonic Rotary Compressor models as below:
1) R410A, 220V-240V ~ 50HZ / 208~230V / 115V ~ 60HZ
| Model | HP/Watt | Voltage/Refrigerant |
| 5PS102EAA22 | 1HP(2440W) | R410A 220-240V/50HZ |
| 5PS108EAA22 | 1HP(2535W) | |
| 5PS132EAA22 | (3150W) | |
| 5KS146EAA21 | 1.5HP(3520W) | |
| 5KS205EAB21 | Small 2HP(4930W) | |
| 5KS225EAA21 | 2HP(5450W) | |
| 5VS295EAA21 | 2.5HP(7220W) | |
| 5RS080FBA21 | 2265W | R410A 208~230V/60HZ |
| 5PS118FBA21 | 1.5HP(3430W) | |
| 5PS136FBA21 | 3965W | |
| 5PS146FAA21 | 4325W | |
| 5KS170FBB21 | 2HP(5120W) | |
| 5RS058UAA21 | 1640W | R410A 115V/60HZ |
| 5RS072UBA21 | 2042W | |
| 5PS118UBA21 | 1.5HP(3450W) | |
| 5RS080XBD01 | 1HP | R410A Inverter |
| 5RS102ZAA01 | 1.5HP | |
| 5RS132 | 2HP | |
| 5KD240XCZ21 | 3HP | |
| 5HP |
2) R22, 220V-240V / 380V~ 50HZ
| Model | Capacity | Capacitor | Voltage | gas | pallet | |
| W | BTU/H | |||||
| 2R11B225ASE | 1745 | 5954 | 12.5UF/460v | 220V-240V 50HZ | R22 | 64 |
| 2P14S225ANE | 2220 | 7575 | 30uf/370v | 220V-240V 50HZ | R22 | 60 |
| 2P17S225ANQ | 2770 | 9451 | 30uf/370v | 220V-240V 50HZ | R22 | 60 |
| 2P20C225BNG | 3245 | 11072 | 30uf/400v | 220V-240V 50HZ | R22 | 50 |
| 2K22S225BUA | 3835 | 13085 | 35uf/370v | 220V-240V 50HZ | R22 | 50 |
| 2K25S225BUA | 4245 | 14475 | 40uf/370v | 220V-240V 50HZ | R22 | 50 |
| 2K28C225DUA | 4665 | 15900 | 45uf/370v | 220V-240V 50HZ | R22 | 40 |
| 2V32S225AUA | 5410 | 18459 | 60uf/370v | 220V-240V 50HZ | R22 | 40 |
| 2V34S225AUA | 5810 | 19824 | 60uf/400v | 220V-240V 50HZ | R22 | 40 |
| 2V36S225BUA | 6140 | 20950 | 50uf/400v | 220V-240V 50HZ | R22 | 40 |
| 2V42S225AUA | 7200 | 24566 | 50uf/370v | 220V-240V 50HZ | R22 | 40 |
| 2V44W385AUA | 7670 | 26154 | 60uf/370v | 380V 50HZ | R22 | 40 |
| 2V47W385AUA | 8235 | 28098 | 60uf/400v | 380V 50HZ | R22 | 40 |
Reference pictures

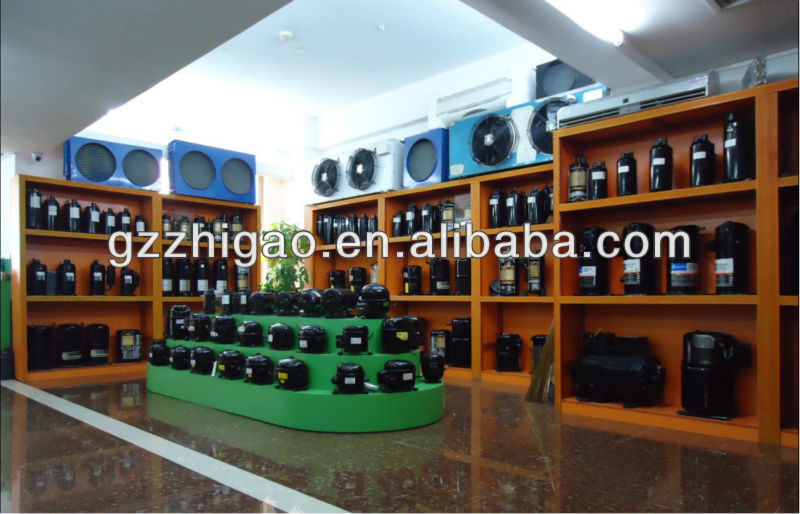

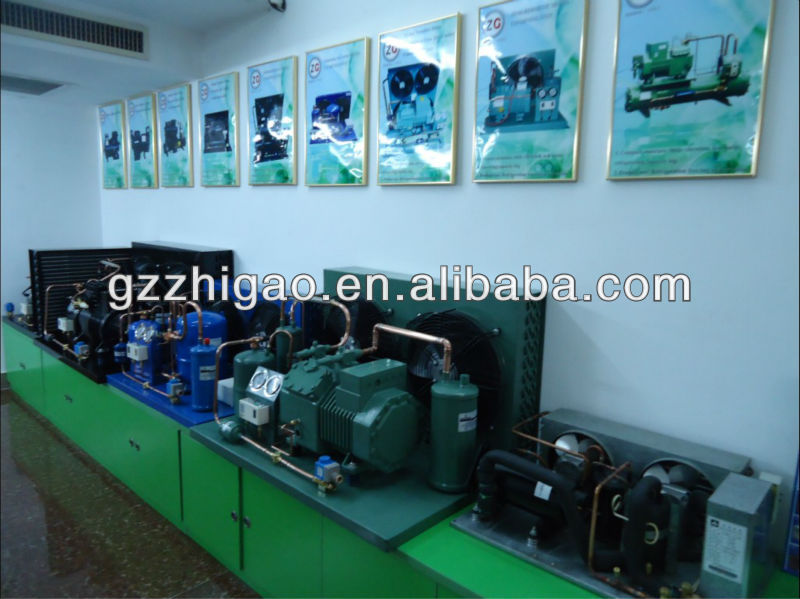

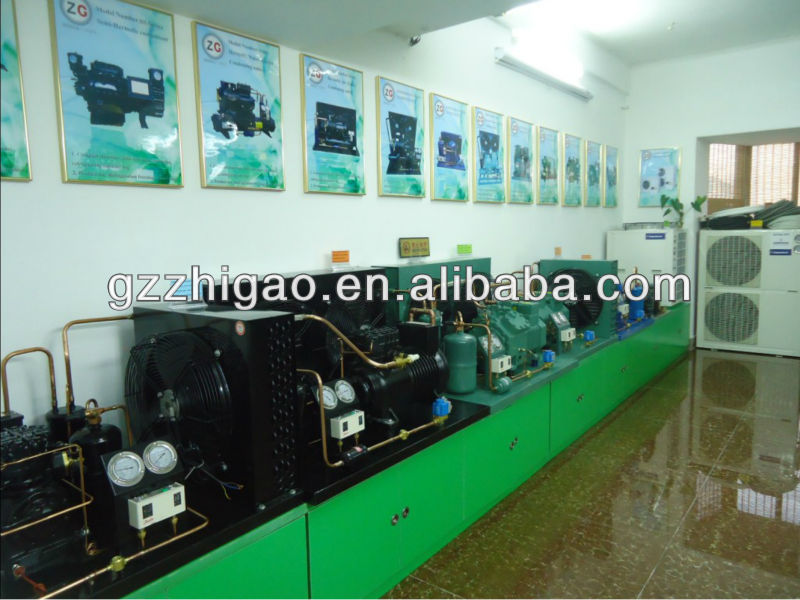

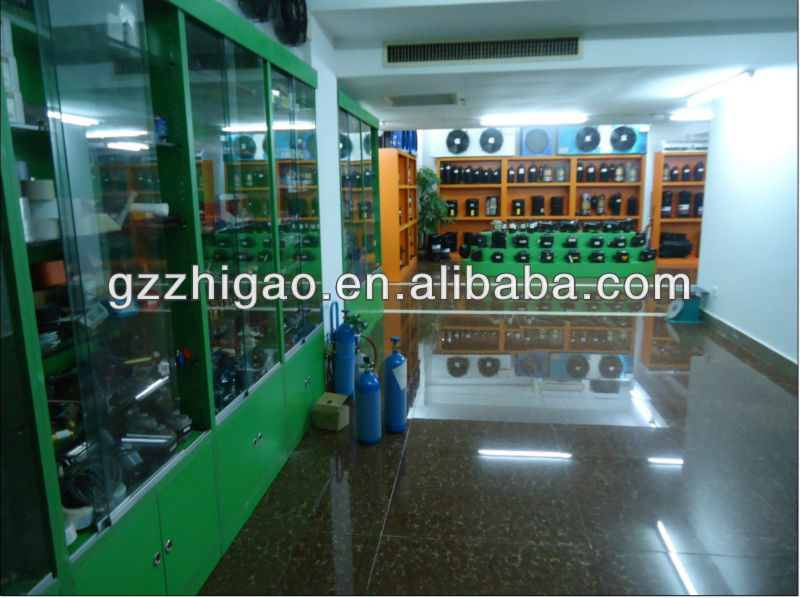

Showroom pictures
