LG rotary compressor for QP series:
Description:
1. high efficiency design
2. high reliability
3. low vibration& noise
Specification:

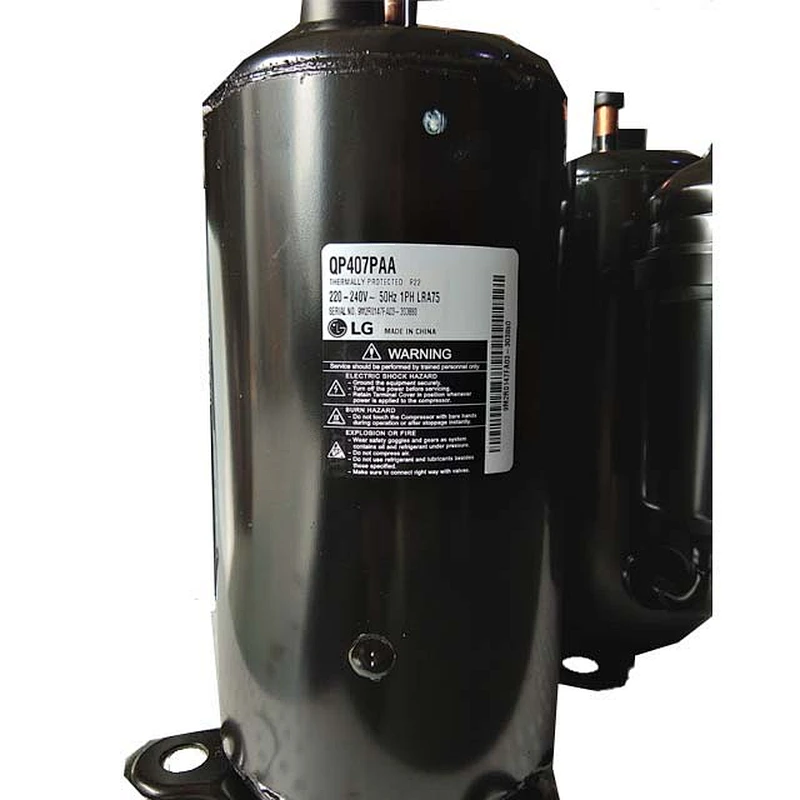

LG rotary compressor QP Series.

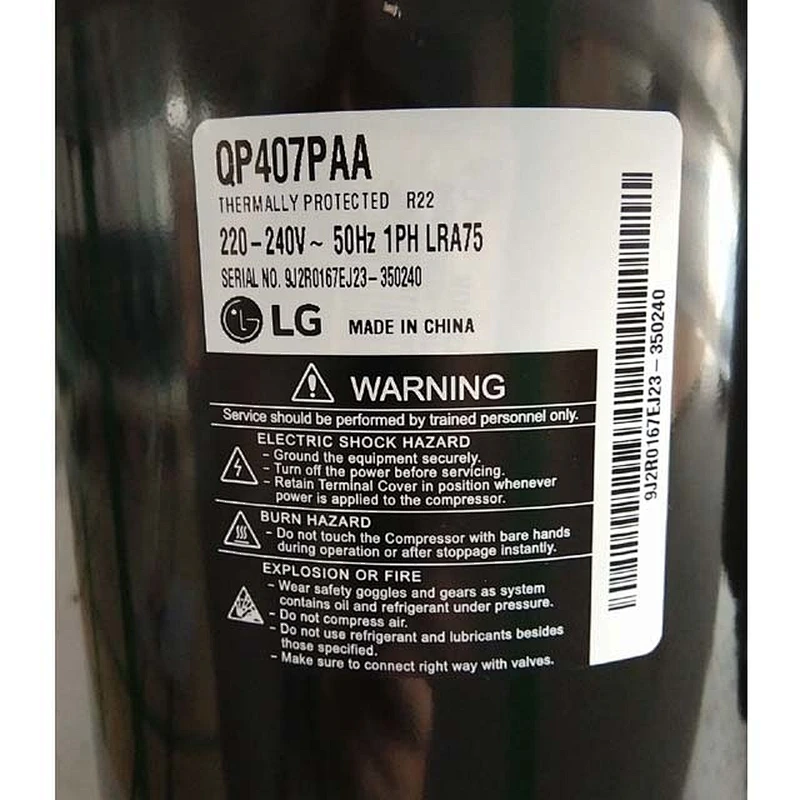

Compressor Model Name:QP407PAA
Compressor Type:Hermetic Motor Compressor
Compression Type:Rotary ( Rolling Piston Type )
Displacement:40.7 cc/rev.
Refrigerant:R22
Oil / Oil Charging Amount:SUNISO 4GSI or NM56M / 700±10cc
Nitrogen Gas Holding Pressure:0.4±0.2 kg/cm2G
Net Weight ( Including Oil ):22.4KG
Power Source:(1 PH ) 220/240V~ 50Hz
32 units packing with one pallet.
More QJ series LG compressor model as follow:
| Power Source | Model | Cooling Capacity | Motor Input | EER | COP | c | ||||||
| [Btu/hr] | [Watts] | [Watts] | [Btu/W.hr] | [W/W] | [cc] | |||||||
| 1PH, 220-240V, 50Hz | QP325P | 19200 | 19300 | 5626 | 5656 | 1778 | 1856 | 10.8 | 10.4 | 3.16 | 3.05 | 700 |
| QP348P | 20500 | 20600 | 6007 | 6037 | 1884 | 1967 | 10.9 | 10.5 | 3.19 | 3.07 | 700 | |
| QP376P | 22600 | 22700 | 6623 | 6652 | 2112 | 2183 | 10.7 | 10.4 | 3.14 | 3.05 | 700 | |
| QP390P | 23000 | 23200 | 6740 | 6799 | 2130 | 2188 | 10.8 | 10.6 | 3.16 | 3.11 | 700 | |
| QP407P | 24050 | 24300 | 7048 | 7121 | 2227 | 2314 | 10.8 | 10.5 | 3.16 | 3.08 | 700 | |
| QP425P | 25000 | 25100 | 7326 | 7355 | 2336 | 2346 | 10.7 | 10.7 | 3.14 | 3.14 | 700 | |
| QP442P | 26000 | 26100 | 7619 | 7648 | 2430 | 2534 | 10.7 | 10.3 | 3.14 | 3.02 | 700 | |
| QP464P | 27600 | 27700 | 8088 | 8117 | 2654 | 2885 | 10.4 | 9.6 | 3.05 | 2.81 | 700 | |
| 1PH, 200-220V, 50Hz | QP325J | 19200 | 5626 | 1829 | 10.5 | 3.08 | 700 | |||||
| QP376J | 22500 | 6594 | 2102 | 10.7 | 3.14 | 700 | ||||||
| QP407J | 24700 | 7239 | 2287 | 10.8 | 3.17 | 700 | ||||||
| QP425J | 25860 | 7579 | 2370 | 10.9 | 3.19 | 700 | ||||||
| QP442J | 26860 | 7872 | 2633 | 10.2 | 2.99 | 700 | ||||||
| 3PH, 380-420V | QP325Y | 19200 | 19400 | 5626 | 5685 | 1778 | 1796 | 10.8 | 10.8 | 3.16 | 3.17 | 700 |
| QP425Y | 25000 | 25400 | 7326 | 7443 | 2380 | 2419 | 10.5 | 10.5 | 3.08 | 3.08 | 700 | |
| QP442Y | 26000 | 26300 | 7619 | 7707 | 2430 | 2500 | 10.7 | 10.5 | 3.14 | 3.08 | 700 | |

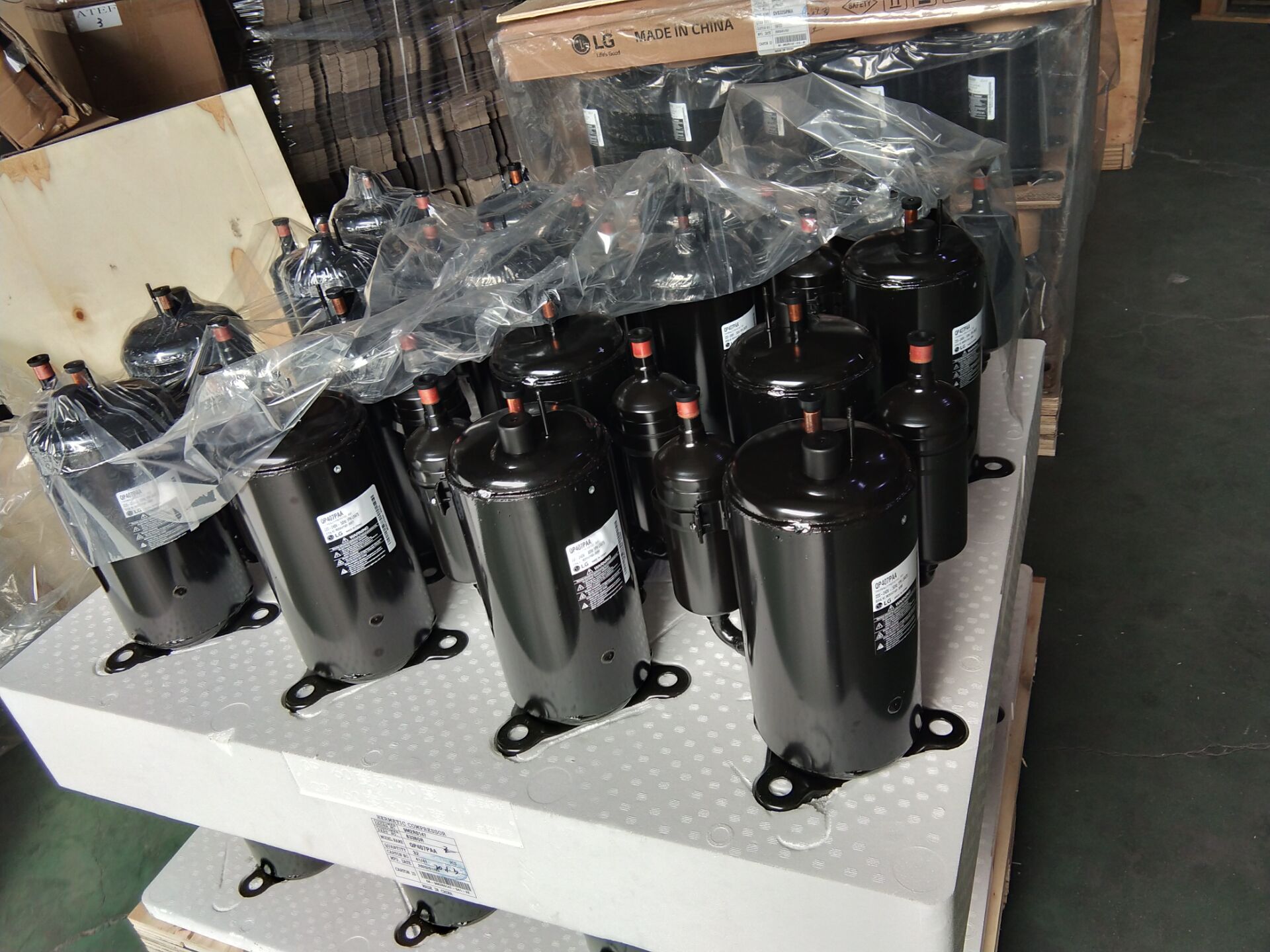

reference pictures:
Packing:
