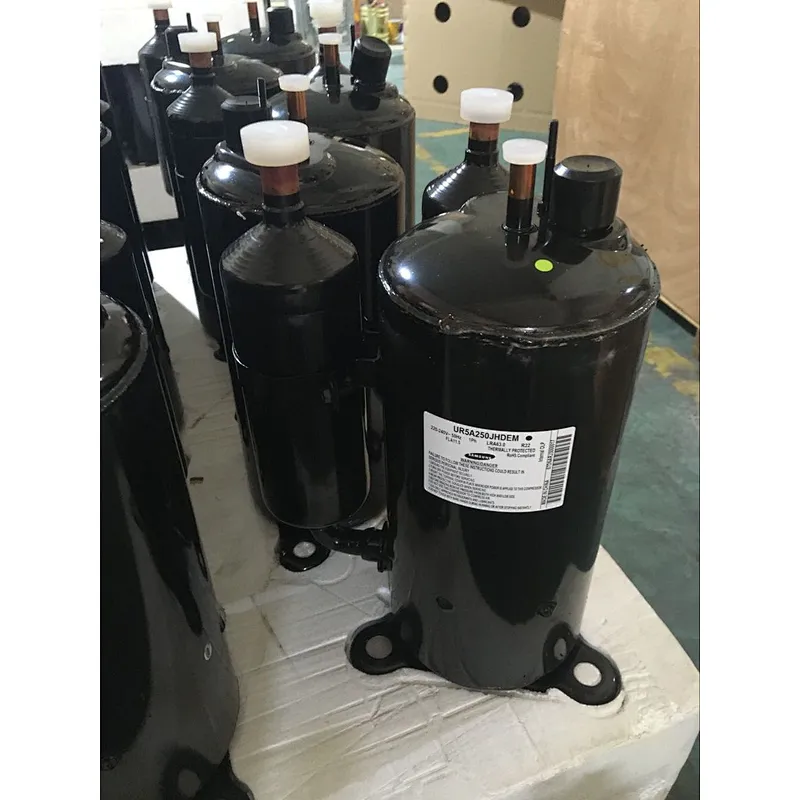

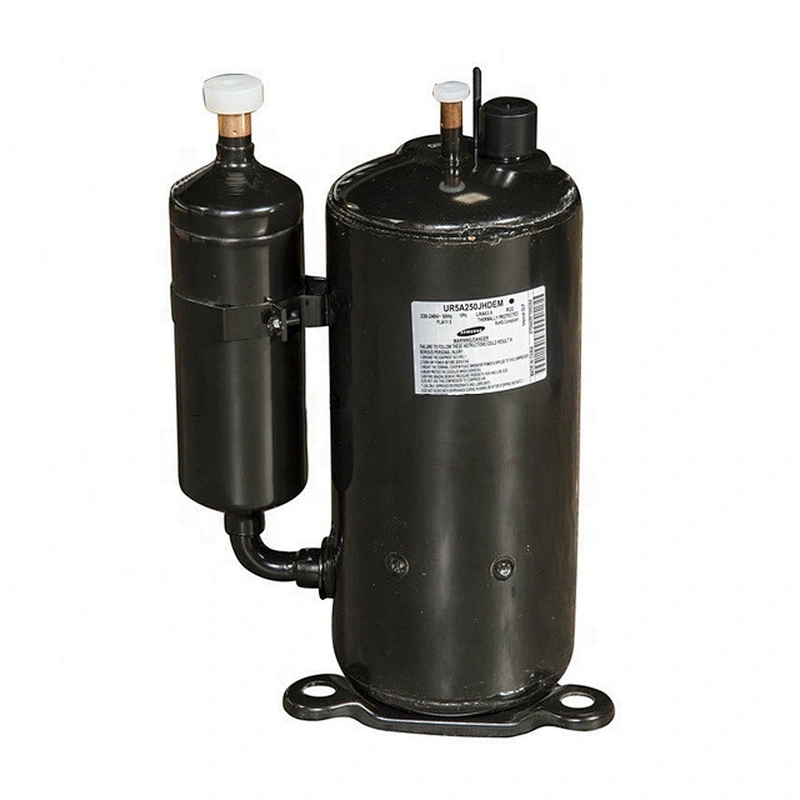

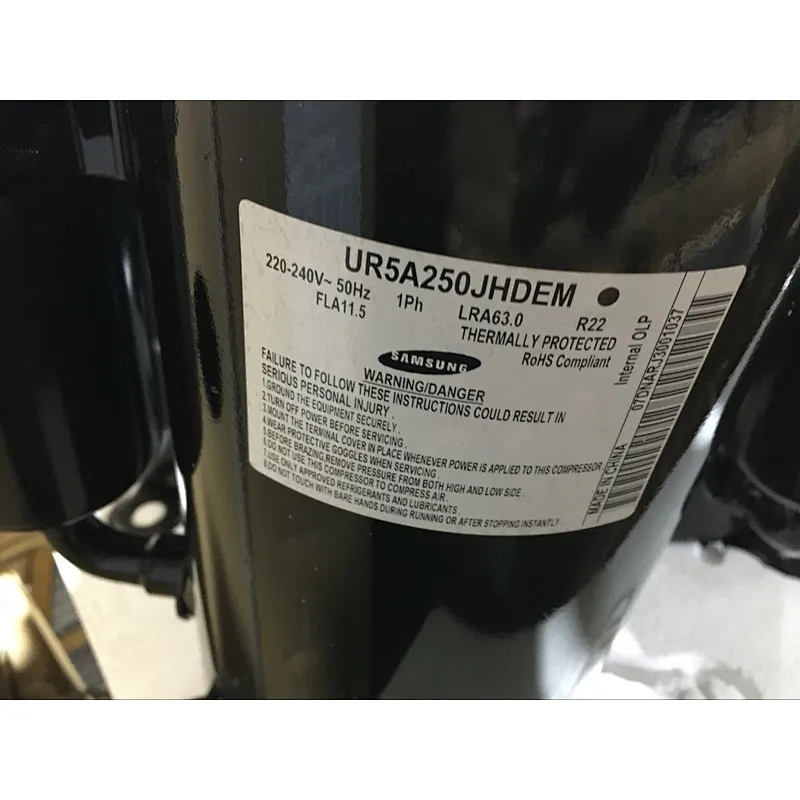

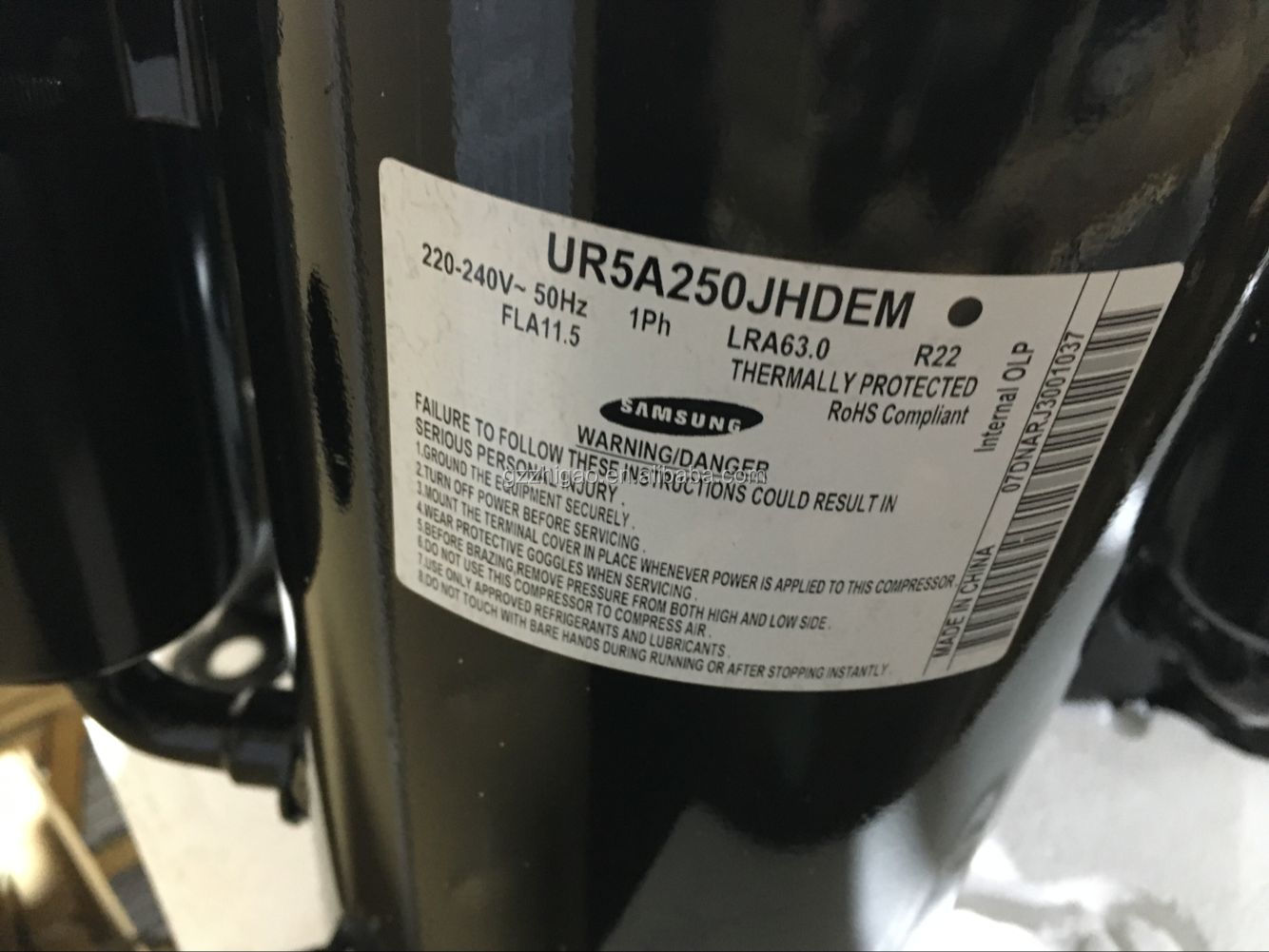

MODEL : UR5A250JHDEM | ||||||||
| 1. APPLICATION | ||||||||
| H/P & Cooling Type Air conditioner | ||||||||
| Rated Voltage & Frequency ...… 1PH 220-240V 50Hz | ||||||||
| Refrigerant ................. R22 | ||||||||
| 2. COMPRESSOR DATA | ||||||||
| Pump Type ............... Rolling Piston Type | ||||||||
| Displacement .........…....41.78 cc/rev | ||||||||
| Oil Type ...............… NOC(ATMOS-NM56EP) & SUN OIL(Suniso-4GSD) or equivalent | ||||||||
| Initial Charged .............… 800 cc | ||||||||
| Net Weight(Included Oil) ...…..…..22.55 kg | ||||||||
| Painting ............…..... Black | ||||||||
| Suction Tube I.D ............… 16.03 mm | ||||||||
| Discharge Tube I.D ......….….. 9.70 mm | ||||||||
| 3. MOTOR DATA | ||||||||
| Motor Type .........…..... Permanent Split Capacitor | ||||||||
| Locked Rotor Amps ........... 63.0Amp at 240 V | ||||||||
| Motor Resistance ..........… Main Winding : 1.29 Ohm at 20ºC | ||||||||
| Sub Winding : 2.32 Ohm at 20ºC | ||||||||
| Insulation Class ............ E Class | ||||||||
| 4. ELECTRICAL COMPONENTS | ||||||||
| Overload Protector .........…INTERNAL | ||||||||
| Running Capacitor ............ 50uF / 450 VAC |
| 5.NOMINAL PERFORMACNE | ||||||||||||||
| Voltage (V) | - | - | 240 | Note | ||||||||||
| Cooling Capa. (Btu/h) | - | - | 25,300 | - | ||||||||||
| Running Current (A) | - | - | 11.5 | - | ||||||||||
| Input (W) | - | - | 2,500 | - | ||||||||||
| EER (Btu/W.h) | - | - | 10.1 | - | ||||||||||
| Noise (dBA) | - | - | 61.0↓ | Max of 4 point measurement at | ||||||||||
| 90cm from surface | ||||||||||||||
| Vibration (μm) | - | - | 125.0↓ | Larger tangential vibration | ||||||||||
| displacement at 90°& 180°points | ||||||||||||||
| RATING CONDITION | ||||||||||||||
| Characteristics | ||||||||||||
| Within ±10% of the rated voltage | ||||||||||||
| No less than 85% of the rated voltage at | ||||||||||||
| compressor terminal in pressure balancing condition | ||||||||||||
| High pressure side : 145 kgf/cm2.G max | ||||||||||||
| Low pressure side : 60 kgf/cm2.G max | ||||||||||||
| 80 mg Max / 50 mg Max | ||||||||||||
| 50 MΩ min (with 500 V DC mega tester) | ||||||||||||
| At 1800 V/sec(1250 v/min)Leakage current is less | ||||||||||||
| than 2.5 mA |
Other models information:
| Cooling Capacity | EFF | COP | Input | Oil Charge | Net Weight | Test Condition | Dimension | |||
Model | CC/Rev | BTU/H | W | BTU/Wh | W/W | W | cc | kg | ||
| UR4B092JT | 16.1 | 9,300 | 2,726 | 10 | 2.93 | 930 | 340 | 11.8 | ASHRAE HBP | 44-2 |
| UR4D124JH | 21 | 12,400 | 3,634 | 9.7 | 2.84 | 1,278 | 380 | 12.7 | ASHRAE HBP | 44-7 |
| UR4D129JT | 21.7 | 12,800 | 3,751 | 9.6 | 2.81 | 1,333 | 380 | 12.7 | ASHRAE HBP | 44-16 |
| UR8B180JH | 30.4 | 18,400 | 5,393 | 9.4 | 2.76 | 1,957 | 550 | 16.4 | ASHRAE HBP | 48-10 |
| UR8B200JT | 32.5 | 19,500 | 5,715 | 9.3 | 2.73 | 2,097 | 550 | 16.5 | ASHRAE HBP | 48-11 |
| UR8D165JH | 27.8 | 16,500 | 4,836 | 10.2 | 2.99 | 1,618 | 550 | 16.5 | ASHRAE HBP | 48-12 |
| UR5A250JH | 41.8 | 25,300 | 7,415 | 10.1 | 2.97 | 2,500 | 550/800 | 22.3/22.6 | ASHRAE HBP | 55-5 |
