After-sales Service Provided:None
Warranty:None
Type:Refrigerator Parts
Application:Commercial, Household
Power Source:Electric
Place of Origin:Zhejiang, China
Brand Name:Huaqiang
Model Number:R8017-TMDE807KF2
Condition:New
Color:White
verification:CE, UR
Electric parameters:220V 50/60Hz 3W 110V 50/60Hz 3W
Operating Time:8H
Defrosting Time:15minutes
Working Life:more than 100,000 times defrosting
Delivery time:5-15 days after down payment

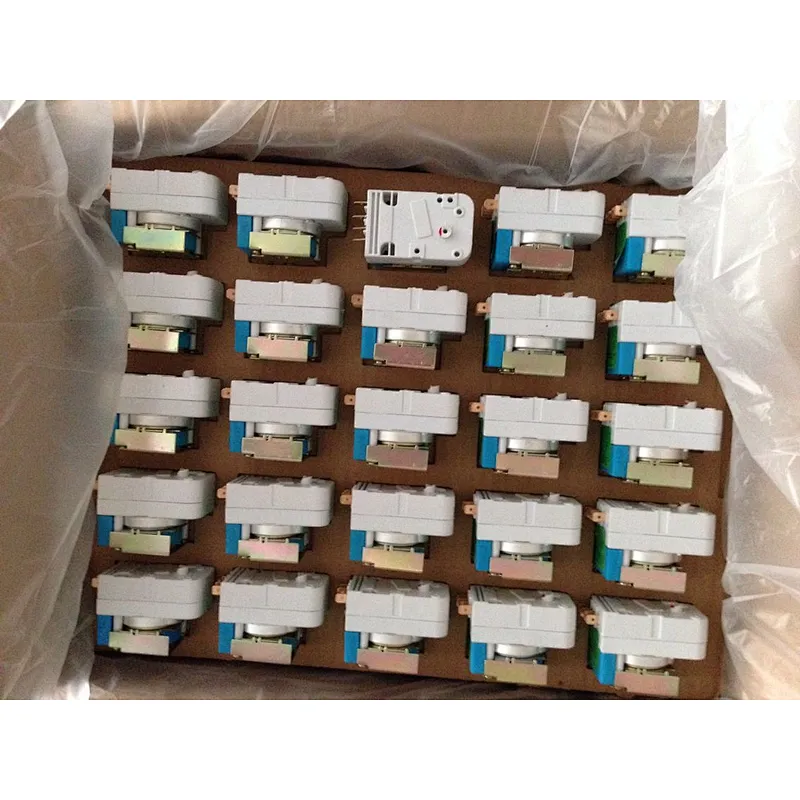

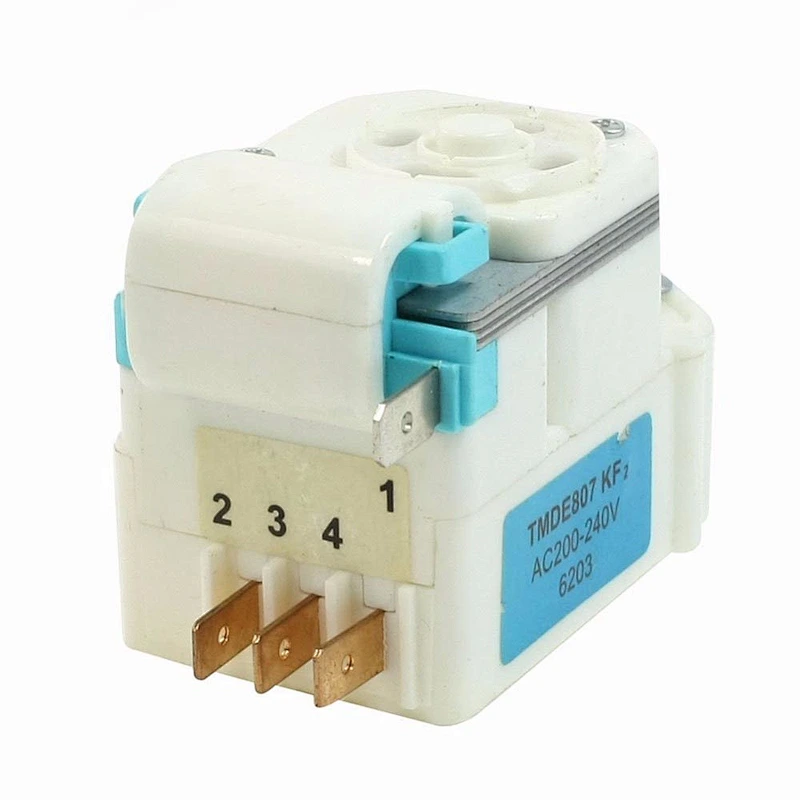

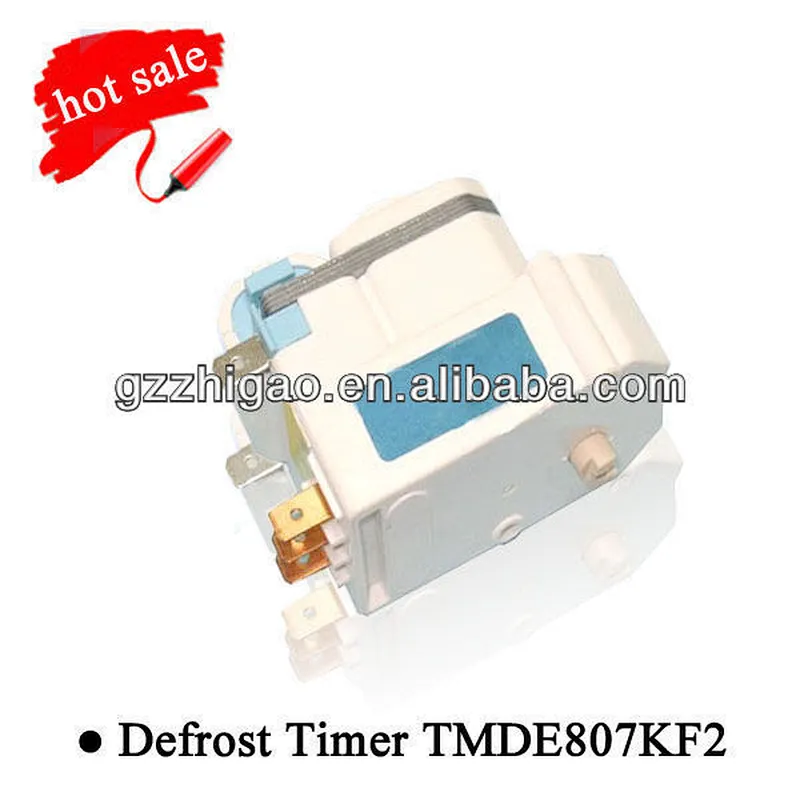

Defrost Timer (R8017-TMDE807KF2 )

200-240V, 50/60Hz
5A
8 Hour and 7 Minute

freezer defrost timer,refrigerator timer is designed to control the defrosting time for freezing system device application.

_{freezer defrost timer,refrigerator timer is designed to control the defrosting time for freezing system device application.}

_{Defrost timer( series) driven by mini-ACS(Alternating Current Synchronous) motors, good timing, little power consumption, low noise; high capacity switch design, better loading capacity; sophisticated structure, suitable for installing inside or outside}

_{refrigerator defrost Timer parameters}

Specification:
Electric parameters: 220V 50/60Hz 3W 110V 50/60Hz 3W
Operating Time: 8H
Defrosting Time: 15minutes
Working Life: more than 100,000 times defrosting.

Voltage rating	Frequency	Incoming current	Input Power	Load
Voltage rating	Frequency	Incoming current	Input Power	3-2(Connecting defrosting loop)	3-4(Connecting compressor )
AC200-240V	50/60Hz	15mA	1.8W/1.5W	250V 5A	1/3hp
AC100-120V	50/60Hz	25mA	1.8W/1.5W	125V 10A	1/3hp
AC127V	50/60Hz	20mA	1.8W/1.5W	140V 10A	1/3hp

Number	Item Number(factory number)	Export Item number	Electric circuit
1	JS1-1-309-1	TMD-E-309ZC	A
2	JS1-1-320-2	TMD-E-320ZC	D
3	JS1-1-409-2	TMD-E-409ZC	D
4	JS1-1-425-2	TMD-E-425ZC	D
5	JS1-1-603-2	TMD-E-603ZC	D
6	JS1-1-617-1	TMD-E-617ZC	A
7	JS1-1-625-1	TMD-E-625ZC	A
8	JS1-1-802-1	TMD-E-802ZC	A
9	JS1-1-807-2	TMD-E-807ZC	D
10	JS1-1-714-1	TMD-E-814ZC	A
11	JS1-1-830-1	TMD-E-830ZC	A
12	JS1-1-908-2	TMD-E-908ZC	D
13	JS1-1-1210-2	TMD-E-X210ZC	D
14	JS1-1-1009-2	TMD-E-X009ZC	D
15	JS1-1-1302-2	TMD-E-X302ZC	D
16	JS1-1-520-1	TMD-E-520ZC1	A
17	JS1-1-520-1	TMD-E-520ZR1	A
18	JS1-1-520-1	TMD-E-520TA1	A
19	JS1-1-702-1	TMD-E-702ZA1	A
20	JS1-1-702-1	TMD-E-702ZC1	A
21	JS1-1-702-2	TMD-E-702ZF1	D
22	JS1-1-703-1	TMD-E-703ZC1	A
23	JS1-1-706-1	TMD-E-706ZC1	A
24	JS1-1-706-1	TMD-E-706ZF1	A
25	JS1-1-720-1	TMD-E-720ZD1	A
26	JS1-1-720-1	TMD-E-720ZF1	A
27	JS1-1-802-2	TMD-E-802GC1	D
28	JS1-1-802-1	TMD-E-802ZC1	A
29	JS1-1-807-1	TMD-E-807KA1	A
30	JS1-1-807-2	TMD-E-807KF1	D
31	JS1-1-102-1	TMD-E-102ZC	A
32	JS1-1-212-1	TMD-E-212ZC	A
33	JS1-1-309-1	TMD-E-309ZC	A
34	JS1-1-317-1	TMD-E-317ZC	A
35	JS1-1-323-1	TMD-E-323ZC	A
36	JS1-1-520-1	TMD-E-520ZC	A
37	JS1-1-625-1	TMD-E-625ZC	A
38	JS1-1-635-1	TMD-E-635ZC	A
39	JS1-1-702-1	TMD-E-702ZC	A
40	JS1-1-704-1	TMD-E-704ZC	A
41	JS1-1-706-1	TMD-E-706SC	A
42	JS1-1-710-1	TMD-E-710ZC	A
43	JS1-1-720-1	TMD-E-720ZC	A
44	JS1-1-724-1	TMD-E-724ZC	A
45	JS1-1-830-1	TMD-E-830ZC	A
46	JS1-1-1003-1	TMD-E-X03ZC	A
47	JS1-1-1005-1	TMD-E-X05ZC	A
48	JS1-1-1009-1	TMD-E-X09ZC	A
49	JS1-1-1030-1	TMD-E-X30ZC	A
50	JS1-1-2003-1	TMD-E-Y03ZC	A
51	JS1-1-2035-1	TMD-E-Y35ZC	A
52	JS1-1-3012-1	TMD-E-Z12ZC	A
