After-sales Service Provided:None
Warranty:None
Type:Refrigerator Parts, refrigerator timer freezer timer
Application:Commercial, Household, Home
Power Source:Electric
Place of Origin:Guangdong, China
Brand Name:ZG
Model Number:TMDJ625RN9
Condition:New
Color:White
Certification:CE
Voltage::120V/240V
frequency:50/60HZ
Defrot time:25m/21m
Switch rating:125V/15A/1/2HP
power cosumption:max 1.5w
Package:100 pcs / carton

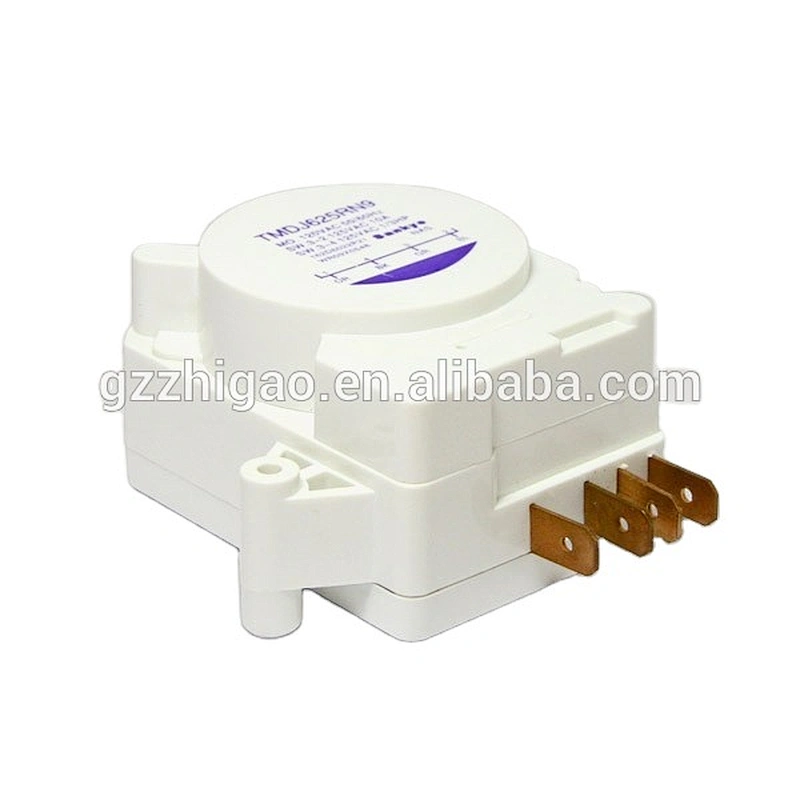

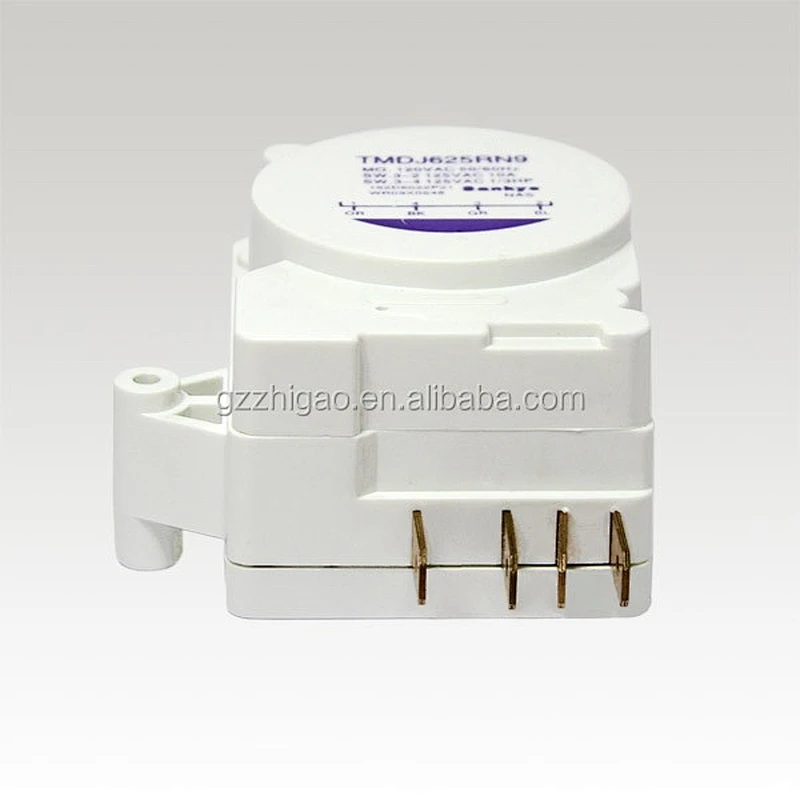

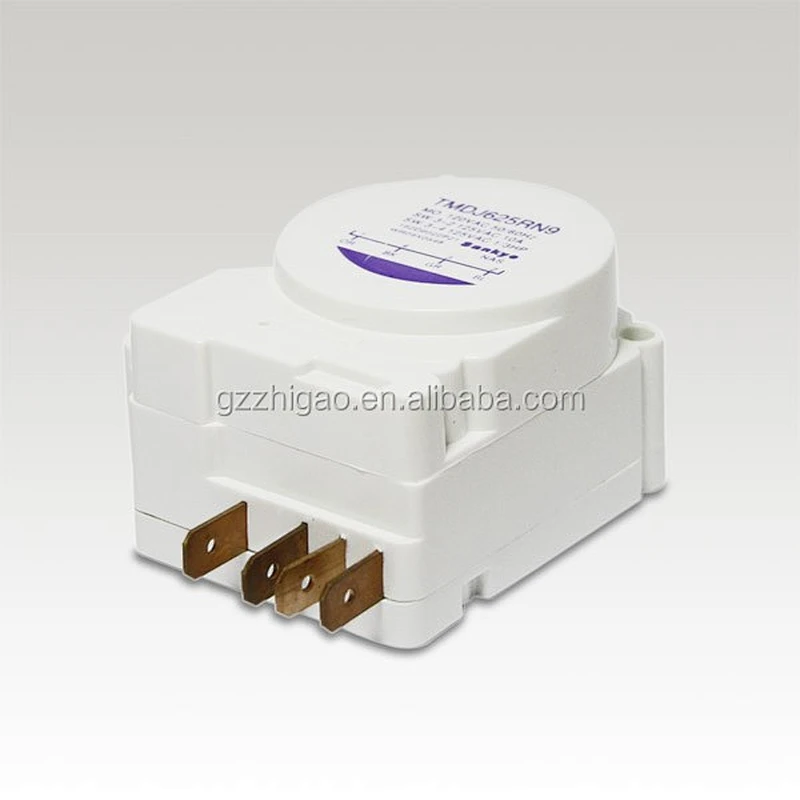

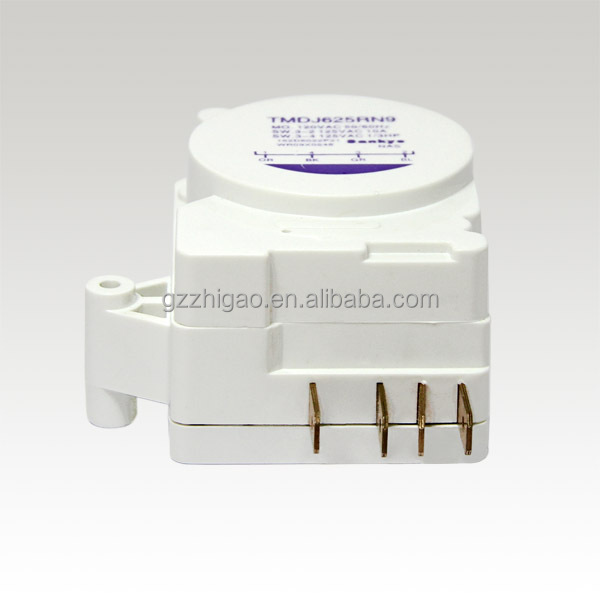

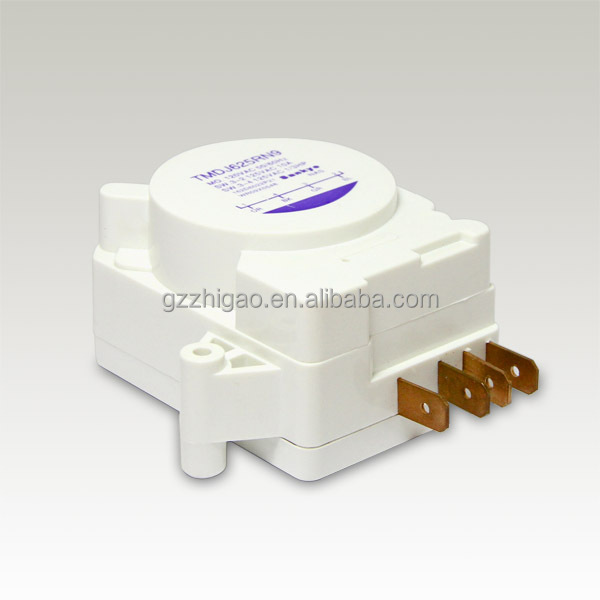

Defrost Timer (TMDJ625RN9)

120V/AC 50/60Hz

SW3-2 125VAC 15A

SW.3-4 125VAC 1/2HP

PS2007111901-E

_{freezer defrost timer,refrigerator timer is designed to control the defrosting time for freezing system device application.}

_{Defrost timer( series) driven by mini-ACS(Alternating Current Synchronous) motors, good timing, little power consumption, low noise; high capacity switch design, better loading capacity; sophisticated structure, suitable for installing inside or outside.}

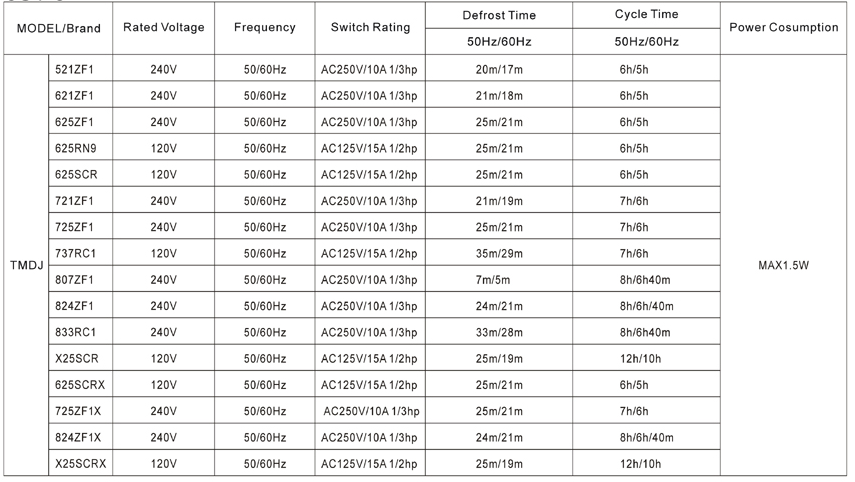

_{refrigerator defrost Timer parameters}

Specification:
Electric parameters: 220V 50/60Hz 3W 110V 50/60Hz 3W
Operating Time: 16H
Defrosting Time: 15minutes
Working Life: more than 100,000 times defrosting.
