Place of Origin:Thailand
Brand Name:copeland
Model Number:ZR108KC-TFD-522
Dimension(L*W*H):26.4*28.5*53.4cm
报警项目:60KG(132LBS)
灰份:PORTABLE
挥发份:Yes
挥发分:Lubricated
LAN端口:380V
Processing Method:New
产羔率:CE
工作台移动范围:AC POWER
BaSO4含量:Scroll

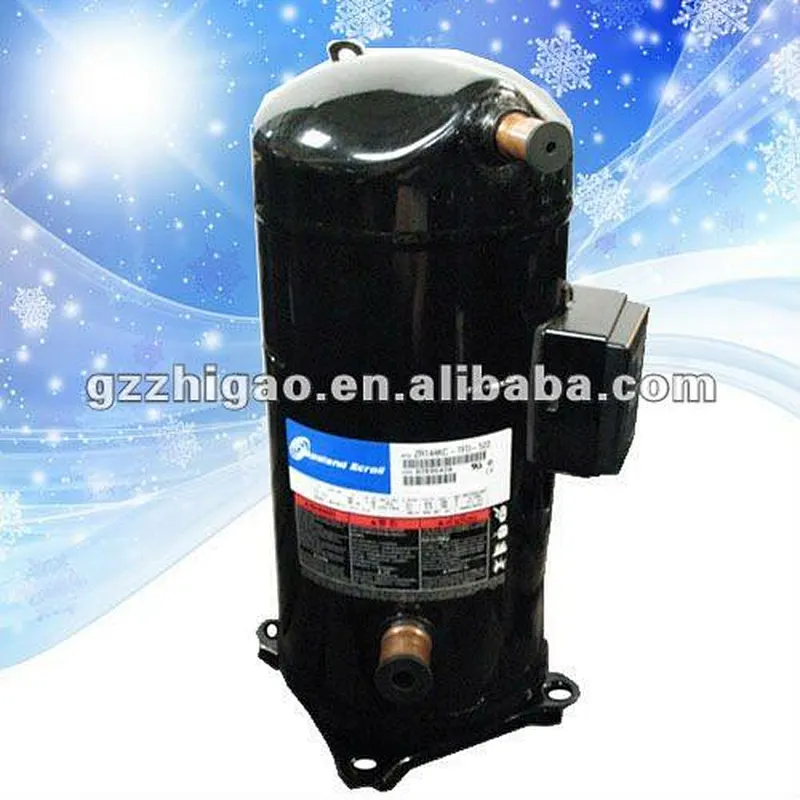

ZR108KC-TFD-522 Copeland air conditioning scroll compressor

1.Models have : ZR16M3-TWD-522, ZR19M3-TWD-522,ZR47KC-TFD,ZR94KC-TFD,ZR125KC-TFD, ZR160KC-TFD ZR61KC-TFD,ZR108KC-TFD,ZR144KC-TFD,ZR72KC-TFD ....

2.The are Copeland scroll compressors, can be used for air conditioning and refrigeration.

3.We have models made in China,Thailand and Belguim.

4. 12 units packing with one pallet

Specifications

We supply all kinds of Emerson ZR Copeland Scroll Compressor R22 R410A R407C R134A for Air Conditioning, range from 1-60 HP

We are an authorized dealer of Emerson Copeland Scroll Compressor /Danfoss/SANYO/Daikin/Hitachi/Bitzer compressors made in China.

We supply all kinds Emerson ZR Copeland Scroll Compressor , Danfoss compressors , SANYO compressors , Daikin compressors , Hitachi compressors , Bitzer compressors

Copeland Scroll™ Compressor

With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Copeland Scroll™ compressor offering ranges from 2–40 HP in singles and up to 80 HP in tandems.

Copeland Scroll Compressor 2–7 HP

Designed to power high-efficiency air conditioners with its improved scroll set and motor for higher reliability, lower noise, and compact frame;
Comes with Enhanced Vapor Injection (EVI) technology for increased heating capacity;
Allows for the best overall applied cost for high-efficiency systems.

Copeland Scroll Compressor 7–15 HP

Designed for superior R-410A efficiency and performance
Features Advanced Scroll Temperature Protection (ASTP) to guard the compressor from the scroll overheating
Light, compact design with smaller suction fittings for applied cost saving
R-410A and R-22/R-407C models in 7–15 HP (tandems up to 30 HP)

Copeland Scroll Compressor 20–40 HP

R-410A and R-22/R-407C models in 20–40 HP (tandems up to 80 HP)
Optimized for large rooftop and chiller applications
Designed to provide highest R-410A efficiency in this capacity range
Qualified for use in trio applications

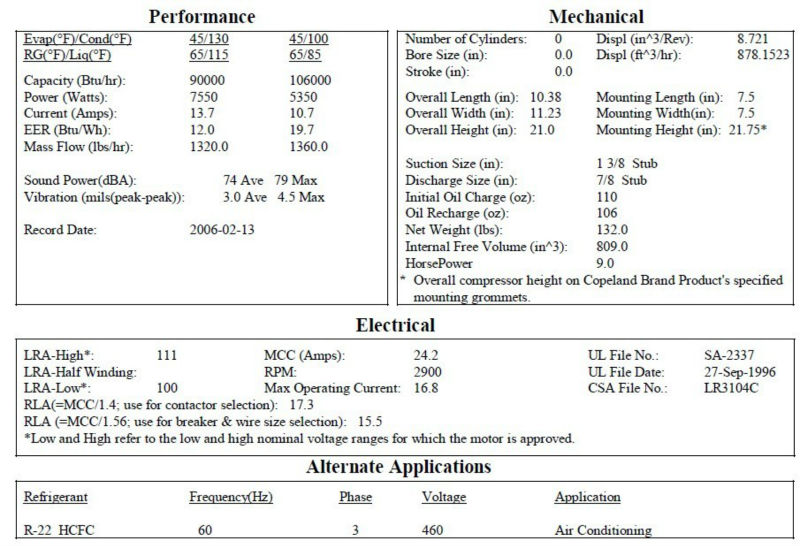

Parameter for ZR108KC-TFD:

We have more ZR copeland compressor as follow:

Phase	Model	Horse Power/HP	Displacement (m3/h)	ARI 7.2/54.4°C		Weight/Kg	Height /mm
Phase	Model	Horse Power/HP	Displacement (m3/h)	Cooling (W)	Input (W)	Weight/Kg	Height /mm
1 Phase	ZR16K3-PFJ	1.33	3.97	4010	1320	25.9	370.4
1 Phase	ZR18K3-PFJ	1.5	4.37	4400	1440	25.9	370.4
1 Phase	ZR20K3-PFJ	1.69	4.76	4890	1600	25.9	370.4
1 Phase	ZR22K3-PFJ	1.83	5.34	5330	1730	25.9	382.8
1 Phase	ZR24K3-PFJ	2	5.92	5920	1870	26.3	382.8
1 Phase	ZR26K3-PFJ	2.17	6.27	6330	2000	25.9	382.8
1 Phase	ZR28K3-PFJ	2.33	6.83	6910	2150	27.2	382.8
1 Phase	ZR30K3-PFJ	2.5	7.3	7380	2290	28.6	405.5
1 Phase	ZR32K3-PFJ	2.67	7.55	7760	2410	28.1	405.5
1 Phase	ZR34K3-PFJ	2.83	8.02	8200	2520	29.5	405.5
1 Phase	ZR36K3-PFJ	3	8.61	8790	2700	29.5	405.5
1 Phase	ZR40K3-PFJ	3.33	9.43	9670	2970	29.9	419.3
1 Phase	ZR42K3-PFJ	3.5	9.94	10100	3120	29.9	419.3
1 Phase	ZR47K3-PFJ	3.92	11.16	11500	3530	30.4	436.6
3 Phase	ZR22K3-TFD	1.83	5.34	5330	1650	25.9	382.8
3 Phase	ZR24K3-TFD	2	5.92	5920	1840	25.9	382.8
3 Phase	ZR26K3-TFD	2.17	6.27	6330	1960	25.9	382.8
3 Phase	ZR28K3-TFD	2.33	6.83	6910	2150	26.3	405.5
3 Phase	ZR30K3-TFD	2.5	7.3	7380	2290	26.3	405.5
3 Phase	ZR32K3-TFD	2.67	7.55	7760	2410	26.3	405.5
3 Phase	ZR34K3-TFD	2.83	8.02	8200	2500	28.6	405.5
3 Phase	ZR36K3-TFD	3	8.61	8790	2680	27.2	405.5
3 Phase	ZR40K3-TFD	3.33	9.43	9670	2950	28.6	419.3
3 Phase	2ZR42K3-TFD	3.5	9.94	10100	3090	28.6	419.3
3 Phase	ZR45KC-TFD	3.75	10.73	11000	3380	28.6	436.3
3 Phase	ZR46KC-TFD	3.83	10.95	11100	3390	34.9	456.9
3 Phase	ZR47KC-TFD	3.92	11.16	11500	3500	28.6	436.3
3 Phase	ZR49KC-TFD	4.08	11.45	11700	3600	35.4	456.9
3 Phase	ZR54KC-TFD	4.5	12.73	12900	4030	35.4	456.9
3 Phase	ZR57KC-TFD	4.75	13.42	13700	4160	35.4	456.9
3 Phase	ZR61KC-TFD	5.08	14.34	14600	4430	35.8	456.9
3 Phase	ZR68KC-TFD	5.75	16.18	16400	4970	38.1	456.9
3 Phase	ZR72KC-TFD	6	17.05	17400	5250	38.1	456.9
3 Phase	ZR81KC-TFD	6.75	19.2	19690	5830	40.9	462.4
3 Phase	ZR84KC-TFD	7	19.75	20330	6140	56.7	495.3
3 Phase	ZR94KC-TFD	8	22.14	22940	7000	58	495.3
3 Phase	ZR108KC-TFD	9	25.15	26250	7830	72.6	533.4
3 Phase	ZR125KC-TFD	10	28.77	30470	9060	78	533.4
3 Phase	ZR90K3-TWD	7.5	20.9	21540	6620	91	542
3 Phase	ZR11M3-TWD	9	24.9	25840	7805	91	542
3 Phase	ZR12M3-TWD	10	28.8	29890	8955	92	542
3 Phase	ZR16M3-TWD	13	35.6	37330	11175	98	557
3 Phase	ZR19M3-TWD	15	42.1	45170	13400	112	596
