广州制高冷冻设备有限公司About UsRoom1305, No.236 the sixth Zhongshan Road,Yuexiu district, GuangzhouGuangzhou Zhigao Freeze Equipment Co., Ltd. is a professional manufacture and trading company with over 20 years experiences to provide OEM and one-stop shopping for customers. We have over 24000m2 workshop,show room, retail shops and offices in Guangzhou.The company's leading products include air condensers, various air coolers, refrigeration units and condensing units, etc. They are widely used in hotels, restaurants, supermarkets, food, health, medicine, agriculture and other industries. The products are sold all over the china and in Vietnam, Thailand, Pakistan, Australia , South Africa and other overseas countries. We look forward to working with yo
1.Product Name

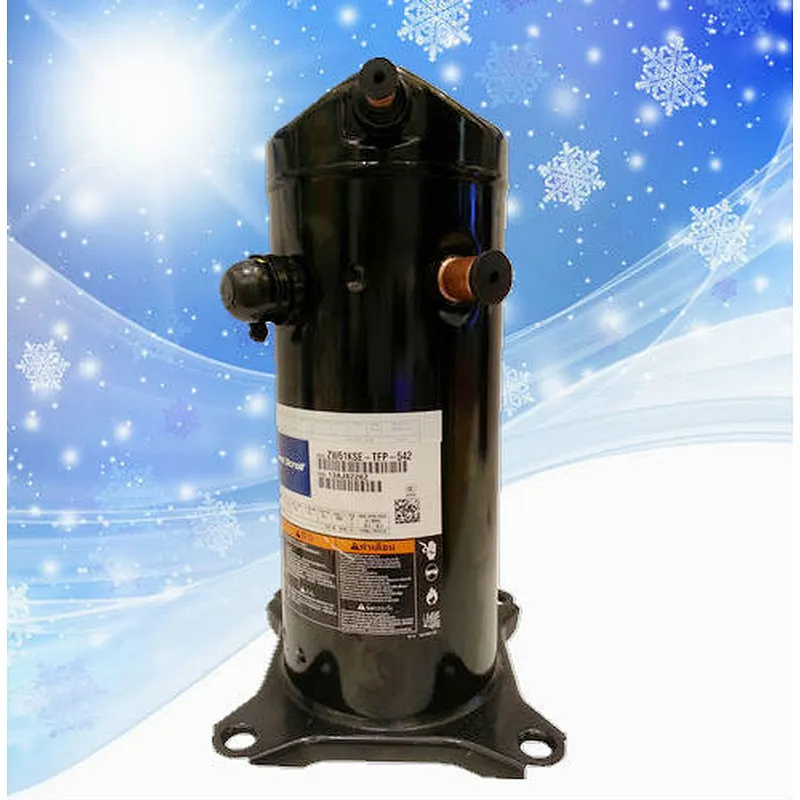

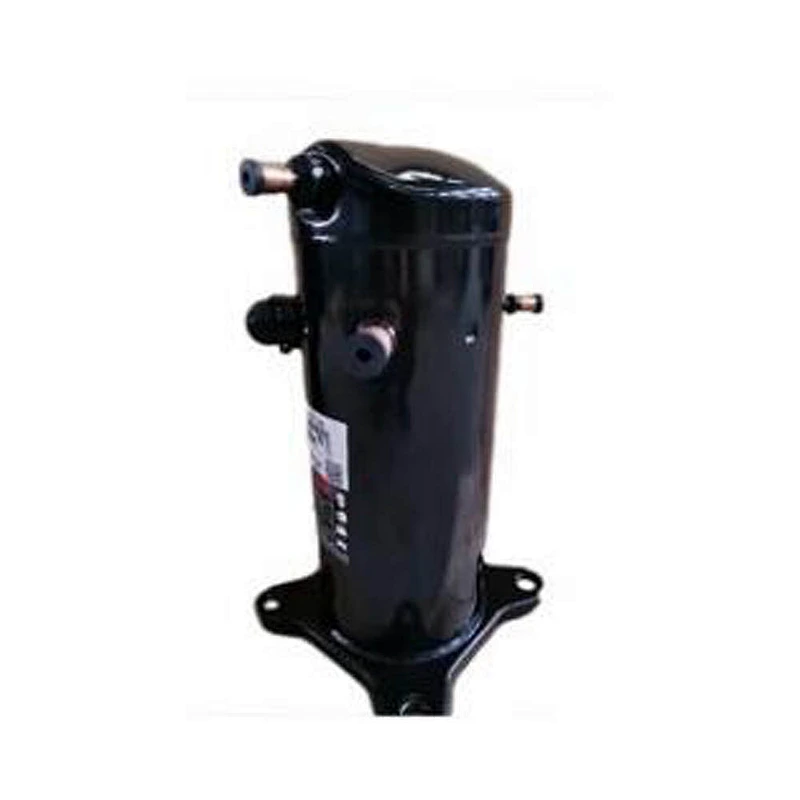

Copeland scroll compressor.
2.Model number:
ZW61KAE-TFP-582. 5 HP,working R407c refrigerant,380V/50HZ
3.Technical Sheet
| Model | Unit | ZW30KA | ZW34KA | ZW61KA | ZW108KA | |
| Refrigerant | R22 | R22 | R22 | R22 | ||
| Heating Capacity | Watt | 9030 | 10097 | 18143 | 33900 | |
| Input Power | watts | 2314 | 2586 | 4600 | 7550 | |
| Motor type | PFS | TFP | TFP | TFP | ||
| Nominal Input Rating | HP | 2.5 | 3 | 5 | 9 | |
| Displacement | M3/h | 7.1 | 8 | 14.4 | 24.9 | |
| Displacement | cm3/rev | 41 | 46.2 | 82.6 | 142.9 | |
| Weight | kg | 22.2 | 22.2 | 30 | 62 | |
| Current | A | 10.7 | 4.5 | 8.8 | 13.7 | |
| Mass flow | g/s | 43.5 | 48 | 88 | 166 | |
| Rated Voltage | V | 220 | 380 | 380 | 380 | |
| Locked Rotor Amps | A | 58.4 | 31.6 | 59 | 100 | |
| Rated load current | A | 13.6 | 6.4 | 10.1 | 17.3 | |
| Oil charge volume | Initial | L | 0.74 | 0.74 | 1.36 | 3.25 |
| Refill | L | 0.56 | 0.56 | 1.24 | 3.14 | |
| Max Operating current | A | 17.2 | 7 | 11.8 | 16.8 | |
| Max continuous current | A | 18.3 | 8.5 | 13.6 | 24.2 | |
| Capacitor Rating | 80MFD/370VAC 50HZ | |||||
| Model | Unit | ZW21KAE | ZW30KAE | ZW34KAE | ZW61KAE | ZW108KAE | |
| Refrigerant | R134a | R407C | R407C | R407C | R407C | ||
| Heating Capacity | Watt | 4589 | 8750 | 9785 | 17648 | 33010 | |
| Input Power | watts | 1130 | 2337 | 2610 | 4647 | 7500 | |
| Motor type | PFZ | PFS | TFP | ||||
| Nominal Input Rating | HP | 1.5 | 2.5 | 3 | 5 | 9 | |
| Displacement | M3/h | 29 | 7.1 | 8 | 14.4 | 24.9 | |
| Displacement | cm3/rev | 22.5 | 41 | 46.2 | 82.4 | 142.9 | |
| Weight | kg | 5.1 | 22.2 | 22.2 | 30 | 62 | |
| Current | A | 4.8 | 10.8 | 4.5 | 8.1 | 13.9 | |
| Mass flow | g/s | 21.9 | 41.5 | 45.8 | 82.6 | 160 | |
| Rated Voltage | V | 220/240 | 220 | 380 | 380 | 380 | |
| Locked Rotor Amps | A | 44 | 58.4 | 31.6 | 59 | 100 | |
| Rated load current | A | 7.9 | 15.3 | 6.6 | 10.2 | 17.5 | |
| Oil charge volume | Initial | L | 0.74 | 0.74 | 0.74 | 1.36 | 3.25 |
| Refill | L | 0.56 | 0.56 | 0.56 | 1.24 | 3.14 | |
| Max Operating current | A | 7.1 | 17.7 | 7.1 | 12.6 | 17 | |
| Max continuous current | A | 11.2 | 20.6 | 8.9 | 13.7 | 24.5 | |
| Capacitor Rating | 35MFD/370vac 50HZ | 80MFD/380vac 50HZ | |||||
4.We also suppy following scroll compressor.
a.Sanyo scroll compressor,
b.Daikin scroll compressor.
c.Copeland ZF/ZB/ZW/ZP/ZR.
d.Danfoss scroll compressor.
e. Hitachi scroll compressor.
f. Performer scroll compressor

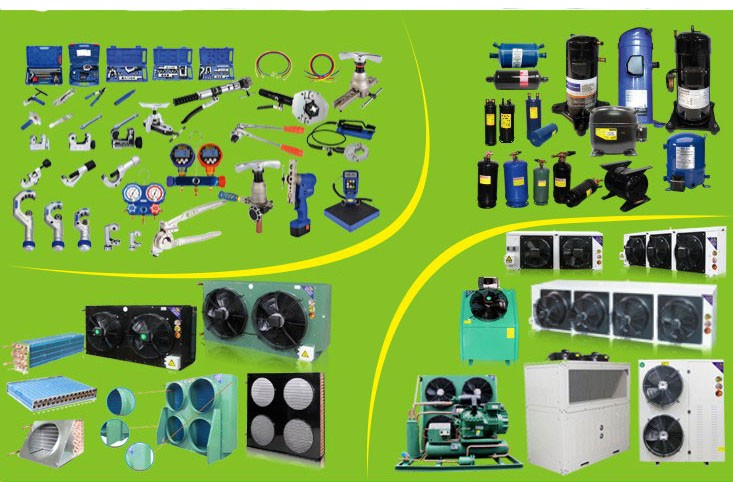

Our serives
1.Scroll,Rotary,piston and semi-hermetic compressor;
2.Refrigeration spare parts:gauge,valve,tools andetc;
3.Refrigeration gas and oil;
4.OEM Air cooler and condenser,air curtain;
5.compressor unit and condenser unit,door for cool room.

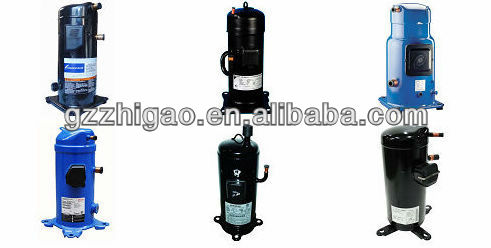

All the following compressor we could supply

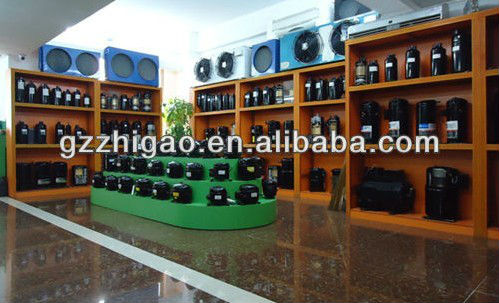

Our Show Room

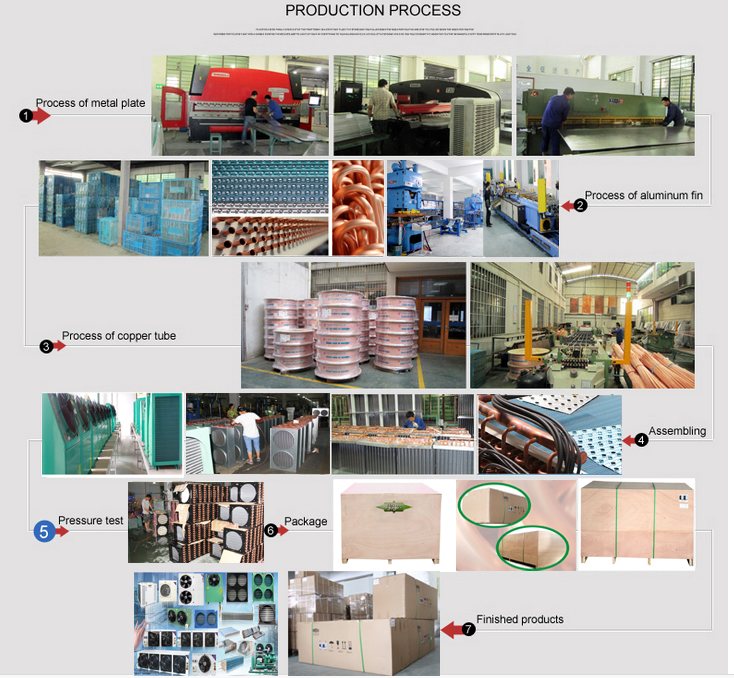

Factory View
Guangzhou Xi Maike General refrigeration equipment Co.Ltd.is a professional large-scale modern enterprise which is engaged in refrigeration fittings.Product R&D production and sales.
To know more about us,you could visit our websit: www.gzzhigao.net
FAQ
Q:What payment term could be accepted?
A:We could accept T/T,Western union,L/C and paypal.
Q:Could I get a sample before pay an order?
A:Of course.But It need you pay money.And we wuld refund the difference to you o you order.
Q:What shipping way could you supply?
A:By sea,air or international express.
Q:Are the quantity is more,the price would be different?
A:yes,the quantity is more,the price would be cheaper.
