1.Product Name:

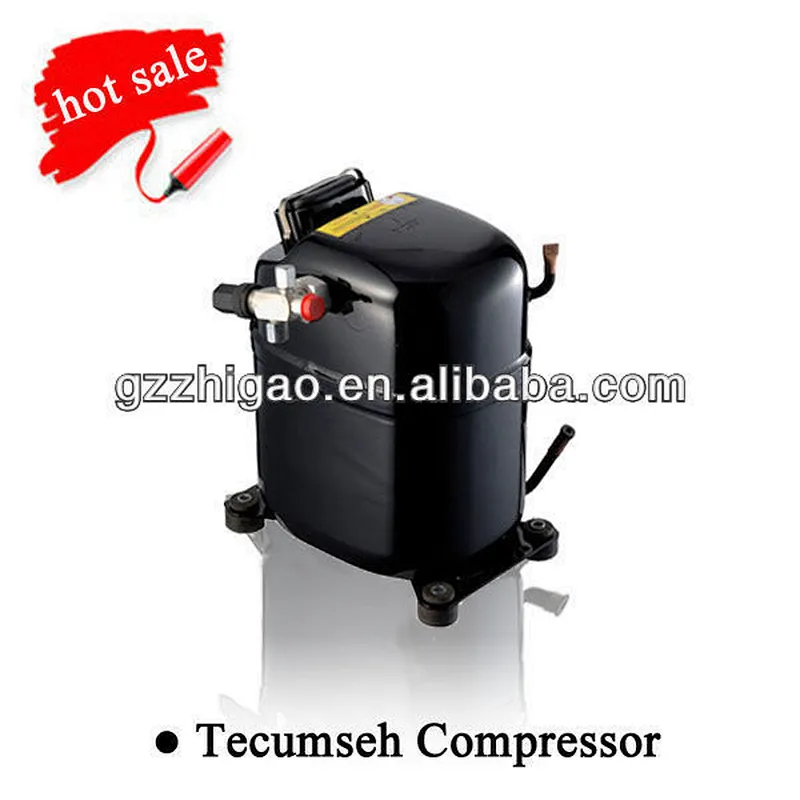

Tecumseh HBP hermetic compressor,original france
2.Model number:
CAJ4511A-F1 G VA TC ,screw connection,Working R12 refrigerant,220~240V/50hz,1HP
3. Product Specifications
| Refrigeration Capacity | Input Power | Efficiency | ||||||
| Condition | Test Voltage | Btu/h | kcal/h | W | W | Btu/Wh | kcal/Wh | W/W |
| EN12900 ASERCOM | 220V ~ 50HZ | 5191 | 1308 | 1521 | 897 | 5.79 | 1.46 | 1.7 |
| EVAP TEMP | COND TEMP | AMBIENT TEMP | RETURN GAS | LIQUID TEMP |
| -10°C (14°F) | 45°C (113°F) | 32°C (90°F) | 0°C (32°F) | 45°C (113°F) |
4. General
| Evaporating Temp. Range: | -15°C to 15°C (5°F to 59°F) |
| Motor Torque: | High Start Torque (HST) |
| Compressor Cooling: | Fan |
5. Mechanical
| Weight: | 22.9 |
| Weight Unit of Measure: | N/A |
| Displacement (cc): | 32.7 |
| Oil Type: | Mineral |
| Viscosity (cSt): | 68 |
| Oil Charge (cc): | 887 |
| Sound Power dB(A): | N/A |
6. Electrical
| Voltage Range (50 Hz): | 187-242 |
| Voltage Range (60 Hz): | N/A |
| Locked Rotor Amps (LRA): | 31 |
| Rated Load Amps (RLA 50 Hz): | 5.5 |
| Rated Load Amps (RLA 60 Hz): | 5.5 |
| Max. Continuous Current (MCC in Amps): | N/A |
| Motor Resitance (Ohm) - Main: | N/A |
| Motor Resitance (Ohm) - Start: | N/A |
| Motor Type: | CSR |
| Overload Type: | N/A |
| Relay Type: | N/A |

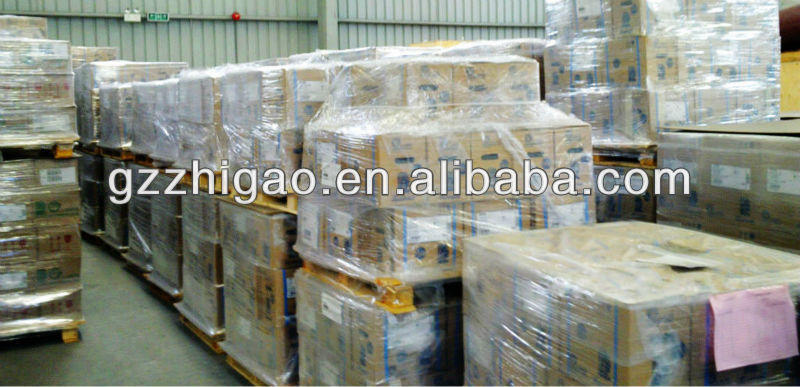

7.Warehouse Pictures
