Shaded pole motor,ac motor,mini motor, freezer motor,micro motor,fan motor, refrigeration motor ,cooling spare parts
Descriptions:
1.Advanced technoloty
2.competitive price
3.motor life 10000 HRS MIN
4.customized
5.low noise
specifications:
1)Voltage:220V
2)Frequency:50/60HZ
3)Current;0.06A
4)Input:7W
5)Rotation:CW
6)Speed:2500-2800rpm
Have CE,CCC,ISO,UL(parts) certifications.The goods are mainly applicable for the other household electrical appliances such as ice box, freezing cabinet, micro-wave oven, warmer and so forth.,we also produce motors accordance with uesrs requirements.
Product Name:Shaded Pole motor:
| No | Model | Voltage | Frequency | Input Power (W) | Current (A) | Shaft Diameter | Direction of Rotation | Qty/Ctn | Carton Size |
| 1 | JDF1 | 220 | 50/60 | 8 | 0.085 | 4 | CCW | 40 | 46*27*20 |
| 110 | 50/60 | 10 | 0.15 | 4 | CCW | 40 | 46*27*20 | ||
| 2 | JDF2 | 220 | 50/60 | 6 | 0.065 | 3.173 | CW/CCW | 40 | 46*27*20 |
| 110 | 50/60 | 6.5 | 0.12 | 3.173 | CW/CCW | 40 | 46*27*20 | ||
| 3 | JDF3(A) | 220 | 50/60 | 6.5 | 0.06 | 3.173 | CW/CCW | 40 | 46*27*20 |
| 110 | 50/60 | 8 | 0.12 | 3.173 | CW/CCW | 40 | 46*27*20 | ||
| 4 | JDF3(B) | 220 | 50/60 | 8 | 0.08 | 3.173 | CCW | 40 | 46*27*20 |
| 110 | 50/60 | 8 | 0.16 | 3.173 | CCW | 40 | 46*27*20 | ||
| 5 | JDF3(C) | 220 | 50/60 | 6.5 | 0.06 | 3.173 | CW/CCW | 40 | 46*27*20 |
| 110 | 50/60 | 8 | 0.12 | 3.173 | CW/CCW | 40 | 46*27*20 | ||
| 6 | JDF3-7228 | 220 | 50/60 | 6.5 | 0.06 | 3.173 | CW/CCW | 40 | 46*27*20 |
| 110 | 50/60 | 8 | 0.12 | 3.173 | CW/CCW | 40 | 46*27*20 | ||
| 7 | JDF3-2261 | 220 | 50/60 | 6.5 | 0.06 | 3.173 | CW/CCW | 40 | 46*27*20 |
| 110 | 50/60 | 8 | 0.12 | 3.173 | CW/CCW | 40 | 46*27*20 | ||
| 8 | JDF4 | 220 | 50/60 | 30 | 0.22 | 5.5 | CCW | 40 | 46*41*25 |
| 110 | 50/60 | 30 | 0.45 | 5.5 | CCW | 40 | 46*41*25 | ||
| 9 | JDF6 | 220 | 50/60 | 8 | 0.085 | 4 | CW | 40 | 47*27*20 |
| 110 | 50/60 | 8 | 0.15 | 4 | CW | 40 | 47*27*20 | ||
| 10 | JDF7 | 220 | 50/60 | 7 | 0.065 | 3.173 | CW/CCW | 40 | 47*27*20 |
| 110 | 50/60 | 7 | 0.14 | 3.173 | CW/CCW | 40 | 47*27*20 | ||
| 11 | JDF8 | 220 | 50/60 | 27 | 0.2 | 6 | CCW | 28 | 41*29**26.5 |
| 110 | 50/60 | 27 | 0.42 | 6 | CCW | 28 | 41*29**26.5 | ||
| 12 | JDF9 | 220 | 50/60 | 8 | 0.12 | 3.173 | CCW | 40 | 47*27*20 |
| 110 | 50/60 | 8 | 0.18 | 3.173 | CCW | 40 | 47*27*20 | ||

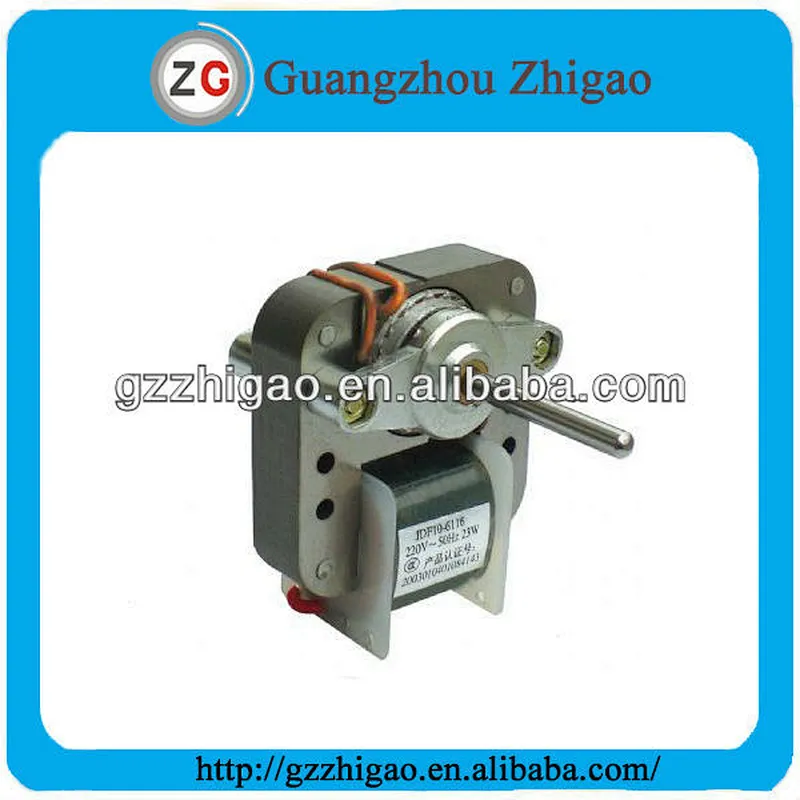

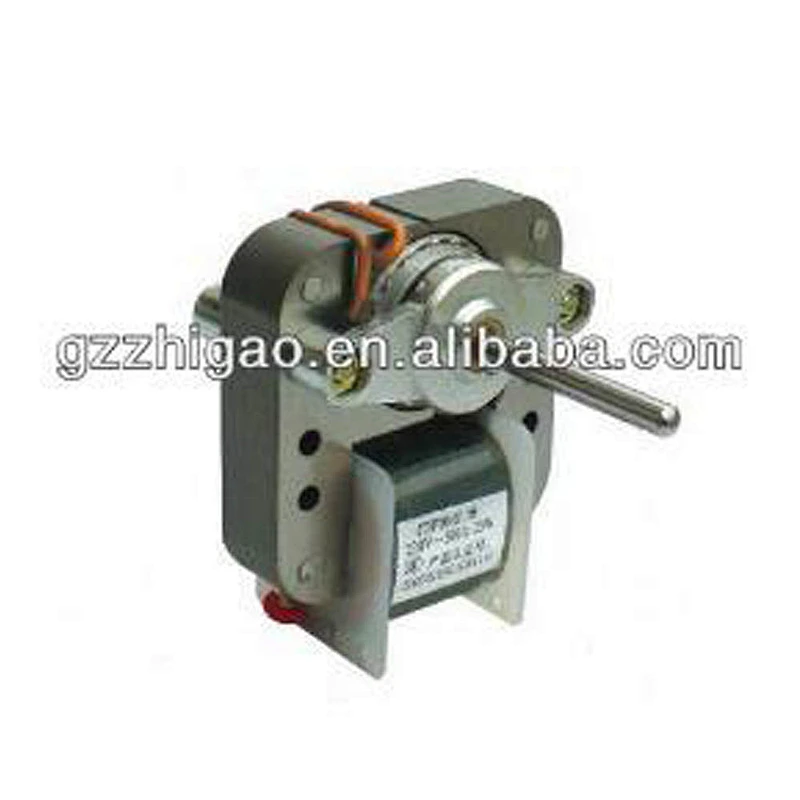

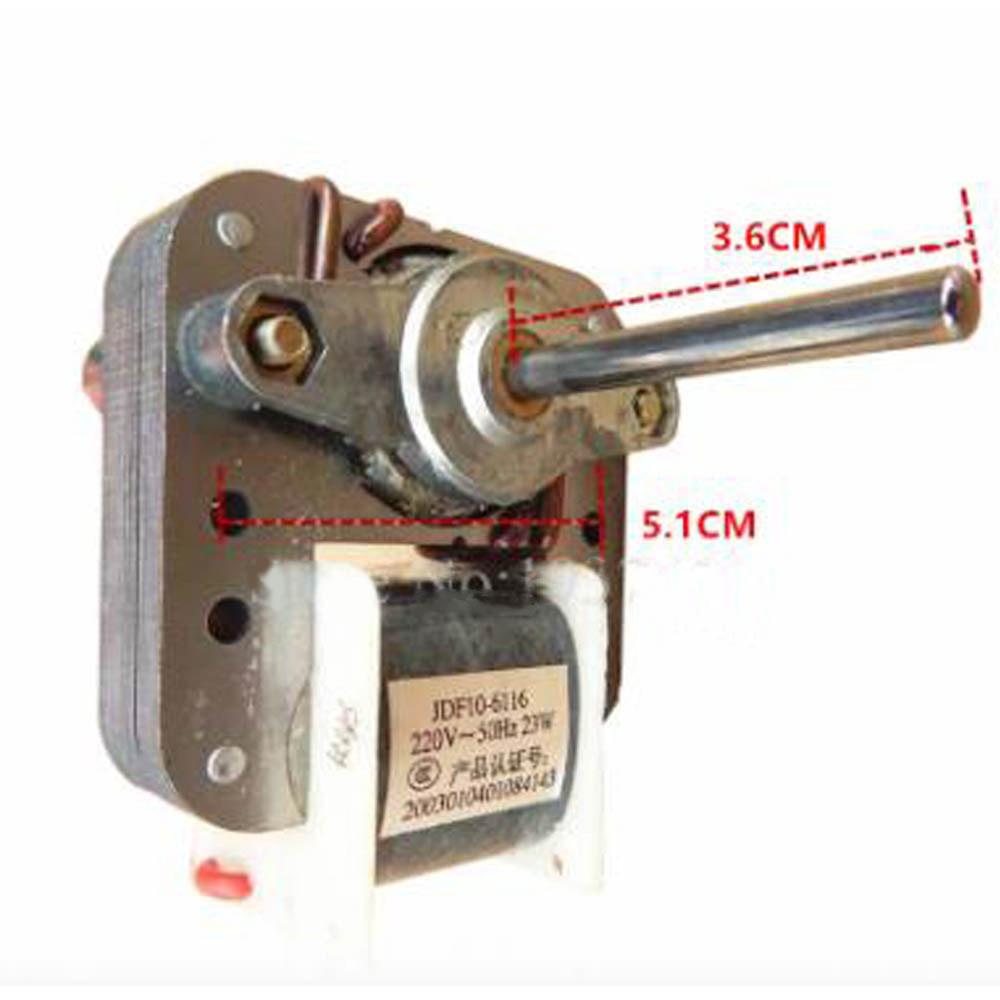

| 13 | JDF10-6116 | 220 | 50/60 | 12 | 0.14 | 5 | CW | 40 | 47*27*20 |
| 110 | 50/60 | 12 | 0.25 | 5 | CW | 40 | 47*27*20 | ||
| 14 | JDF11 | 220 | 50/60 | 8 | 0.085 | 4 | CCW | 40 | 47*27*20 |
| 110 | 50/60 | 8 | 0.15 | 4 | CCW | 40 | 47*27*20 | ||
| 15 | JDF12 | 220 | 50/60 | 8 | 0.085 | 3.173 | CW/CCW | 40 | 47*27*20 |
| 110 | 50/60 | 8 | 0.15 | 3.173 | CW/CCW | 40 | 47*27*20 |
Our Items

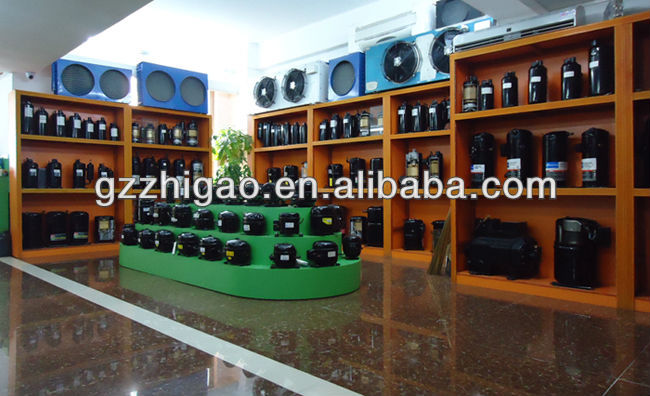

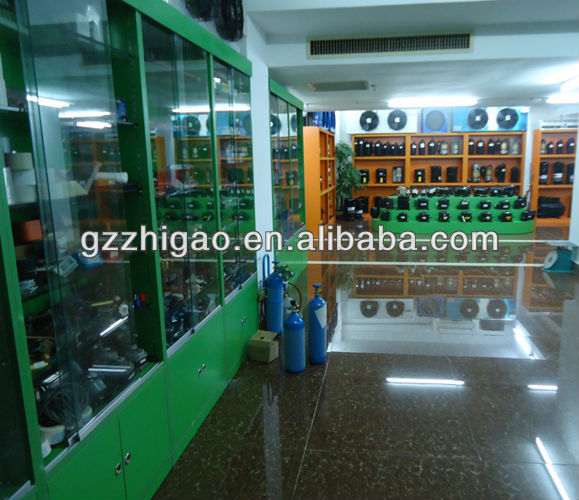

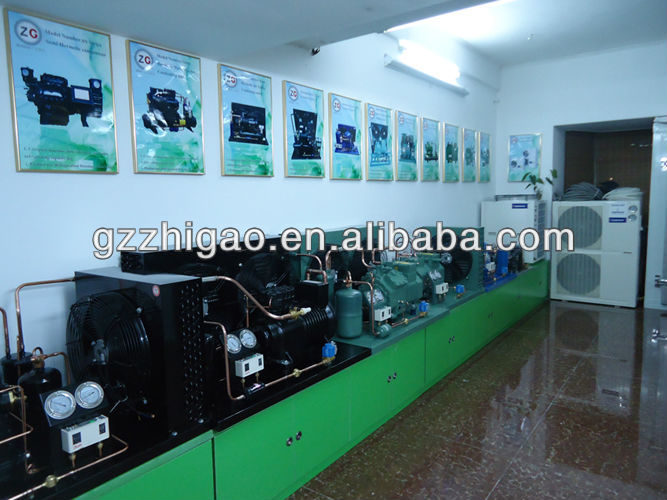

Reference of our show room:
there will be some errors due to lighting problems , please refer to the actual product received
