Square shaded pole motor fan motor JDF-6

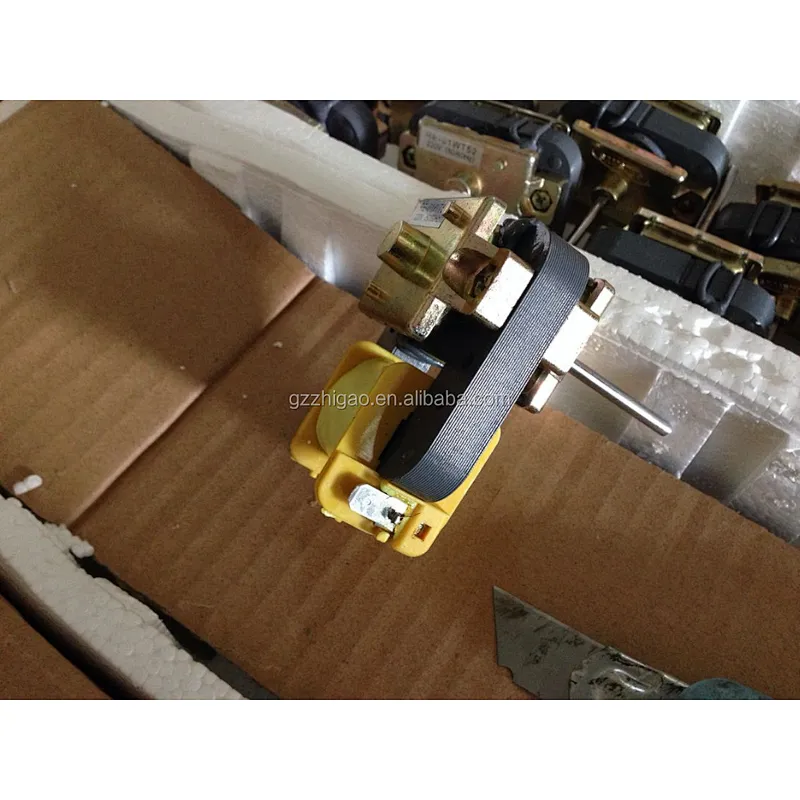

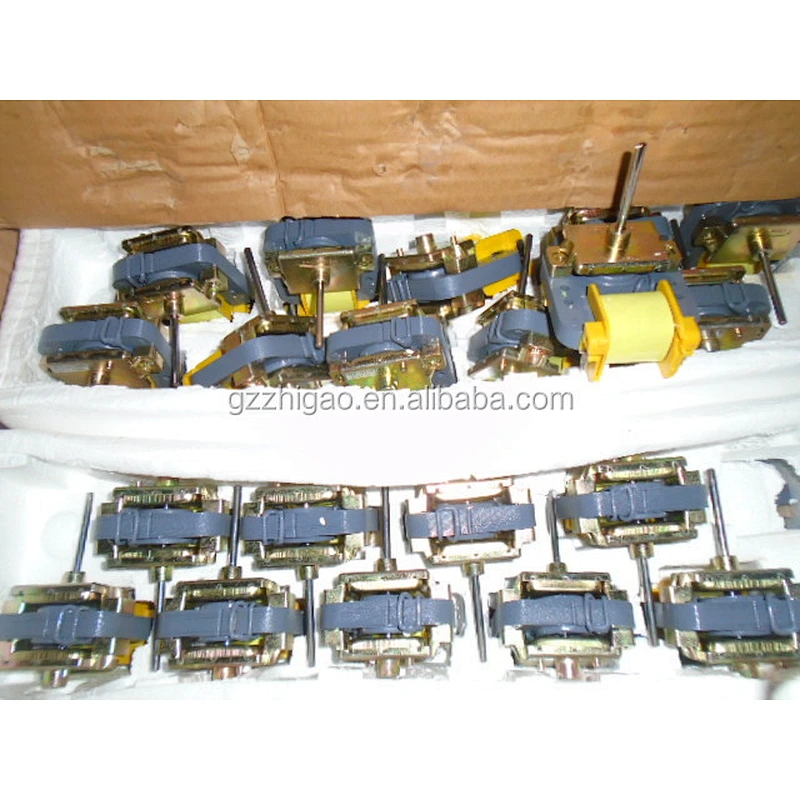

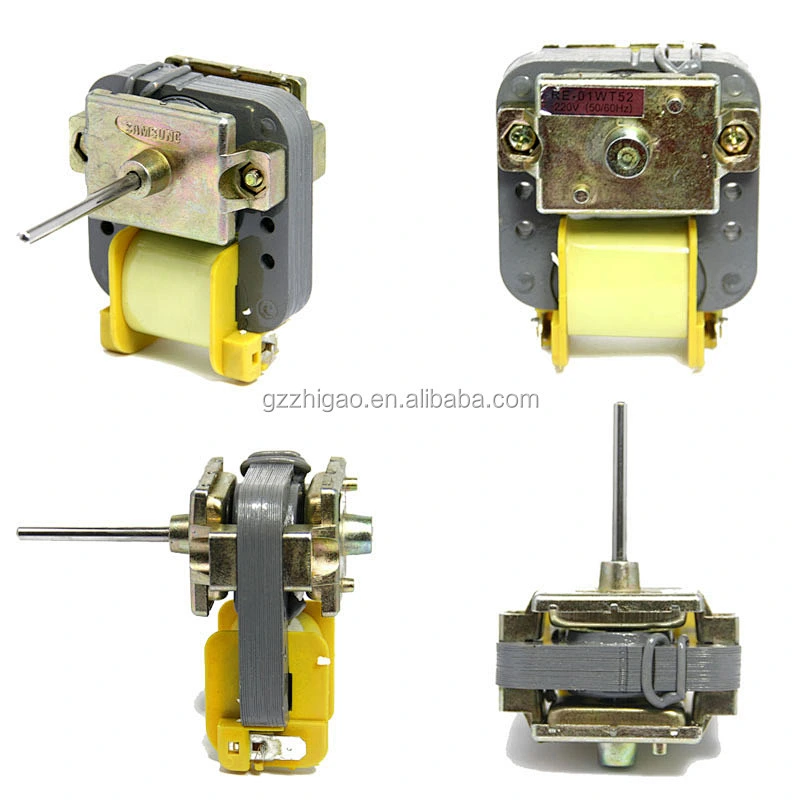

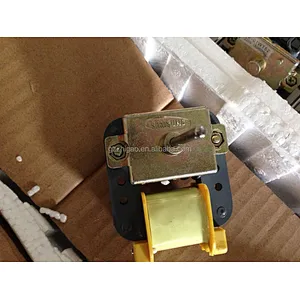

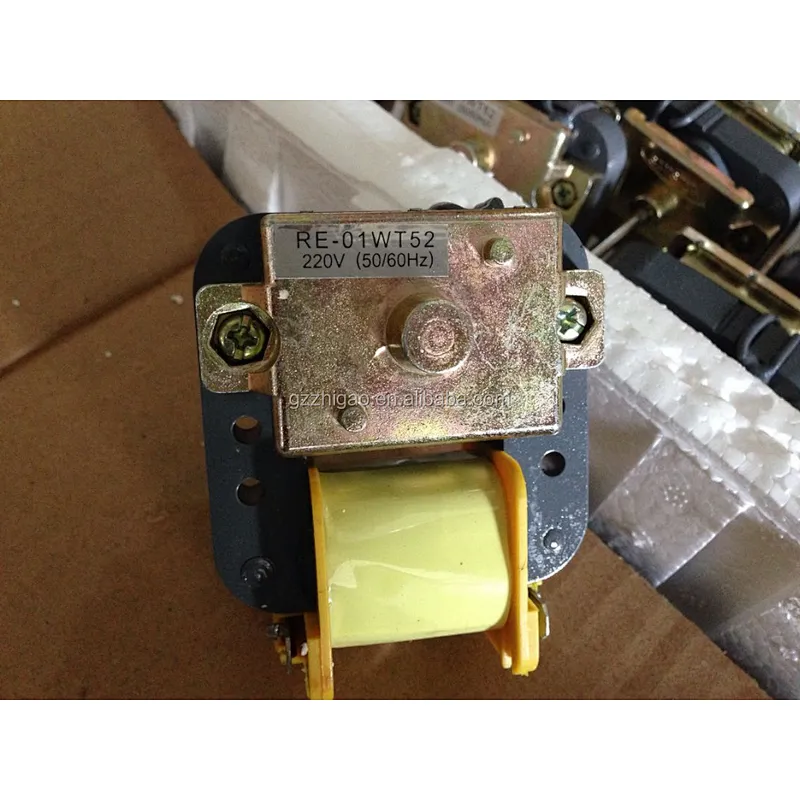

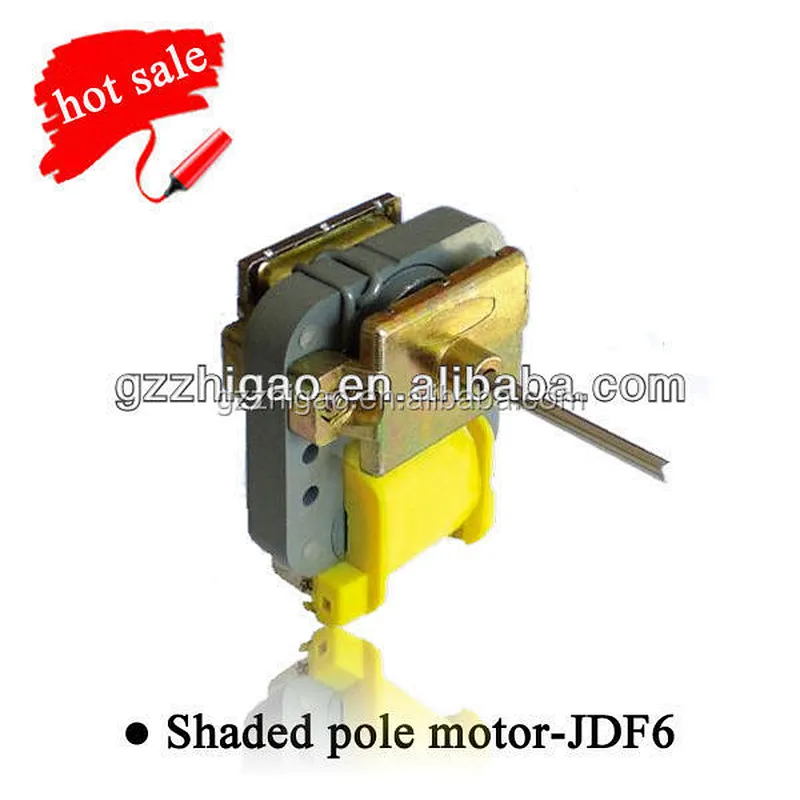

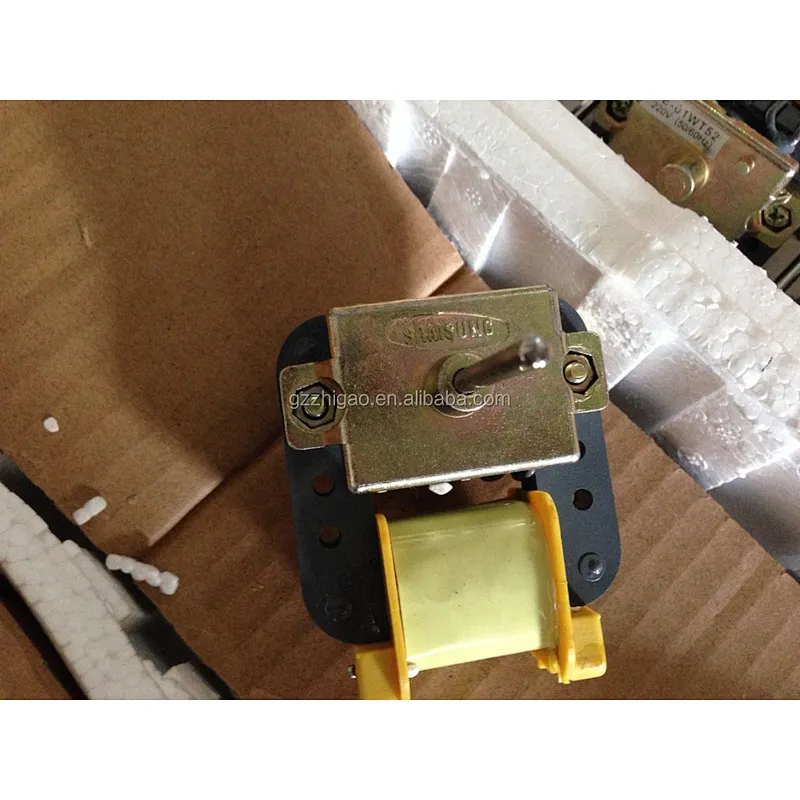

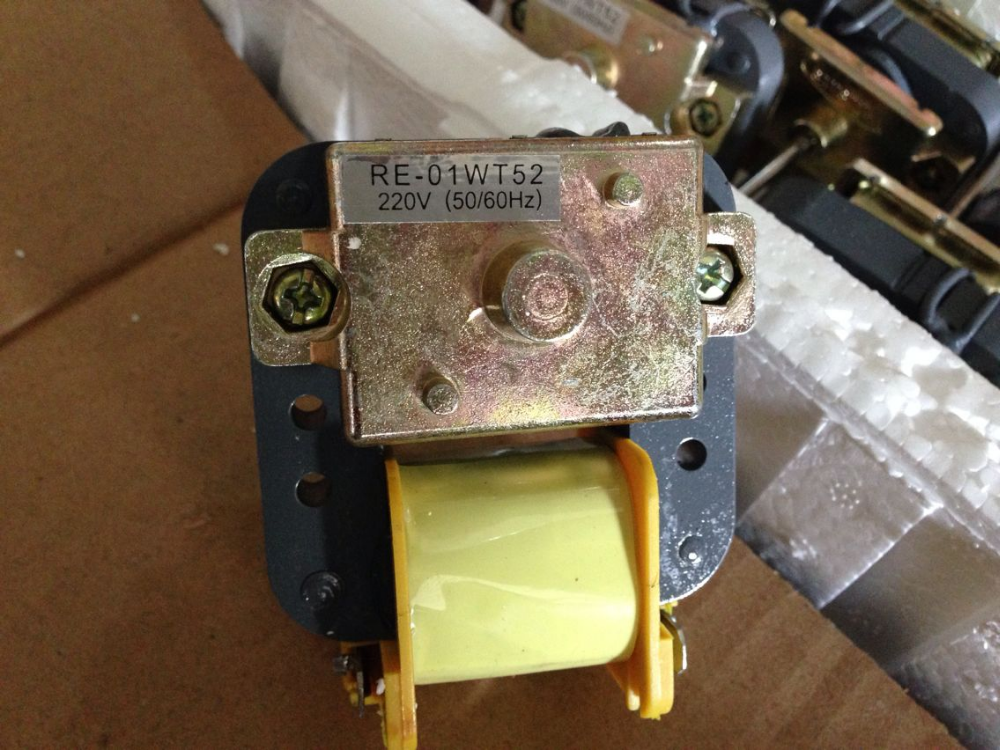

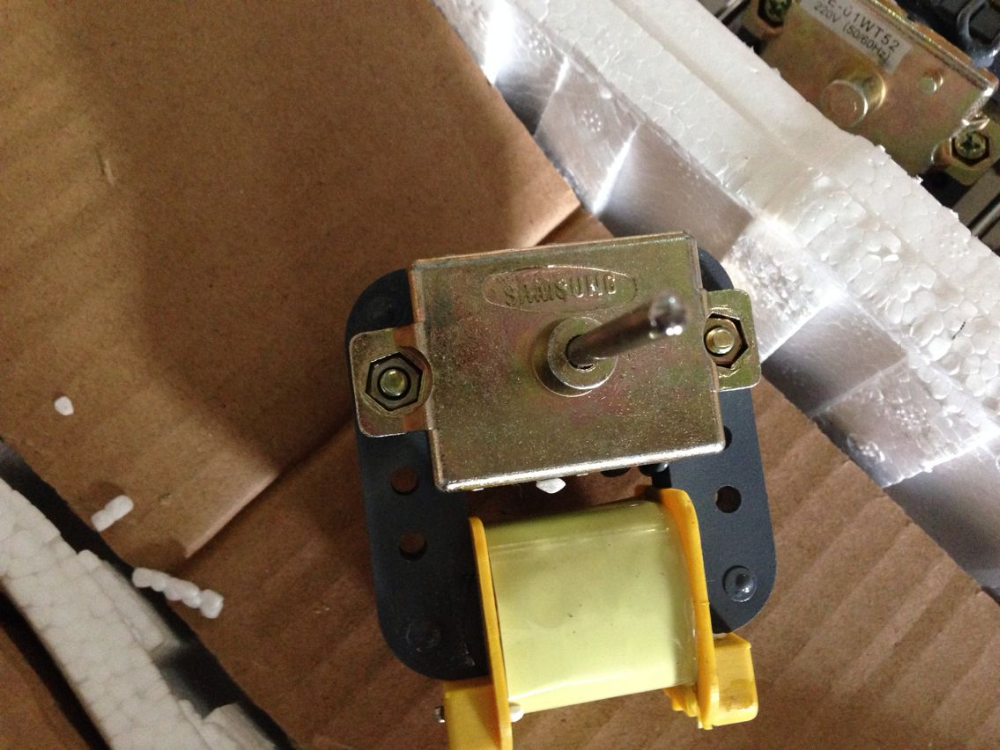

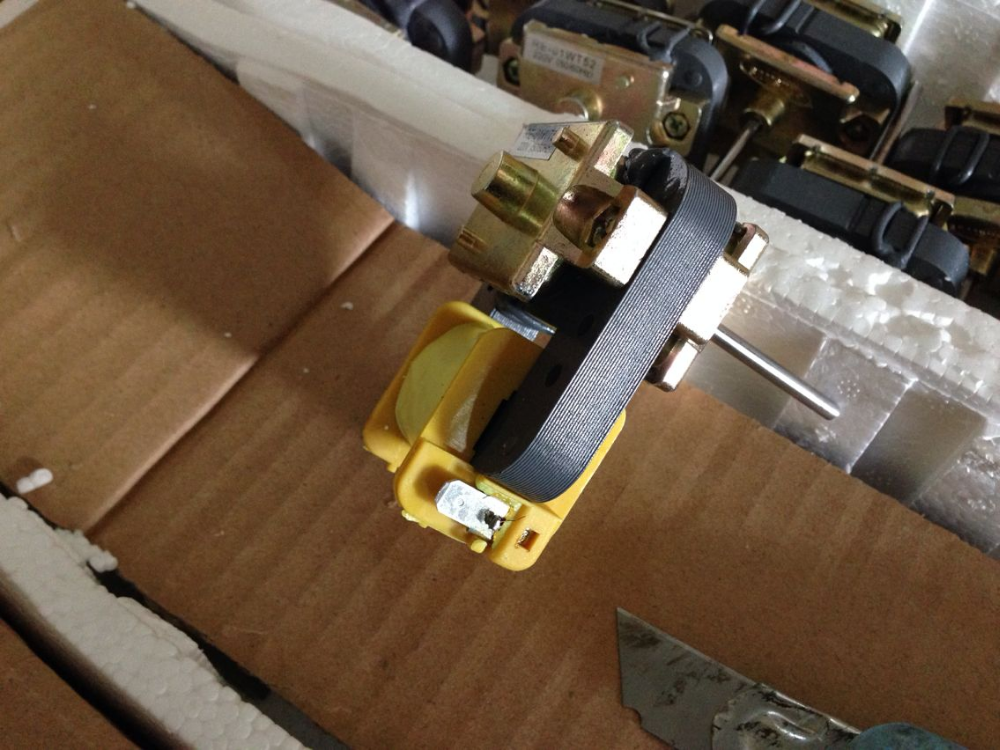

1.Product photos
2.Product Specifications:
Product Name : Square shaded pole motor SAMSUNG fan motor JDF-6
Model Number : JDF-6
To : CW
Shaft diameter : 4/3.173mm
Input : 8W
Frequency:50/60Hz
Voltage: 220V/110V

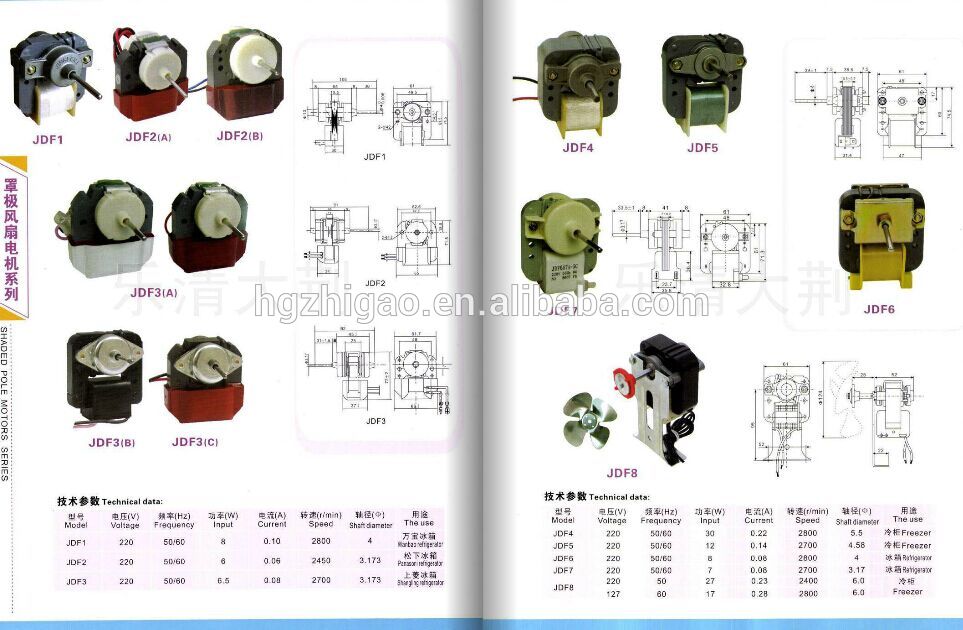

| No | Model | Voltage | Frequency | Input Power (W) | Current (A) | Shaft Diameter | Direction of Rotation | Qty/Ctn | Carton Size |
| 1 | JDF1 | 220 | 50/60 | 8 | 0.085 | 4 | CCW | 40 | 46*27*20 |
| 110 | 50/60 | 10 | 0.15 | 4 | CCW | 40 | 46*27*20 | ||
| 2 | JDF2 | 220 | 50/60 | 6 | 0.065 | 3.173 | CW/CCW | 40 | 46*27*20 |
| 110 | 50/60 | 6.5 | 0.12 | 3.173 | CW/CCW | 40 | 46*27*20 | ||
| 3 | JDF3(A) | 220 | 50/60 | 6.5 | 0.06 | 3.173 | CW/CCW | 40 | 46*27*20 |
| 110 | 50/60 | 8 | 0.12 | 3.173 | CW/CCW | 40 | 46*27*20 | ||
| 4 | JDF3(B) | 220 | 50/60 | 8 | 0.08 | 3.173 | CCW | 40 | 46*27*20 |
| 110 | 50/60 | 8 | 0.16 | 3.173 | CCW | 40 | 46*27*20 | ||
| 5 | JDF3(C) | 220 | 50/60 | 6.5 | 0.06 | 3.173 | CW/CCW | 40 | 46*27*20 |
| 110 | 50/60 | 8 | 0.12 | 3.173 | CW/CCW | 40 | 46*27*20 | ||
| 6 | JDF3-7228 | 220 | 50/60 | 6.5 | 0.06 | 3.173 | CW/CCW | 40 | 46*27*20 |
| 110 | 50/60 | 8 | 0.12 | 3.173 | CW/CCW | 40 | 46*27*20 | ||
| 7 | JDF3-2261 | 220 | 50/60 | 6.5 | 0.06 | 3.173 | CW/CCW | 40 | 46*27*20 |
| 110 | 50/60 | 8 | 0.12 | 3.173 | CW/CCW | 40 | 46*27*20 | ||
| 8 | JDF4 | 220 | 50/60 | 30 | 0.22 | 5.5 | CCW | 40 | 46*41*25 |
| 110 | 50/60 | 30 | 0.45 | 5.5 | CCW | 40 | 46*41*25 | ||
| 9 | JDF6 | 220 | 50/60 | 8 | 0.085 | 4 | CW | 40 | 47*27*20 |
| 110 | 50/60 | 8 | 0.15 | 4 | CW | 40 | 47*27*20 | ||
| 10 | JDF7 | 220 | 50/60 | 7 | 0.065 | 3.173 | CW/CCW | 40 | 47*27*20 |
| 110 | 50/60 | 7 | 0.14 | 3.173 | CW/CCW | 40 | 47*27*20 | ||
| 11 | JDF8 | 220 | 50/60 | 27 | 0.2 | 6 | CCW | 28 | 41*29**26.5 |
| 110 | 50/60 | 27 | 0.42 | 6 | CCW | 28 | 41*29**26.5 | ||
| 12 | JDF9 | 220 | 50/60 | 8 | 0.12 | 3.173 | CCW | 40 | 47*27*20 |
| 110 | 50/60 | 8 | 0.18 | 3.173 | CCW | 40 | 47*27*20 | ||
| 13 | JDF10-6116 | 220 | 50/60 | 12 | 0.14 | 5 | CW | 40 | 47*27*20 |
| 110 | 50/60 | 12 | 0.25 | 5 | CW | 40 | 47*27*20 | ||
| 14 | JDF11 | 220 | 50/60 | 8 | 0.085 | 4 | CCW | 40 | 47*27*20 |
| 110 | 50/60 | 8 | 0.15 | 4 | CCW | 40 | 47*27*20 | ||
| 15 | JDF12 | 220 | 50/60 | 8 | 0.085 | 3.173 | CW/CCW | 40 | 47*27*20 |
| 110 | 50/60 | 8 | 0.15 | 3.173 | CW/CCW | 40 | 47*27*20 |
