1,Bitzer Semi-hermetic Compressor 6F-50.2 :
1).Voltage:380V-420V/50Hz,440-460V/3PH/60HZ.
2).Gas:R22 or HFC gas(R134a,R404)
3).Could used for Cold Storage
4).NW:241kgs,G.W:250Kgs
2. Technical Data
| SI | IP |
Displacement (1450 RPM 50Hz) | 151,6 m³/h | 5353.7 CFH |
Displacement (1750 RPM 60Hz) | 183,07 m³/h | 6462.6 CFH |
No. of cylinder x bore x stroke | 6 x 82 mm x 55 mm | 6 x 3.23 inch x 2.17 inch |
Motor voltage (more on request) | 380..400V YY/3/50Hz | 440..460V YY/3/60Hz |
Max operating current | 92.0A | 92.0A |
Winding ratio | 50/50 | 50/50 |
Starting current (Rotor locked) | 226.0A Y/ 404.0A YY | 226.0A Y/ 404.0A YY |
Weight | 241 kg | 531 lb |
Max. pressure (LP/HP) | 19 / 28 bar | 275 / 403 psi |
Connection suction line | 54 mm - 2 1/8' | 54 mm - 2 1/8' |
Connection discharge line | 42 mm - 1 5/8' | 42 mm - 1 5/8' |
Connection cooling water | R 3/4' | R 3/4' |
Oil type R134a // R407A/C/F // R404A // R507A | tc<55°C: BSE32 / tc>55°C: BSE55 (Option) | tc<130°F: BSE32 / tc>130°F: BSE55 (Option) |
Oil type R410A | -- | -- |
Oil type R22 R22 (R12 // R502) | B5.2 (Standard) | B5.2 (Standard) |
Oil type R744 (CO2) | -- | -- |
Oil type R290 // R1270 | Clavus G68 (Standard) | Clavus G68 (Standard) |
Oil charge | 4,75 dm³ | 167.2 fl oz |
Crankcase heater | 140 W (Option) | 140 W (Option) |
Oil pressure monitoring | MP54 (Option), Delta P (Option, not for R290/R1270) | MP54 (Option), Delta P (Option, not for R290/R1270) |
Oil level monitoring | -- | -- |
Oil service valve | Option | Option |
Discharge gas temperature sensor | Option | Option |
Motor protection | SE-B2 | SE-B2 |
Enclosure class | IP54 (Standard), IP66 (Option) | IP54 (Standard), IP66 (Option) |
Start unloading | Option | Option |
Capacity control | 100-66-33% (Option) | 100-66-33% (Option) |
Additional fan | Option | Option |
Water-cooled cylinder heads | Option | Option |
CIC System | -- | -- |
Vibration dampers | Standard | Standard |
3. We can supply more Bitzer Semi-hermetic compressor models as below:
| Model | Horse power | Displacemet(50hz)m3/h | Qty of cylinder*Diameter*Stoke(mm) |
| 2DC-2.2 | 2 | 13.5 | 2*50*39.3 |
| 2DC-3.2 | 3 | 13.5 | 2*50*39.3 |
| 2CC-3.2 | 3 | 16.2 | 2*55*39.3 |
| 2CC-4.2 | 4 | 16.2 | 2*55*39.3 |
| 4DC-5.2 | 5 | 26.84 | 4*50*39.3 |
| 4DC-7.2 | 7 | 26.84 | 4*50*39.3 |
| 4CC-6.2 | 6 | 32.48 | 4*55*39.3 |
| 4CC-9.2 | 9 | 32.48 | 4*55*39.3 |
| 4TCS-8.2 | 8 | 41.33 | 4*60*42 |
| 4TCS-12.2 | 12 | 41.33 | 4*60*42 |
| 4PCS-10.2 | 10 | 48.5 | 4*65*42 |
| 4PCS-15.2 | 15 | 48.5 | 4*65*42 |
| 4NCS-12.2 | 12 | 56.25 | 4*70*42 |
| 4NCS-20.2 | 20 | 56.25 | 4*70*42 |
| 4H-15.2 | 15 | 73.6 | 4*70*55 |
| 4H-25.2 | 25 | 73.6 | 4*70*55 |
| 4G-20.2 | 20 | 84.5 | 4*75*55 |
| 4G-30.2 | 30 | 84.5 | 4*75*55 |
| 6H-25.2 | 25 | 110.5 | 6*70*55 |
| 6H-35.2 | 35 | 110.5 | 6*70*55 |
| 6G-30.2 | 30 | 126.8 | 6*75*55 |
| 6G-40.2 | 40 | 126.8 | 6*75*55 |
| 6F-40.2 | 40 | 151.6 | 6*82*55 |
| 6F-50.2 | 50 | 151.6 | 6*82*55 |
| S6H-20.2 | 20 | 36.8 | 6*70*55 |
| S6G-25.2 | 25 | 42.3 | 6*75*55 |
| S6F-30.2 | 30 | 50.5 | 6*82*55 |

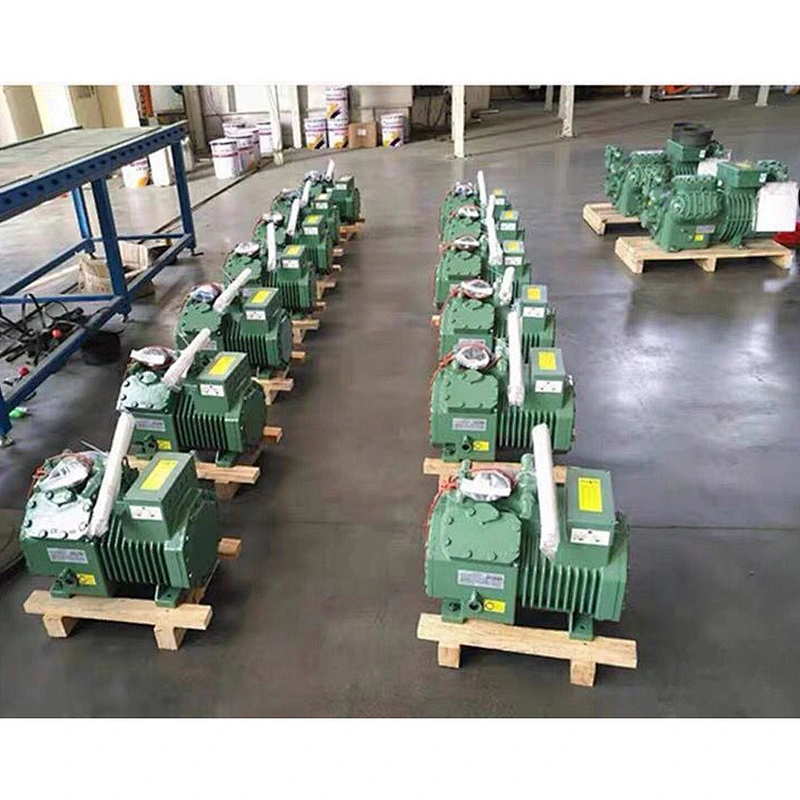

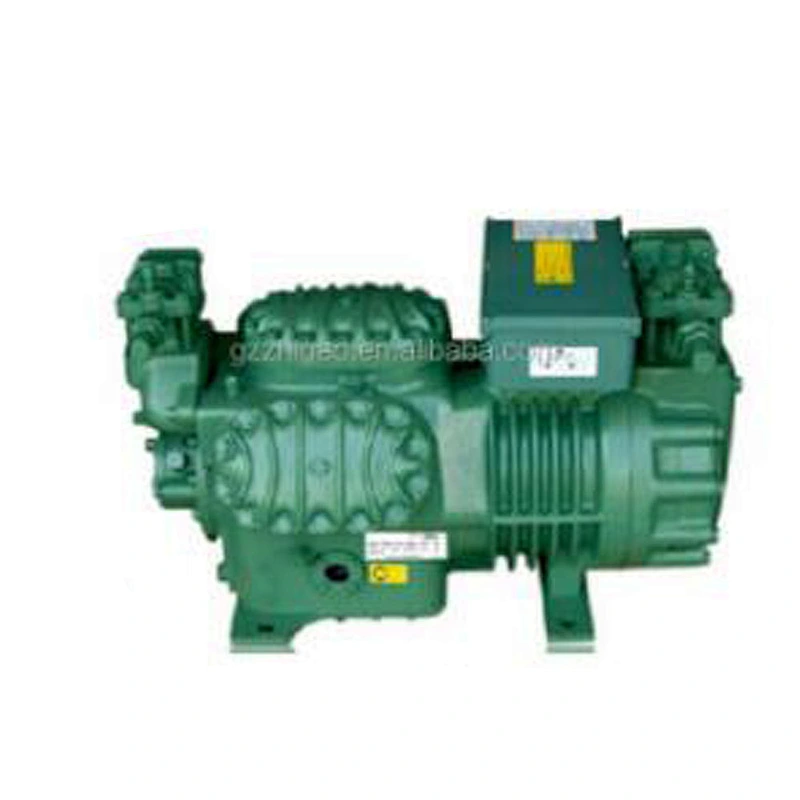

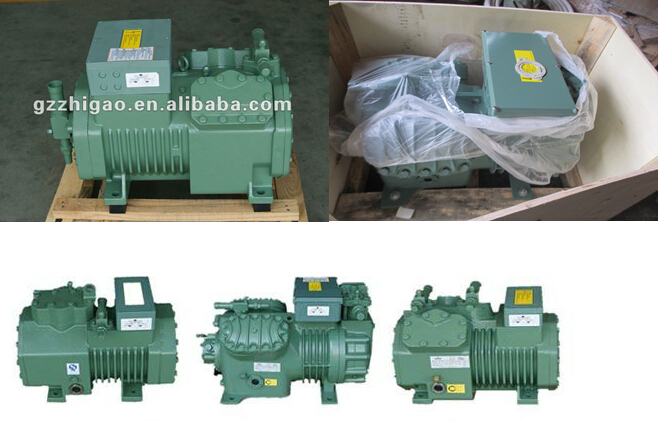

4, Reference Picture:
