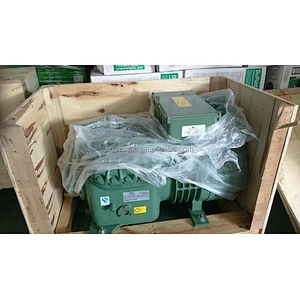

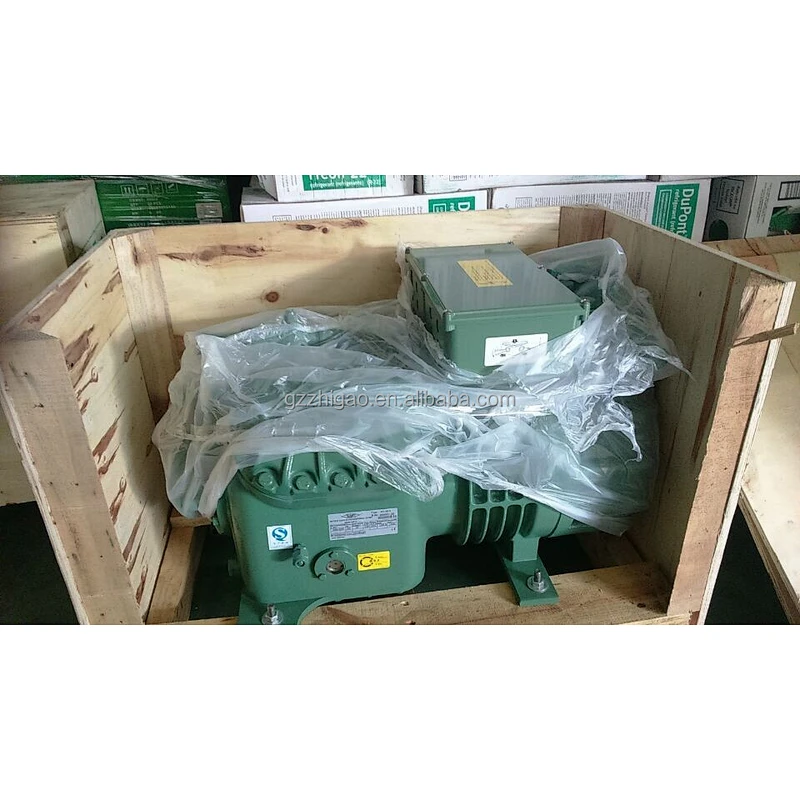

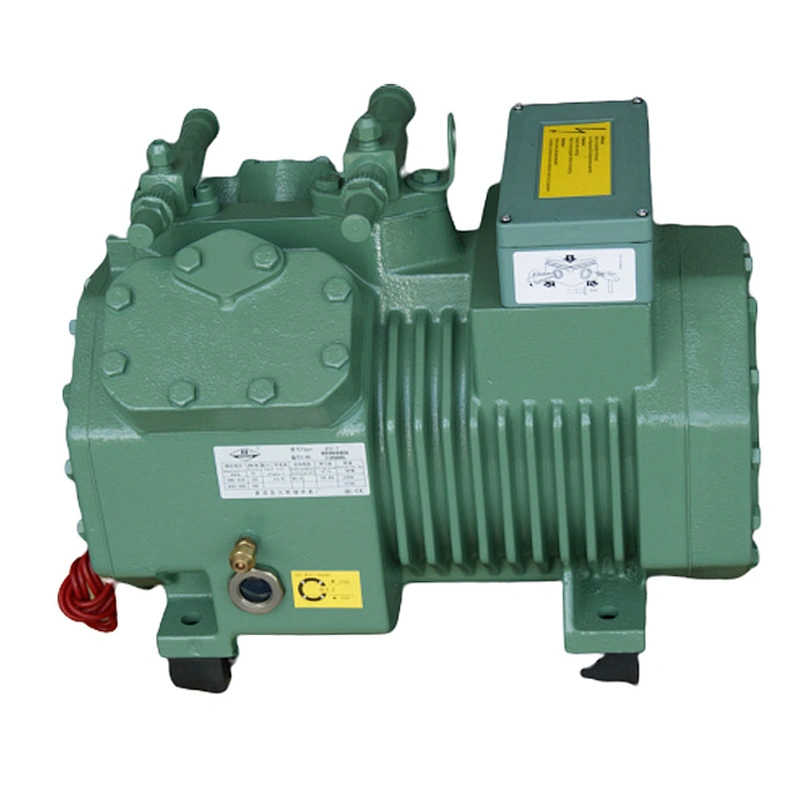

Semi hermetic Compressor 4CC-6.2 (Y)
1. Features:
1)High efficiency, Good reliability, Low noise, Low vibration, No leakage
2)Wide range of application
The Compressor uses R22 as refrigerant. R134a, R404a, R407b and R407c are also approved. R12 and R502 are not suggested due to the international environment protection requirement. The machine can be used at a low or high condensing temperature.
3)Excellent performance
The compressor has a scientific structure design, strictly chosen material and precise procession and it is strictly inspected. The factory has obtained the National Compulsory Products CCC Certification, the National Industrial Products Manufacture License, and the ISO9001:2008 International Quality Supervision System Certification.
4)Reliable safety device
The compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and the compressor and the operation beyond approved application pressure.
2. Technical Data
| Technical Data | |
| Displacement (1450 RPM 50Hz) | 13,42 m3/h |
| Displacement (1750 RPM 60Hz) | 16,20 m3/h |
| No. of cylinder x bore x stroke | 2 x 50 mm x 39,3 mm |
| Motor voltage (more on request) | 380..420V Y/3/50Hz |
| Max operating current | 6.9A |
| Winding ratio | -- |
| Starting current (Rotor locked) | 27.0A Y |
| Weight | 67,5 kg |
| Max. pressure (LP/HP) | 19 / 28 bar |
| Connection suction line | 22 mm - 7/8'' |
| Connection discharge line | 16 mm - 5/8'' |
| Connection cooling water | -- |
| Oil type R134a/R407C/R404A/R507A | tc<55°C: BSE32 / tc>55°C: BSE55 (Option) |
| Oil type R410A | -- |
| Oil type R22 (R12/R502) | B5.2 (Standard) |
| Oil type R744 (CO2) | -- |
| Oil charge | 1,50 dm³ |
| Crankcase heater | 0..120 W PTC (Option) |
| Oil pressure monitoring | -- |
| Oil level monitoring | -- |
| Oil service valve | -- |
| Discharge gas temperature sensor | -- |
| Motor protection | SE-B1 |
| Enclosure class | IP65 |
| Start unloading | -- |
| Capacity control | -- |
| Additional fan | Option |
| Water-cooled cylinder heads | -- |
| CIC System | -- |
| Vibration dampers | Standard |
| Sound power level (+5°C / 50°C) | -- |
| Sound power level (-10°C / 45°C) | 66,5 dB(A) @ 50Hz |
| Sound power level (-35°C / 40°C) | 69,0 dB(A) @ 50Hz |
| Sound pressure level @ 1m (+5°C / 50°C) | -- |
| Sound pressure level @ 1m (-10°C / 45°C) | 58,5 dB(A) @ 50Hz |
3. We can supply more Bitzer Semi-hermetic compressor models as below:
| Model | Horse power | Displacemet(50hz)m3/h | Qty of cylinder*Diameter*Stoke(mm) |
| 2DC-2.2 | 2 | 13.5 | 2*50*39.3 |
| 2DC-3.2 | 3 | 13.5 | 2*50*39.3 |
| 2CC-3.2 | 3 | 16.2 | 2*55*39.3 |
| 2CC-4.2 | 4 | 16.2 | 2*55*39.3 |
| 4DC-5.2 | 5 | 26.84 | 4*50*39.3 |
| 4DC-7.2 | 7 | 26.84 | 4*50*39.3 |
| 4CC-6.2 | 6 | 32.48 | 4*55*39.3 |
| 4CC-9.2 | 9 | 32.48 | 4*55*39.3 |
| 4TCS-8.2 | 8 | 41.33 | 4*60*42 |
| 4TCS-12.2 | 12 | 41.33 | 4*60*42 |
| 4PCS-10.2 | 10 | 48.5 | 4*65*42 |
| 4PCS-15.2 | 15 | 48.5 | 4*65*42 |
| 4NCS-12.2 | 12 | 56.25 | 4*70*42 |
| 4NCS-20.2 | 20 | 56.25 | 4*70*42 |
| 4H-15.2 | 15 | 73.6 | 4*70*55 |
| 4H-25.2 | 25 | 73.6 | 4*70*55 |
| 4G-20.2 | 20 | 84.5 | 4*75*55 |
| 4G-30.2 | 30 | 84.5 | 4*75*55 |
| 6H-25.2 | 25 | 110.5 | 6*70*55 |
| 6H-35.2 | 35 | 110.5 | 6*70*55 |
| 6G-30.2 | 30 | 126.8 | 6*75*55 |
| 6G-40.2 | 40 | 126.8 | 6*75*55 |
| 6F-40.2 | 40 | 151.6 | 6*82*55 |
| 6F-50.2 | 50 | 151.6 | 6*82*55 |
| S6H-20.2 | 20 | 36.8 | 6*70*55 |
| S6G-25.2 | 25 | 42.3 | 6*75*55 |
| S6F-30.2 | 30 | 50.5 | 6*82*55 |

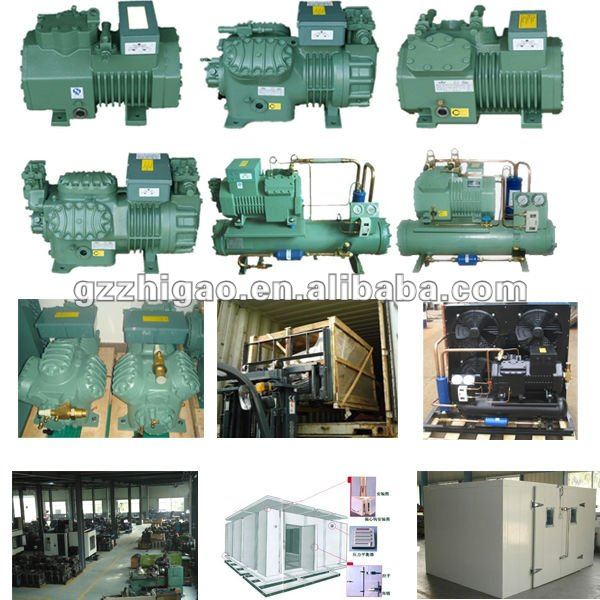

Reference pictures

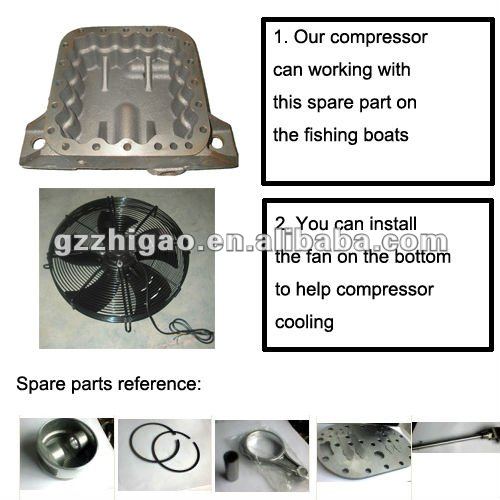

Spare parts

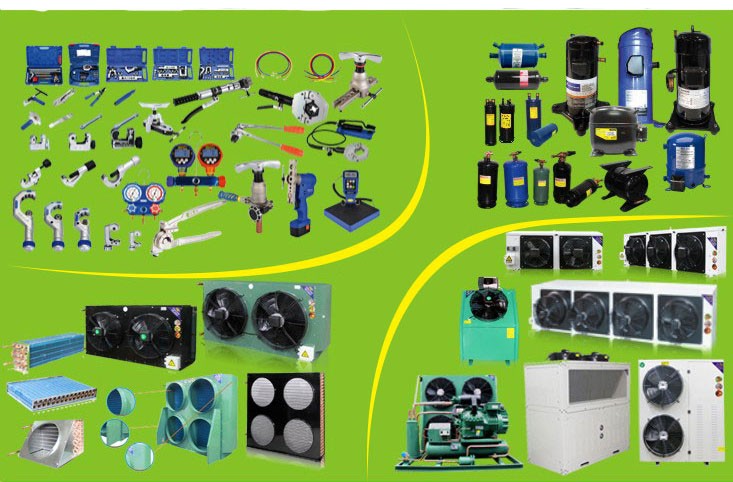

Our serives
1.Scroll,Rotary,piston and semi-hermetic compressor;
2.Refrigeration spare parts:gauge,valve,tools andetc;
3.Refrigeration gas and oil;
4.OEM Air cooler and condenser,air curtain;
5.compressor unit and condenser unit,door for cool room.

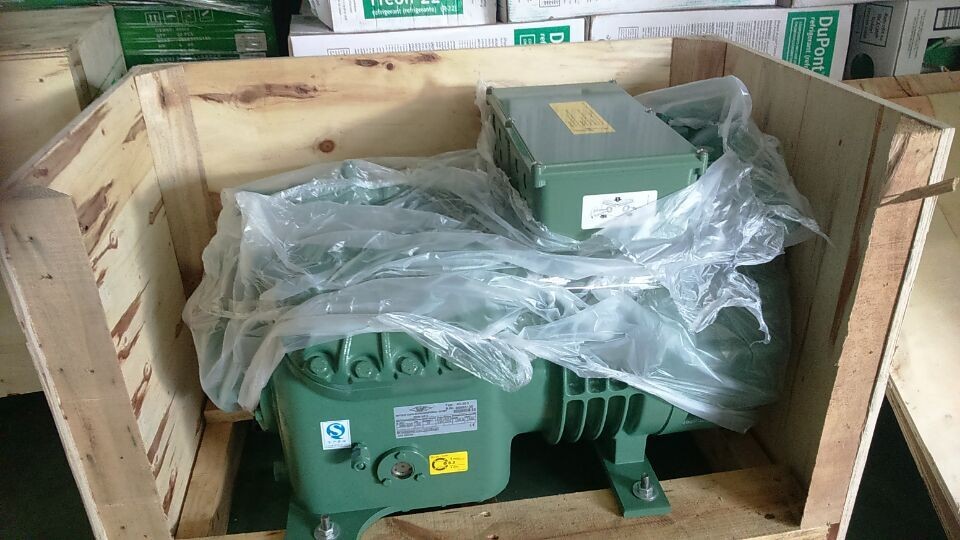

Packing
one unit packing with one wooden carton

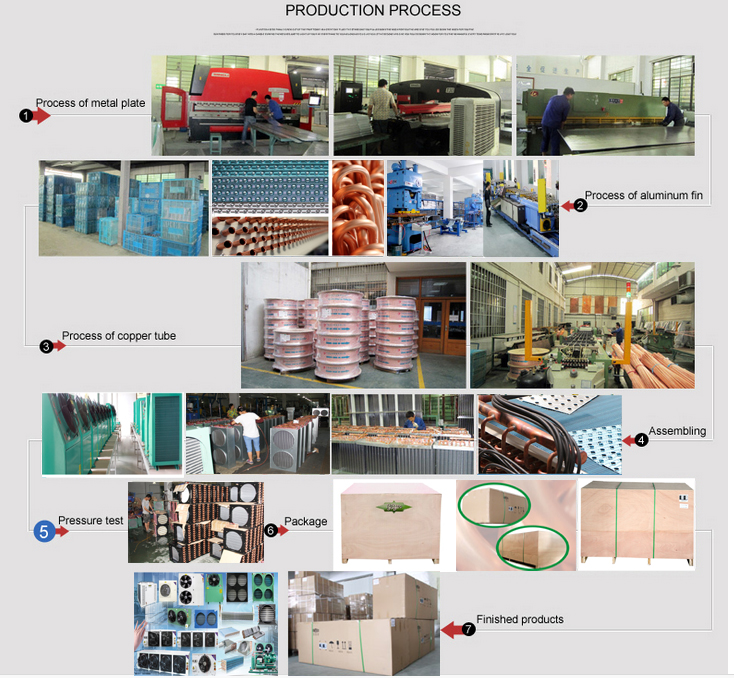

Factory picture
Guangzhou Xi Maike General refrigeration equipment Co.Ltd.is a professional large-scale modern enterprise which is engaged in refrigeration fittings.Product R&D production and sales.
To know more about us,you could visit our websit: www.gzzhigao.net
