Name: Model 10 Solenoid Valve Cold Store and Air Conditioning Unit Parts 1/2 5/8 SAE ODF Solenoid Valve
Rating: 5 (1 reviews)

Condition:New
Applicable Industries:Building Material Shops, Manufacturing Plant, Construction works , Food & Beverage Shops, Advertising Company
Showroom Location:None
Video outgoing-inspection:Not Available
Machinery Test Report:Not Available
Marketing Type:Hot Product 2019
Place of Origin:Guangdong, China
Brand Name:Hongsen
Type:Refrigeration spare part
Application:Refrigeration Parts, conditioning unit, freezer ,cold storage
Warranty:Unavailable
Connection:Standard 3-wire insert connector
Voltage:AC380V,AC220V/50HZ
Refrigerant:HCFC or HFC
After Warranty Service:No service
Local Service Location:None
Certification:ce
After-sales Service Provided:Online support

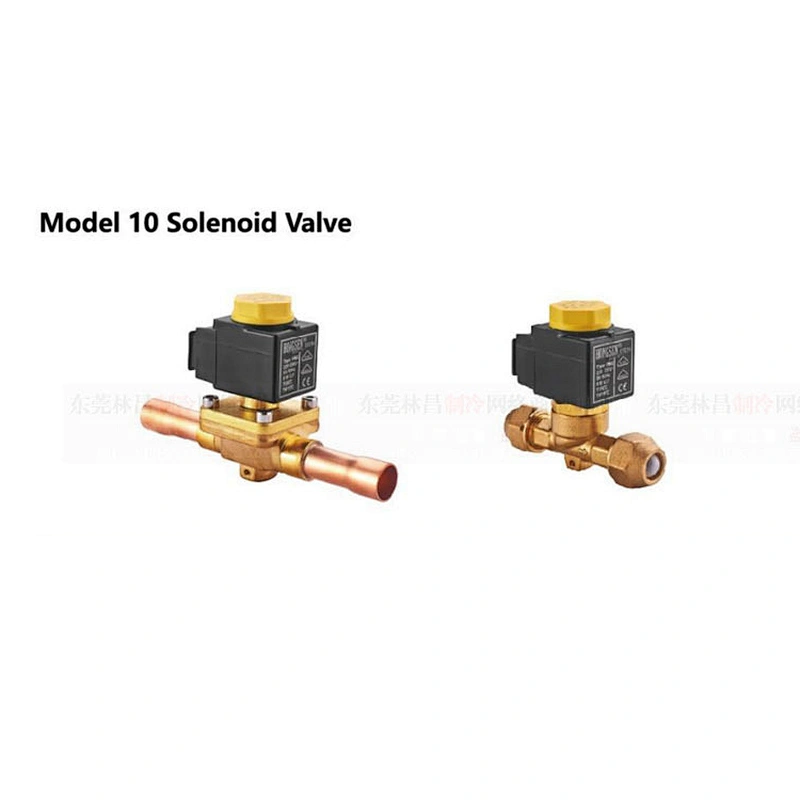

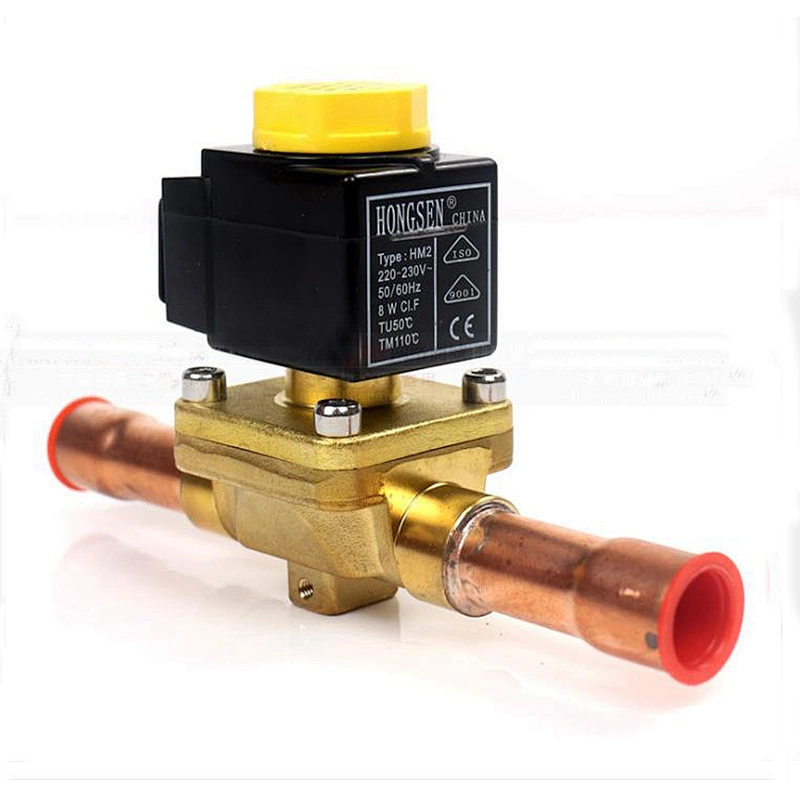

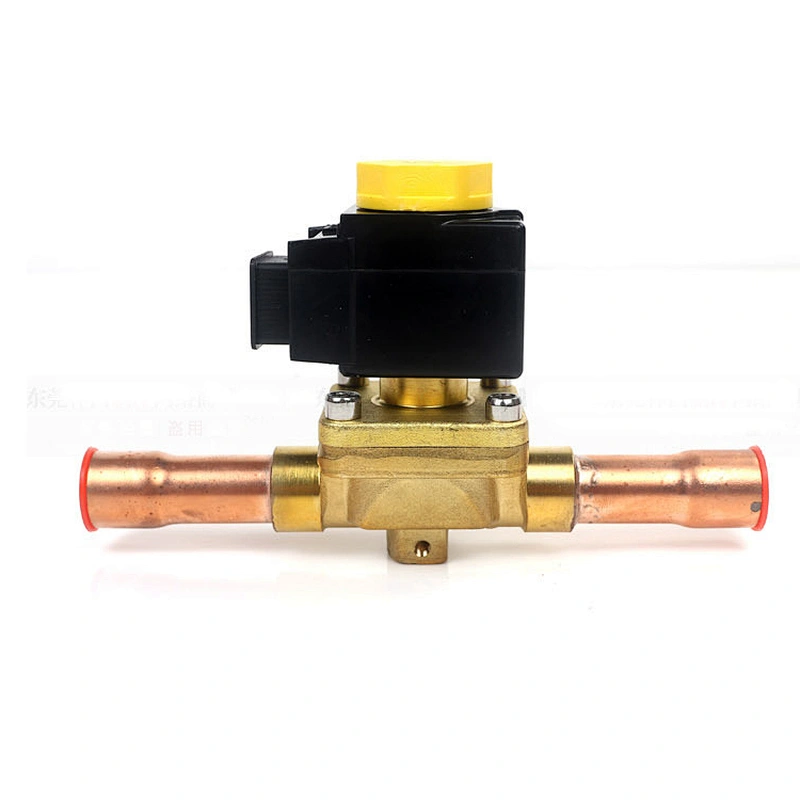

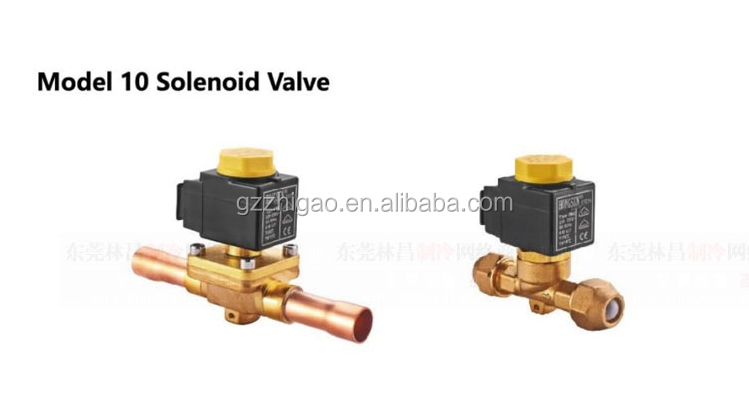

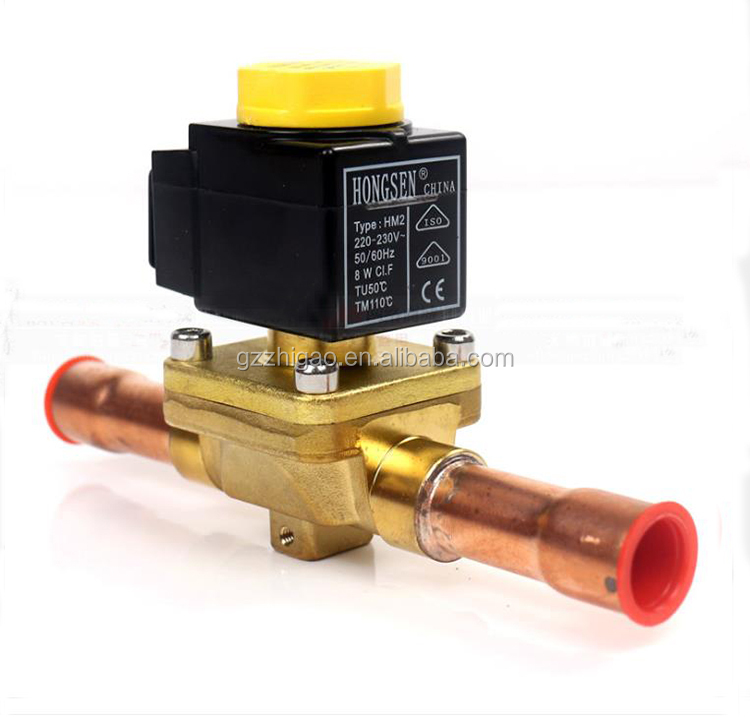

Model 10 Solenoid Valve Cold Store and Air Conditioning Unit Parts 1/2 5/8 SAE ODF Solenoid Valve

Product Description

*Model 10 solenoid valve is a direct-operated or servo-operated valve, which is applicable to one direction flow. *Model 10 solenoid valve is used on the liquid, air suction or not vapor piping of a freezer, cold store and air conditioning unit.
* The valve seat of Model 10 solenoid valve is well sealed with perfect sealing performance.

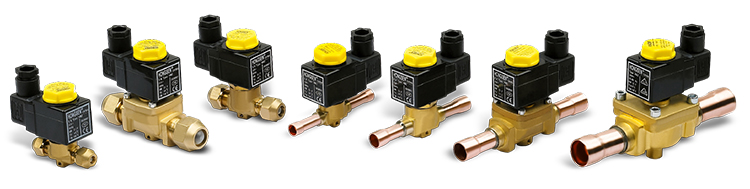

*Model 10 solenoid valves with solenoid of different voltage are available.

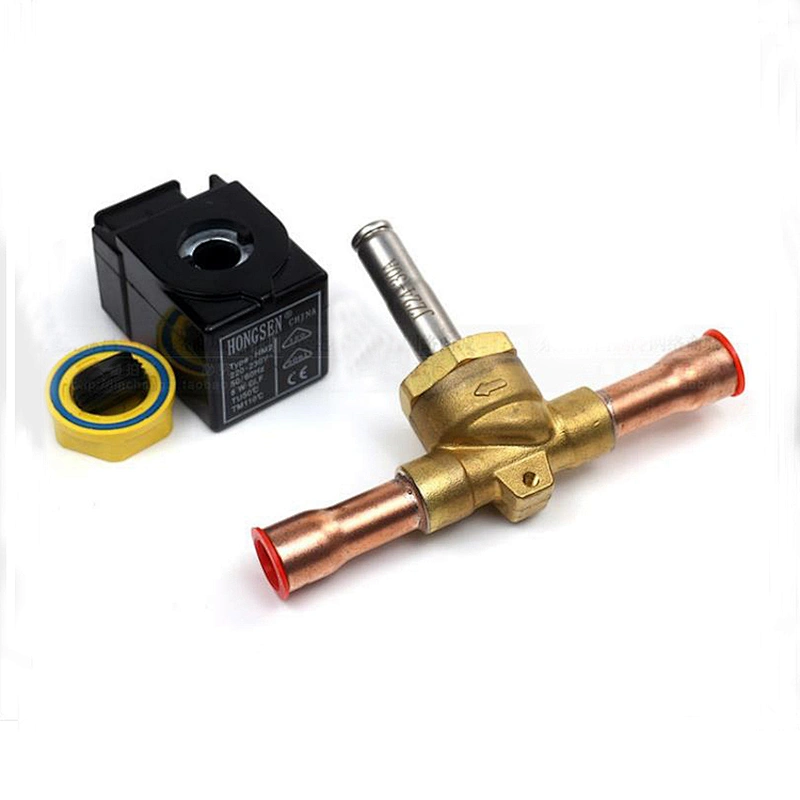

*Both packed and separated Model 10 solenoid valves are available and it means the valve body could be supplied separately from the solenoid.

Specification

Model	Connection			Kv(㎥/h)	Nominal Refrigerating Capacity kW(liquid)
Model		Flare	Welded	Kv(㎥/h)		R22	HFC-134a	R404a/R502
1020-2	1/4 SAE	——	0.175	3.15	2.95	2.08
1028-2	——	14 ODF	0.175	3.15	2.95	2.08
1020-3	3/8 SAE	——	0.230	4.15	3.90	2.75
1028-3	——	3/8 ODF	0.230	4.15	3.90	2.75
1064-3	3/8 SAE	——	0.800	14.50	13.50	9.50
1068-3	——	3/8 ODF	0.800	14.50	13.50	9.50
1064-4	1/2 SAE	——	0.800	14.50	13.50	9.50
1068-5	——	1/2 ODf
1070-4	——	5/8 ODF
1078-4	1/2 SAE	——	2.200	39.60	37.10	26.20
1070-5	——	1/2 ODF	2.200	39.60	37.10	26.20
1070-5	5-8 SAE	——	2.610	47.00	44.00	31.00
1078-5	——	5/8 ODF	2.610	47.00	44.00	31.00
1078-6	——	3/4 ODF	4.300	77.50	72.045	51.10
1098-7	——	7/8 ODF	5.700	102.60	96.00	67.85
Kv: The flow rate (m³/h) of water of density 1 t/m³ passing through the solenoid valve under the pressure differential of 100KPa.
The MOPD of gaseous medium is about 0.1 MPa higher than that of liquid.

Technical Parameters
Applicable Refrigerant	HCFC or HFC(Customer apecified)
Applicable Medium Temperature	-30℃~+105℃
Max. Operating Pressure	3.0MPa
Min.Pressure Differential to Open Valve	Direct-operated:0.00MPa /Servo-operated:0.02Mpa
Max.Operating Pressure Differential(MOPD)	2.5MPa
Application Ambient Temperature of Solenoid	-40℃~+65℃
Standard Voltage of Solenoid	AC380V,AC220V/50HZ(Customer design is available)
Allowable Voltage Fluctuation for Solenoid	+10%~-15%
Connection of Solenoid	Standard 3-wire insert connector
