Name: Cold Storage Spare Solenoid Valve 3/8" 1064/3 SAE 1068/3 ODF Solenoid Valve 10mm Factory Support Full in Stock
Rating: 5 (1 reviews)

Condition:New
Applicable Industries:Building Material Shops, Manufacturing Plant, Construction works , Food & Beverage Shops, Advertising Company
Showroom Location:None
Video outgoing-inspection:Not Available
Machinery Test Report:Not Available
Marketing Type:Hot Product 2019
Place of Origin:Guangdong, China
Brand Name:Hongsen
Type:Refrigeration spare part
Application:Refrigeration Parts
Warranty:Unavailable
After Warranty Service:No service
Local Service Location:None
Certification:ce
After-sales Service Provided:Online support

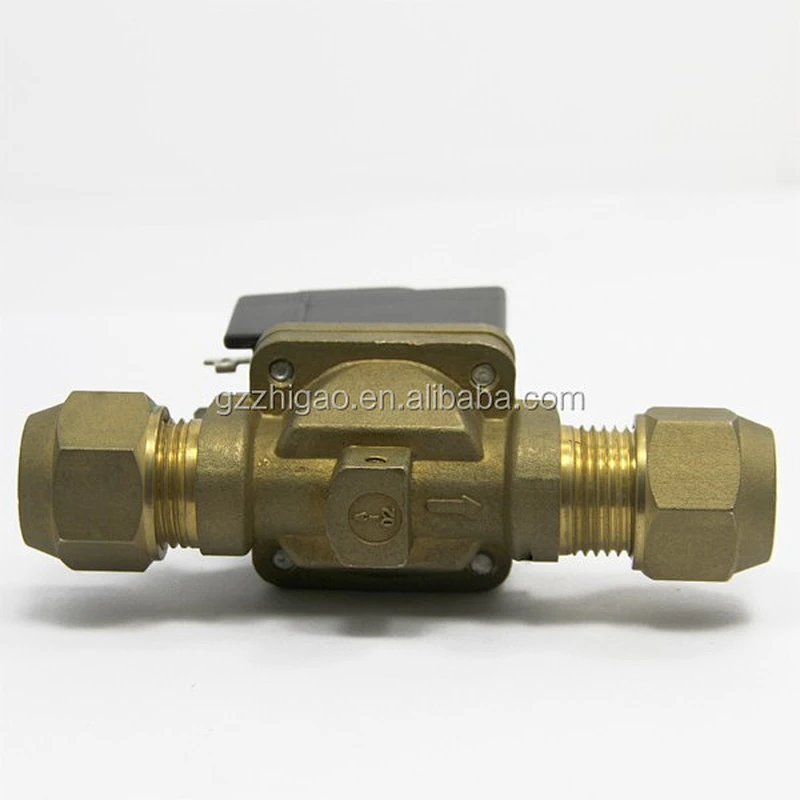

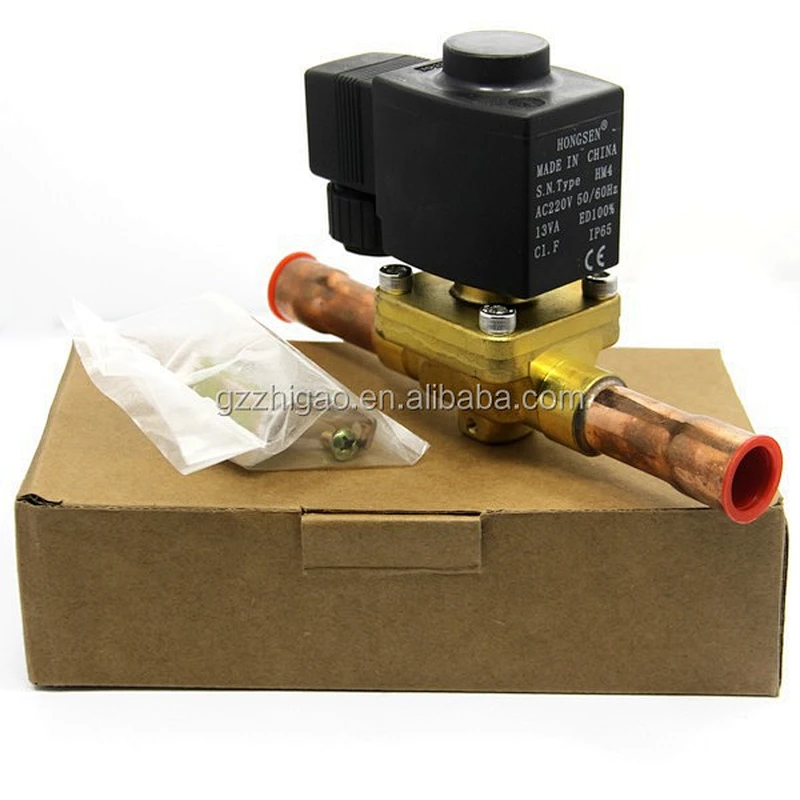

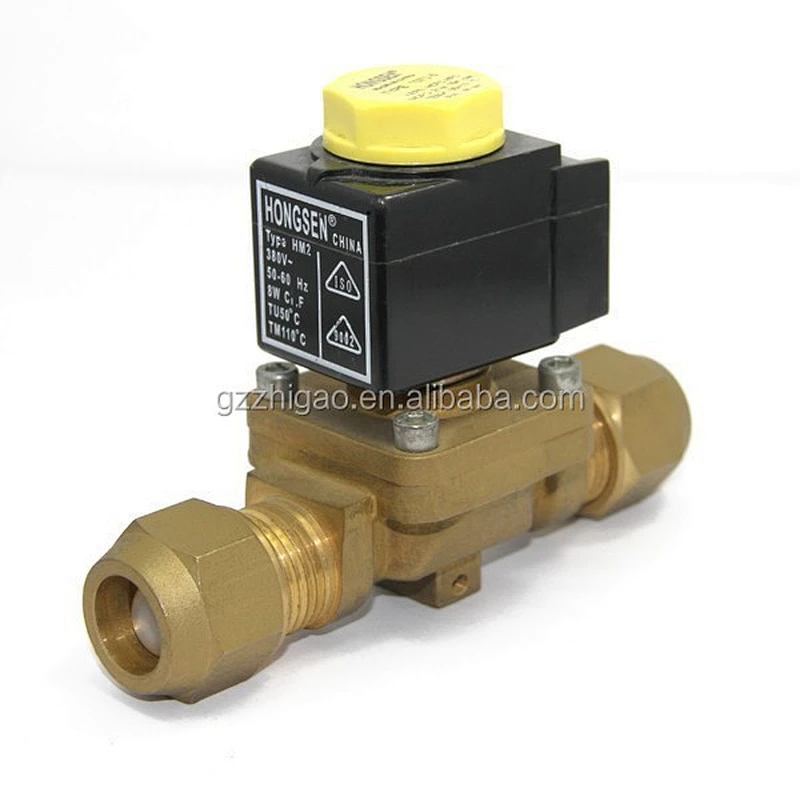

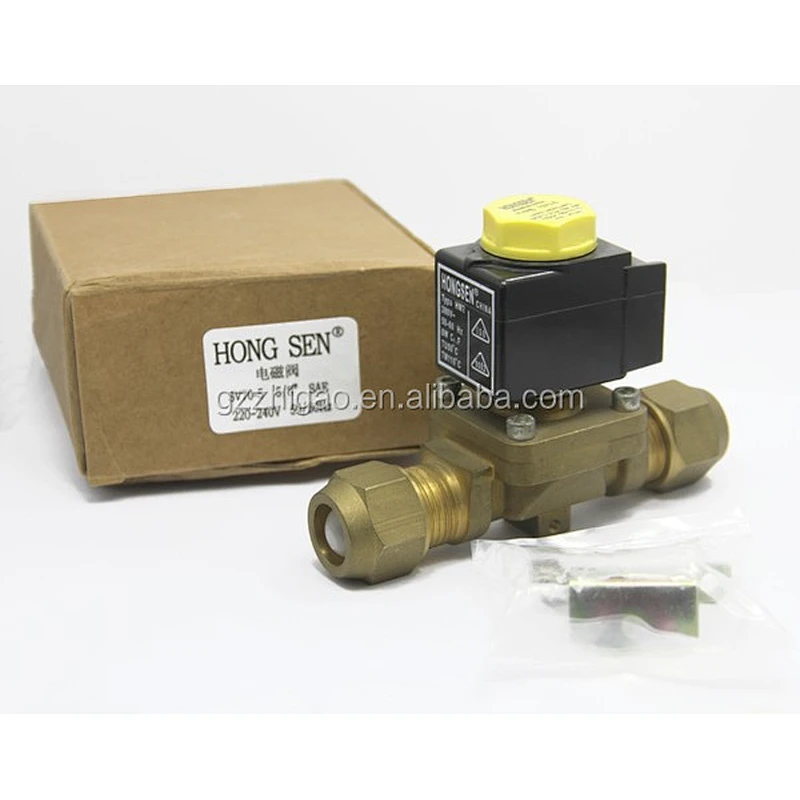

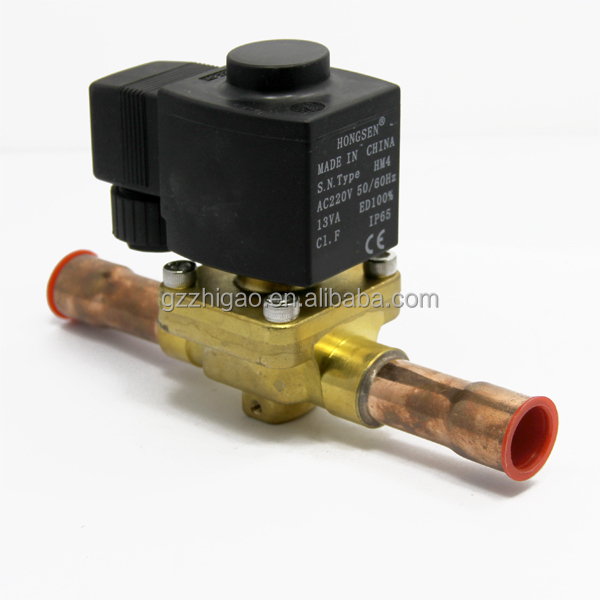

Cold Storage Spare Solenoid Valve 3/8"1064/3 SAE 1068/3 ODF Solenoid Valve 10mm

Product Description

Model 10 solenoid valve is a direct-operated or servo-operated valve, which is applicable to one direction flow.
Model 10 solenoid valve is used on the liquid, air suction or not vapor piping of a freezer, cold store and air conditioning unit.
The valve seat of Model 10 solenoid valve is well sealed with perfect sealing performance.
Model 10 solenoid valves with solenoid of different voltage are available.
Both packed and separated Model 10 solenoid valves are available and it means the valve body could be supplied separately from the solenoid.

Model	Connection		Kv(M3/h)	Nominal Refrigerating Capacity kW(liquid)
	Flare	Welded		R22	HFC-134a	R404a/R502
1020-2	1/4 SAE	——	0.175	3.15	2.95	2.08
1028-2	——	14 ODF
1020-3	3/8 SAE	——	0.230	4.15	3.90	2.75
1028-3	——	3/8 ODF
1064-3	3/8 SAE	——	0.800	14.50	13.50	9.50
1068-3	——	3/8 ODF
1064-4	1/2 SAE	——	0.800	14.50	13.50	9.50
1068-5	——	1/2 ODf
1070-4	——	5/8 ODF
1078-4	1/2 SAE	——	2.200	39.60	37.10	26.20
1070-5	——	1/2 ODF
1070-5	5-8 SAE	——	2.610	47.00	44.00	31.00
1078-5	——	5/8 ODF
1078-6	——	3/4 ODF	4.300	77.50	72.045	51.10
1098-7	——	7/8 ODF	5.700	102.60	96.00	67.85

1) Kv: The flow rate (m3/h) of water of density 1 t/m³ passing through the solenoid valve under the pressure differential of 100 KPa.

2) The MOPD of gaseous medium is about 0.1 MPa higher than that of liquid.

Technical parameter

Applicable Refrigerant:	HCFC or HFC(Customer apecified)
Applicable Medium Temperature:	-30℃~+105℃
Max. Operating Pressure	3.0MPa
Min.Pressure Differential to Open Valve	Direct-operated:0.00MPa /Servo-operated:0.02Mpa
Max.Operating Pressure Differential(MOPD)	2.5MPa
Application Ambient Temperature of Solenoid	-40℃~+65℃
Standard Voltage of Solenoid	AC380V,AC220V/50HZ(Customer design is available)
Allowable Voltage Fluctuation for Solenoid	+10%~-15%
Connection of Solenoid	Standard 3-wire insert connector

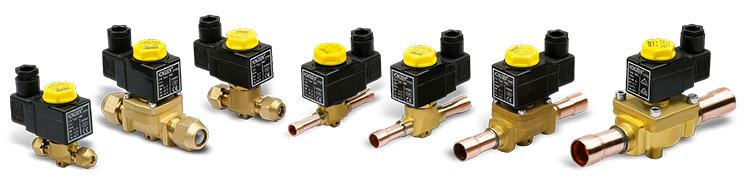

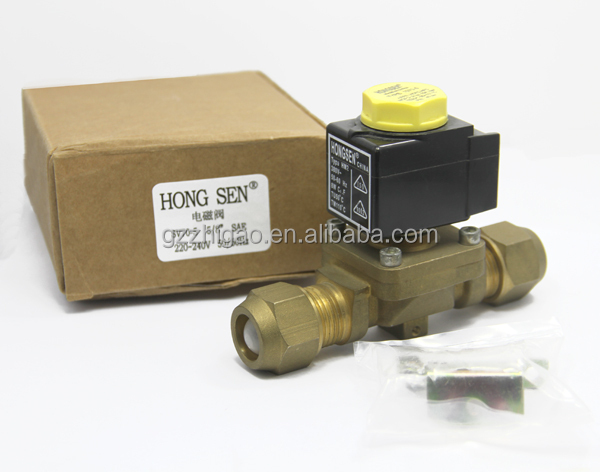

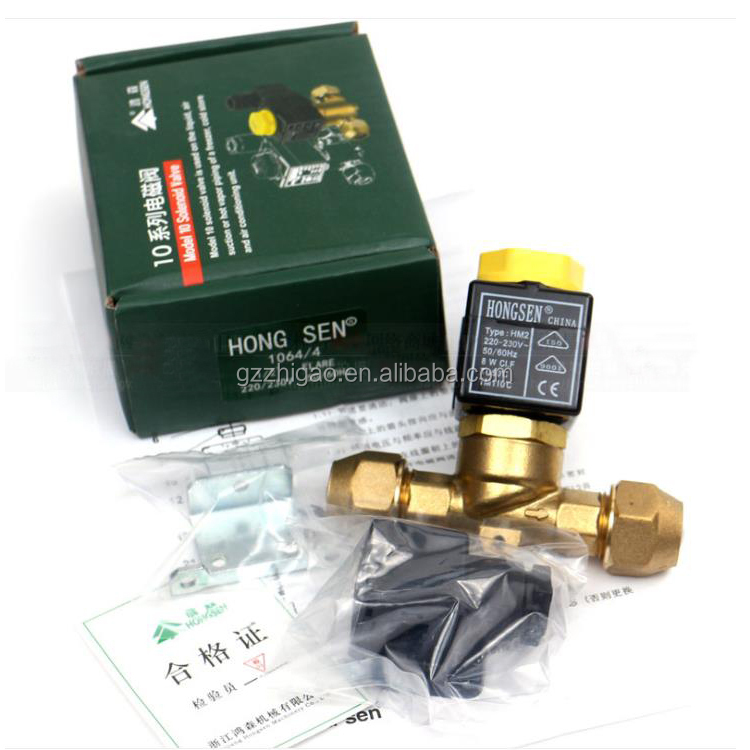

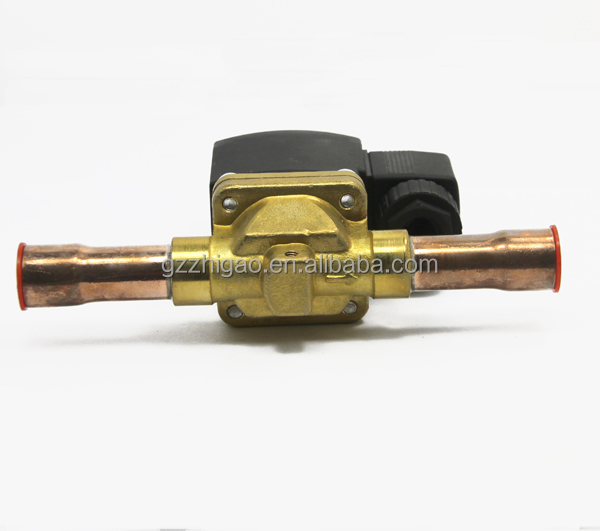

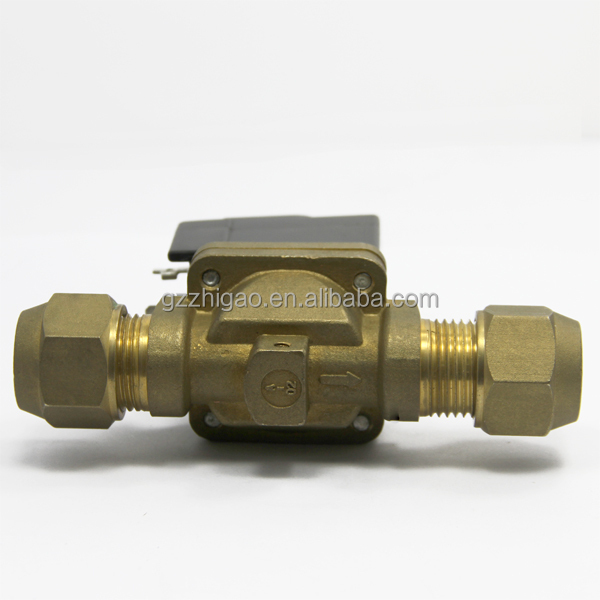

Detailed Images

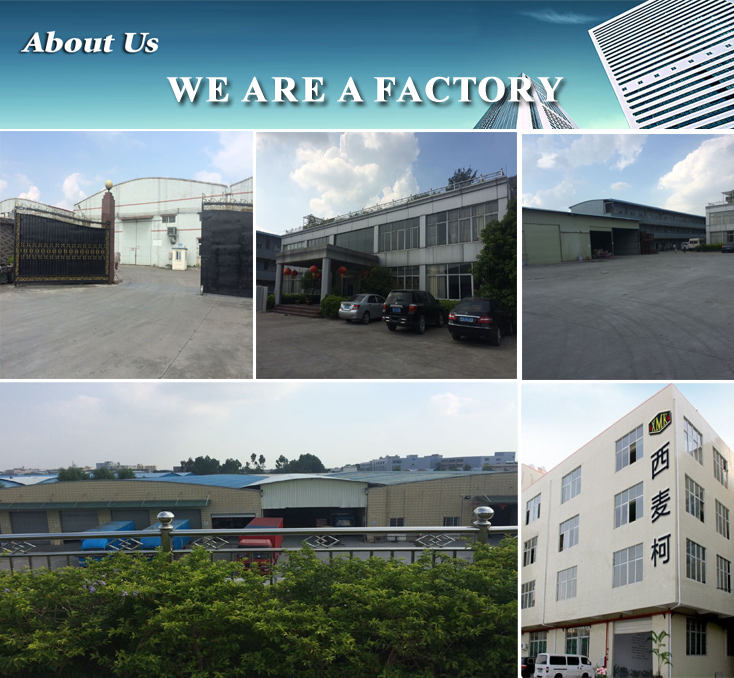

Company Information

Guangzhou Zhigao Refrigeration Equipment Co.,Ltd .was established in 1995 , in Guangzhou ,China. We are anenterprise that specializes in manufacture and trading.We have retail shops and offices in Guangzhou,and we always to provide the best service possible to our customers.Zhigao is mainly engaged in the production and sale of Compressor,Motor,Component,and Refrigerant and A/C spare parts.During past 14 years,Zhigao has accumulated agreat experience in business and has developed into one of the most prominent and the largest suppliers and producers of Compressor,Motor,Component,and Refrigerant and A/C spare parts systems in mainland,China.

With good product information resources in China's market and the reliable sales network in domestic market,we can meet various requirements of customers.At the same time,with our brand office in Guangzhou (Which handlesexport business),we are able to provide efficient order and delivery services.

At Zhigao,all employees follow our policy of putting customers at the first place. We always aim to full fill the requests of our customers. We look forward to working with you and creating a brighter future ahead of us together.
