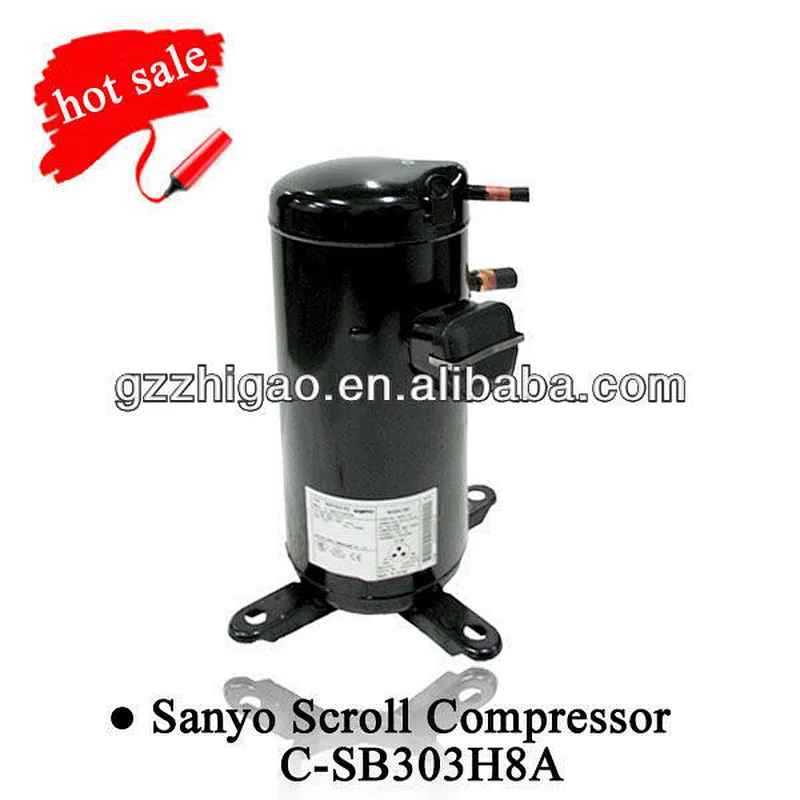

Sanyo Scroll Compressor.Use R22 gas,for commercial air conditioning.
We offer following models.
| Refrigerant | Out put | Displacement | Power Source | Model | Nominal Capacity | ||||||
| HP | KW | Cm/Rev | Ph | Hz | V | 50Hz | 60Hz | 50Hz | 60Hz | ||
| KW | KW | X1000btu/h | X1000BTU/h | ||||||||
| R22 | 3.5 | 2.6 | 55.6 | 1 | 50 | 220,230,240 | C-SB261H5A | 9.7 | / | 33.1 | / |
| 56.2 | 3 | 50/60 | 380/440 | C-SB263H8A | 9.9 | / | 33.8 | / | |||
| 4 | 3 | 66.7 | 1 | 50 | 220,230,240 | C-SB301H5A | 11.7 | 39.9 | / | ||
| 66.7 | 3 | 50/60 | 380/440 | C-SB303H8A | 11.6 | 14.1 | 39.6 | 48.1 | |||
| 66.7 | 3 | 50/60 | 380/440 | C-SB303H8G | 11.6 | 14.1 | 39.6 | 48.1 | |||
| 4.5 | 3.5 | 77.4 | 1 | 50 | 220,230,240 | C-SB351H5A | 13.4 | / | 45.5 | / | |
| 77.4 | 3 | 50/60 | 380/440 | C-SB353H8A | 13.7 | / | 46.8 | / | |||
| 5 | 3.75 | 83.4 | 3 | 50/60 | 380/440 | C-SB373H8A | 14.5 | 17.9 | 49.5 | 61.1 | |
| 85.5 | 3 | 50/60 | 380/440 | C-SB373H8F | 15 | / | 51.2 | / | |||
| 6 | 4.5 | 100 | 3 | 50/60 | 380/440 | C-SB453H8A | 17.7 | 21.5 | 60.4 | / | |
| 100 | 3 | 50/60 | 380/440 | C-SB453H8G | 17.7 | 21.5 | 60.4 | / | |||
| 8 | 6 | 137 | 3 | 50/60 | 380/440 | C-SB603H8H | 24.2 | 29.5 | 82.6 | 100.7 | |
| 137 | 3 | 50/60 | 380/440 | C-SB603H8J | 24.2 | 29.5 | 82.6 | 100.7 | |||
| 10 | 7.5 | 171.2 | 3 | 50/60 | 380 | C-SB753H8H | 30.5 | 37.3 | 104.1 | 127.3 | |
| 171.2 | 3 | 50/60 | 380 | C-SB753H8J | 30.5 | 37.3 | 104.1 | 127.3 | |||
| 12 | 7.5 | 205.4 | 3 | 50 | 380 | C-SB763H8H | 36.3 | / | 123.9 | / | |
| 205.4 | 3 | 50 | 380 | C-SB763H8J | 36.3 | / | 123.9 | / | |||
Sanyo Compressors Specification Sheet | ||

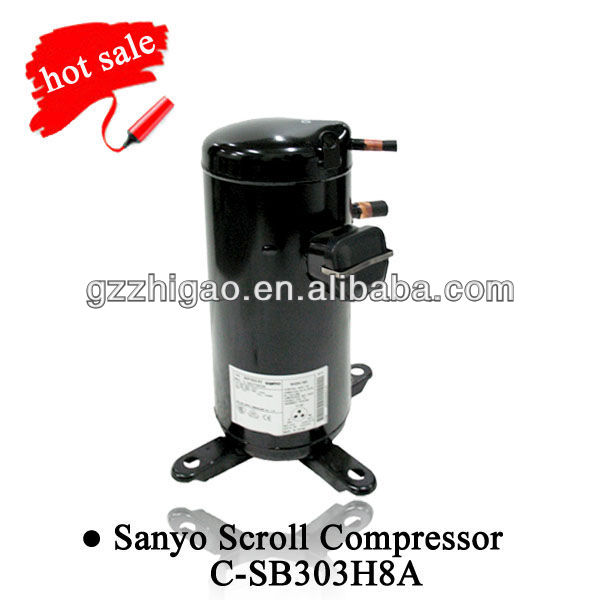

Model No | C-SB303H8A | |
Application | ||
Evaporating Temp Range | (°C) | -15~12 |
Refrigerant | R22 | |
Compressor Cooling | Natural Cooling | |
Rated Performance | ||
Capacity | (W) | 11800 |
Input | (W) | 3650 |
Current | (A) | 6.5 |
Sound Pressure Level(1m) | (dB(A)) | 62max |
Rating Conditions | ||
Power Source | 3ph,50Hz,380-415V | |
Evaporating Temp | (°C) | 7.2 |
Condensing Temp | (°C) | 54.4 |
Suction Gas Temp | (°C) | 18.3 |
Liquid Temp | (°C) | 46.1 |
Ambient Temp | (°C) | 35 |
Compressor | ||
Type | Hermetic Scroll | |
Displacement | (cm3/rev) | 66.8 |
Suction Line Connection | (Φmm OD) | 22.23 |
Discharge Line Connection | (Φmm OD) | 12.7 |
Oil Type | L-DRC/B56 | |
Initial Oil Charge | (ml) | 1700 |
Mass(Incl.Oil) | (kg) | 37.5 |
Motor | ||
Motor Type | 3Ph-Induction Motor | |
Revolution | (min-1) | 2900 |
Voltage Range | (V) | 342~456 |
Start Capacitor | MFD/V | n/a |
Run Capacitor | MFD/V | n/a |
RLA | (A) | 8.1 |
MCC | (A) | 11.3 |
LRA | (A) | 48 |

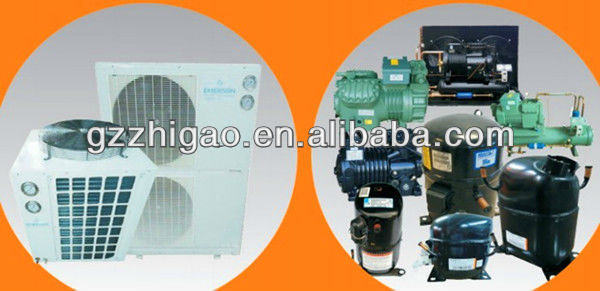

Other products that we supply:

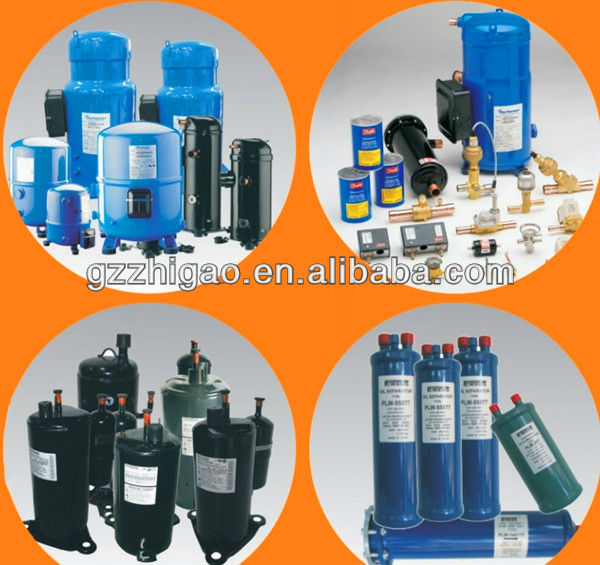

1) all kinds of compressors for air conditioner and freezer such as Panasonic,Toshiba,Danfoss,Bitzer,etc
2) condensing units for cold storage,fish boat,train,etc

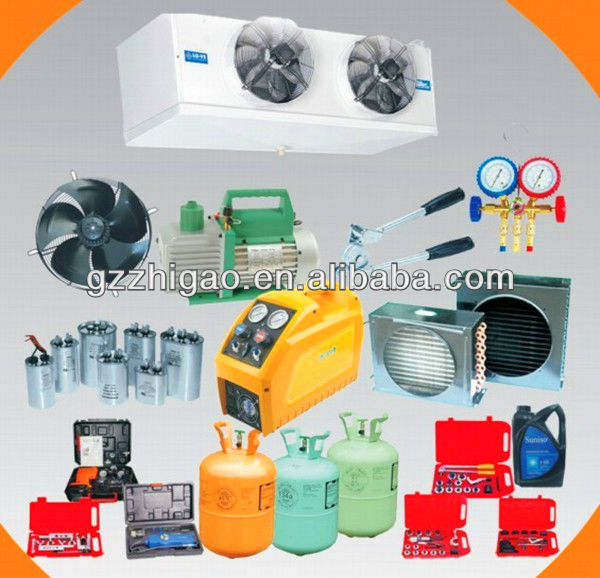

3) ac tools and accessories such as tube cutter,copper tube,vacuum pump,condenser,etc
4) refrigerant gas and oil
