Type:Adjustable Relief Valves, Air & Vacuum Release Valves
Customized support:OEM
Place of Origin:Guangdong, China
Brand Name:XMK

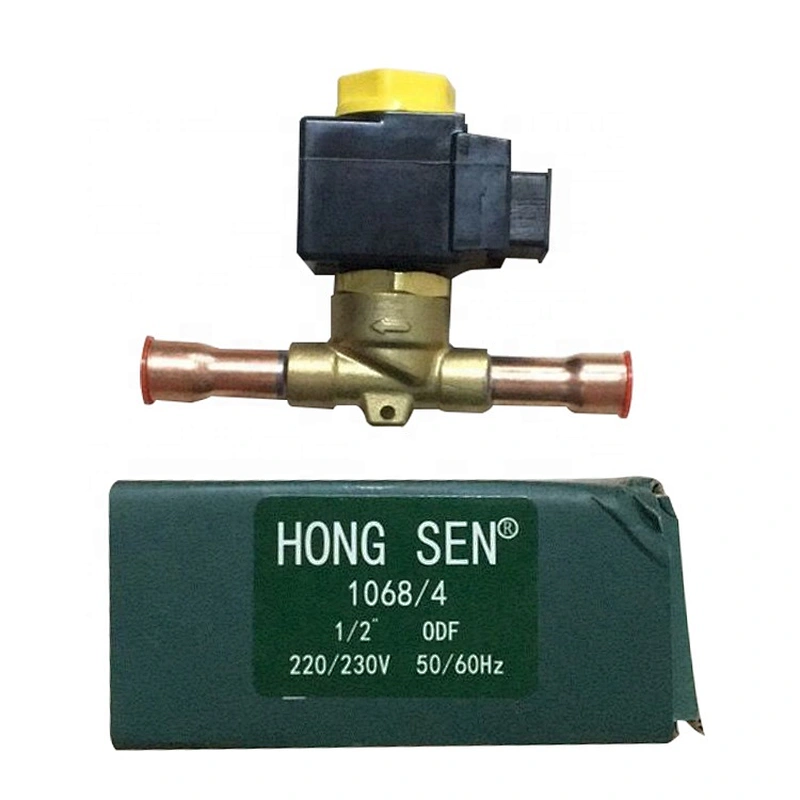

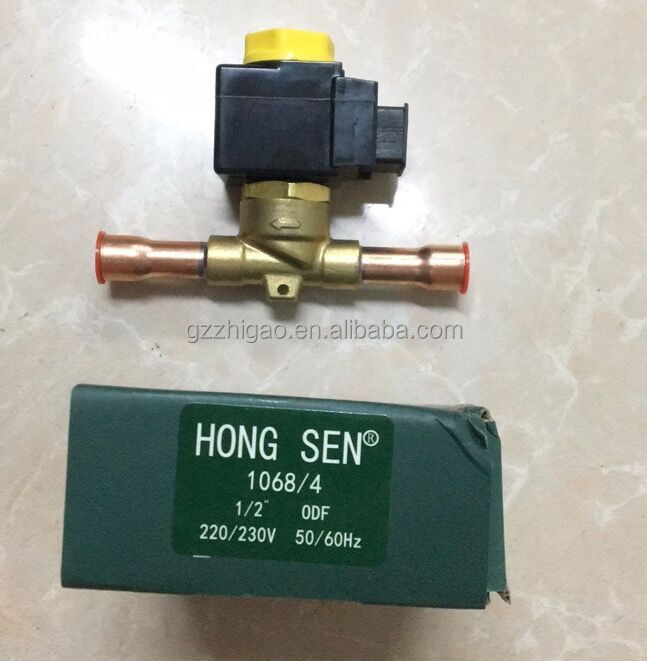

Model Number:HS/1068-4
Application:Commercial Kitchen
Temperature of Media:Medium Temperature
Power:Solenoid
Media:Refrigerant
Port Size:SAE,ODF
Structure:Regulating
Standard or Nonstandard:Standard
Voltage:220/230V

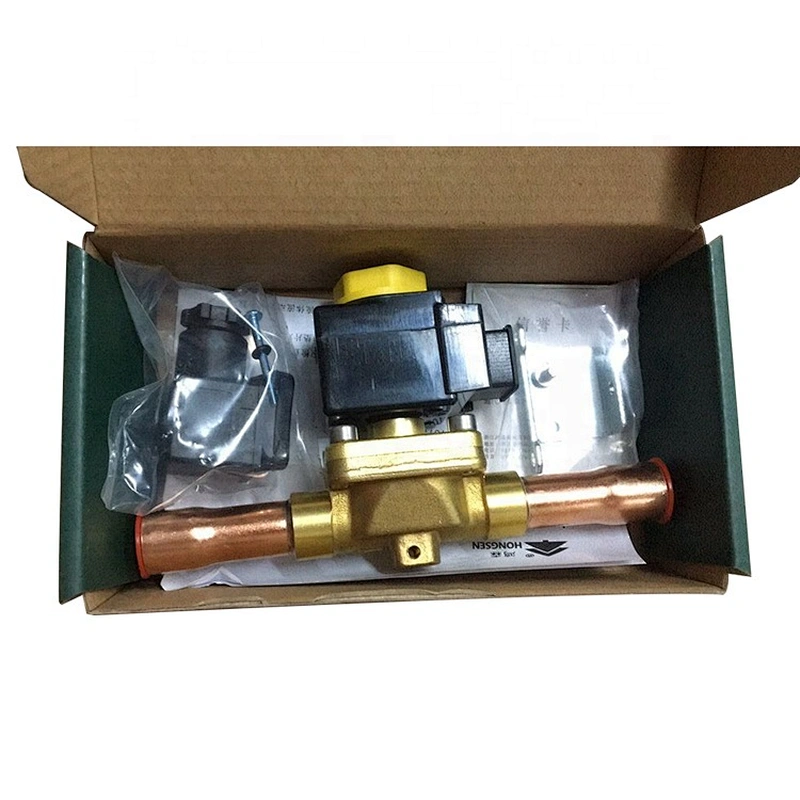

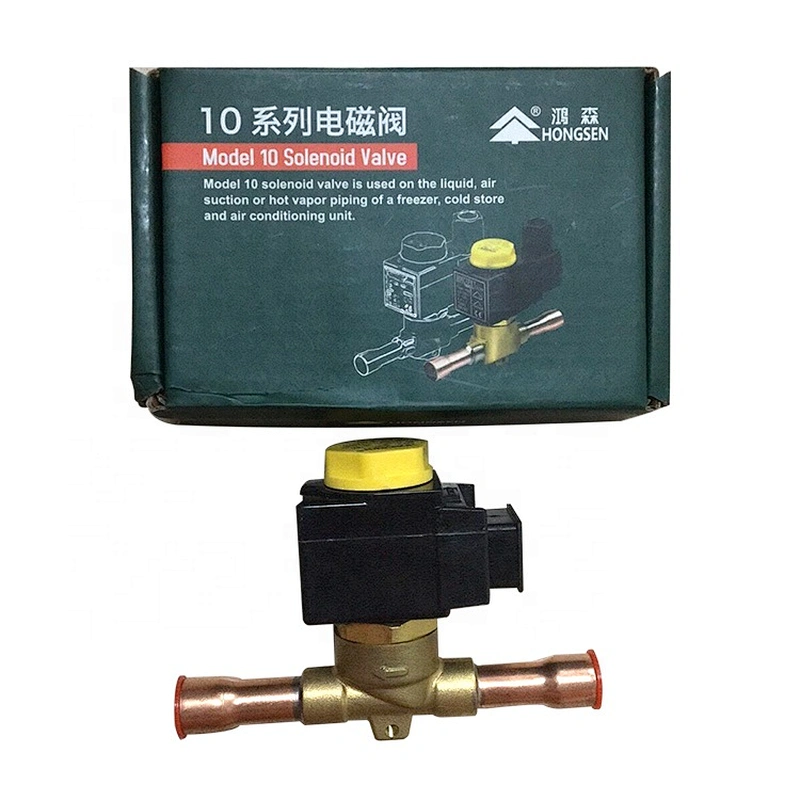

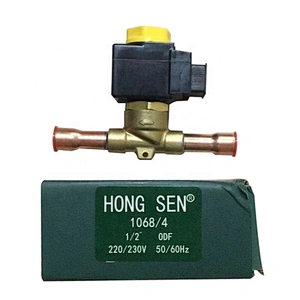

Castel Type Solenoid Valve Refrigeration Condensing Unit Spare Part Solenoid Valves

Product Description

Solenoid Valve Automotive A/C and Centralized A/C Service Products

1.Model 10xx solenoid valve is a direct-operated or servo-operated valve, which is applicable to one direction flow.
2·Model 10xx solenoid valve is used on the liquid, air suction or hot vapor piping of a freezer, cold store and air conditioning unit.
3·The valve seat of Model 10xx solenoid valve is well sealed with perfect sealing performance.
4·Model 10xx solenoid valves with solenoid of different voltage are available and the valve body is universal.
5·Both packed and separated Model 10xx solenoid valves are available and it means the valve body could be supplied separately from the solenoid.

Feature :

·Only NC type solenoid valve is available.
·The max. design temperature is 105°C.
·8W solenoid and max. operating pressure differential (MOPD) is 2.1 MPa.
·It is applicable to various applications in freezer, cold store and air conditioning unit.
·The max. size of flare connection is 5/8 in.
·The max. size of welded connection is 7/8 in.
·The solenoids of different power supply are available.
·The thread capped solenoid is easy to be manually mounted and dismounted.
·The crack-proof solenoid is applicable to general ambient condition.

Specification

Technical Parameers:
Applicable Refrigerant	HCFC and HFC	Max. Operating Pressure Differential(MOPD)	2.1MPa
Applicable Medium Temperature	-25°C~+105°C	Applicable Ambient Temperature for Solenoid	-2.5°C~+60°C
Max. Operating Pressure	3.0MPa	Standard Voltage of Solenoid	AC380V,AC220V/50Hz
Min. Pressure Differential to Open Valve	Direct-operated	Allowable Voltage Fluctuation for Solenoid	+10%~-15%
Min. Pressure Differential to Open Valve		Servo-operated	Connection of Solenoid	Standard 3-wire insert connector

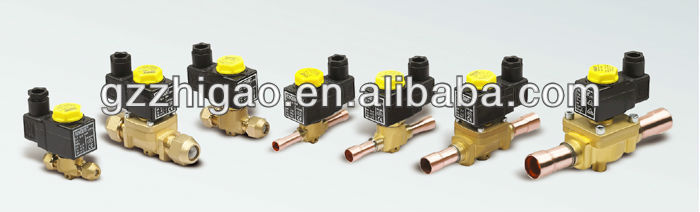

Model	Connection			KV	NominalRefrigerating Capacity kW (liquid)
Model		Flare	Welded	KV		R22	HFC-134a	R404a/R502
1020-2	1/4SAE	——	0.175	3.15	2.95	2.08
1028-2	——	1/4ODF	0.175	3.15	2.95	2.08
1020-3	3/8SAE	——	0.23	4.15	3.9	2.75
1028-3	——	3/8ODF	0.23	4.15	3.9	2.75
1064-3	3/8SAE	——	0.8	14.5	13.5	9.5
1068-3	——	3/8ODF	0.8	14.5	13.5	9.5
1064-4	1/2SAE	——	0.8	14.5	13.5	9.5
1068-4	——	1/2ODF
1068-5	——	5/8ODF
1070-4	1/2SAE	——	2.2	39.6	37.1	26.2
1078-4	——	1/2ODF	2.2	39.6	37.1	26.2
1070-5	5/8SAE	——	2.61	47	44	31
1078-5	——	5/8ODF	2.61	47	44	31
1078-6	——	3/4ODF	4.3	77.5		51.1
1098-7	——	7/8ODF	5.7	102.6	72.045	67.85
