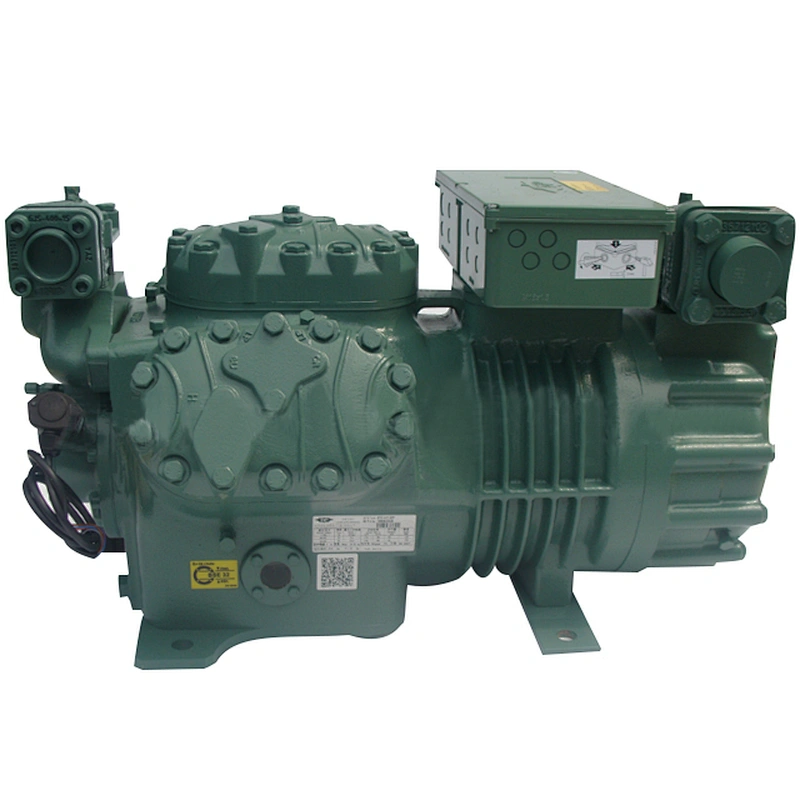

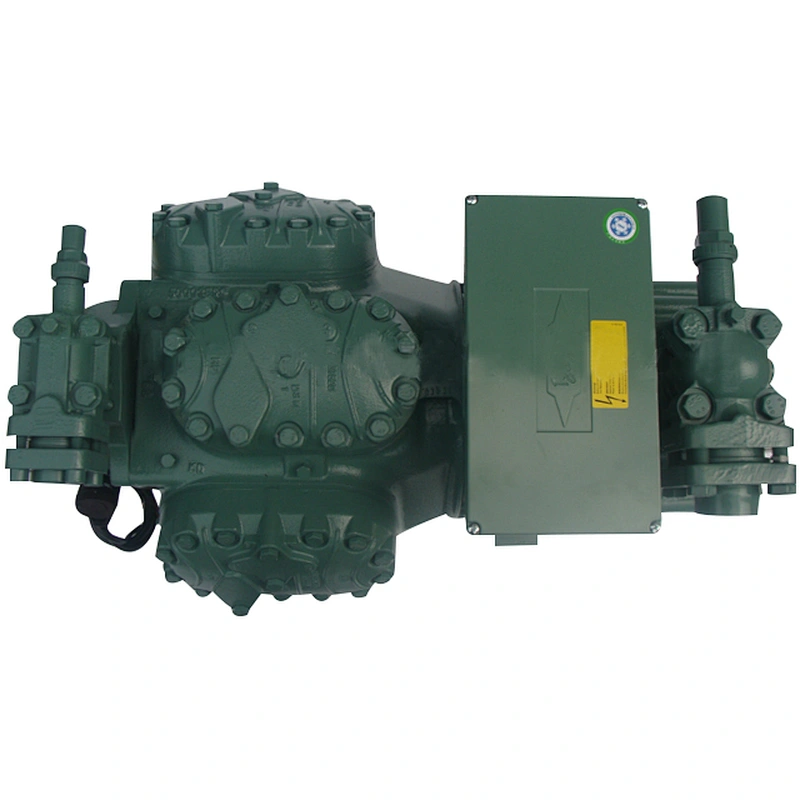

40HP Semi hermetic Refrigeration Compressor 6GE-34(Y) 126,8 kw High Temperature for cool room
40HP Semi hermetic Refrigeration Compressor 6GE-34(Y) 126,8 kw High Temperature for cool room
40HP Semi hermetic Refrigeration Compressor 6GE-34(Y) 126,8 kw High Temperature for cool room

40HP Semi hermetic Refrigeration Compressor 6GE-34(Y) 126,8 kw High Temperature for cool room

Model NO.：
  • Minimum order quantity1 unit
  • Country of Originguangzhou
    • Like Favorites
    Categories: bizter compressor
    • Condition:New
    • Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    • Showroom Location:None
    • Video outgoing-inspection:Provided
    • Machinery Test Report:Not Available
    • Marketing Type:Ordinary Product
    • Place of Origin:China
    • Brand Name:/
    • Type:Refrigeration Compressor
    • Application:Refrigeration Parts
    • Warranty:Unavailable
    • Displacement (1450 RPM 50Hz):126,8 m3/h
    • Displacement (1750 RPM 60Hz):153,0 m3/h
    • Weight:228 kg
    • No. of cylinder x bore x stroke:6 x 75 mm x 55 mm
    • Max. pressure (LP/HP):19 / 32 bar
    • Connection suction line:54 mm - 2 1/8''
    • Connection discharge line:35 mm - 1 3/8'
    • Voltage:380V/50HZ
    • Gas:R22/R404a
    • Motor voltage (more on request):380-420V PW-3-50Hz
    • After Warranty Service:Online support
    • Local Service Location:None
    • After-sales Service Provided:Online support





    TECHNICAL DATA



     SIIP
    Displacement (1450 RPM 50Hz)126,8 m³/h4477.9 CFH
    Displacement (1750 RPM 60Hz)153,0 m³/h5403.1 CFH
    No. of cylinder x bore x stroke6 x 75 mm x 55 mm6 x 2.95 inch x 2.17 inch
    Weight228 kg503 lb
    Max. pressure (LP/HP)19 / 32 bar275 / 464 psi
    Connection suction line54 mm - 2 1/8''54 mm - 2 1/8''
    Connection discharge line35 mm - 1 3/8''35 mm - 1 3/8''
    Oil type R134a/R407C/R404A/R507A/R407A/R407FBSE32(Standard) | R134a tc>70°C: BSE55 (Option)BSE32(Standard) | R134a tc>155°F: BSE55 (Option)
    Oil type R22 (R12/R502)B5.2(Option)B5.2(Option)
    Oil type R1234yf/R1234zeBSE32 (Standard) | R1234ze tc>70°C & to>0°C: BSE55 (Option) | R1234ze to>15°C: BSE85K (Option)BSE32 (Standard) | R1234ze tc>70°C & to>0°C: BSE55 (Option) | R1234ze to>15°C: BSE85K (Option)

    EXTENT OF DELIVERY (STANDARD)

     SIIP
    Motor protectionSE-B2, CM-RC-01(Option)SE-B2
    Enclosure classIP54 (Standard), IP66 (Option)IP54 (Standard), IP66 (Option)
    Vibration dampersStandardStandard
    Oil charge4,75 dm³167.2 fl oz
    Discharge shut-off valveStandardStandard
    Suction shut-off valveStandardStandard

    AVAILABLE OPTIONS

     SIIP
    Connection suction lineOptionOption
    Discharge shut-off valveOptionOption
    Discharge gas temperature sensorOptionOption
    Start unloadingOptionOption
    Capacity Control - infinite100-10% (Option)100-10% (Option)
    Refrigerant Injection (RI)OptionOption
    Oil service valveOptionOption
    Capacity control100-66-33% (Option)100-66-33% (Option)
    Additional fanOptionOption
    Crankcase heater140 W (Option)140 W (Option)
    Oil pressure monitoringMP54 (Option), Delta-PIIMP54 (Option), Delta-PII

    MOTOR DATA

     SIIP
    Motor version22
    Starting current (Rotor locked)141.0 A Y / 233.0 A YY245.0 A
    Motor voltage (more on request)380-420V PW-3-50Hz440-480V Y-3-60Hz UL
    Max operating current65.5 A65.5 A

     SOUND MEASUREMENT
     SIIP
    Sound power level (-10°C / 45°C)83,3 dB(A) @50Hz85,8 dB(A) @60Hz
    Sound pressure level @ 1m (-10°C / 45°C)75,3 dB(A) @50Hz77,8 dB(A) @60Hz
    Sound power level (-10°C / 45°C) R134a81,3 dB(A) @50Hz83,8 dB(A) @60Hz
    Sound power level (-35°C / 40°C)89,5 dB(A) @50Hz92 dB(A) @60Hz
    Sound pressure level @ 1m (-35°C / 40°C)81,5 dB(A) @50Hz84 dB(A) @60Hz
