Product profile:

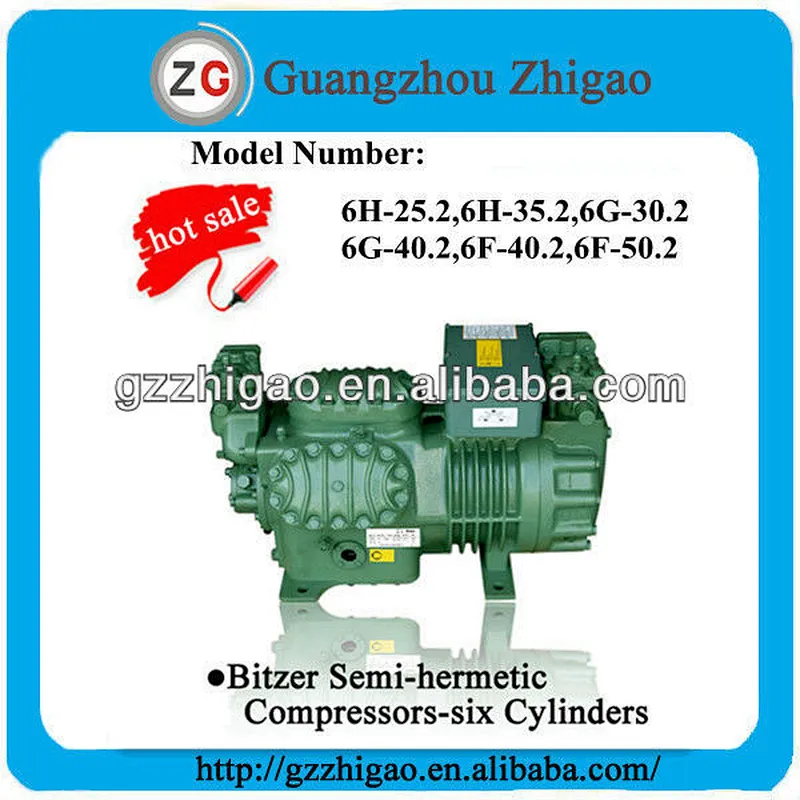

Semi hermetic Bitzer Compressor 6H-25.2
Product describsion:
1. Features:
1)High efficiency, Good reliability, Low noise, Low vibration, No leakage
2)Wide range of application
The Compressor uses R22 as refrigerant. R134a, R404a, R407b and R407c are also approved. R12 and R502 are not suggested due to the international environment protection requirement. The machine can be used at a low or high condensing temperature.
3)Excellent performance
The compressor has a scientific structure design, strictly chosen material and precise procession and it is strictly inspected. The factory has obtained the National Compulsory Products CCC Certification, the National Industrial Products Manufacture License, and the ISO9001:2008 International Quality Supervision System Certification.
4)Reliable safety device
The compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and the compressor and the operation beyond approved application pressure.
2. Technical Data
| SI | IP |
Motor version | 1 | 1 |
Displacement (1450 RPM 50Hz) | 84.5 m3/h | 2984.1 CFH |
Displacement (1750 RPM 60Hz) | 101.98 m3/h | 3601.4 CFH |
No. of cylinder x bore x stroke | 4 x 75 mm x 55 mm | 4 x 2.95 inch x 2.17 inch |
Motor code | 40P | 2NU |
Motor voltage (more on request) | 380..420V YY/3/50Hz | 440..480V YY/3/60Hz |
Max operating current | 53.0A | 49.2A |
Maximum power consumption | 30.1 kW | 30.1 kW |
Winding ratio | 50% / 50% | 50% / 50% |
Starting current (Rotor locked) | 135.0A/ 220.0A (Y/YY) | 245.0A |
Enclosure class | IP54 | IP54 |
Weight | 206 kg | 454 lb |
Max. pressure (LP/HP) | 19 / 28 bar | 275 / 400 psi |
Connection suction line | 54 mm | 2 1/8" |
Connection discharge line | 28 mm | 1 1/8" |
Oil charge | 4.50 dm3 | 158.4 fl oz |
Crankcase heater | 140 W | 140 W |
Oil type R134a // R407A/C/F // R404A // R507A | tc<55°C: BSE32 | tc<130°F: BSE32 |
Oil type R22 R22 (R12 // R502) | B5.2 | B5.2 |
Oil pressure monitoring | MP54 | MP54 |
Oil service valve |
|
|
Oil and gas equalizing fittings |
|
|
Capacity control | 100% / 50% | 100% / 50% |
Start unloading |
|
|
Check valve (for start unloading) |
|
|
Motor protection | SE-B2 | SE-B2 |
3. We can supply more Bitzer Semi-hermetic compressor models as below:
| Model | Horse power | Displacemet(50hz)m3/h | Qty of cylinder*Diameter*Stoke(mm) |
| 2DC-2.2 | 2 | 13.5 | 2*50*39.3 |
| 2DC-3.2 | 3 | 13.5 | 2*50*39.3 |
| 2CC-3.2 | 3 | 16.2 | 2*55*39.3 |
| 2CC-4.2 | 4 | 16.2 | 2*55*39.3 |
| 4DC-5.2 | 5 | 26.84 | 4*50*39.3 |
| 4DC-7.2 | 7 | 26.84 | 4*50*39.3 |
| 4CC-6.2 | 6 | 32.48 | 4*55*39.3 |
| 4CC-9.2 | 9 | 32.48 | 4*55*39.3 |
| 4TCS-8.2 | 8 | 41.33 | 4*60*42 |
| 4TCS-12.2 | 12 | 41.33 | 4*60*42 |
| 4PCS-10.2 | 10 | 48.5 | 4*65*42 |
| 4PCS-15.2 | 15 | 48.5 | 4*65*42 |
| 4NCS-12.2 | 12 | 56.25 | 4*70*42 |
| 4NCS-20.2 | 20 | 56.25 | 4*70*42 |
| 4H-15.2 | 15 | 73.6 | 4*70*55 |
| 4H-25.2 | 25 | 73.6 | 4*70*55 |
| 4G-20.2 | 20 | 84.5 | 4*75*55 |
| 4G-30.2 | 30 | 84.5 | 4*75*55 |
| 6H-25.2 | 25 | 110.5 | 6*70*55 |
| 6H-35.2 | 35 | 110.5 | 6*70*55 |
| 6G-30.2 | 30 | 126.8 | 6*75*55 |
| 6G-40.2 | 40 | 126.8 | 6*75*55 |
| 6F-40.2 | 40 | 151.6 | 6*82*55 |
| 6F-50.2 | 50 | 151.6 | 6*82*55 |
| S6H-20.2 | 20 | 36.8 | 6*70*55 |
| S6G-25.2 | 25 | 42.3 | 6*75*55 |
| S6F-30.2 | 30 | 50.5 | 6*82*55 |

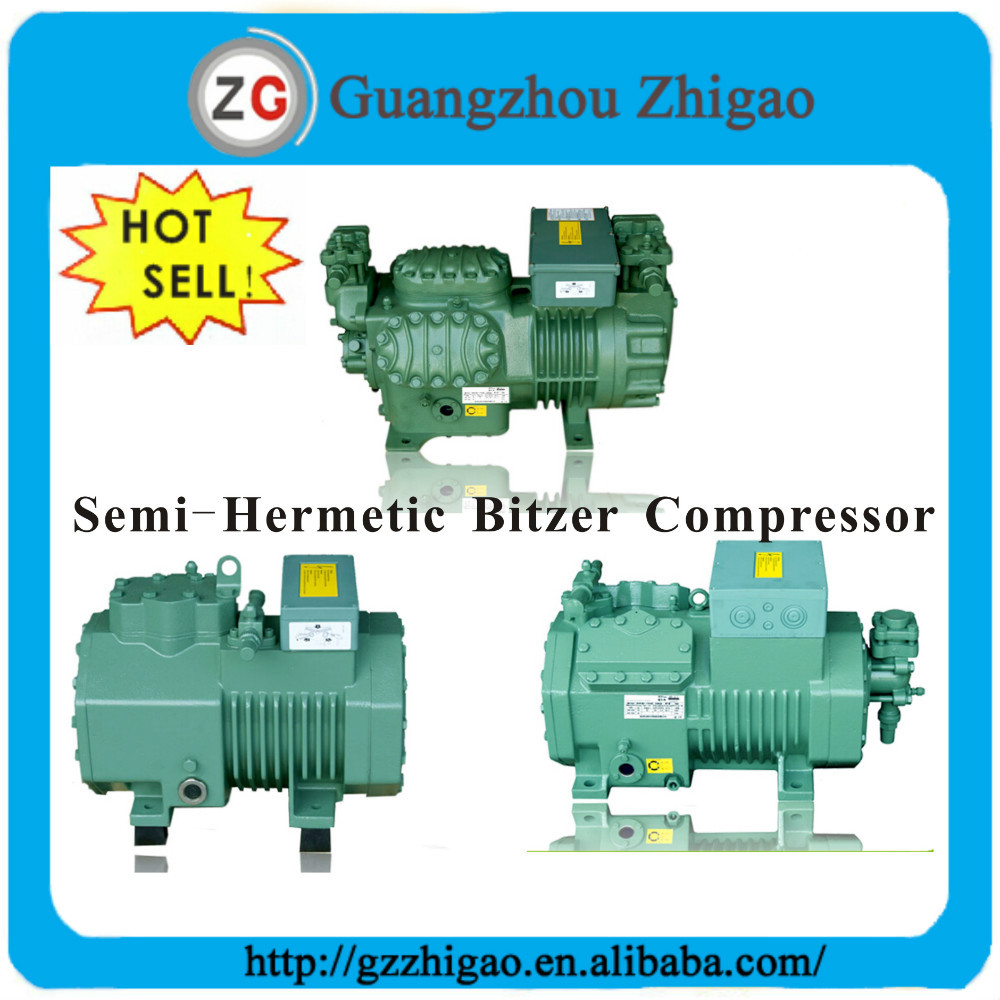

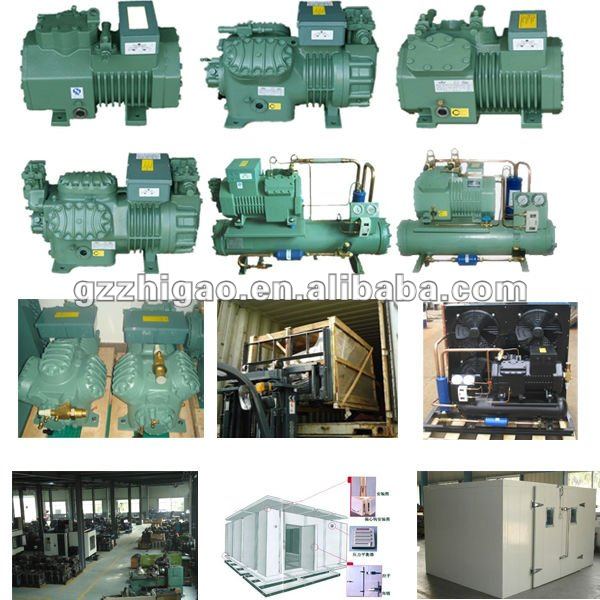

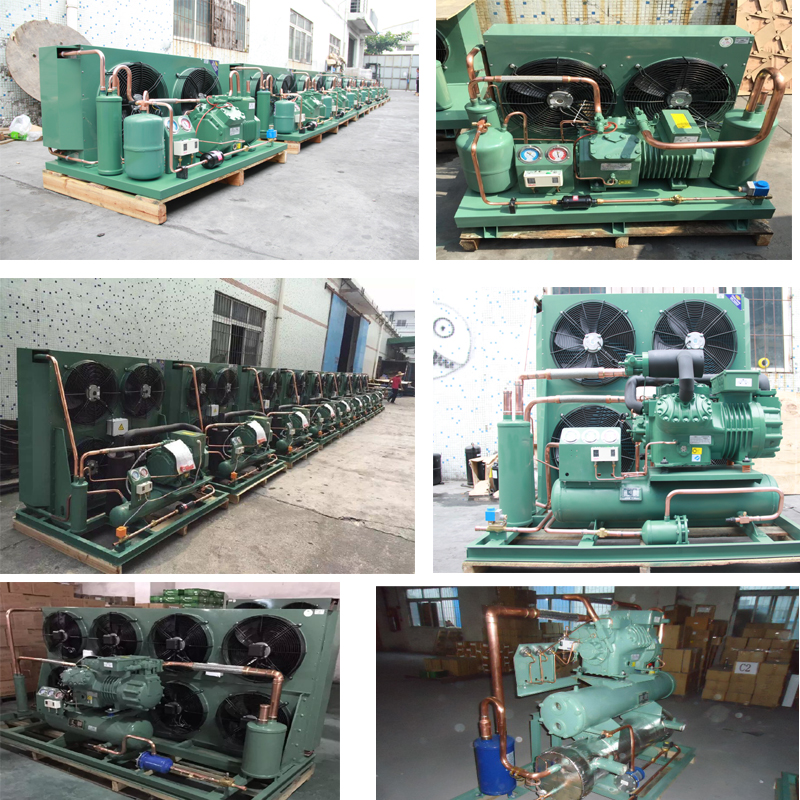

Reference pictures

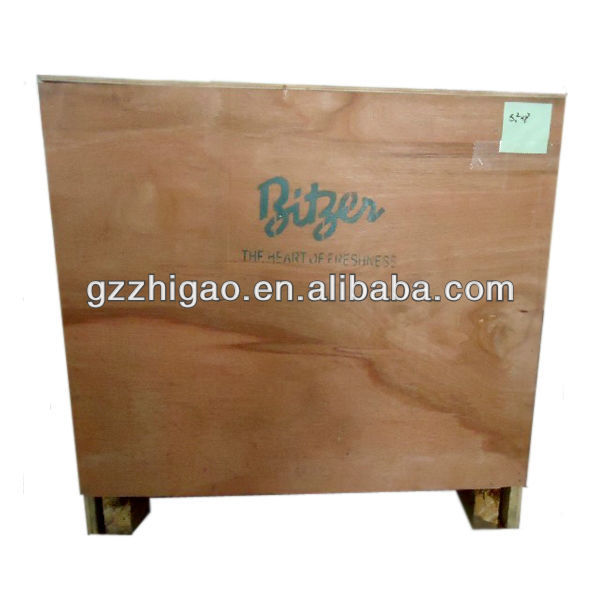

Packing
one unit packing with one wooden carton

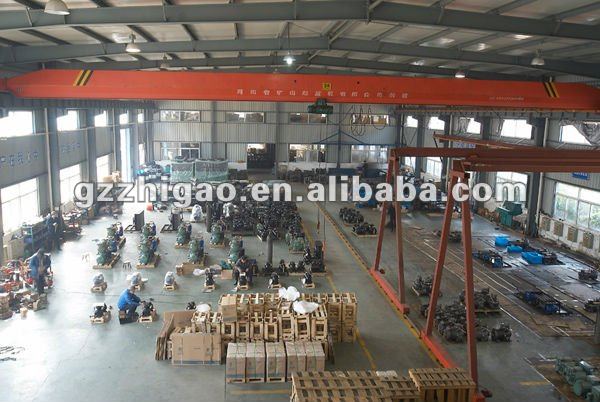

Factory picture
We perfessional supply:Compressor,unit compressor,condenser,spare parts,gas,& etc.
