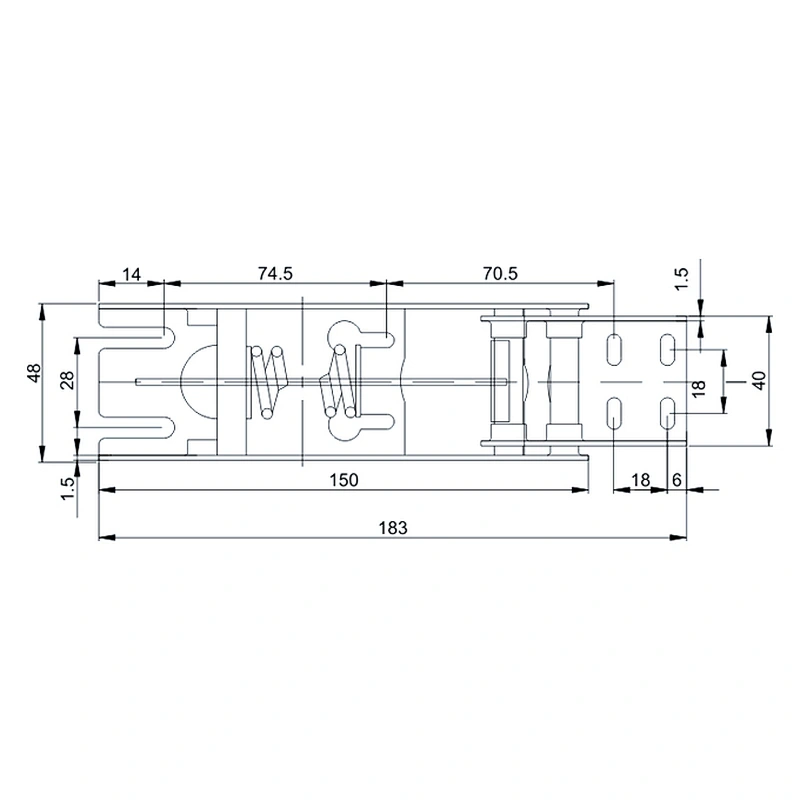

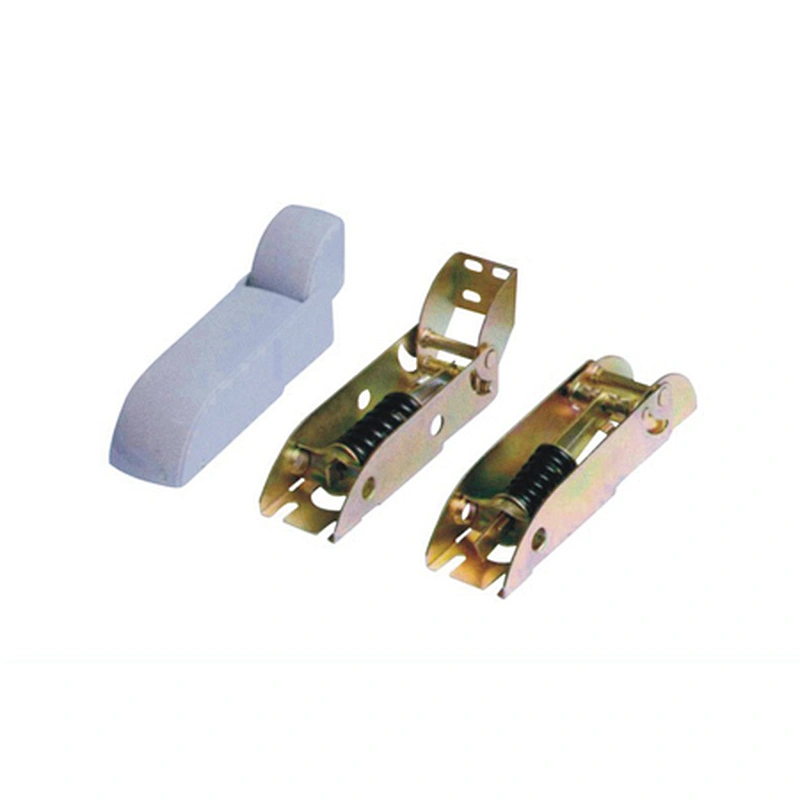

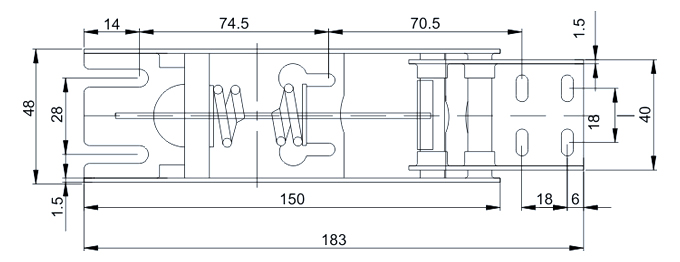

YL-652 Refrigerator Spring Hinge
Model : YL-652(3.5) / YL-652(4.0) / YL-652(4.5) / YL-652(5.0)
Material : Cold Pressing
Diameter of spring(mm) :3.5 / 4.0 / 4.5 / 5.0
O.D.(mm) : 24.0 / 24.0 / 25 / 27.5
Cycle number : 8 / 7
Lenght(mm) : 54
Weight(mm) : 0.36
Packing No.(pcs) : 50
Model | Name | Material | (mm)Diameter of Spring | (mm)O.D. | Cycle Numbet | (mm)Length | (KG)Weight | Packing No.(PCS) |
YL-652(3.5) | Refrigerator Spring Hinge | Cold Pressing | Φ3.5 | 24.0 | 8 | 54 | 0.36 | 50 |
| YL-652(4.0) | Refrigerator Spring Hinge | Cold Pressing | Φ4.0 | 24.0 | 8 | 54 | 0.36 | 50 |
| YL-652(4.5) | Refrigerator Spring Hinge | Cold Pressing | Φ4.5 | 25 | 7 | 54 | 0.36 | 50 |
| YL-652(5.0) | Refrigerator Spring Hinge | Cold Pressing | Φ5.0 | 27.5 | 7 | 54 | 0.36 | 50 |
