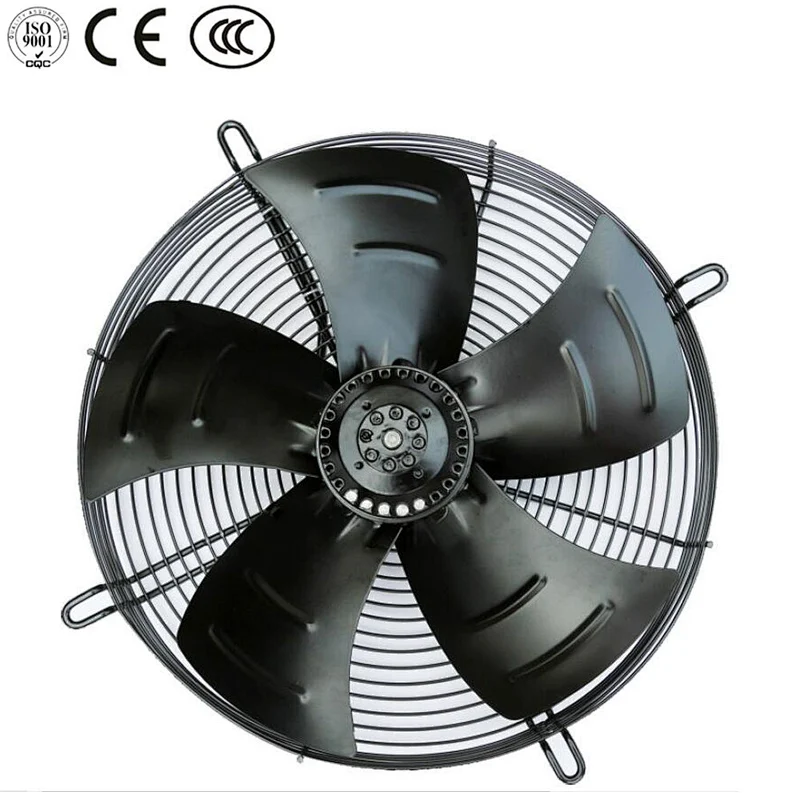

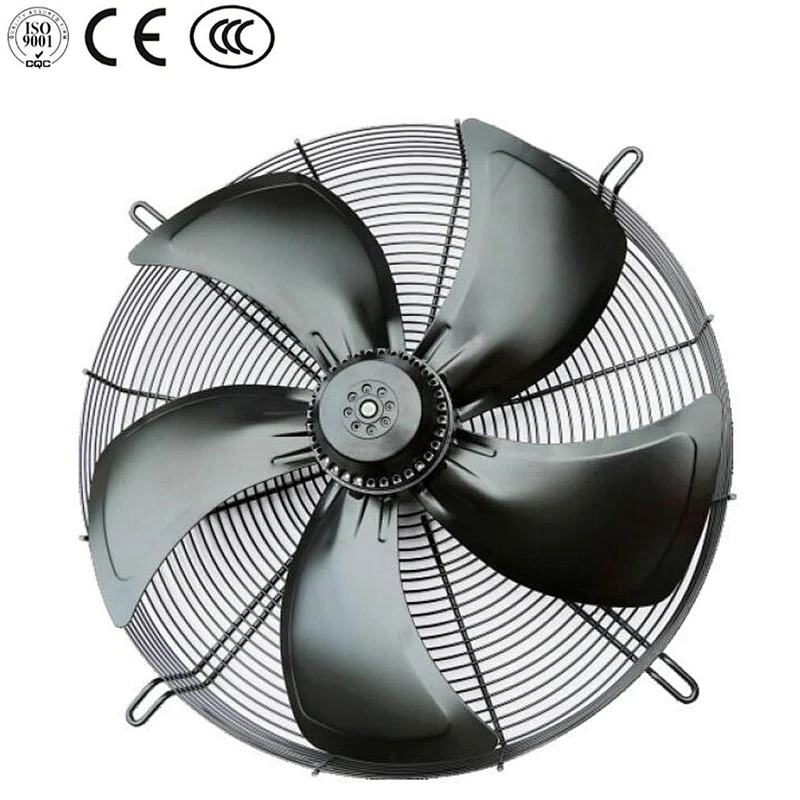

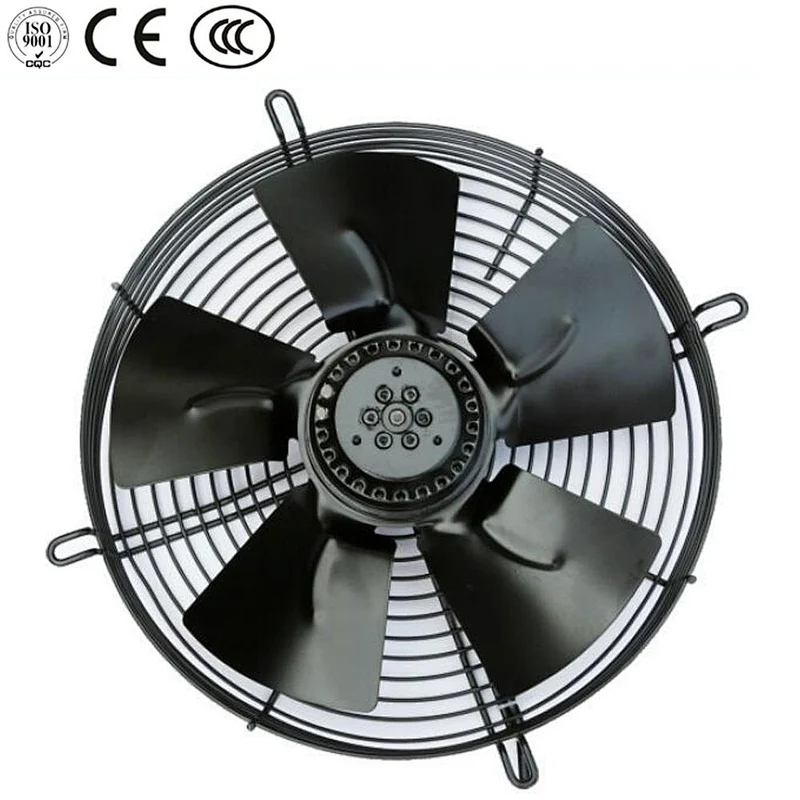

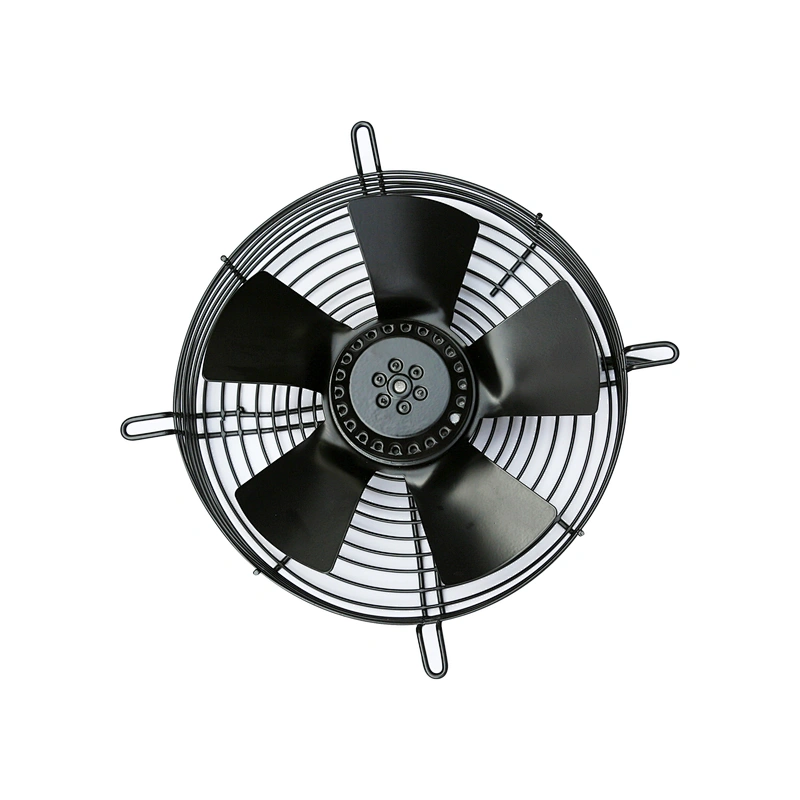

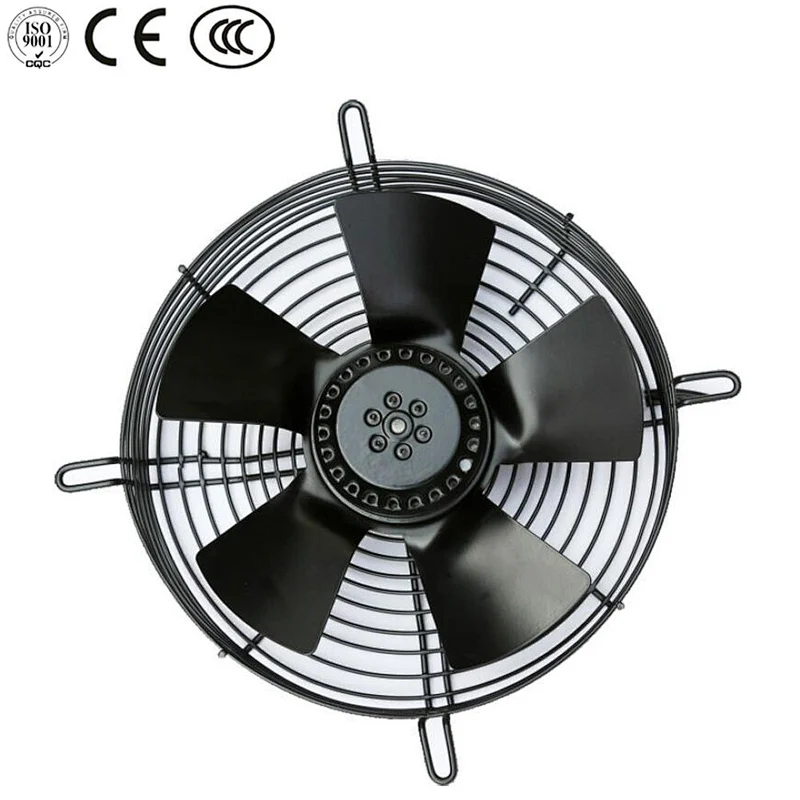

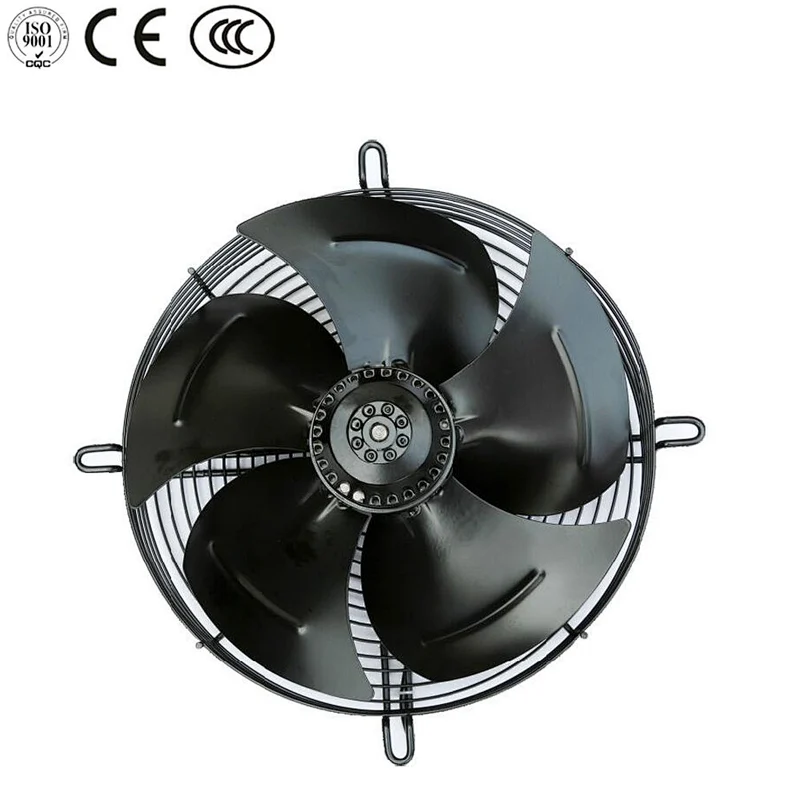

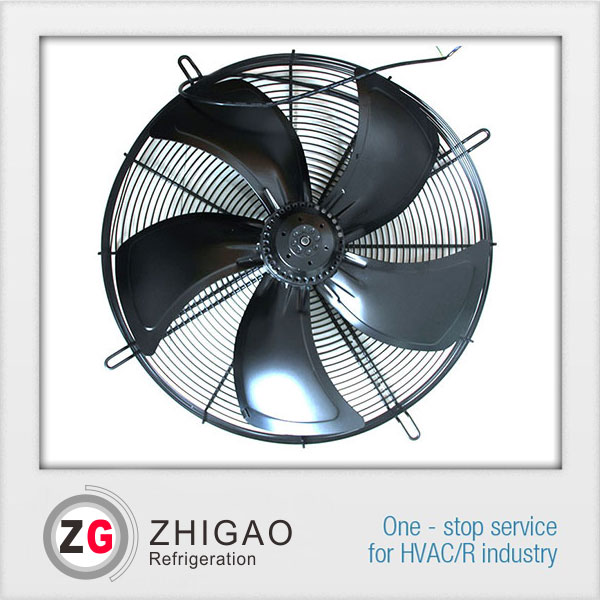

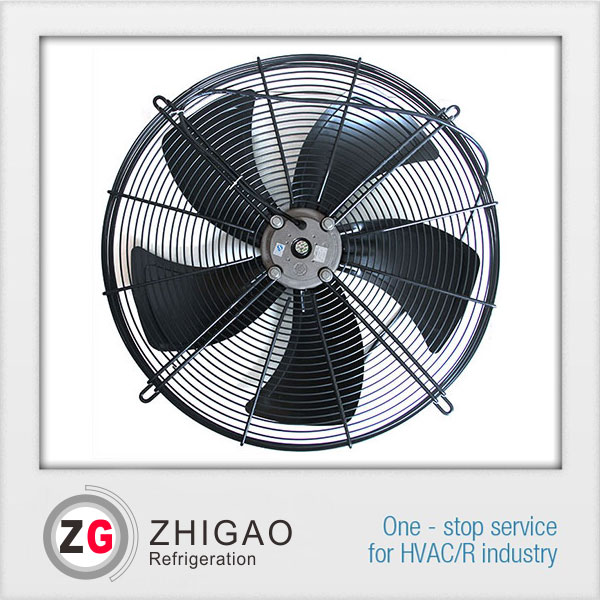

Good quality XMK axial fan motor
200mm/250mm/300mm/315mm/350mm/400mm/450mm/500mm/550mm/600mm
1. use to condensing unit.
2. use to evaporator.
3. use to indoor fan.
4. use to air cooler.
Material Grid: Steel, Surface treatment and coated with green plastic or paint.
Wall ring: Sheet steel, surface treatment and coated with green plastic or paint
Blades: Sheet steel, surface treatment and coated with green plastic or paint.
Rotor: Surfce coated with green plastic or paint.
Number of Blades:5
Direction of rotation:Clockwise is sucking, counter-clockwise is blowing, seen on rotor.
Type of protection: IP54
Insulation class:"B""F"
Mounting position: Horizontal or vertical installation
Mode of operation: Continuous operation
Bearings: Maintenance-free bearings, L10
Voltage:220V/380V, 50Hz/60Hz
We can offer different power Model, please kindly advice us which technical parameters you want.
| No | Model | Voltge(V) | Power(W) | Air Volume(m³/h) | Qty/One pallet | Fan blade(quantity) |
| 1 | 4E-200-E5Z | 220 | 30W | 385 | 96pcs | 5pcs |
| 2 | 4D/E-250-E5Z | 380/220 | 50W | 880 | 96pcs | 5pcs |
| 3 | 4D/E-300-E5Z | 380/220 | 70W | 1450 | 54pcs | 5pcs |
| 5 | 4D/E-350-E5L | 380/220 | 150W | 2350 | 54pcs | 5pcs |
| 7 | 4D/E-400-E5L | 380/220 | 200W | 3745 | 30pcs | 5pcs |
| 8 | 4D/E-450-E5L | 380/220 | 260W | 4500 | 20pcs | 5pcs |
| 9 | 4D-500-E5L | 380 | 380W | 6445 | 20pcs | 5pcs |
| 10 | 4D-500M-E6L | 380 | 560W | 8000 | 20pcs | 6pcs |
| 11 | 4D-550-E5L | 380 | 600W | 8415 | 20pcs | 5pcs |
| 12 | 4D-600-E5L | 380 | 750W | 9430 | 10pcs | 5pcs |
| 13 | 4D-630-E5L | 380 | 800W | 11695 | 10pcs | 5pcs |
| 14 | 6D-710-E6L | 380 | 440W | 10165 | 4pcs | 6pcs |
Other products that we supply:
1) all kinds of compressors for air conditioner and freezer such as Panasonic,Toshiba,Danfoss,Bitzer,etc
2) condensing units for cold storage,fish boat,train,etc
3) ac tools and accessories such as tube cutter,copper tube,vacuum pump,condenser,etc
4) refrigerant gas and oil
