Warranty:3 years
Customized support:YES
Place of Origin:Guangdong, China
Brand Name:/
Model Number:TPM-900
Power voltage::220VAC
Temperature measuring range::-30 ~ +110
Distinguish::0.1
Accuracy ::±1
Product size::60x25.7x32mm
Screen size::64x31mm
Certification:ISO

Function:

220VAC power supply, sensor error indication, small size for easy installation. Suitable for refrigerant cabinet and display cabinet etc.

Specification:

Mounting size: 59(W) * 26(H)mm

Product size: 64(W) * 31(H)mm

Technical parameter:
Power voltage:220VAC
Temperature measuring range: -30 ~ +110
Distinguish: 0.1
Accuracy : ±1
Product size: 60×25.7×32mm
Screen size: 64×31mm

Descriptions:

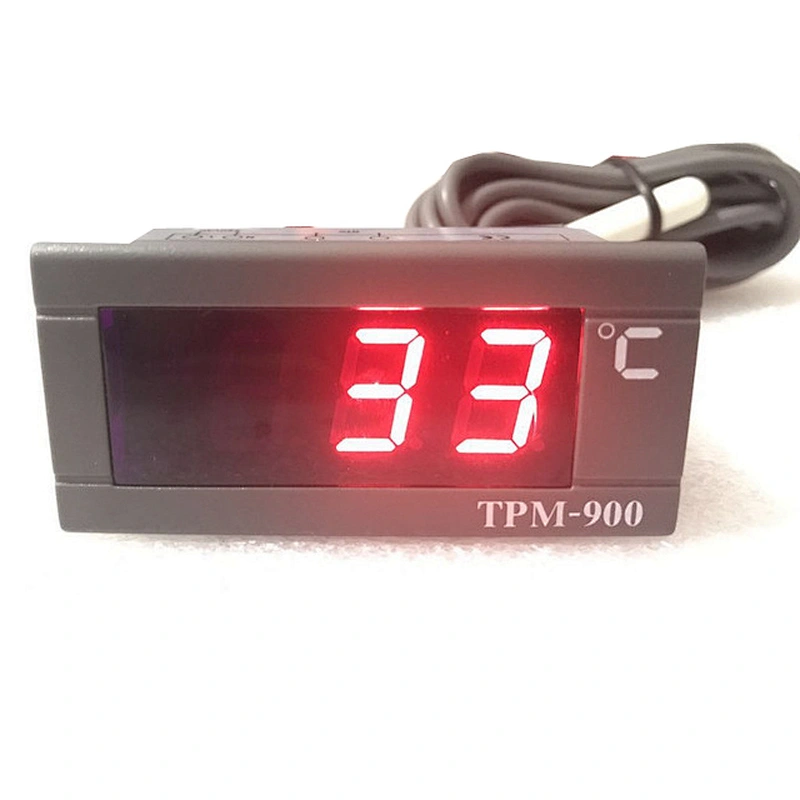

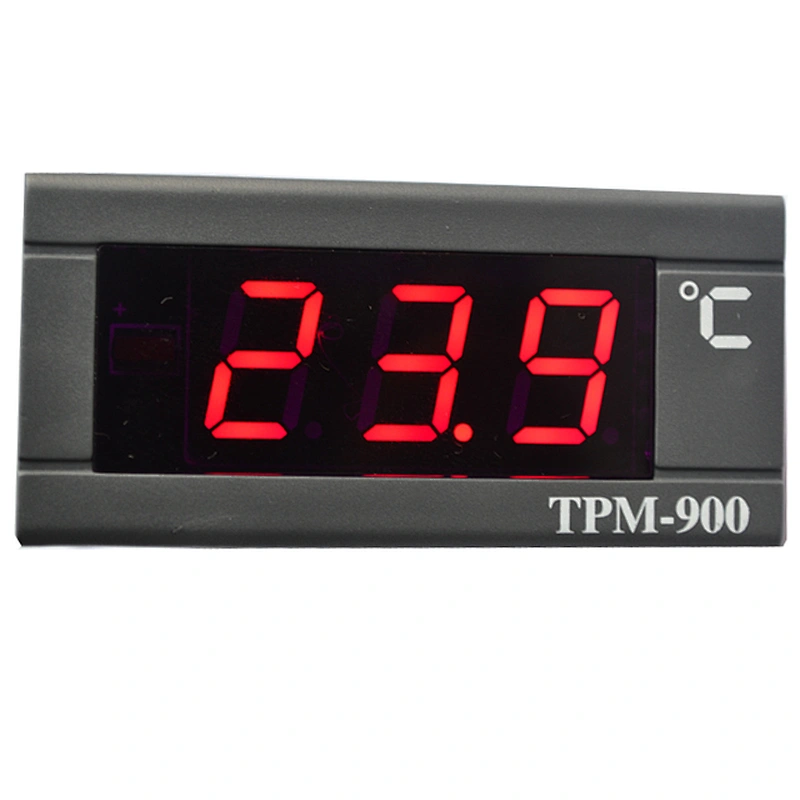

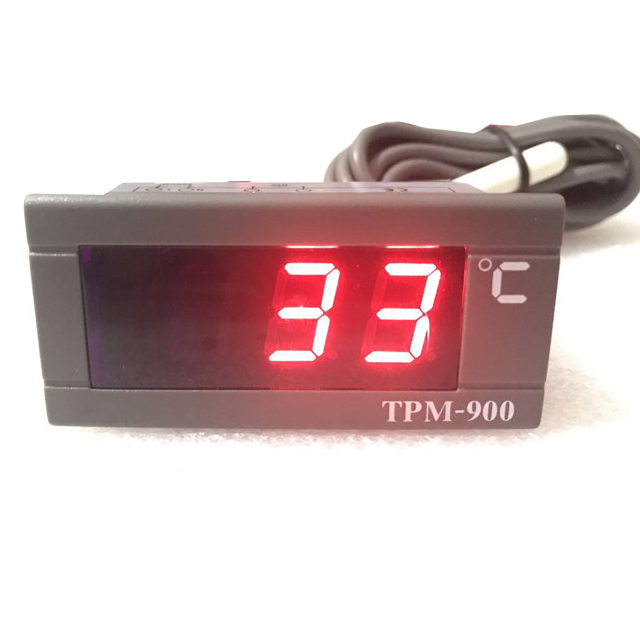

Digital temperature LED panel TPM-900 thermometer

Instruction:
Installation size:

Panel size 64×31mm
Fixing hole's size:58.4×25.7mm
Operation environment:
temperature range:0°C~ 60°C
humidity range:20% ~85%(no frost)
Parameters:
Power supply voltage:220VAC±10%;

Watt consumption:<3W;
measurement display range:-30°C~+110°C;

Distinguish:<100°C. 0.1°C
≥100°C.1°C;
Accuracy:±1°C;
Display EEE when sensor error(short or open circuit);
Display"HHH"when >+110°C,display"LLL"when<-30°C;
sensor:NTC;
Features:
LED display ,clear, directly, and non- interfere by the light .
Insert panel,220VAC power supply,easy to install.
The wire of probe can reach the length to 50 m,convenient for faraway
measurement.
Broad measurement range and high accuracy.
ATTNETIONS
Notice lead wire of sensor and lead of power or it will damage the machine
Connection according to the mark, the polarity of voltage can ignore.
Digital Temperature Panel (TPM-900)
