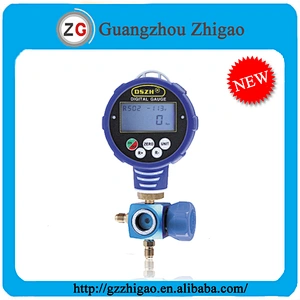

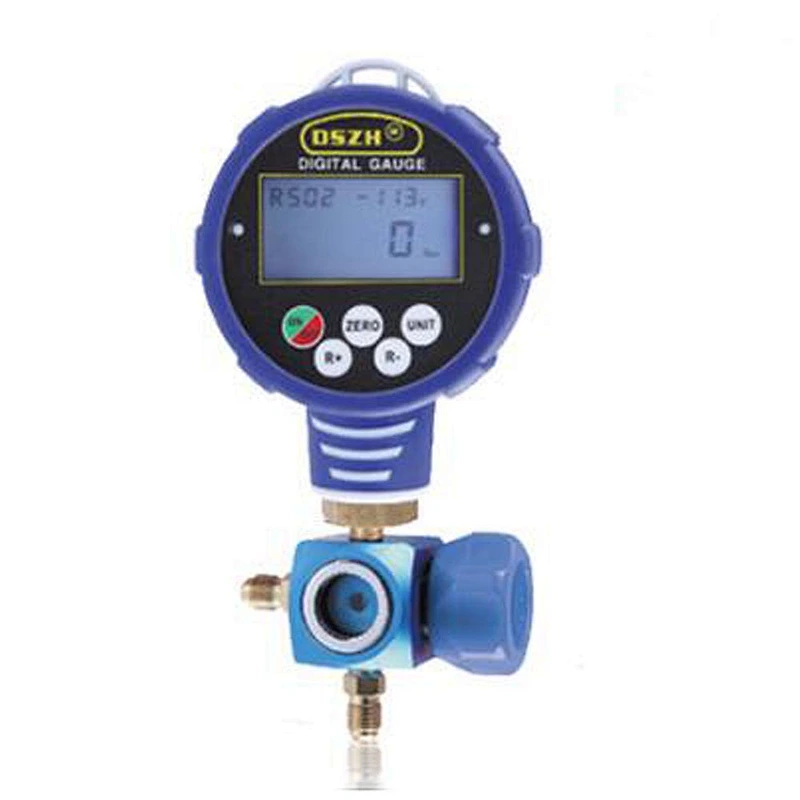

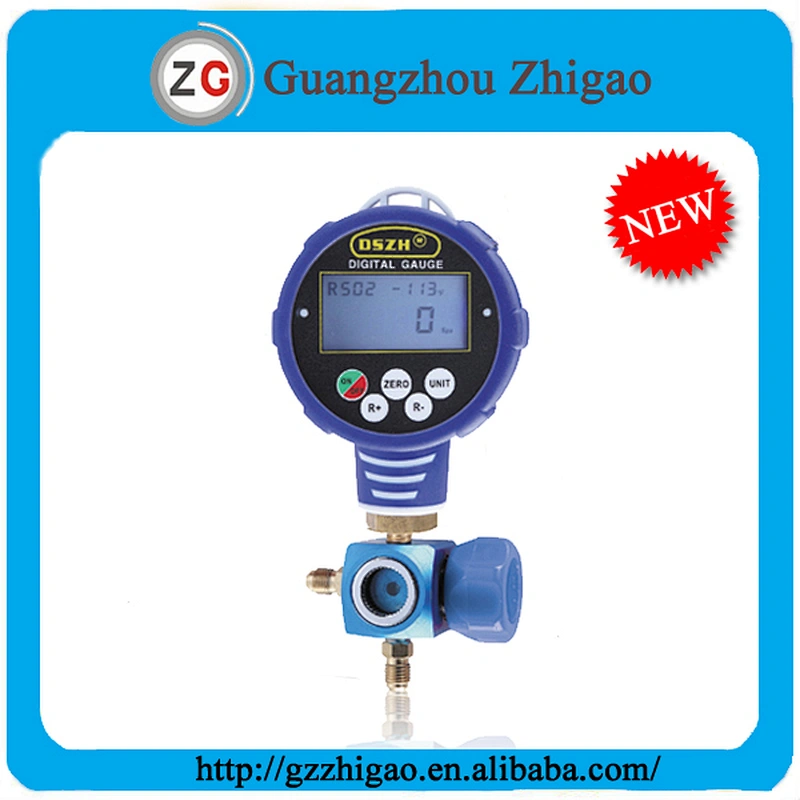

Single Digital Low Vacuum Pressure Gauge With Valve WK-6881L:
Features of Pressure Gauge With Valve WK-6881L:
1) With pressure and vacuum gauge shift function.

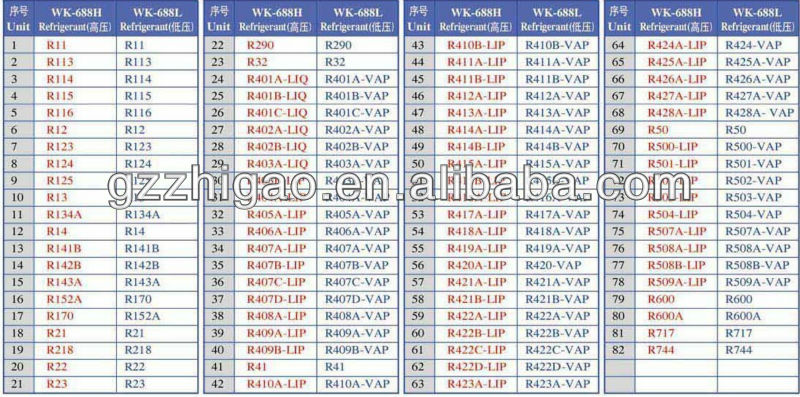

2) Build-in 82 refrigerants according to U.S.A.NIST standard refrigerants pressure and temperature relationship database.
3) Real-time vacuum pressure test and percent indicate.
4) Low pressure indicate.The working life of batteries is 30Hour,9V.
5) Pressure units: Psi,Bar,Torr,Kg f/cm2,KPa,InHg,MmHg
6) Test range:UAC: -101 Kpa-6Mpa
RXX: -101 Kpa-4Mpa for WK688L and WK688H
7) Resolution:1Kpa
8) Accuracy:+ - 0.5%
9) Overload: 100Bar,10Mpa
10)Operating temp:-20 C - 60C
11)Length of hose:3*36'',3*60'',3*72''
12)1/4 SAE connection,1/2''-20unf connection,5/16'' SAE connection,3/8''SAE connection are available
13)Gauges can be in dia 80mm or 68mm,also can be oil filled at additional cost.

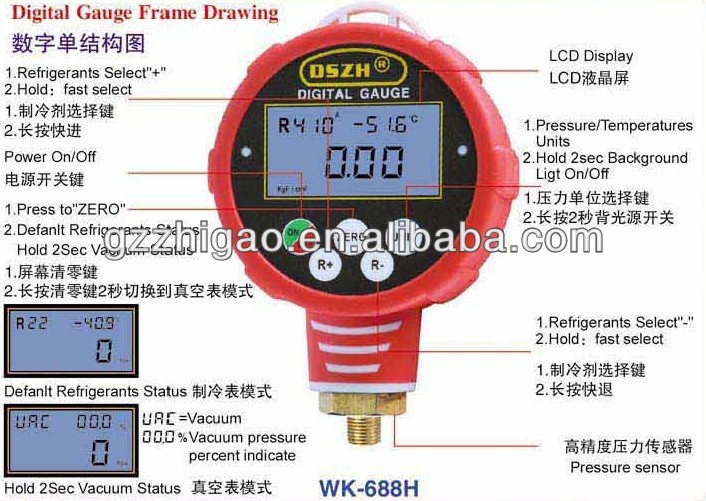

Frame Drawings of Pressure Gauge WK-688L/H:

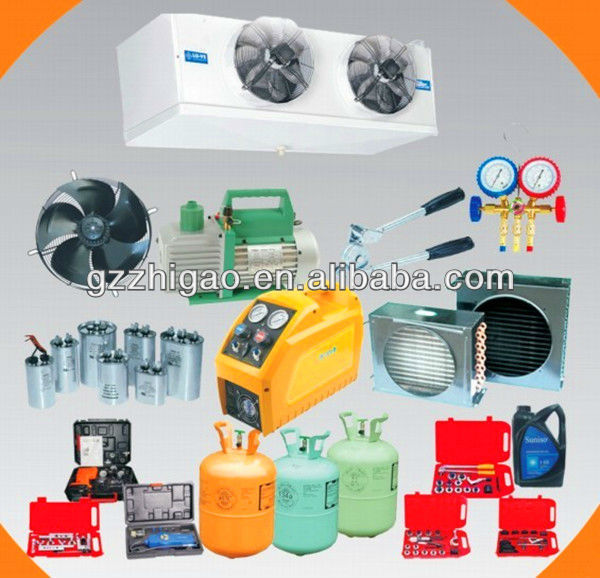

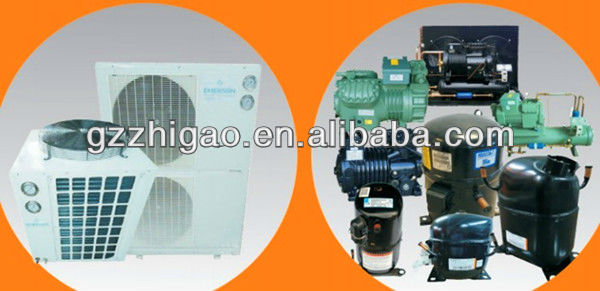

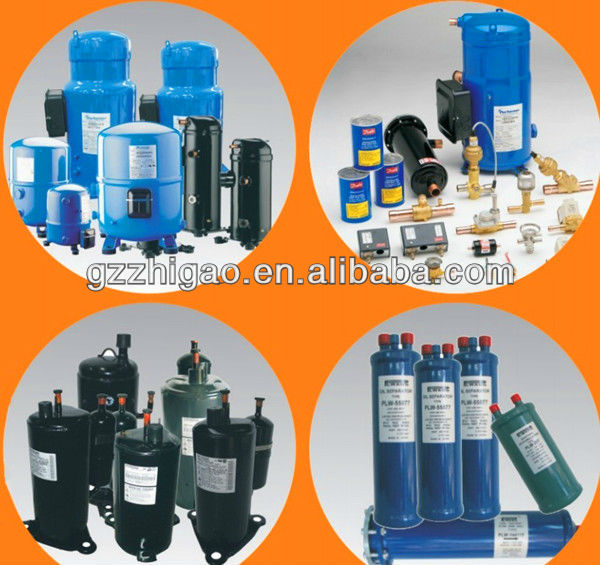

1) all kinds of compressors for air conditioner and freezer such as Panasonic,Toshiba,Danfoss,Bitzer,etc
2) condensing units for cold storage,fish boat,train,etc
3) ac tools and accessories such as tube cutter,copper tube,vacuum pump,condenser,etc
4) refrigerant gas and oil
We suggest you tell us the model and the quantity when inquiry!
