Applicable Refrigerants | R22、R134a、R404A |
Applicable Medium | R22: -40℃~+10℃; R134a:-30℃~+10℃;R404A:-40℃~+10℃ |
Norminal Capacity | 2.5KW~15.5KW、1.8KW~10.5KW、1.6KW~9.1KW |
Adjustable Range of Superheat | 2℃~8℃ |
Ex-Works Static Heat Adjustment | 3.5℃ |
Maximum Working Pressure | 2.0MPa |
Maximum Testing Pressure | 3.0MPa |

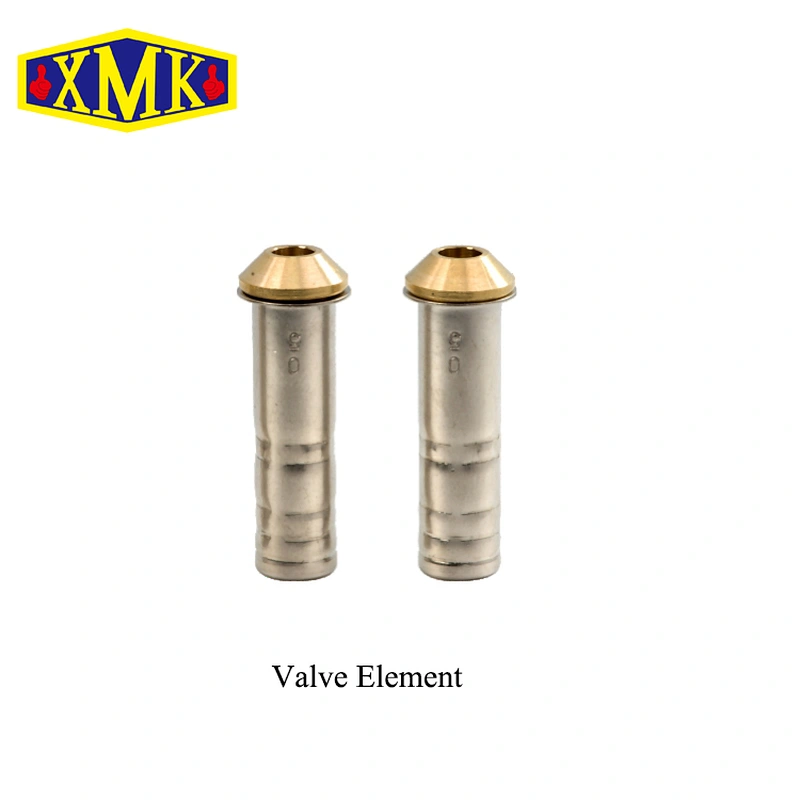

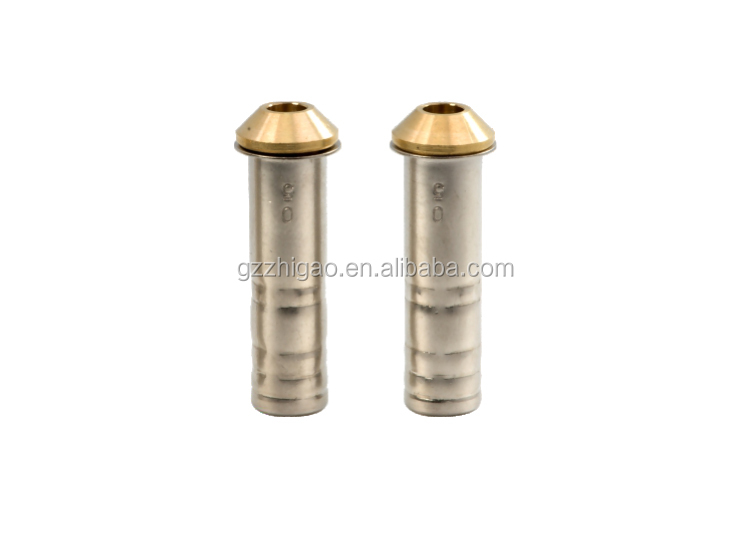

Valve element No. | Nominal refrigerating capacity(TR) | Nominal refrigerating capacity(KW) | ||||||||
R22 | R134a | R404A | R22 | R134a | R404A | |||||
No.1 | 0.7 | 0.5 | 0.45 | 2.5 | 1.8 | 1.6 | ||||
No.2 | 1.0 | 0.8 | 0.6 | 3.5 | 2.6 | 2.1 | ||||
No.3 | 1.5 | 1.3 | 1.2 | 5.2 | 4.6 | 4.2 | ||||
No.4 | 2.3 | 1.9 | 1.7 | 8.0 | 6.7 | 6.0 | ||||
No.5 | 3.0 | 2.5 | 2.2 | 10.5 | 8.6 | 7.7 | ||||
No.6 | 4.5 | 3.0 | 2.6 | 15.5 | 10.5 | 9.1 | ||||
Pressure Balance | Thread | Nominal Refrigerating Capacity | ||||||||
Intet | Outlet | Outside Balance End | TR | KW | ||||||

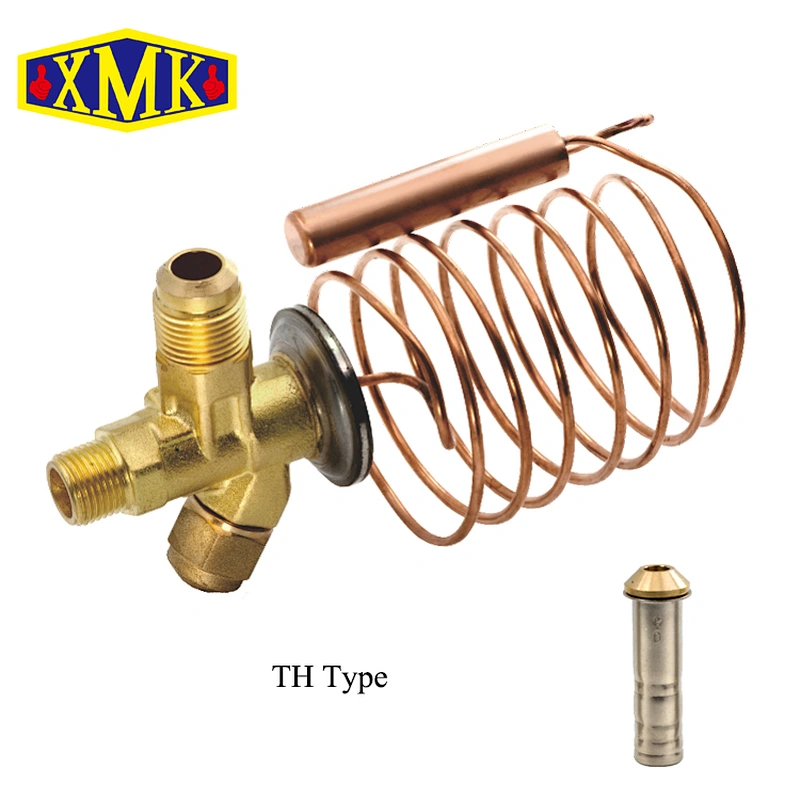

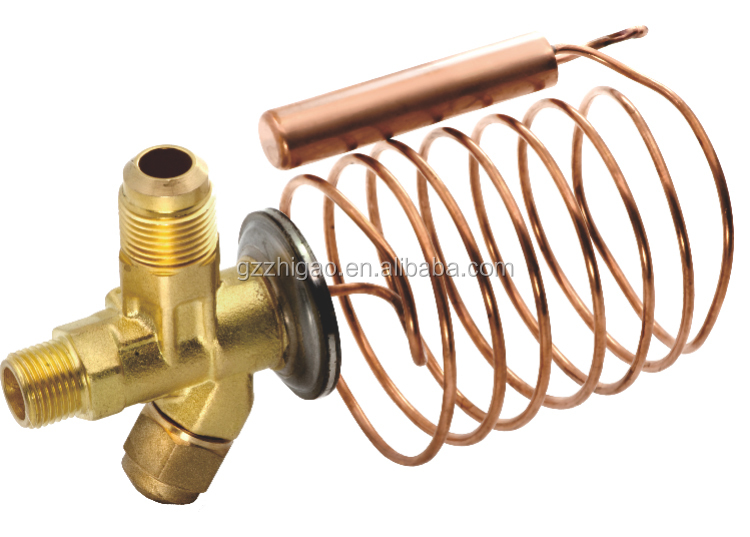

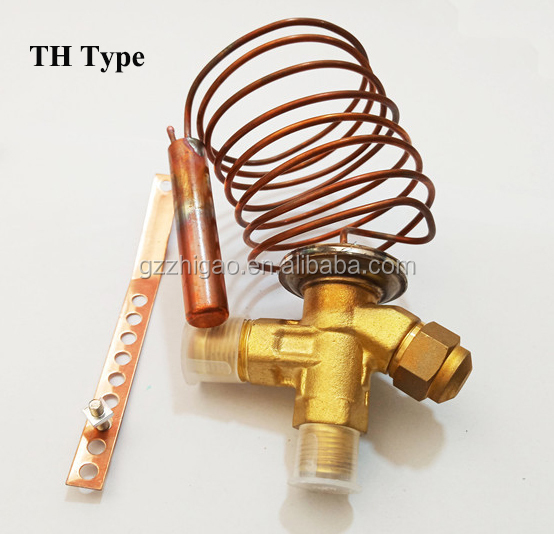

R22 | TH22 | Internal balance | 3/8 SAE | 1/2 SAE | 0.7~4.5 | 2.5~15.5 | ||||

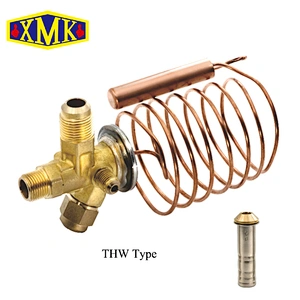

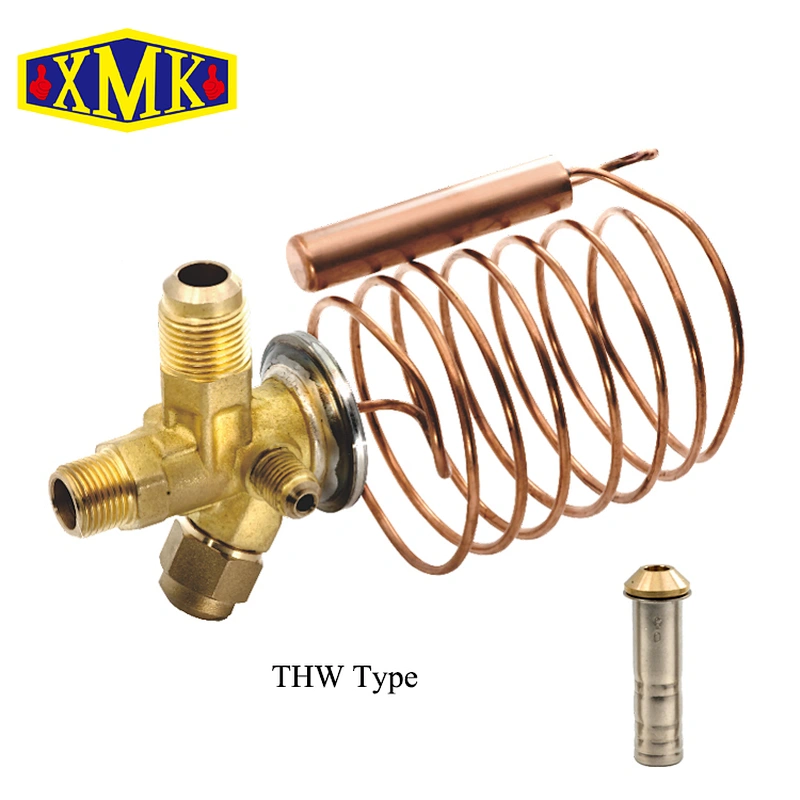

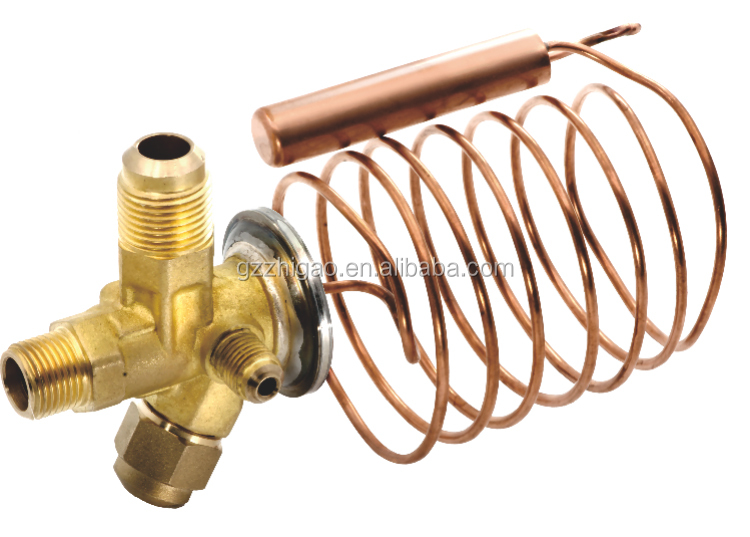

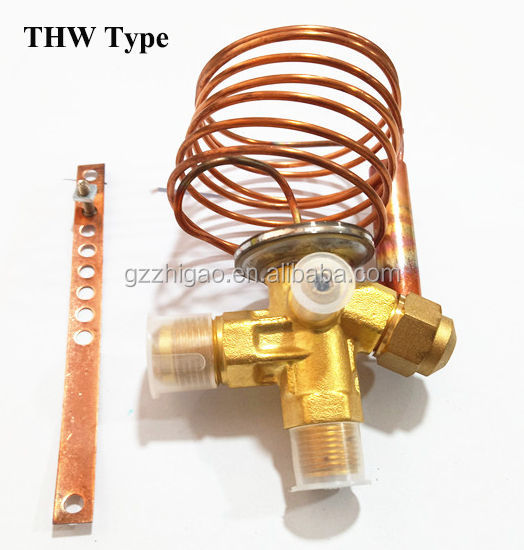

TH22W | External balance | 1/4 SAE | ||||||||
R134a | TH134 | Internal balance | 0.5~3.0 | 1.8~10.5 | ||||||
TH134W | External balance | 1/4 SAE | ||||||||
R404A | TH404 | Internal balance | 0.45~2.6 | 1.6~9.1 | ||||||
TH404W | External balance | 1/4 SAE | ||||||||
