1.Product Name:Refrigeration Heat Exchanger Accumulators,widely used in refrigeration field.
2.Available model number as below.
Model | Suction line (in) | Liquid line (in) | Overall dimension(in) | Liquid Flow Refrigeration Capacity (KW) | |||||
A | B | C | D | R-134a | R-22 | R-404a/R-507 | |||
2404 | 1/2 | 3/8 | 4 | 8.47 | 2.08 | 2.37 | 3.0 | 2.7 | 2.8 |
2405 | 5/8 | 3/8 | 4 | 10.83 | 2.12 | 2.37 | 4.4 | 4.0 | 4.2 |
2406 | 3/4 | 1/2 | 5.5 | 10.24 | 3.14 | 2.72 | 6.6 | 6.0 | 6.0 |
2407 | 7/8 | 1/2 | 5.5 | 12.60 | 3.19 | 2.72 | 8.4 | 7.8 | 8.0 |
2411 | 1-1/8 | 5/8 | 6.5 | 15.75 | 3.11 | 3.74 | 13.6 | 12.0 | 12.5 |
2413 | 1-3/8 | 3/4 | 6.5 | 20.87 | 3.31 | 3.15 | 18.0 | 16.5 | 17.0 |
2415 | 1-5/8 | 7/8 | 6.5 | 22.84 | 3.23 | 3.19 | 23.1 | 21.0 | 22.0 |
2417 | 2-1/8 | 1-1/8 | 6.5 | 22.64 | 3.23 | 3.23 | 28.0 | 25.5 | 27.0 |

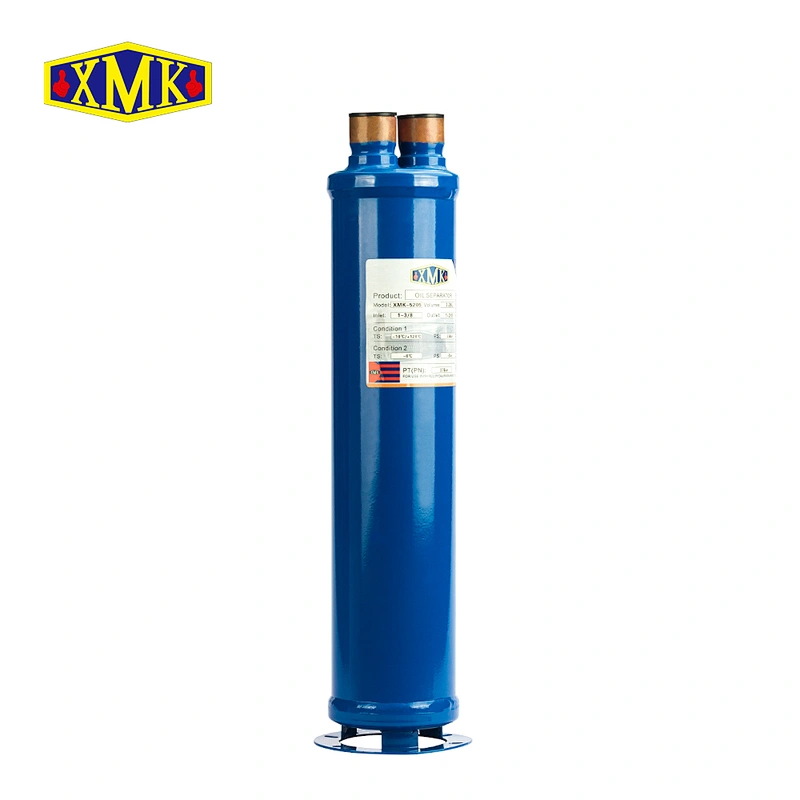

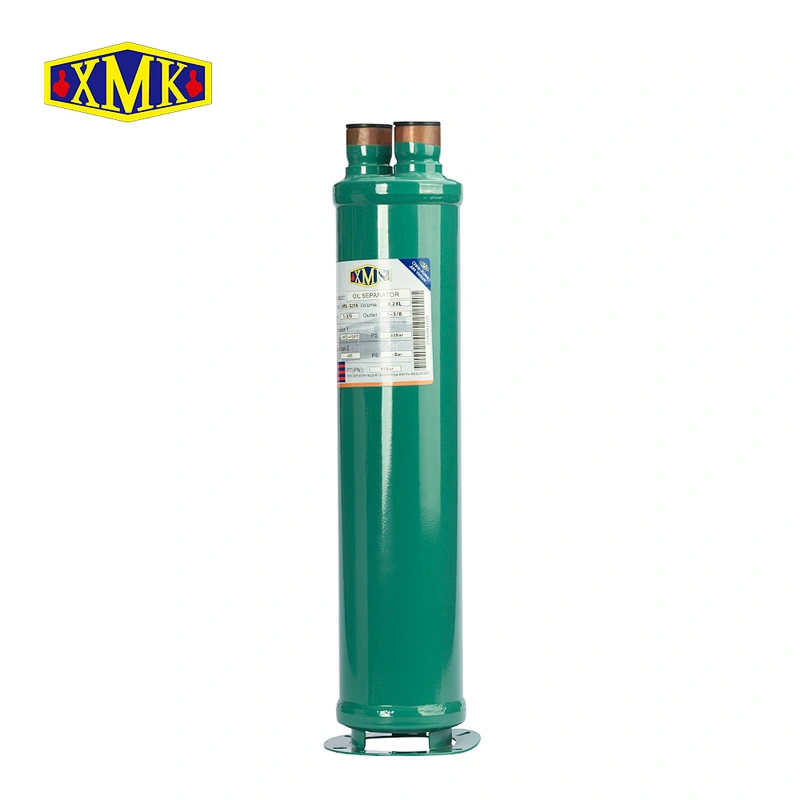

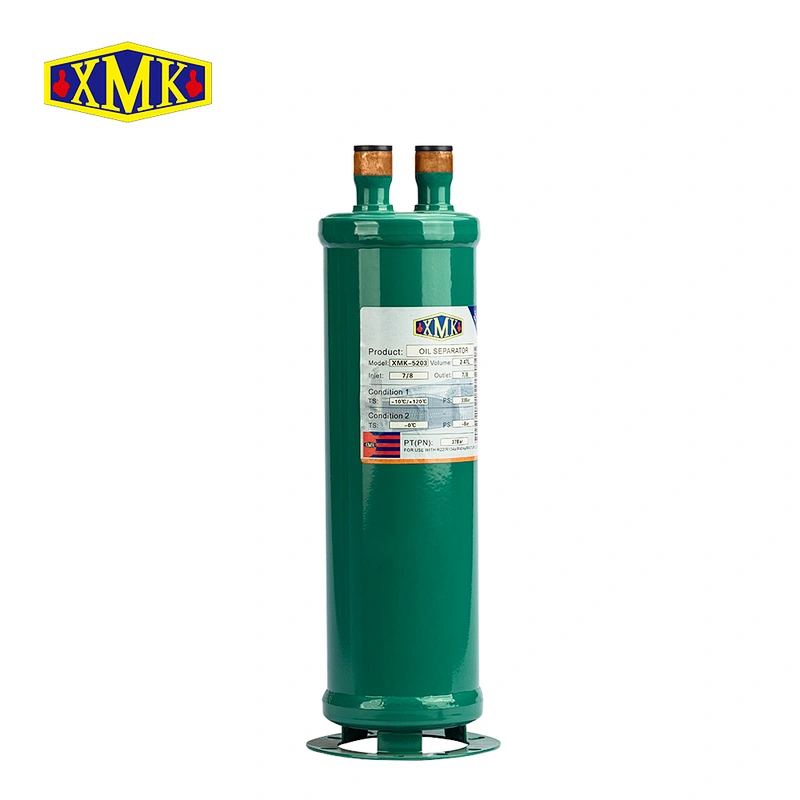

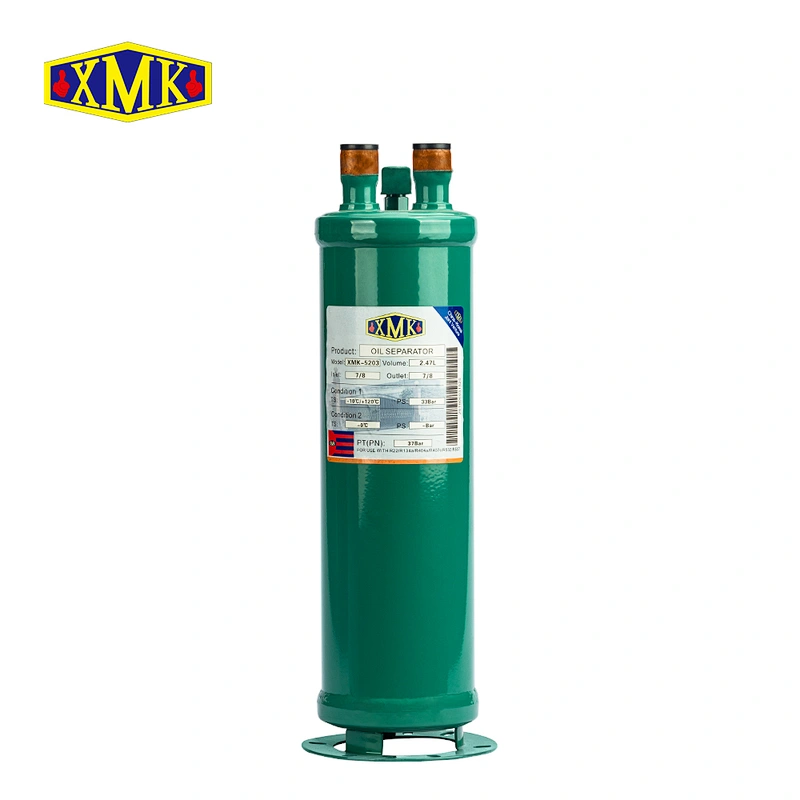

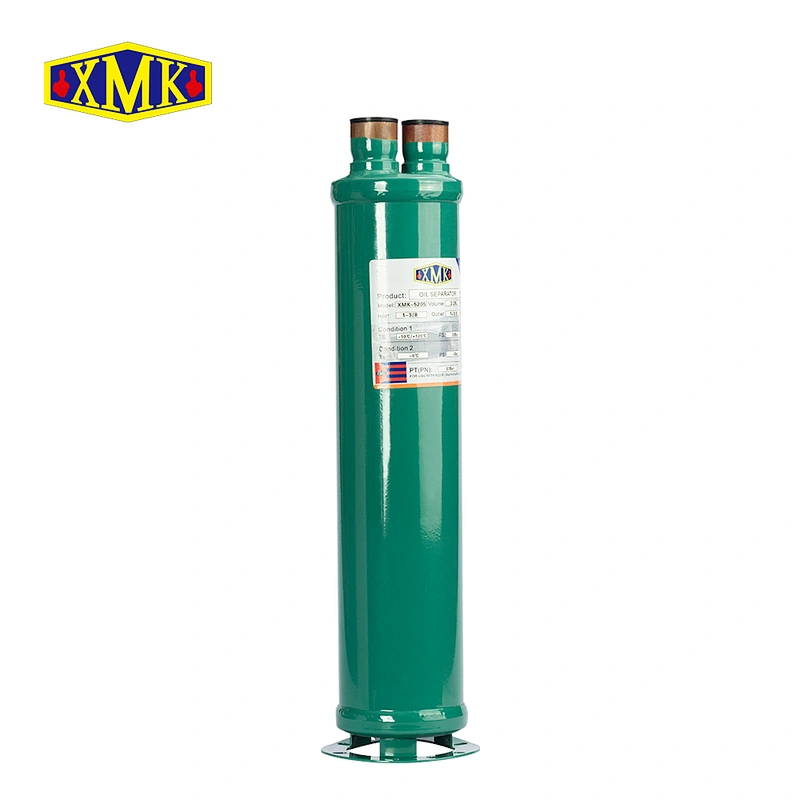

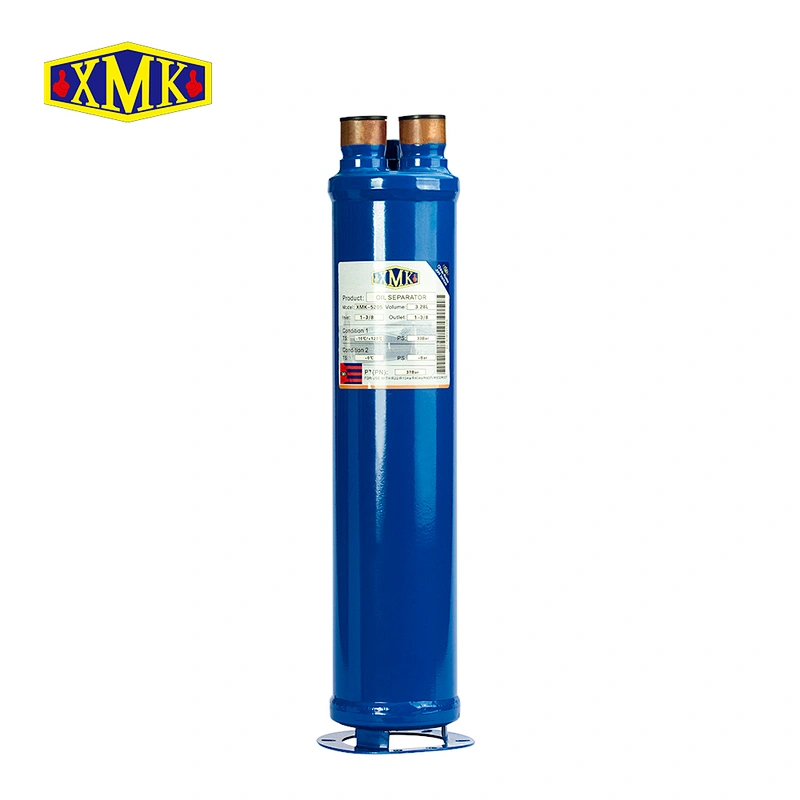

3.Product Pictures.
