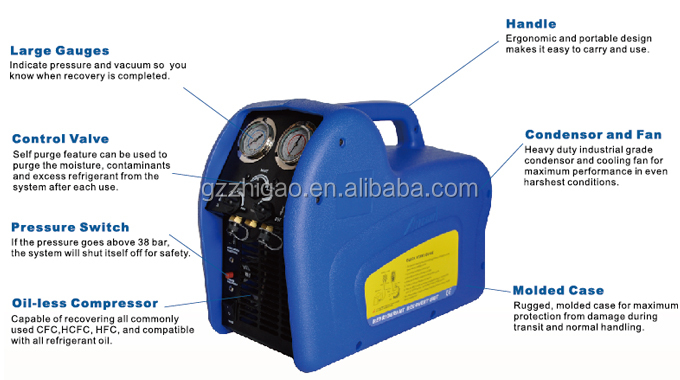

Features: 1. Functions for recovery, self-cleaning and monitoring.
2. Manual operation and full monitor of pressure to avoid misoperation.
3. Oil-less compressor and quick recovery in liquid pumping mode.
4. Portable design for convenient use in different application.
5. External dry filter for easy replacement.
6. Applicable to large refrigerantion and A/C system.
7.With oil and gas seperator.
8.Low pressure shut-off and 80% O.F.P Shut-off kit is optional
Specifications:
| Model | RECO250 | RECO520 | |||||
| Refrigerant gas | Cat III:R12 R134A R401C R406A R500 | Cat III:R12 R134A R401C R406A R500 | |||||
| Cat VI:R22 R401A R401B R402B R407C R407D R408A R409A R411A R411B R412A R502 R509 | Cat VI:R22 R401A R401B R402B R407C R407D R408A R409A R411A R411B R412A R502 R509 | ||||||
| Cat V.R402A R404A R407A R407B R410A R507 | Cat V.R402A R404A R407A R407B R410A R507 | ||||||
| Voltage | 220V/50HZ | 220V/50HZ | |||||
| Motor | 1/2HP AC | 1 HP AC | |||||
| Maximal current | 4A | 6A | |||||
| Compressor | oil-less,Air-cooled,1 piston style | oil-less,Air-cooled,2 piston style | |||||
| Recovery rate (kg/min) | category III | category VI | category V | category III | category VI | category V | |
| Vapor | 0.23kg/min | 0.25kg/min | 0.26kg/min | 0.46kg/min | 0.50kg/min | 0.52kg/min | |
| Liquid | 1.57kg/min | 1.81kg/min | 1.85kg/min | 3.14kg/min | 3.62kg/min | 3.7kg/min | |
| Push/Pull | 4.64kg/min | 5.57kg/min | 6.22kg/min | 9.28kg/min | 11.04kg/min | 12.44kg/min | |
| High pressure switch | 38bar/550psi | 38bar/550psi | |||||
| Low pressure switch | Optional | Optional | |||||
| Oil separator | Optional | Optional | |||||
| 80% Liquid overcharge protector option | 80% Liquid overcharge protector option | 80% Liquid overcharge protector option | |||||
| Operation temperature | 0-40 | 0-40 | |||||
| Size | 485mm*220mm*365mm | 485mm*220mm*365mm | |||||
| Net weight | 16kg | 17kg | |||||

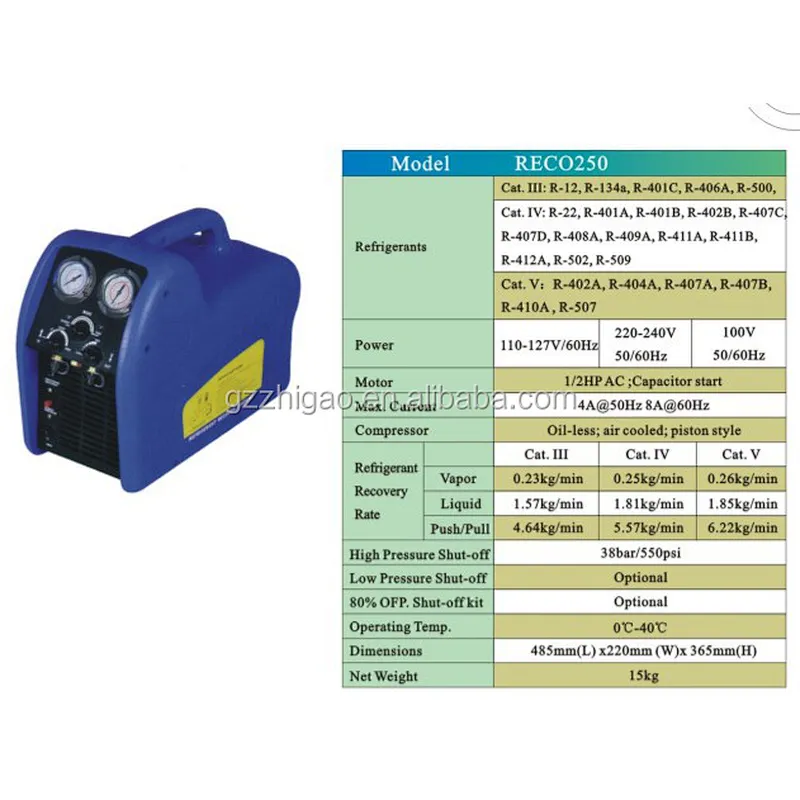

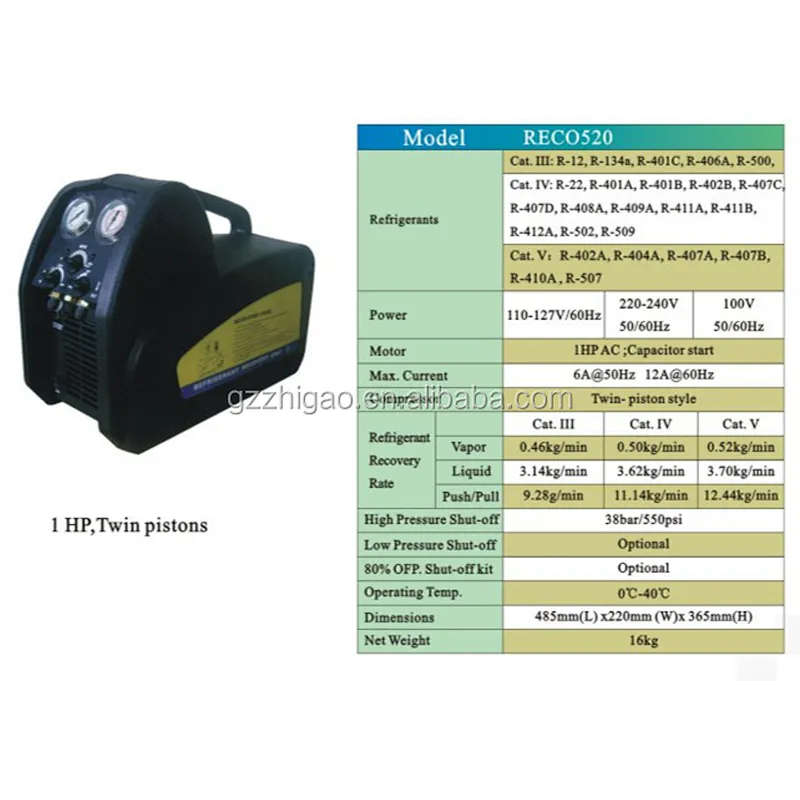

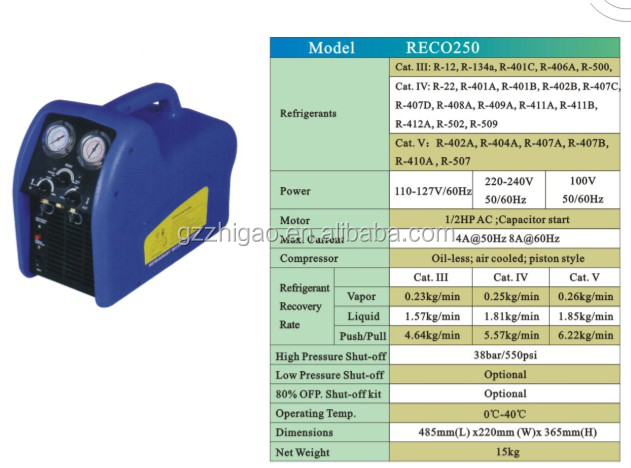

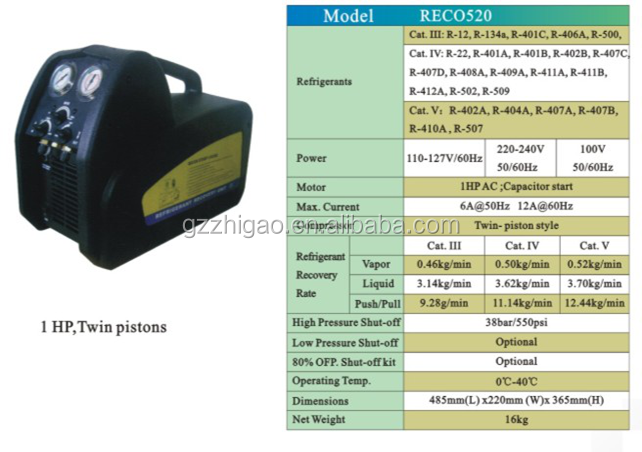

Technical data:

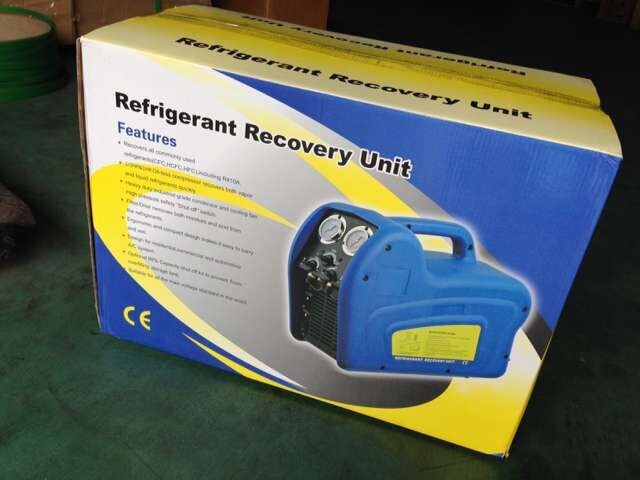

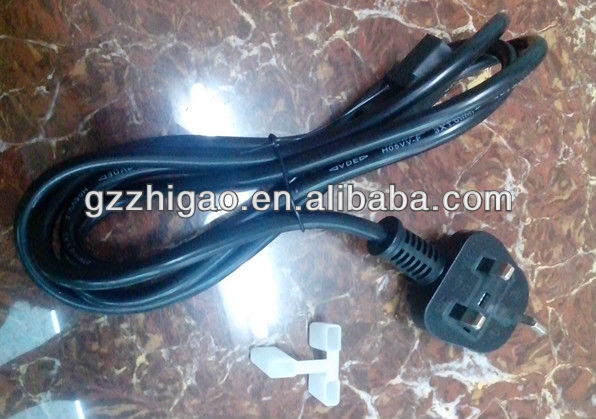

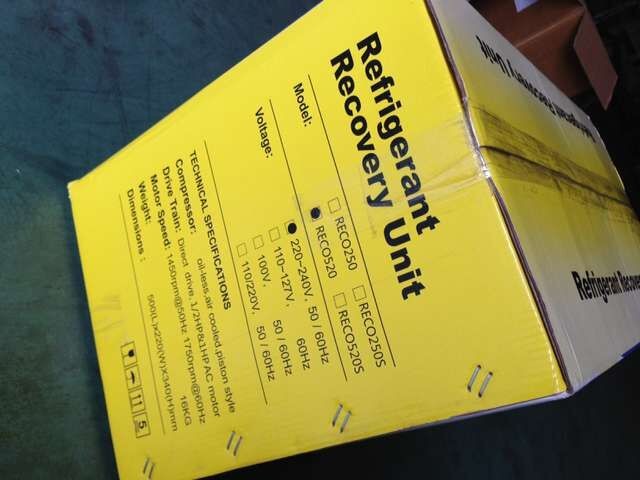

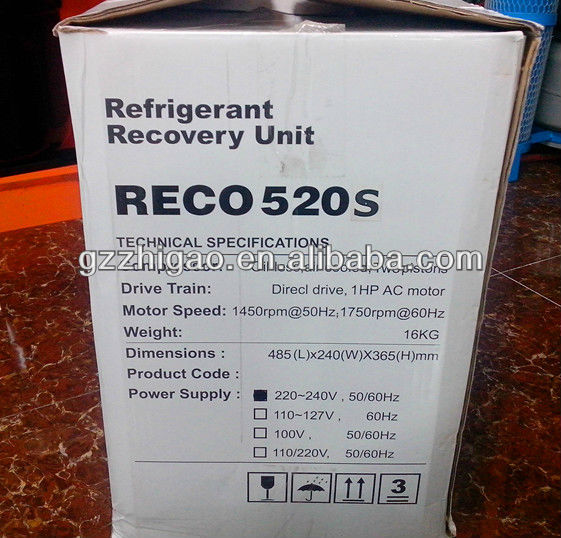

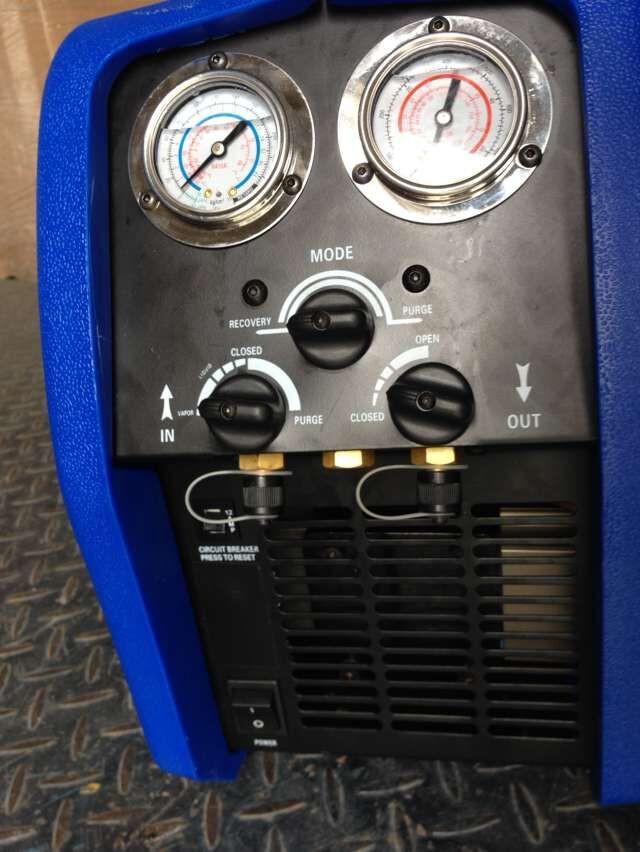

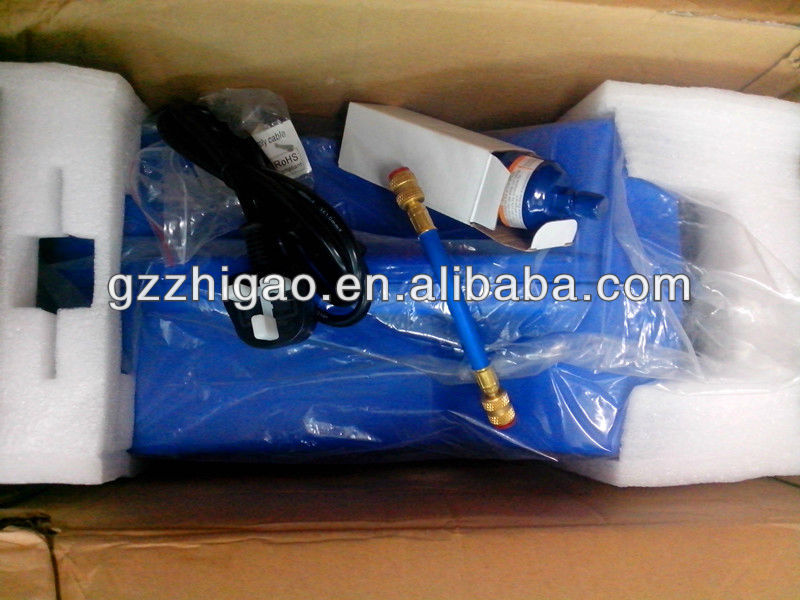

Reference pictures:

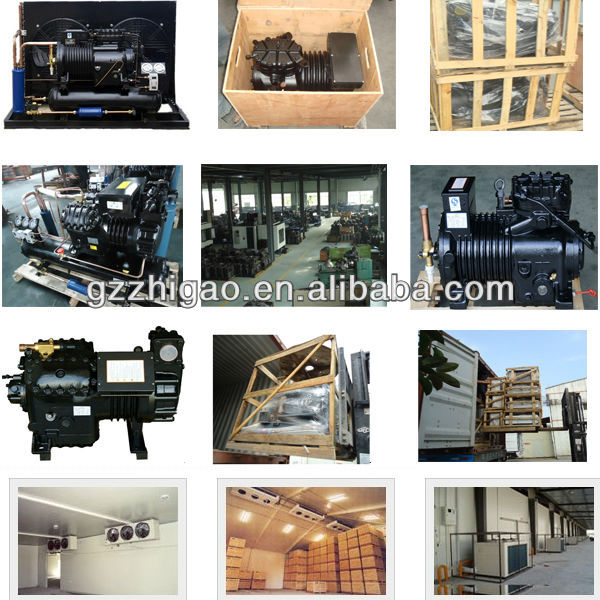

Other products:
