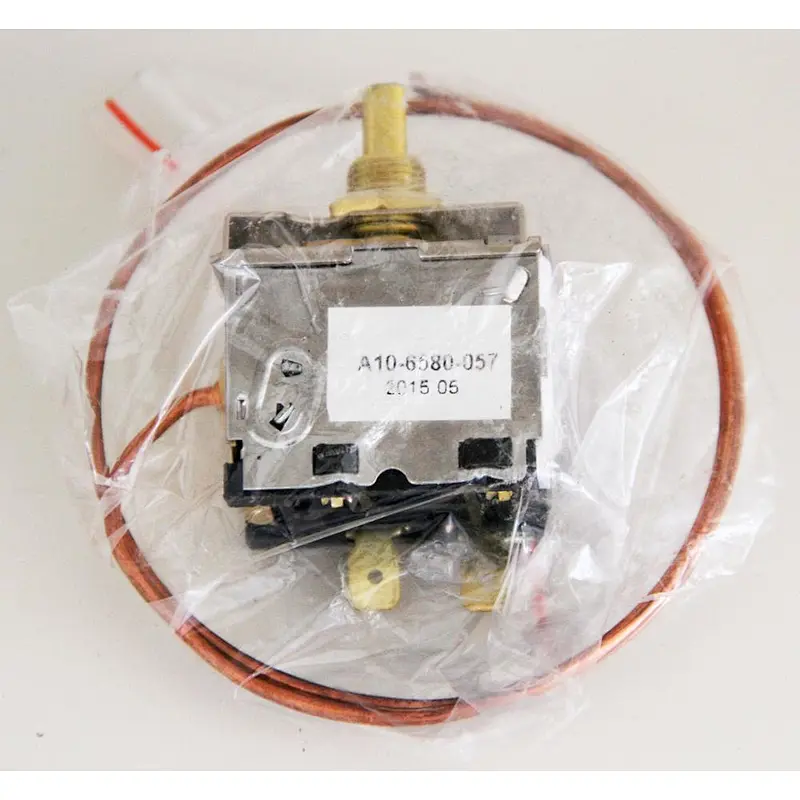

Ranco thermostat K50-P1174
Specifications
Our Ranco thermostat has below advantages:
1. Good material
2. Accurate temperature
3. Reliable
We supply ranco thermostat, our ranco thermostat has below specification
1. CQC,CE approved
2. Rating voltage: 250V 50HZ
3. Life: 200000 circle
4. Used for refrigerators, freezers, air conditioners
5. Delivery time: 25 workingdays after received the Deposit
6.Packing: 1pcs with accossories in a small box, 50boxes/Carton, carton size:42.5cm*27.5cm*19cm. G.W/N.W: 13/12KGS
7. Loading port: Ningbo /Shanghai
CODE | WARM-IN °C | WARM-OUT °C | COLD-IN °C | COLD-OUT °C |
VT9(K59-L1102) | +3.5 | -11 | +3.5 | -26 |
VC1(K50-P1125) | +8 |
| -9 | -18 |
VS5(K54-P1102) | -12 (signal cut-in 5°C above cut-in) |
|
| -34 |
K50-P1110 | +2 |
| -14.5 | -23 |
K50-P1179 | -2 | -9.5 | -11 | -19.5 |
K50-P1127 | +12.5 |
| +5 | +1.5 |
K50-P1126 | -9.5 |
| -18 | -24.5 |
|
|
|
|
|
K50-P1174 | +3.5 |
| -4.5 | -18 |
K50-P1117 | -12 |
|
| -34 |
K50-P1118 | +12.5 |
| +2 | -3 |
K59-P1609 | +3.5 | -11 | +3.5 | -22 |
K54-P1140 | -4.5 (signal cut-in 5°C above cut-in) | -11 | -17 | -23 |
For more ranco thermostat item’s specification.please contact us.
Other products that we supply:

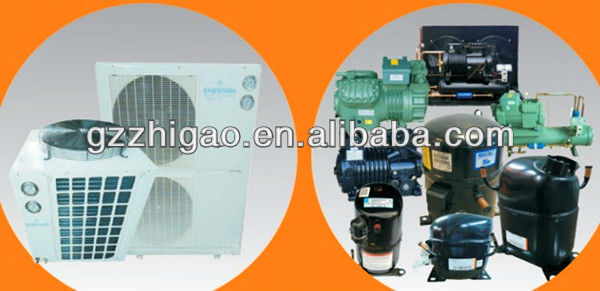

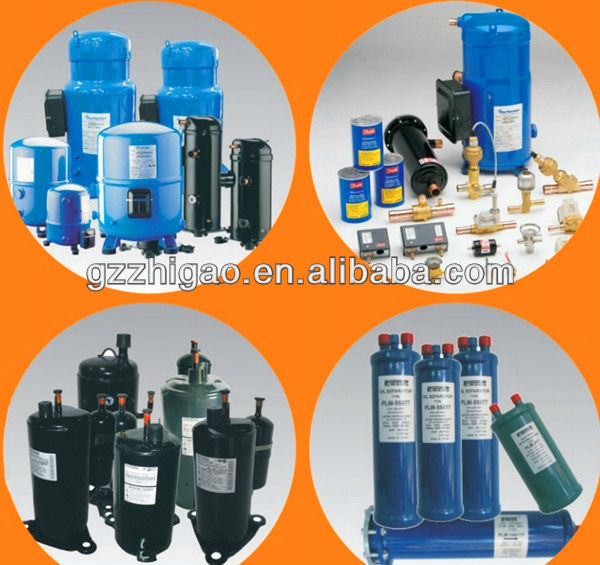

1) all kinds of compressors for air conditioner and freezer such as Panasonic,Toshiba,Danfoss,Bitzer,etc
2) condensing units for cold storage,fish boat,train,etc

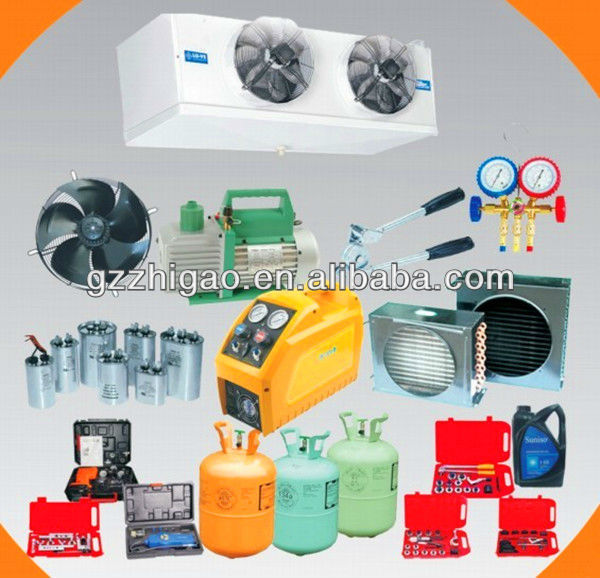

3) ac tools and accessories such as tube cutter,copper tube,vacuum pump,condenser,etc
4) refrigerant gas and oil
