This thermometer is mainly exported to Europe and other places. The appearance of the machine is luxurious and exquisite, small and exquisite. It is especially suitable for temperature measurement of refrigerators, air conditioners, cold storage and other refrigeration electrical products. It can also be used for temperature measurement and time display in various places such as home, office and automobile. Wide application range, simple and convenient operation, intuitive and clear display, with the following characteristics:
Dual temperature probes allow simultaneous detection of two temperatures.
A clock display is available.
Celsius and Fahrenheit temperature conversion.
High precision and intuitive display.
Technical Parameters
Time display range: 1:00-12:59
Temperature range: -50 ° C (-58 ° F) ~ +70 ° C (158 ° F)
Accuracy: ±1 °C
Resolution: >-20°C is 0.1°C ≤-20°C is 1.0°C
Power: DC1.5V 7# alkaline battery (optional)
Machine size: 118*30*28.5mm
Display size: 33 × 12mm
Instructions

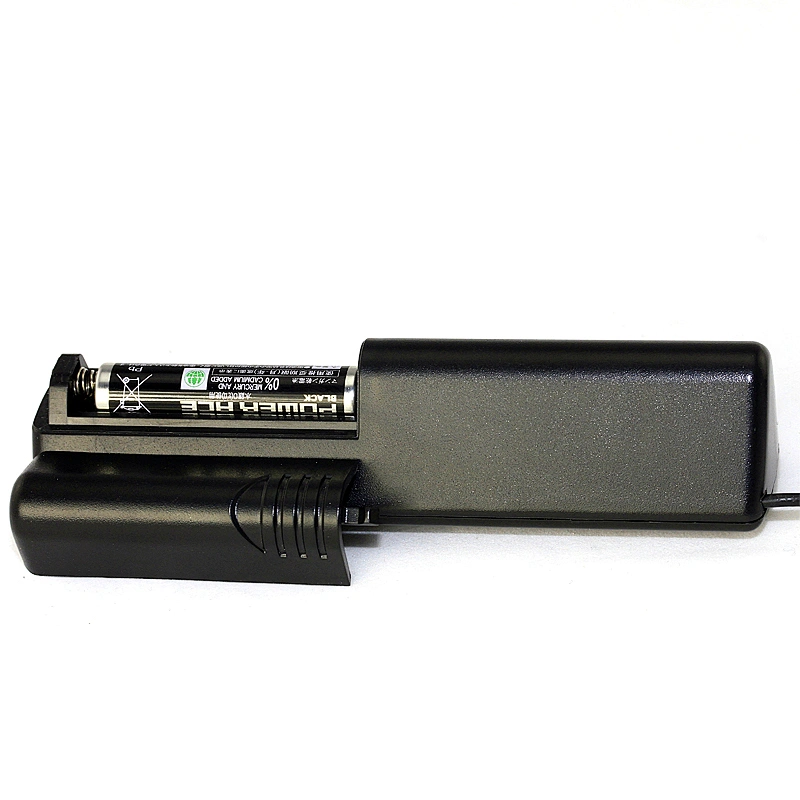

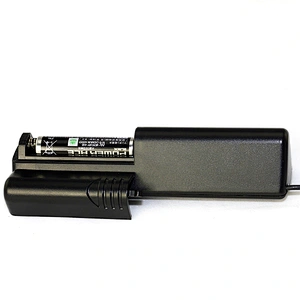

Open the battery cover of the body and install 1# of the 7# battery. Do not reverse it.
FSW is a function conversion key, and the conversion process is as follows:
POWSER ON STATOS POWSER OFF→LCD full display→indoor temperature→outdoor temperature→timeWhen the indoor temperature is displayed,"IN"is displayed simultaneously, when the outdoor temperature is displayed , there is"OUT"with the same.
When the LCD is turned on, the LCD displays the current indoor temperature for 2 seconds, and the function key does not switch during the full display of the LCD for 2 seconds.
If you press and hold the FSW function button for more than 4 seconds, it will shut down. But the CLOCK time continues to count.
When the temperature is ≥70°C (158°F) during the measurement, the LCD displays H°C (°F) at the first decimal place. If the temperature is <-50°C (-58°F), the LCD displays the first decimal place. L ° C (°F).
If the battery is insufficient, the LCD will flash at 1HZ, and the battery should not be replaced when the measurement is not allowed.

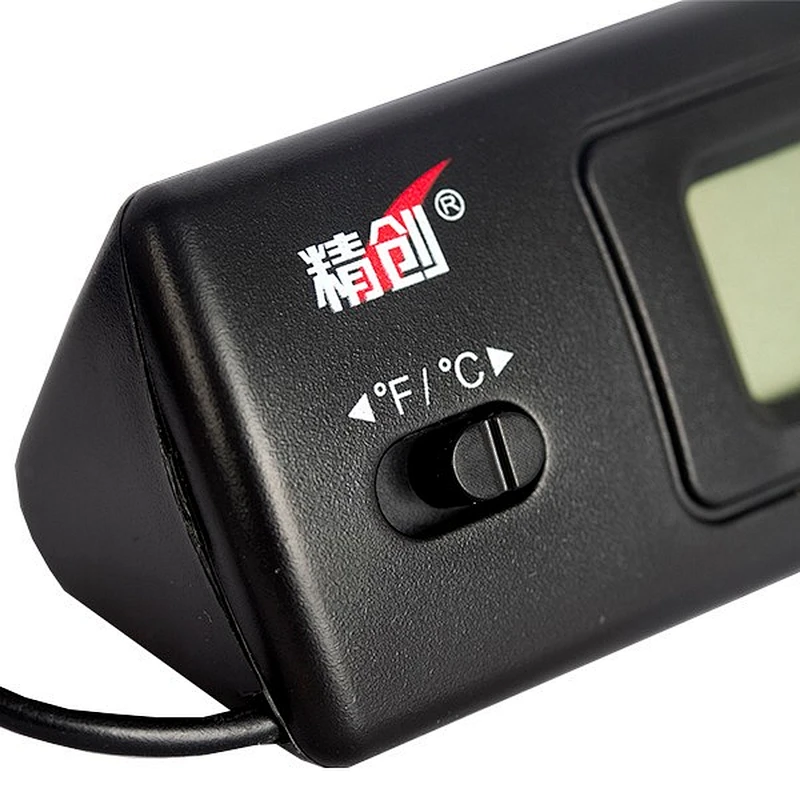

(°C/°F) is a Celsius/Fahrenheit switch that can be selected as indicated.
Time setting:
1 First press the FSW button to switch the LCD to the time display.

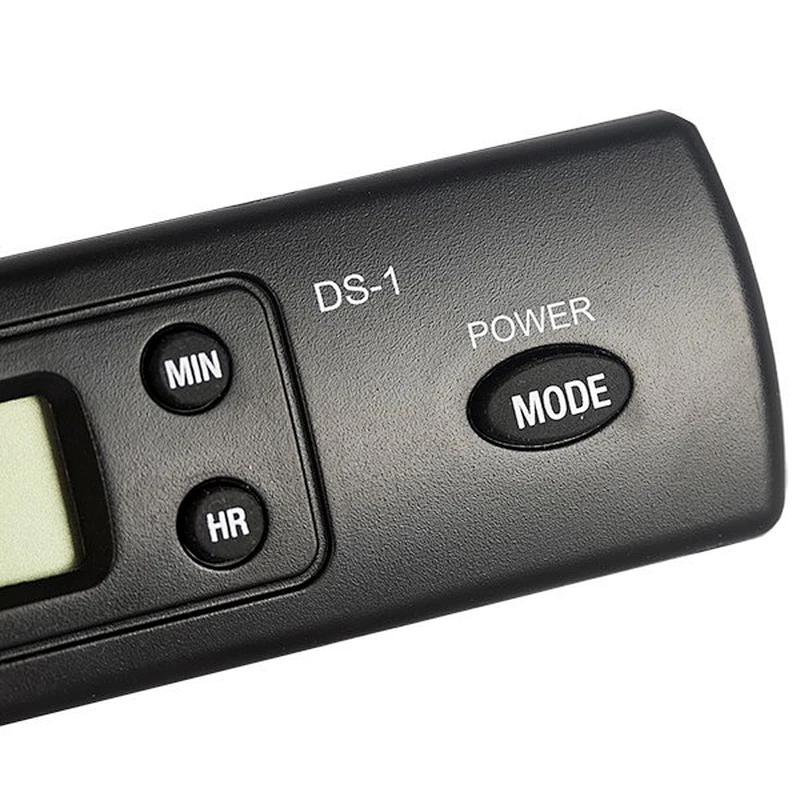

2 hours setting (HR key): Press 1 time to increase by 1 hour, and if it exceeds 12, continue counting from 1 time.
3 minutes setting (MIN button): Press 1 time to increase by 1 minute. If it exceeds 59, continue counting from 00.
A is a built-in sensing probe that measures the temperature around the body (indoor).
B is the external sensing probe. When the probe is placed at the temperature to be measured, the temperature value can be displayed on the LCD.
