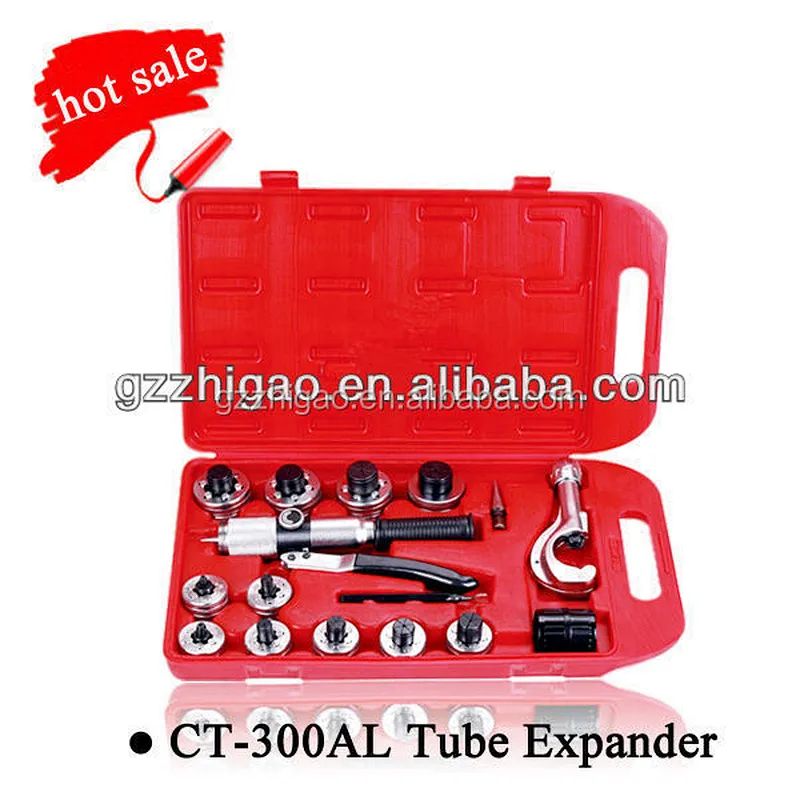

HVAC CT-300AL Tools Hydraulic Tube Expander
HVAC CT-300AL Tools Hydraulic Tube Expander
HVAC CT-300AL Tools Hydraulic Tube Expander
HVAC CT-300AL Tools Hydraulic Tube Expander

HVAC CT-300AL Tools Hydraulic Tube Expander

Model NO.:CT-300AL
  • Minimum order quantity1 set
  • Country of OriginGuangzhou huangpu
    • Brand Name:zhigao
    • Model Number:CT-300AL
    • Place of Origin:Guangdong, China
    • Tool Includes:Combination
    • Application:soft copper, alumimum ,titanium tube,soft steel, Household Tool Set
    • Package:carton, Box
    • Dimensions:use for 3/8"to 1-5/8"
    • Type:Hydraulic tube expanding tool kit
    • Quantity/Carton:6 sets
    • Material:Stainless steel+plastic
    • Size:3/8"to 1-5/8"
    • Certification:CE
    • Delivery time:7-10days
    • Place of origin:China
    • tubing:10mm to 42mm O.D.

    HVAC Tools Hydraulic Tube Expander CT-300AL

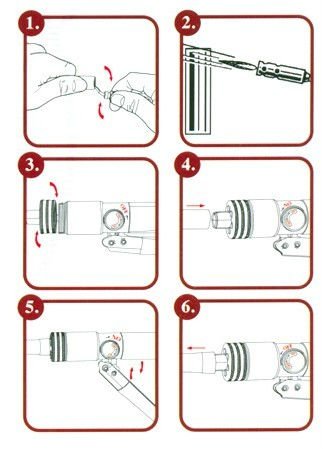

    Six Easy steps:




    1. deburr inside of tube.

    2. anneal the tube if necessary(for hard or thickwall tube).

    3. screw the expander head on expander.

    4. put the end of tube on expander head.

    5. tighten the relief valve knob to n position then pump handle until tube is expanded to the end.

    6. Return the relief valve knob to FF position to loosen expander head. remove expanded tube.


    CT-300ALSwaging/Expanding Kit (CT-300A+CT-107+CT-209+CT-207+CT-300PL




    1. manual hydraulic mechanism designed can expand from 10mm to 42mm O.D. tubing easily with less effort.

    2. used for soft copper tube,Alumimum tube,Titanium tube,soft steel and other soft tube.

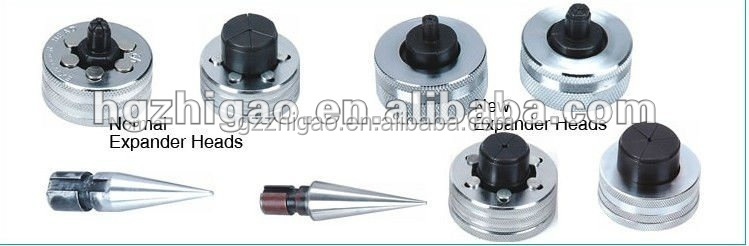

    3. expander segments are made of high-quality hardened steel.


    4. For inch:3/8",1/2",5/8",3/4",7/8",1",1-1/8",1-1/4",1-3/8",1-1/2",1-5/8"O.D. Tubing.

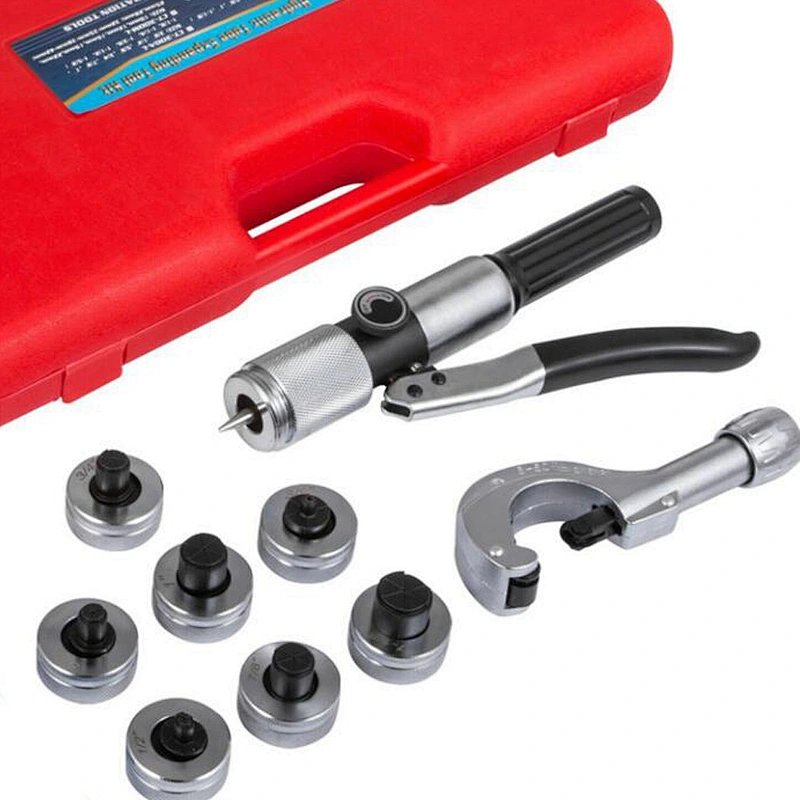

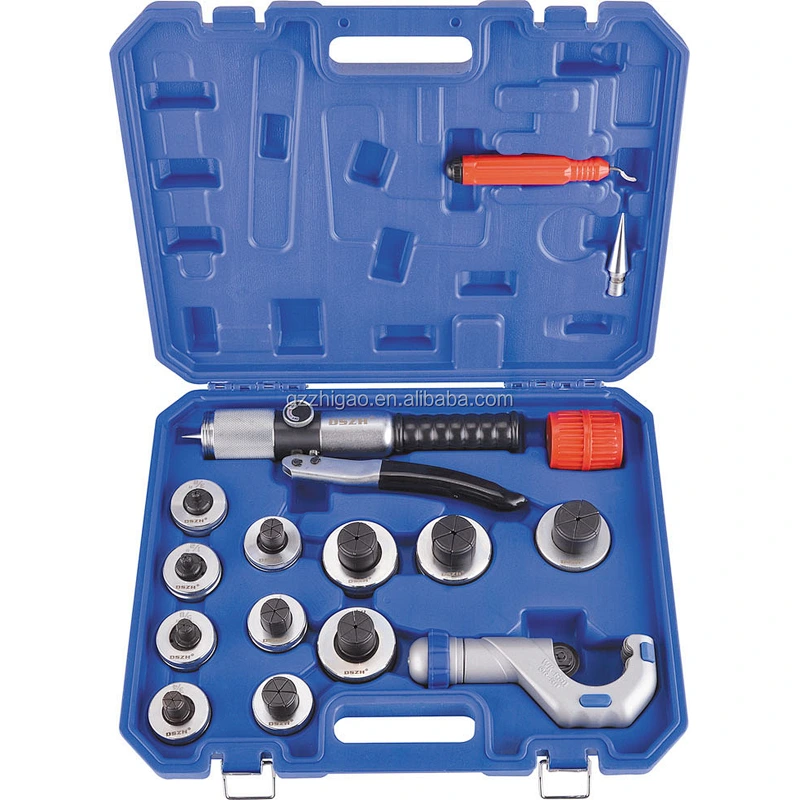

    Pictures of tube expander:

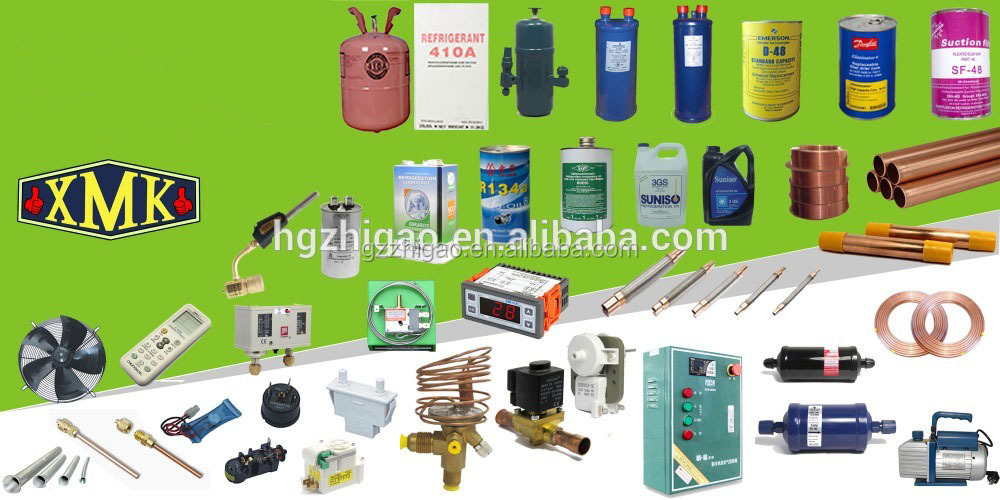

    Other products that we supply:



    1) all kinds of compressors for air conditioner and freezer such as Bitzer,Panasonic,Toshiba,Danfoss,etc



    2) condensing units for cold storage,fish boat,train,etc



    3) ac tools and accessories such as tube cutter,copper tube,vacuum pump,condenser,etc



    4) refrigerant gas and oil







    Other details for inquiry:



    Port:guangzhou huangpu port
    Minimum Order Quantity:6 Pieces
    Supply Ability:10000 Pieces per Week
    Payment Terms:L/C,T/T,Western Union
