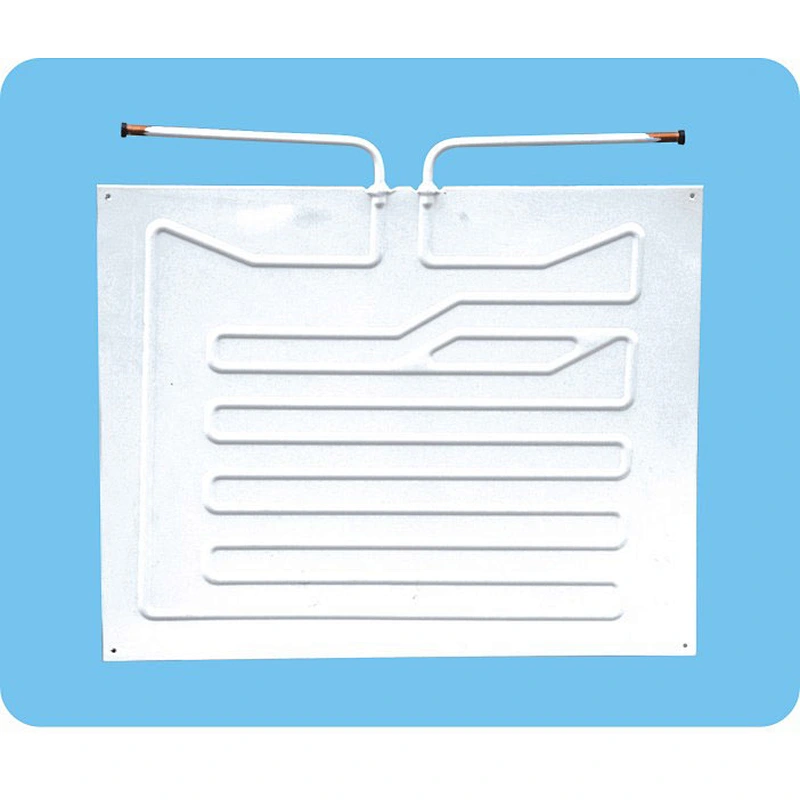

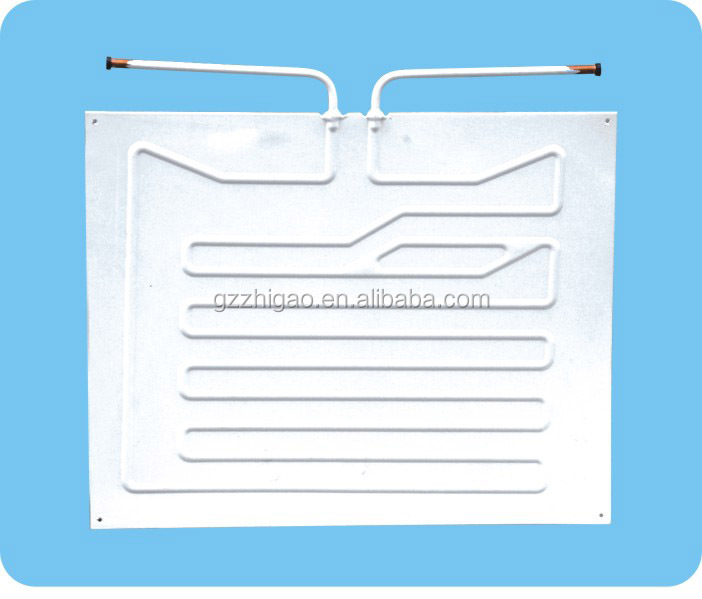

Freezer Roll bond evaporator- 40x50 cm
Product details:
1. Material: aluminium alloy - thin(1.5-2.2mm)
2. Color: white
3. Product Size: 40x50 cm
4. Refrigerant -- aluminum, according to the customer requested with structural design, can used on -18 degrees C and -2 ~ 7 degrees C
5. No leakage, can meet the CFC and non-CFC refrigerants internal cleanliness requirements.
6. For the 2 side aluminum is composed of many kinds of mode, such as printing, compound, pressing, Inflation, welding, painting made. It's divide into Inflation sub-sided, single-sided and partial Inflation Inflation; the main shape of flat shape, bending forming three-dimensional shape, etc.
7. Diversified specifications are available in accordance with customer's requirement.
Application
Products: Aluminium Roll bond evaporator for refrigerator.
Main use: Used in freezer, refrigerator, wine cabinet, showcase chiller etc.
Good quality, service and moderate price in the same field.
Raw material (Al plate) | Al plate: the thickness of finished product is 1.1-2.0mm | |||
| The thickness of raw Al plate:1.7-2.15mm | ||||
| refrigeration parts | |||
Structure | Double side roll bond evaporator | |||
| Single side roll bond evaporator | ||||
| Part single side roll bond evaporator | ||||
Key process | preparing materials – cleaning – printing – rolling – annealing - blowing up – punching –folding and sharpening –adding the capillary – assemble welding – leakage testing – cleaning and drying – coating - inspection – packing. | |||
Performance
| (1) Surface treated with powder coating to prevent corrosion | |||
| (2) Inner cleanness can meet the requirement of R134a and CFC cooling system | ||||
| (3) Can satisfy the cooling capability requirements of the designed refrigerator. | ||||
