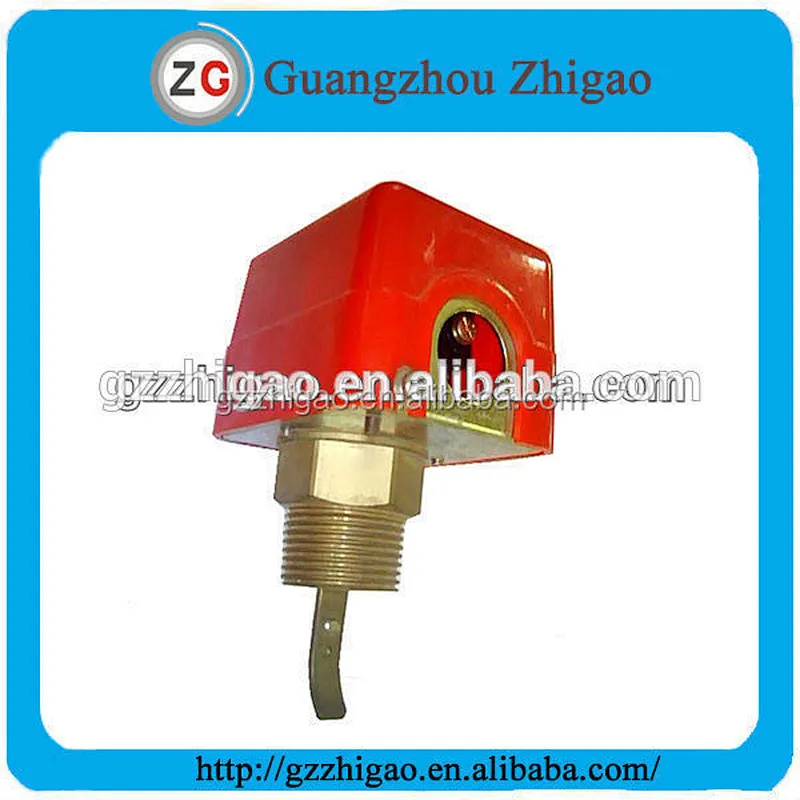

Qualtiy HFS-25 AC 220V 15A Male Thread SPDT Water Paddle Flow Switch
1'' NPT 10KG 100°c
SPDT 15A 250VAC
2.Water flow switch description
The HFS serices Water flow switch can be installed on the water pipe and in the liquid that is not corrosive to brass.It can be typically used to the location that have linkage function or liquid break protection.
3.Technical Sheet
| Work pressure | 1.0 Mpa | Contact life | 1000K Cyc |
| Pressure | 1.75Mpa | Bellows life | 50K Cyc |
| Insulation resistane | >100W.DC500VM | Liquid Temp | Max 100 dgree |
| Voltage with stand | AC1500v/1 min |
4.Liquid Control Range
| Type | Liquid Range(LPM) | ||||
| (Inch) | Flow Direction piece | Min | Max | ||
| Open | Closed | Open | Closed | ||
| 1 | 1 | 15 | 8 | 45 | 41 |
| 1-1/4 | 1 | 26 | 13 | 75 | 68 |
| 1-1/2 | 1 | 29 | 20 | 105 | 94 |
| 2 | 2 | 34 | 17 | 120 | 105 |
| 2-1/2 | 2 | 60 | 34 | 210 | 188 |
| 3 | 2 | 68 | 30 | 288 | 275 |
| 4 | 3 | 128 | 64 | 412 | 360 |
| 5 | 3 | 225 | 113 | 750 | 652 |
| 6 | 3 | 345 | 172 | 1125 | 975 |

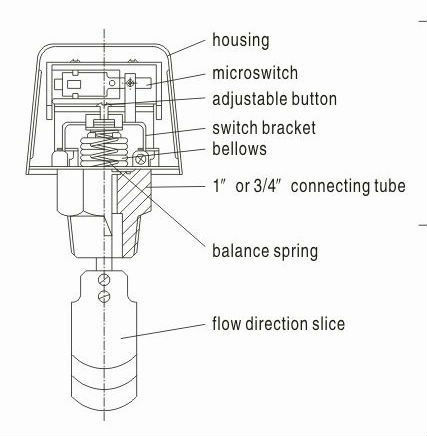

5.Design drawing

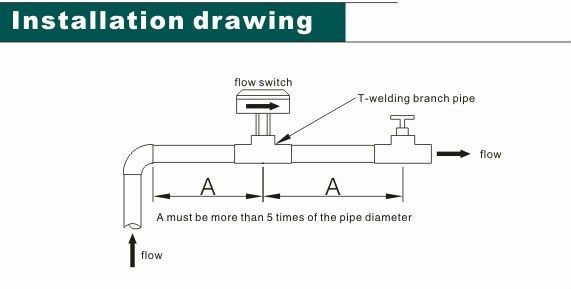

6.Installation drawing.

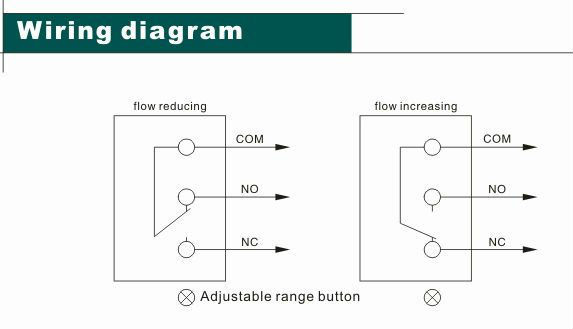

7.Wiring Diagram

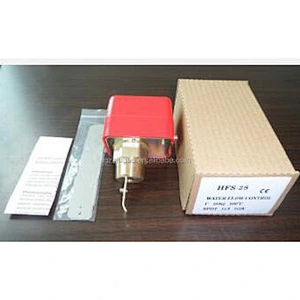

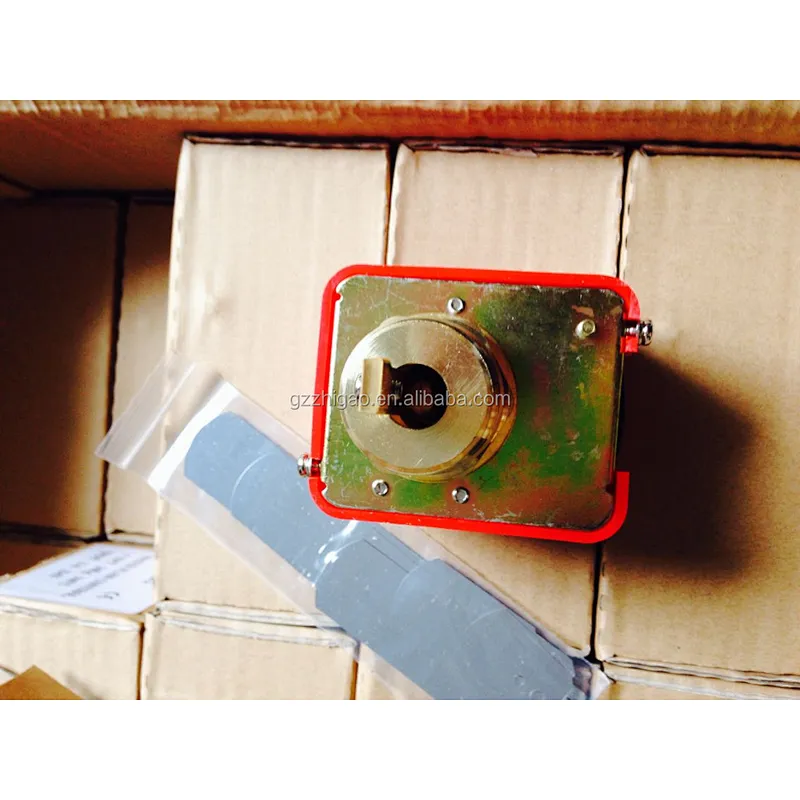

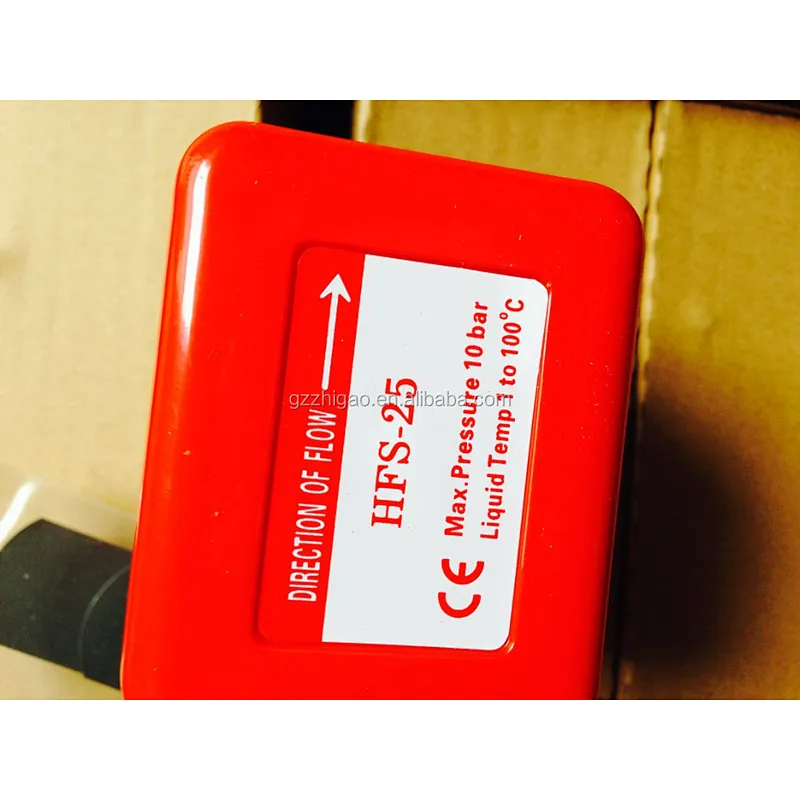

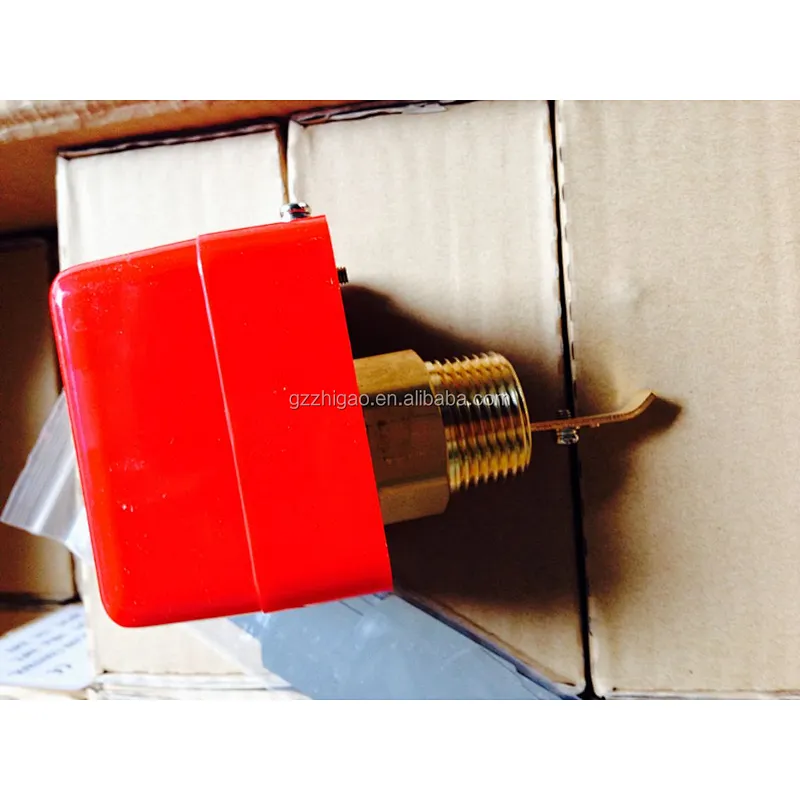

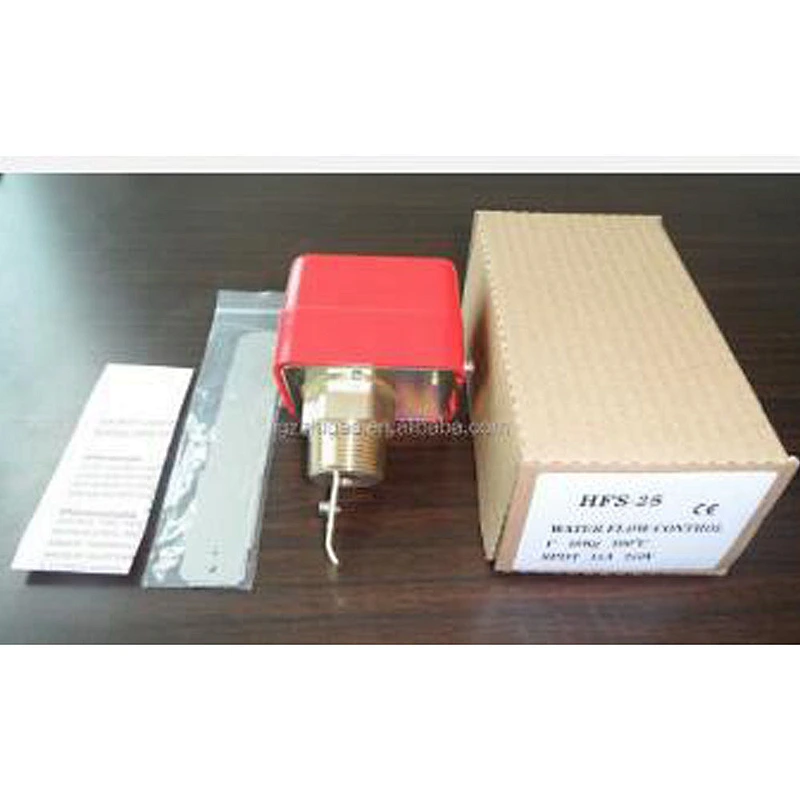

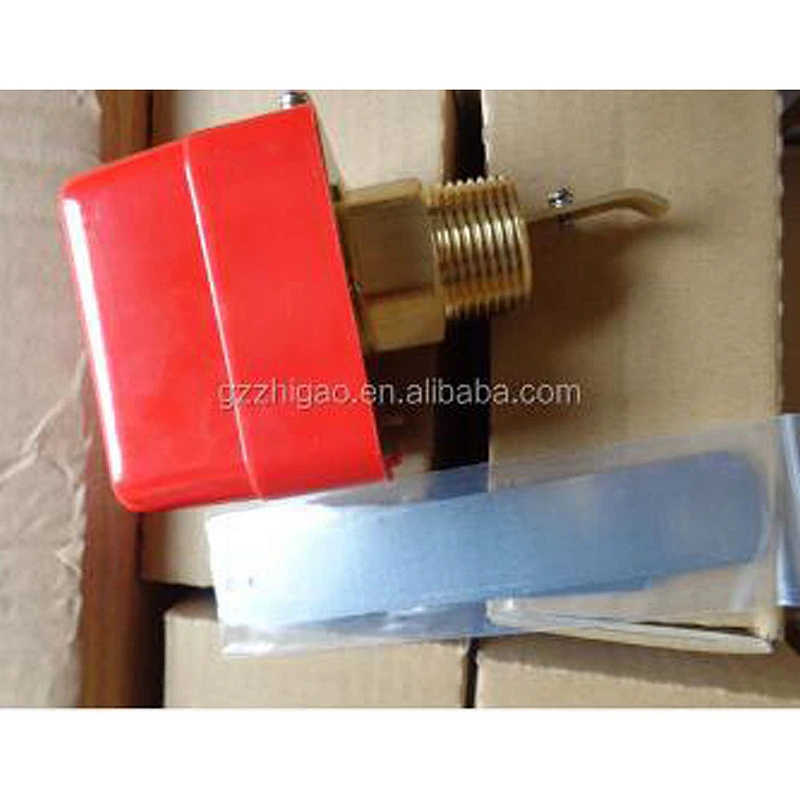

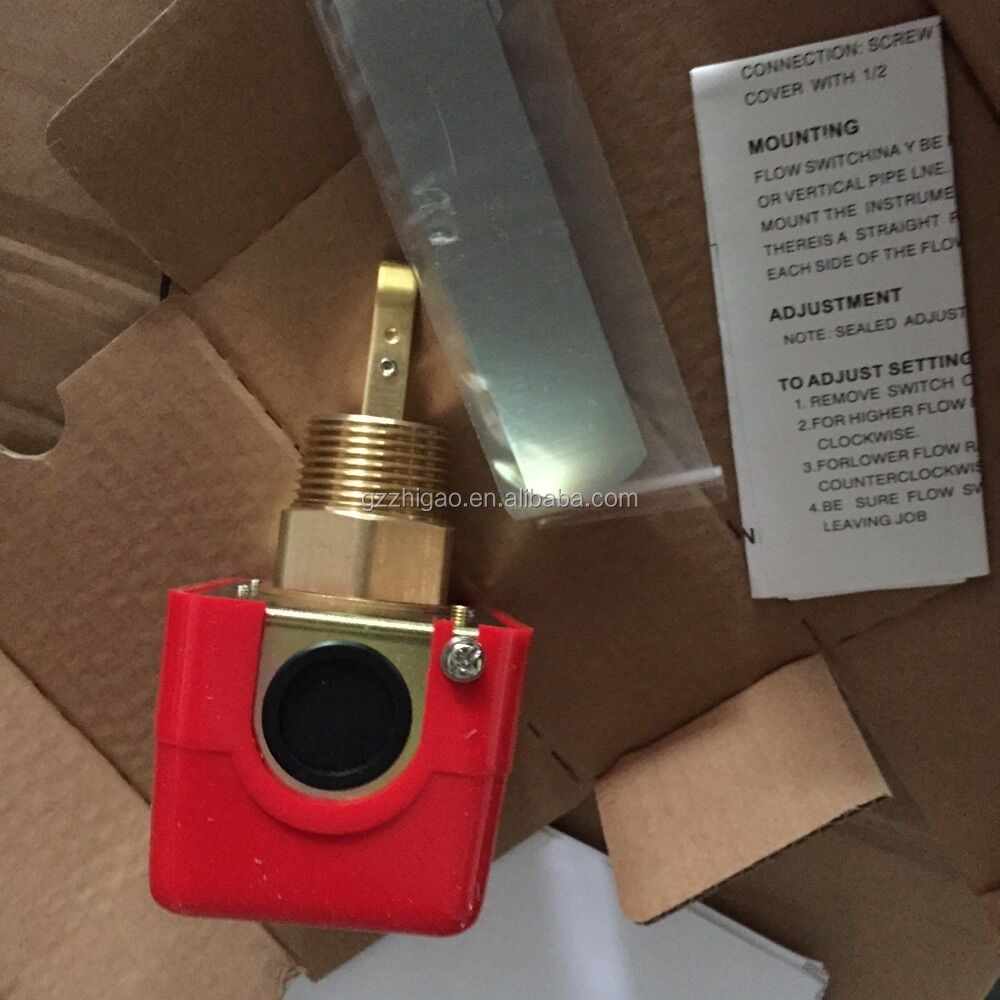

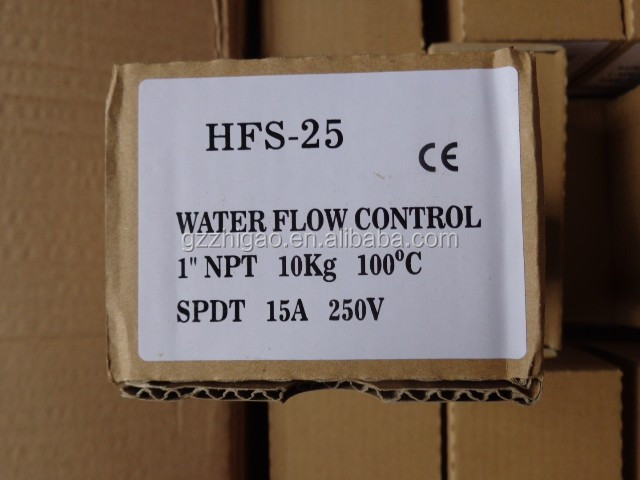

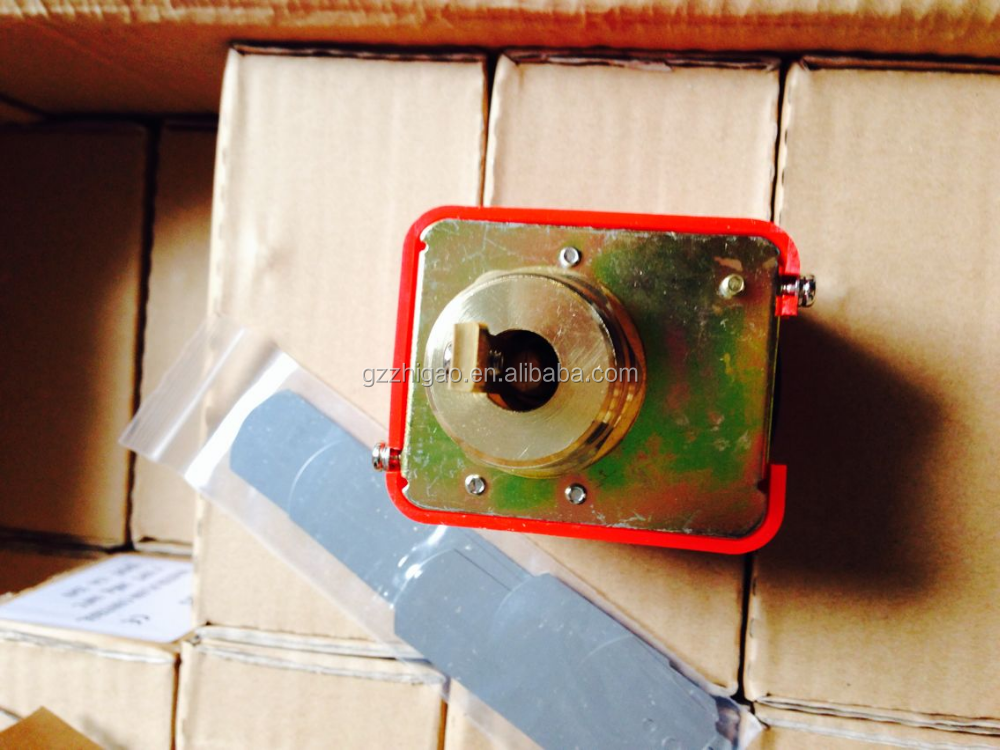

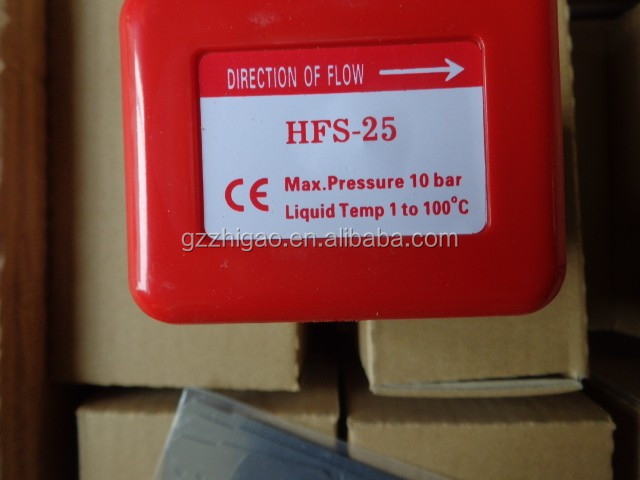

8. More picture to your reference
