Warranty:other
Customized support:OEM, ODM
Place of Origin:Jiangsu, China
Brand Name:Elitech
Model Number:STC-1000 Pro 110V
Model:STC-1000 Pro 110V
Application:connect your refrigeration and heating equipment
apply:water chiller
Features:defrost cycle or defrost time
characteristic:Compressor work as scheduled time when sensor error.
Main Function:Refrigeration,Defrost,1NTC,Temperature Calibration
Power supply:100-250VAC, 50/60HZ
Operating ambient temperature:-10°C~ 65°C
Sensor type:NTC Temperature Sensor(10KQ/ 25C, B value=3435K
Certification:ISO

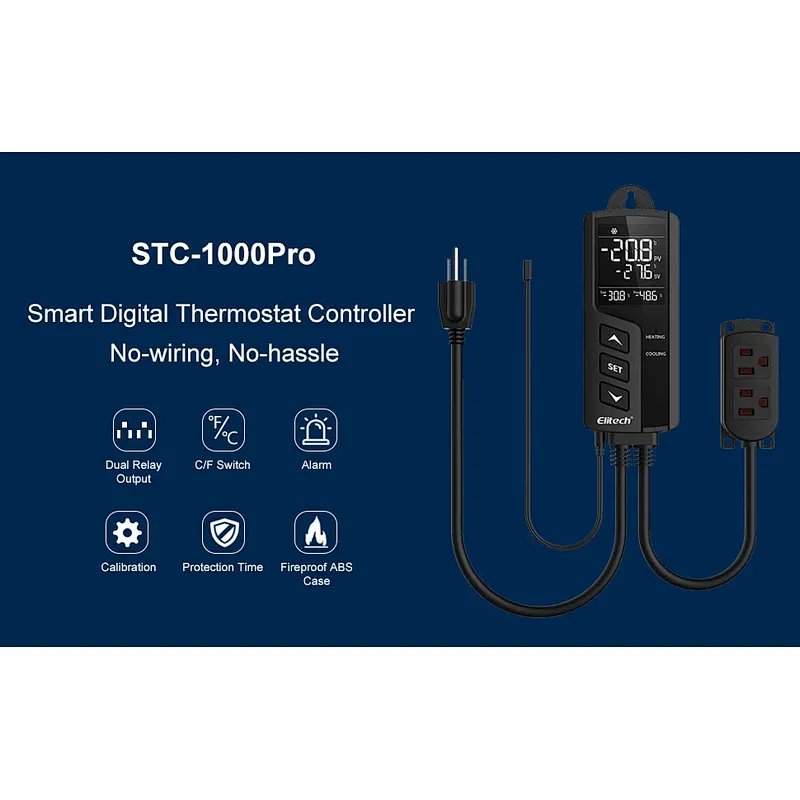

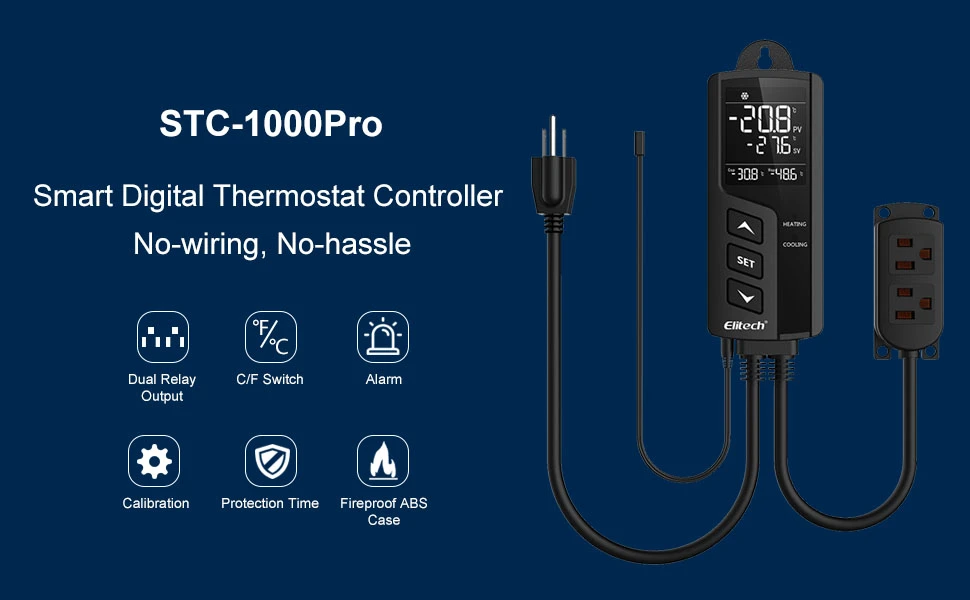

Smart Digital Thermostat Controller

STC-1000pro

1.Product Overview:

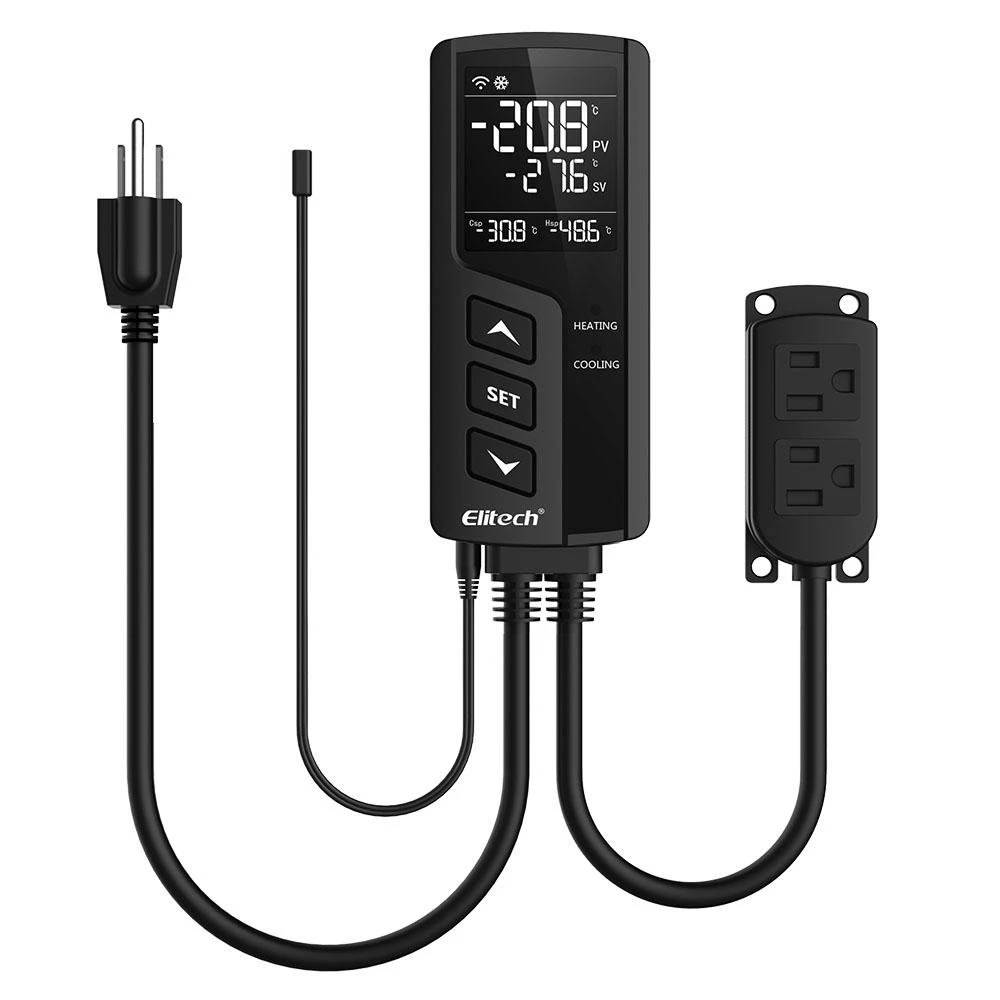

Elitech Temperature Controller STC-1000Pro is a plug-and-play smart digital temperature controller. It features two pre-wired heating and cooling outlets that can easily connect your refrigeration and heating equipment to realize automatic ideal temperature controlling. Its three-button design and LCD display gives clear visual effect on temperatures viewings and personalizing settings and it supports Centigrade/Fahrenheit unit options. Meanwhile, it's optional UK/EU/US standards power plugs and outlets satisfies various requirements. This controller can be widely used under various scenarios and electronic appliances that need automatic temperature controlling such as home-brew, aquarium, incubation pet breeding, seedling heat mats culture fermentation, etc.

Key Features:

[Upgraded Version of STC-1000]Its large LCD screen, simple 3-button, 2-relay output and pre-wired design, making it easier to be used by play and plug.
[Wide Temperature Range]It measures from -49℉~239℉ and starts cooling or heating according to the configured parameter, which will allow it to keep the desired temperature anytime.
[Multi-functional Setting]The functions include setting high or low alarms, protection time(cooling mode only), temperature calibration, ℃/℉ and etc.
[Safe & Reliable]The fireproof ABS case will be safer when in use.
[A Variety of Use]This controller can be widely used under various scenarios and electric appliances that need automatic temperature controlling such as culture fermentation homebrew, aquarium, incubation, pet breeding, seedling heat mats, etc. 24/7 US Technician Support via Email and Phone.

Technical Specifications:

Power supply: 100-250VAC, 50/60HZ
Total power consumption: 5W
Temperature measuring range: -45 - 115C/-49-239oF
Temperature control range:40-110°c/-40~230°F
Temperature resolution:0.1c/0.1°F
Temperature accuracy:±1°C/±2F
Operating ambient temperature:-10°C~65°C
Storage temperature:-20°C~75°C
Relay contact capacity: 10A /100250VAC
Sensor type: NTC Temperature Sensor(10KQ/ 25C, B value=3435K
Working mode: Heating or Cooling
Cable length(Sensor): 2m
Cable length(Power plug): 1.5m
Cable length(Heating/Cooling Outlet): 0.3m
Dimensions: 265mmxx 1675mm
Best LCD screen viewpoint: 6 o'clock position

Package Included:

1 x STC-1000Pro
1 x Heating and Cooling Outlet
1 x US Power Plug
1 x Temperature Sensor
1 X User Manual

6.more picure to show

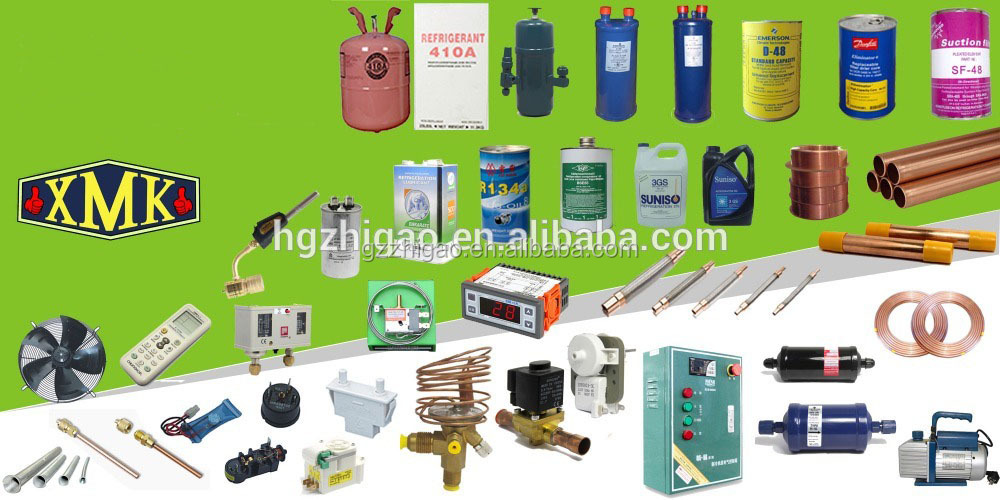

other product

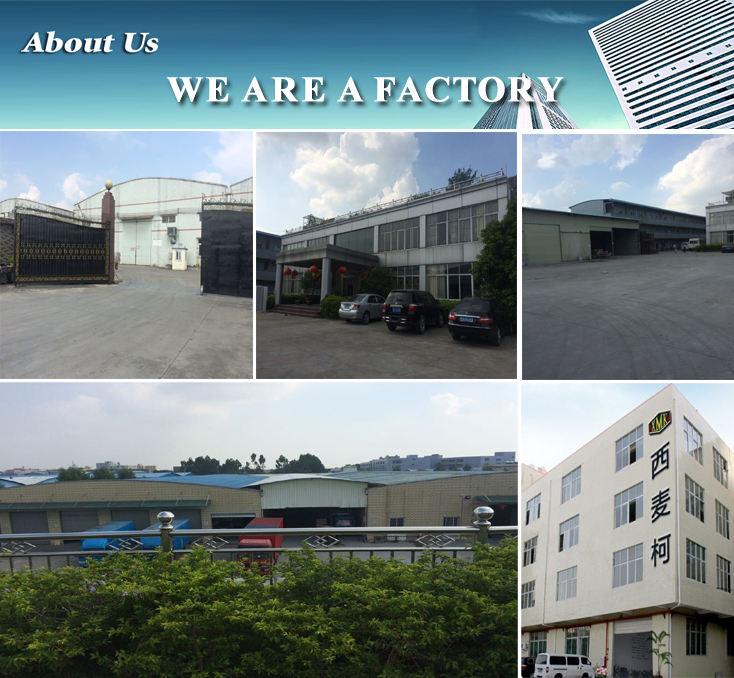

Company Information
