• Place of Origin:Jiangsu, China
• Brand Name:Elitech
• Model Number:ECS-180A
• Application:air-cooled drinks cabinets, display cabinets and kitchen refrigerator
• Measuring range:-50 °C ~ 90 °C
• Measurement Accuracy:-40 °C ~ 50 °C
• Temperature range:-50 °C ~ 50 °C
• Temperature resolution:0.1 °C
• Power supply voltag:230 ± 10% (VAC)
• Cooling:3A/230VAC,;normally ope output
• Operating temperature:0 °C ~ 55 °C
• Storage temperature:-25 °C ~ 75 °C
• Relative Humidity:20% ~ 85% (non-condensing)

Product Overview:

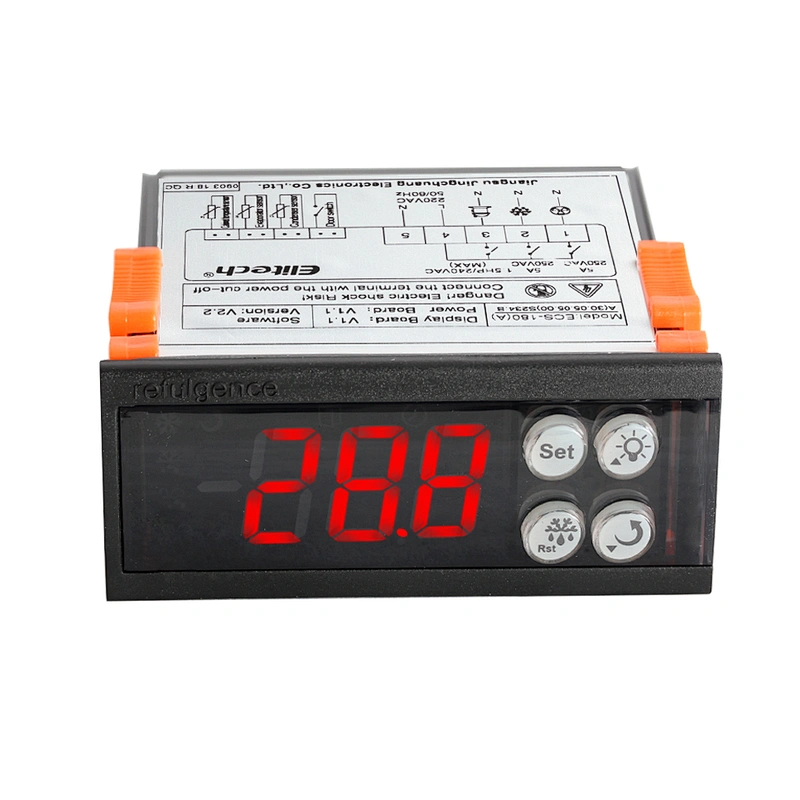

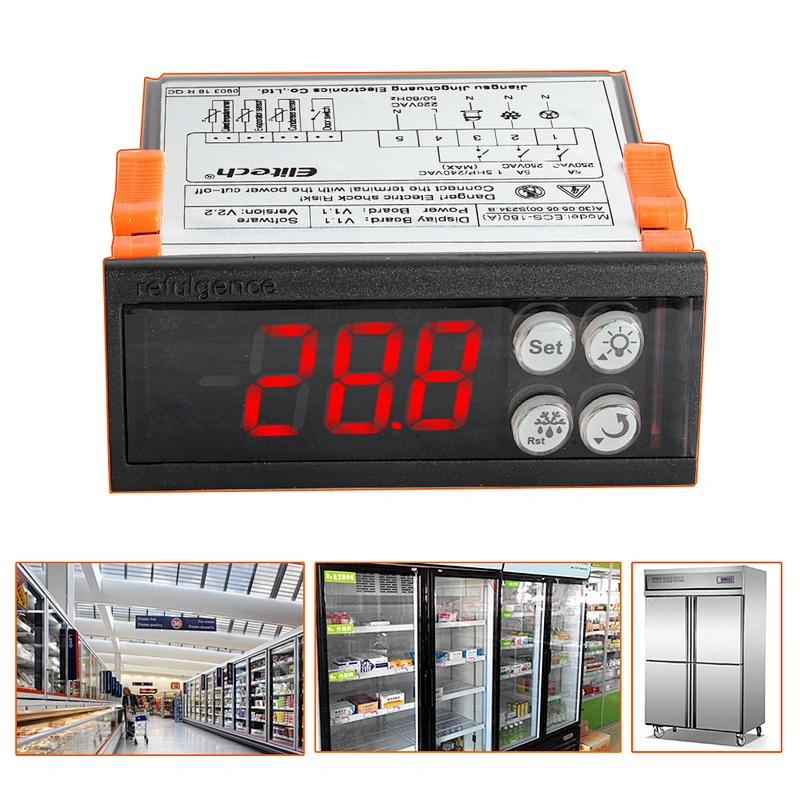

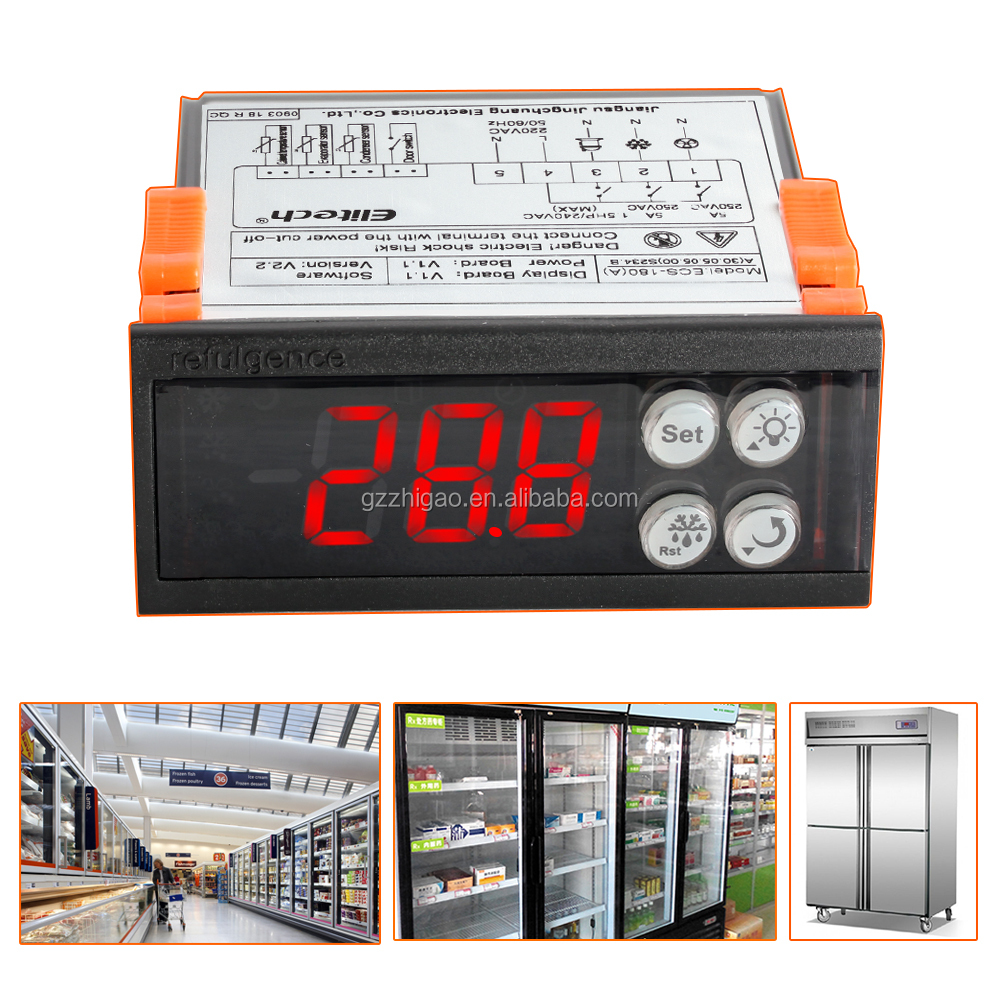

Elitech ECS-180A Thermostat Temperature Controller 220V is used in high-end air-cooled drinks cabinets, display cabinets and kitchen refrigerator etc.

Product Feature:
A large size transparent window and LED display enable the viewing area increased by 50%; button wear design; Front panel variety of color options.
Function uses modular design, customer portfolio according to demand, easy customization, function allocation in the annex.
A key to restore function, immediate restoration of effective settings to facilitate the production and after-sales maintenance.

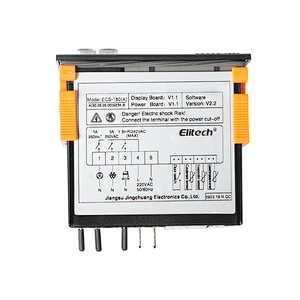

Built-in transformer and 30A relays, simple wiring operation, saving installation work and production costs.

Main Features:
Parameters
1) Measuring range: -50 °C ~ 90 °C (refers only to the sensor correction value is set to 0)
2) Measurement Accuracy: -40 °C ~ 50 °C when ± 1 °C, 50 °C ~ 70 °C when ;± 2 °C, other segments ± 3 °C
3) Temperature range: -50 °C ~ 50 °C
4) Temperature resolution: 0.1 °C
5) Power supply voltage: 230 ± 10% (VAC);external backup power supply voltage: 12VDC

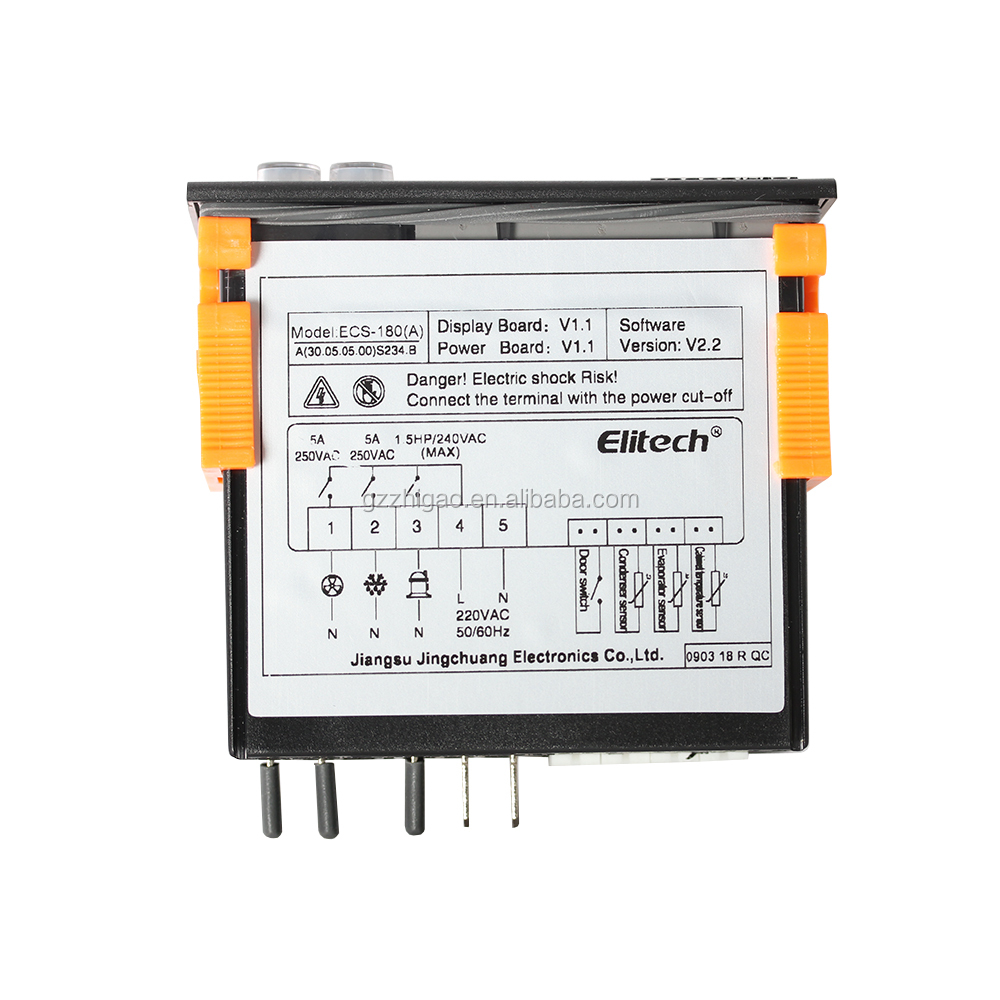

6) Port output capacity:
Cooling: 3A/230VAC,;normally ope output
Defrost: 5A/230VAC
Fan: 5A/250VAC
7) Monitor Front Panel Protection Level: IP65
8) Display rear housing Protection class: None
9) Operating temperature: 0 °C ~ 55 °C
10) Storage temperature: -25 °C ~ 75 °C
11) Relative Humidity:20% ~ 85% (non-condensing)
