Place of Origin:Jiangsu, China
Brand Name:Elitech
Model Number:STC-1000
Model:STC-1000
Application:automatic switching between refrigerating and heating
suitable for:seafood machine
apply:water chiller
Features:defrost cycle or defrost time
characteristic:Compressor work as scheduled time when sensor error.
Main Function:Refrigeration,Defrost,1NTC,Temperature Calibration
Power supply:220VAC+10%-15%, 50/60Hz
Sensor error relay time:1 minutes
Sensor type:NTC sensor

1.Product Overview:

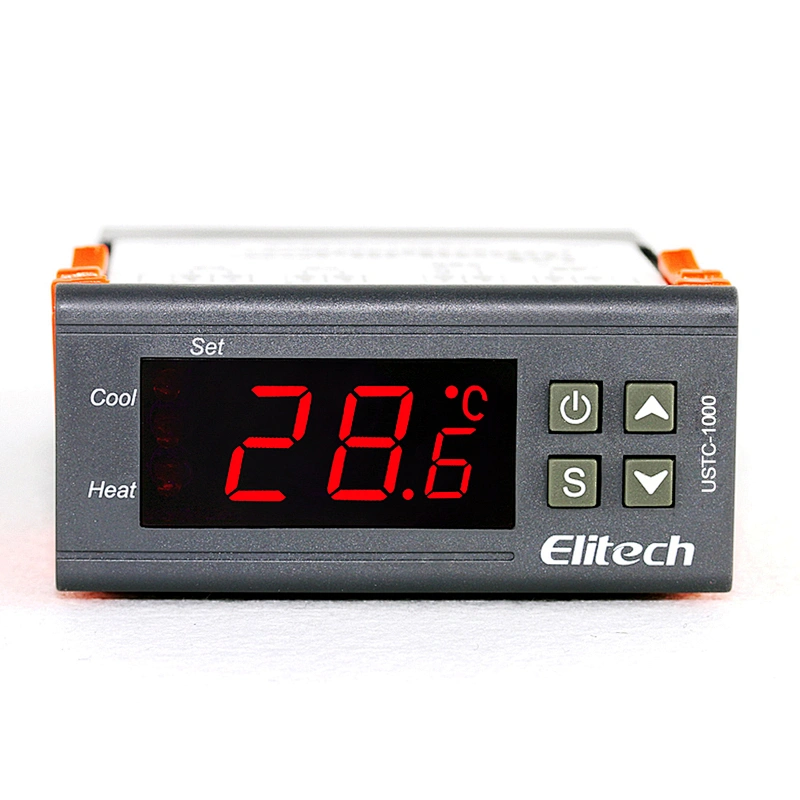

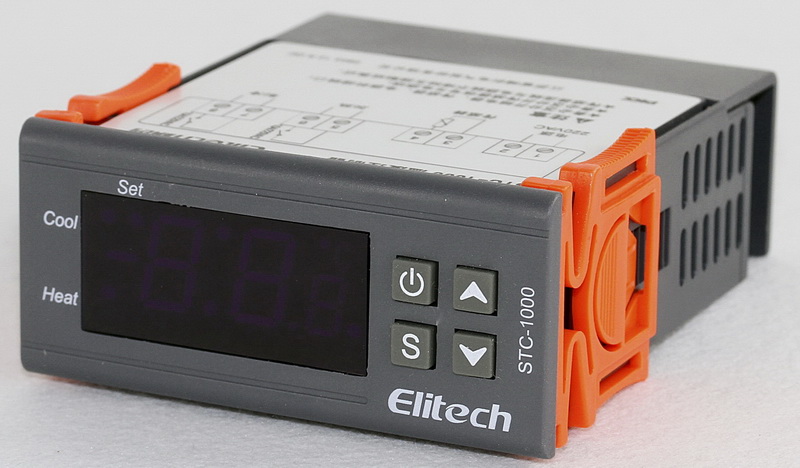

Elitech STC-1000 Thermostat Temperature Controller main functions as below: Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit or when sensor error.

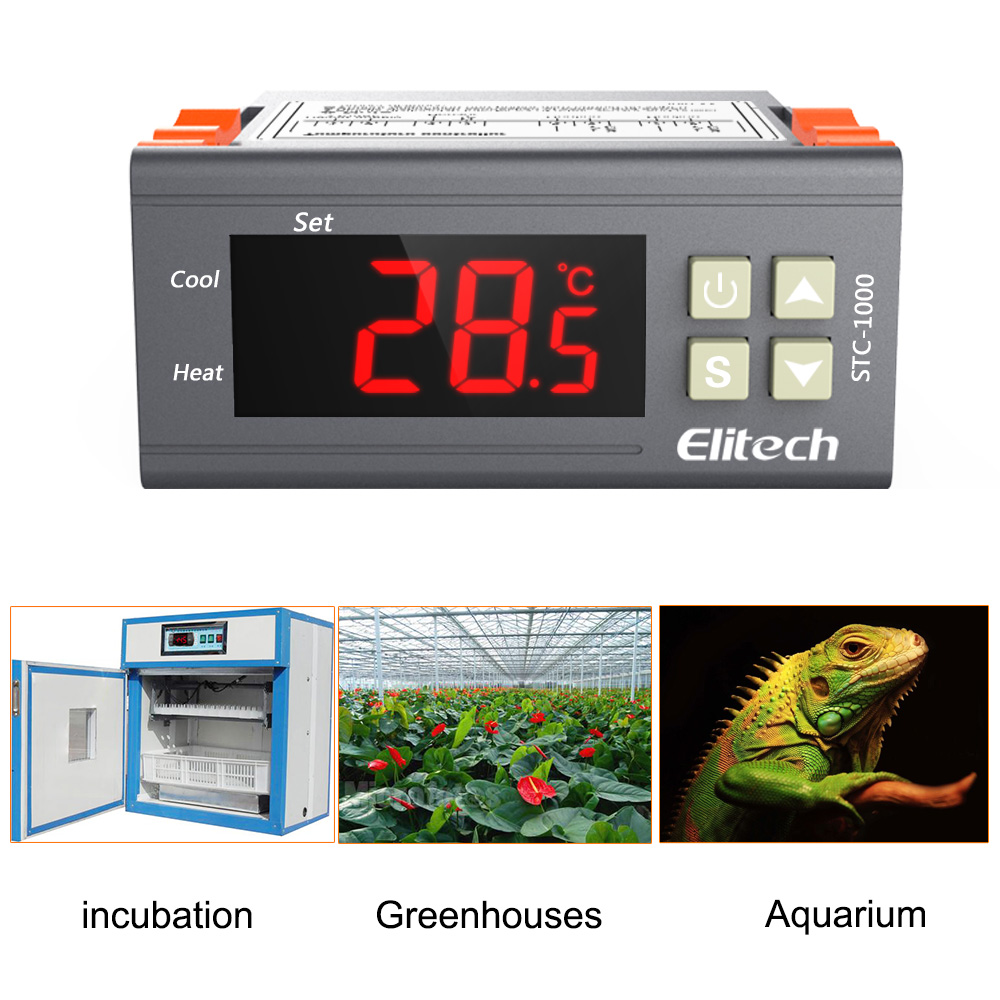

The incubator temperature controller is suitable for all kinds of seafood machine,water chiller and other equipment which needs automatic switching between refrigerating and heating.

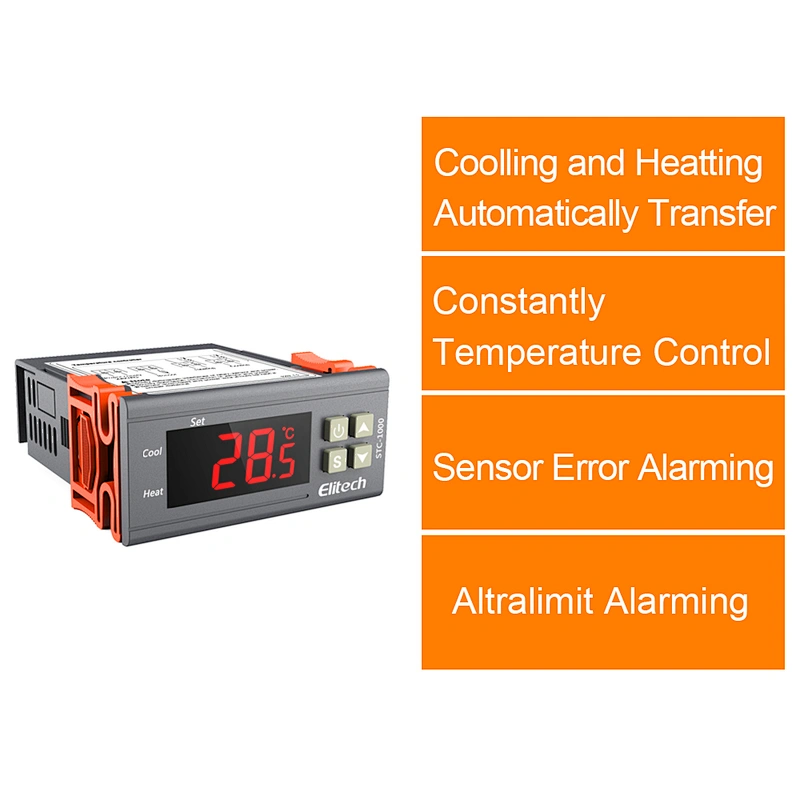

2.Features:

1.Switch the modes between cool and heat;

2.Control temperature by setting the temperature setting value and the difference value;

3.Temperature calibration;

4.Refrigerating control output delay protection;

5.Alarm when temperature exceeds temperature limit or when sensor error.

Technical Parameters:

1. Temperature measuring range: -50℃~99℃;

2. Resolution: 0.1℃;

3. Accuracy: ±1℃ (-50℃~70℃);

4. Sensor error delay: 1 minute

5. Power supply: 110 VAC±10%, 50/60Hz;

6. Power consumption: less than 3W;

7. Sensor: NTC sensor (1PC);

8. Relay contact capacity: Cool 10A/110VAC;Heat 10A/110VAC;

9. Ambient temperature: 0~60℃;

10. Storage temperature: -30~75℃;

11. Relative humidity: 20%~85% (No condensate).

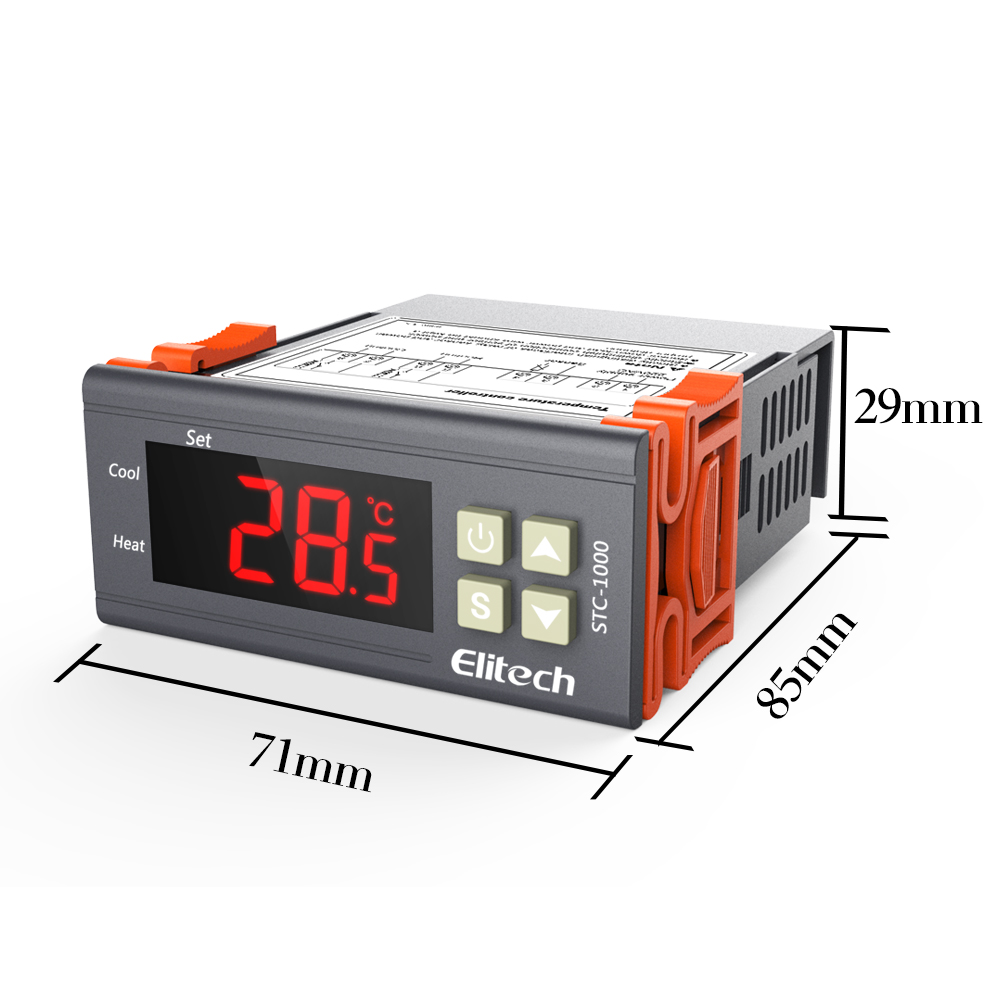

Specification and Size:

1.Front panel size 75(L)×34.5(W)mm;

2.Mounting size:71(L)×29(W)mm;

3.Product size 75(L)×34.5(W)×85(D)mm;

4.sensor length 2 m included.

5.Measure range: -50℃+99℃

6.Mounting size: 71*29 mm

7.Auto switch between refrigerating and heating

8. Return difference value

Package Content:

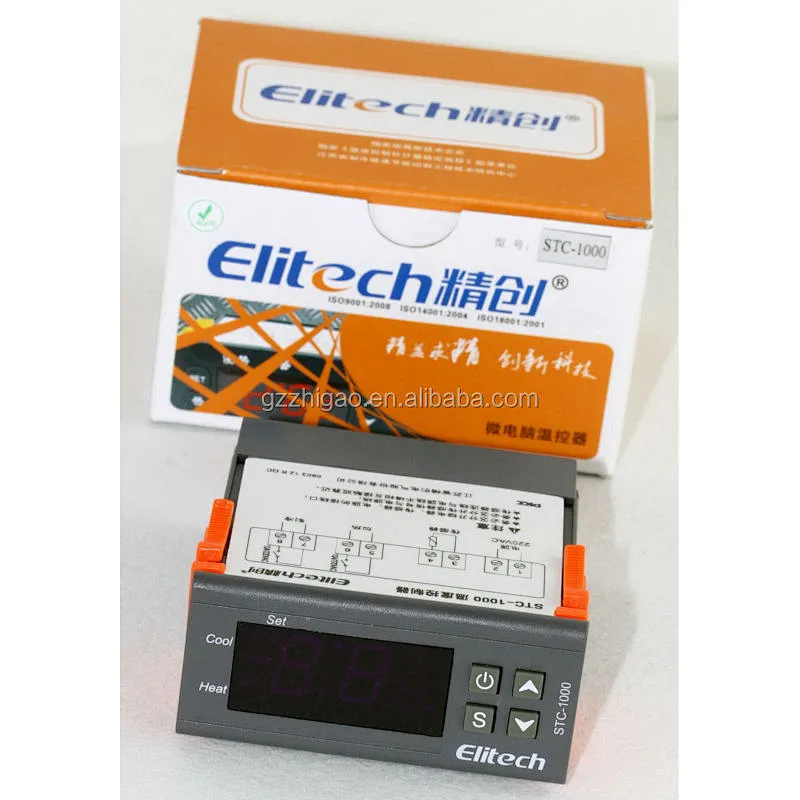

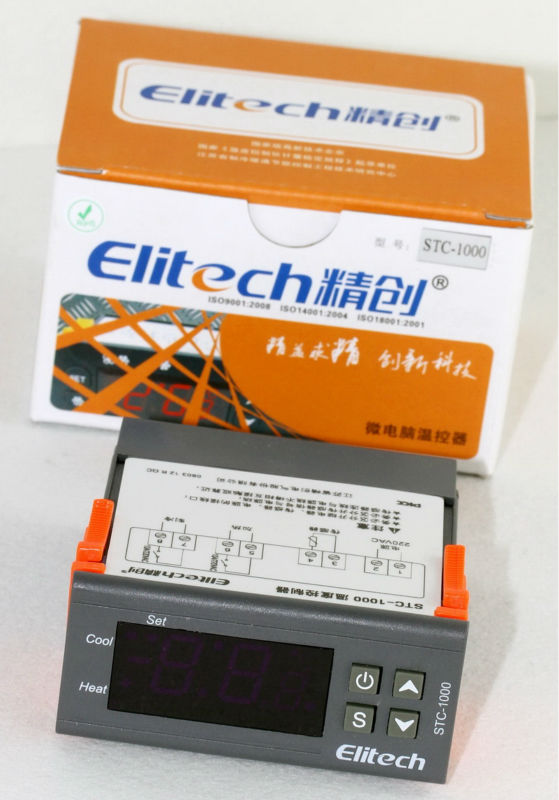

1 x STC-1000 Temperature controller 110v

1 x 2M Sensorv

Note to check whether the sensor is connected well. Please be sure to connect the heating relay.

FAQ:

1, Does not read temperature at all?

A: 1. Check whether the sensor is connected well. 2. Check your wiring diagram. Most of customers don't wire it right and think the unit is bad. The right wired diagram is displayed in pictures.

2. Cooling relay not activating ?

A: Cooling has the delay function. We set the default value as 3 minutes. When the heating turns off, the cooling will be on after 3 minutes. If the customers want it turns on immediately, you can set it as 0.

other product

Company Information

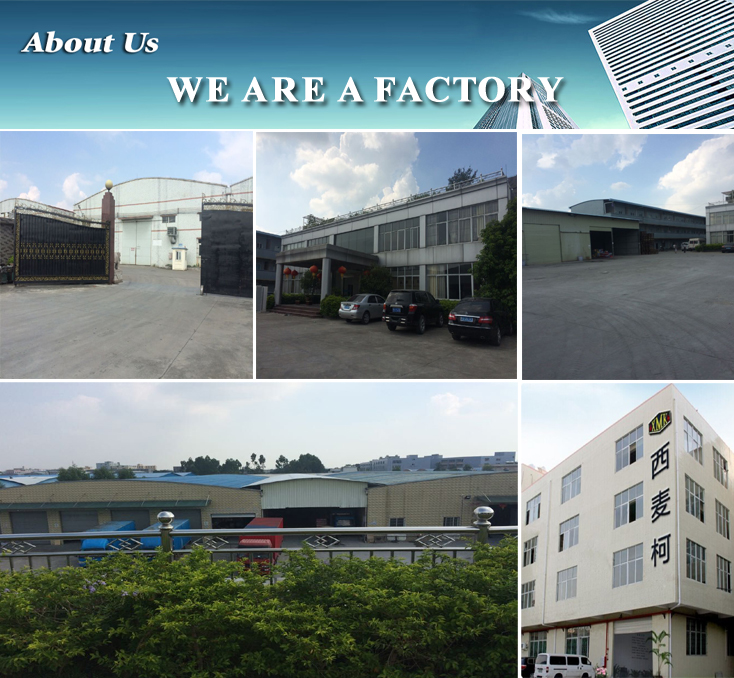

Guangzhou Zhigao Refrigeration Equipment Co.,Ltd .was established in 1995 , in Guangzhou ,China. We are anenterprise that specializes in manufacture and trading.We have retail shops and offices in Guangzhou,and we always to provide the best service possible to our customers.Zhigao is mainly engaged in the production and sale of Compressor,Motor,Component,and Refrigerant and A/C spare parts.During past 14 years,Zhigao has accumulated agreat experience in business and has developed into one of the most prominent and the largest suppliers and producers of Compressor,Motor,Component,and Refrigerant and A/C spare parts systems in mainland,China.
