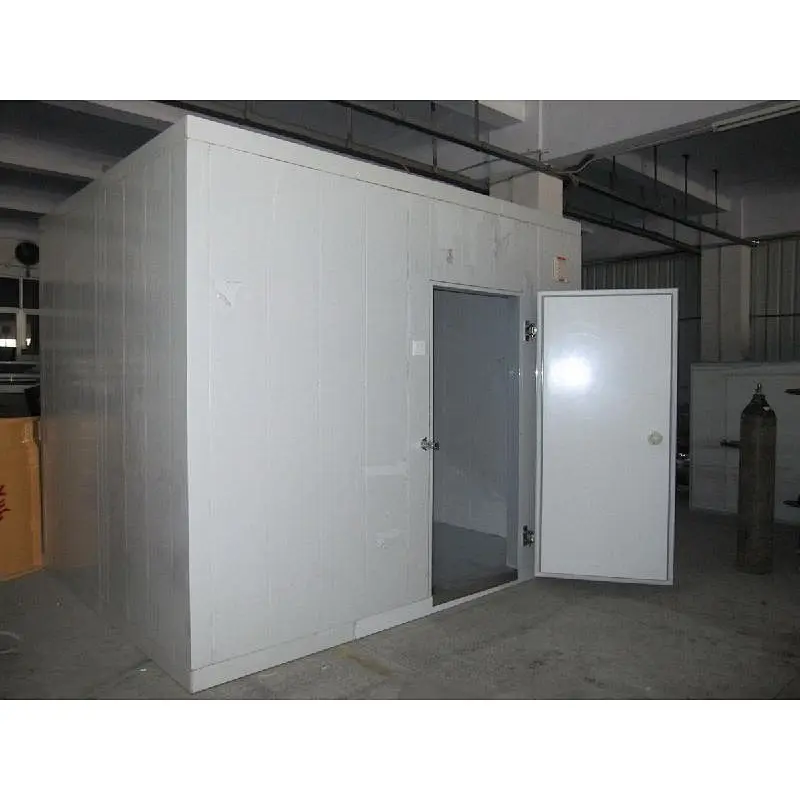

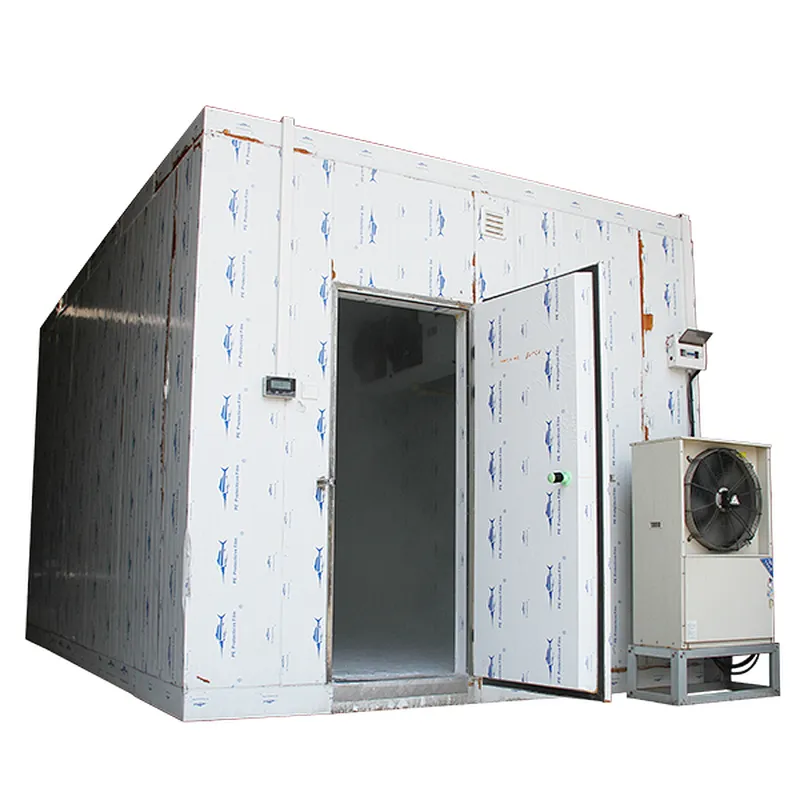

Cool Room,Cold Storage for Vegetables&Fruits:
1. Features:
1. Temperature range:-40ºC~+20ºC (-40ºF~+68ºF) are all available
2. Size: based on the customers' requests.
3. Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available
4. Good performance, low noise and high reliability
5. World famous brand refrigeration accessories.For example:Bitzer,Danfoss,Sporland,Manuerop,Copeland,etc.
6. The automatic high precision digital controller is easy to operate with high efficiency.
7. Adjustable indoor temperature saves up to 30% electricity.
Classification:
Cold storage temperature: -5 °C ~ + 10 °C
Freezer storage temperature: -25 °C ~ + 18 °C
Quick-frozen storage temperature: -40 °C ~ + 18 °C
The Constant temperature: Customer's request
Storage of produce: Customer's request
2.Components:

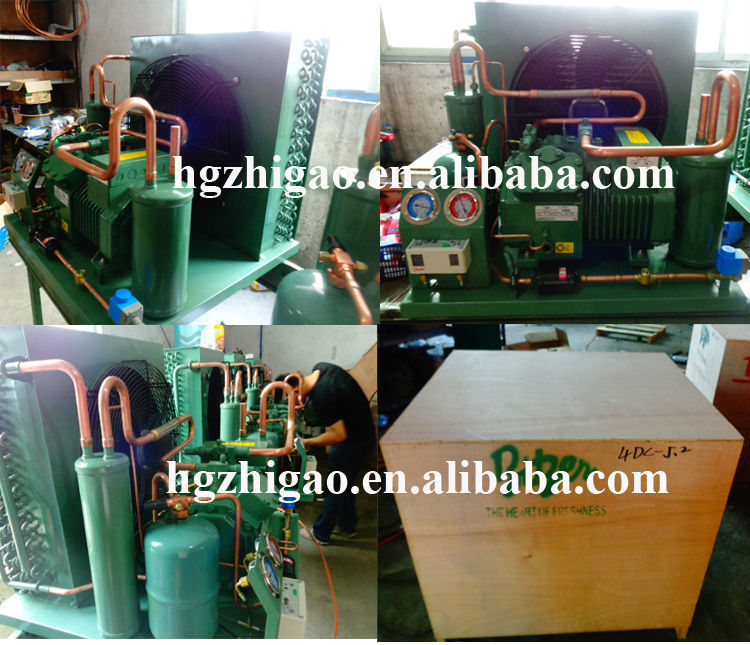

1)Condensing units:with famous brand Bitzer,Copeland,Danfoss,etc with enough cooling capacity XMK condenser and famous spare parts such as the danfoss pressure control,solenoid valve,oil pressure,drier filter,etc.

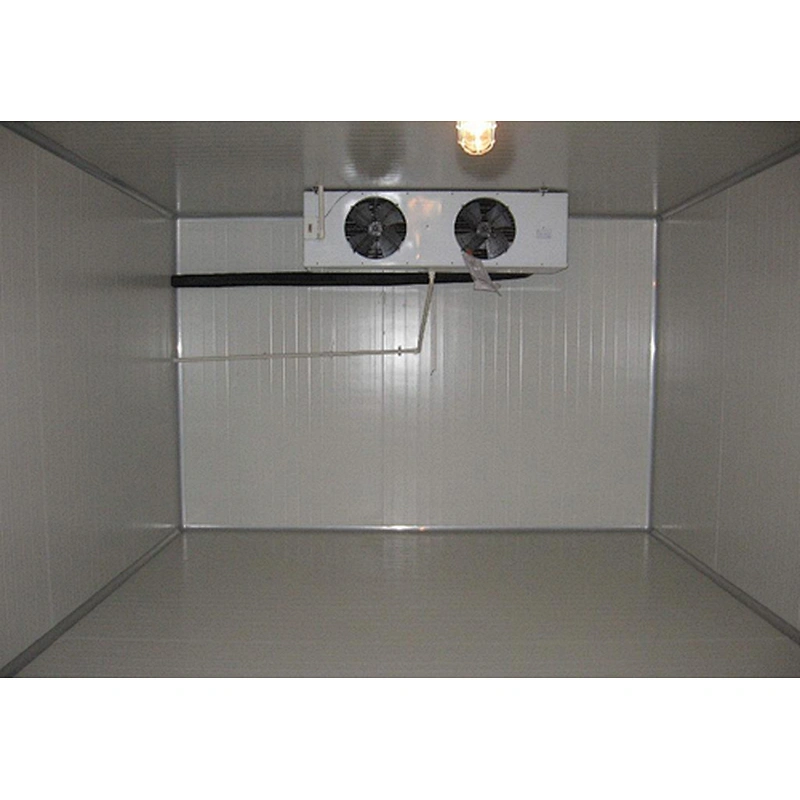

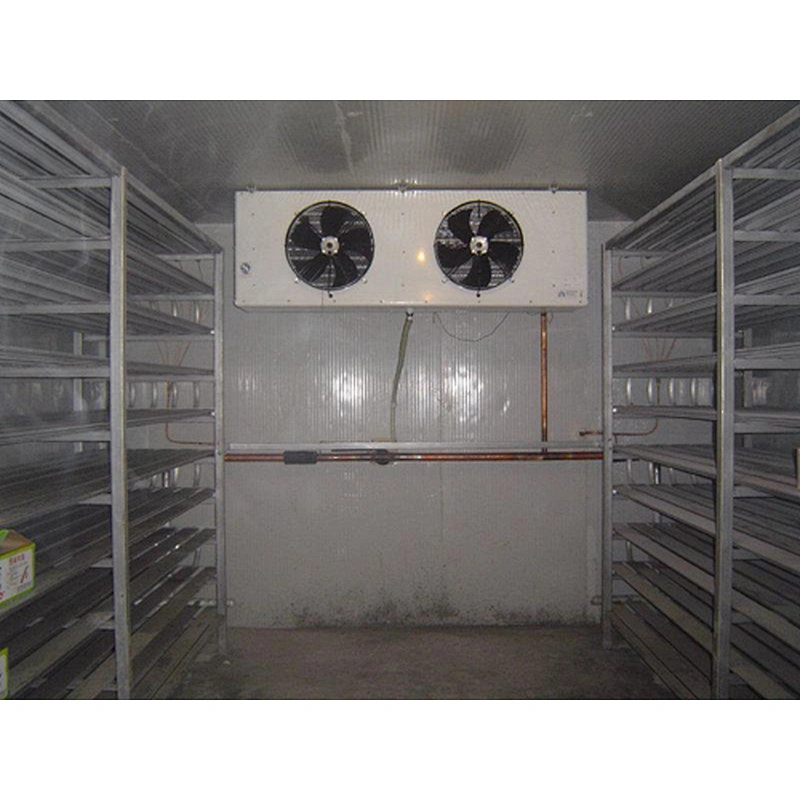

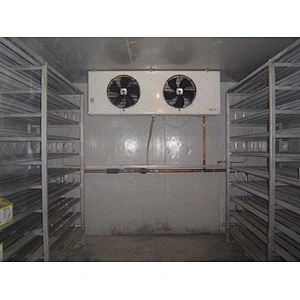

2)High quality and High efficiency XMK brand Air Coolers(Evaporators).
3)Electrical control box---protect the electric system security.
4)Danfoss or Sporlan Expansion valve
5)Supporting accessories---copper tube,insulation pipes,etc.
3.Application fields:
Biology, industry, military, food, florist, farming, medicine, logistics, hospitality, and food processing.

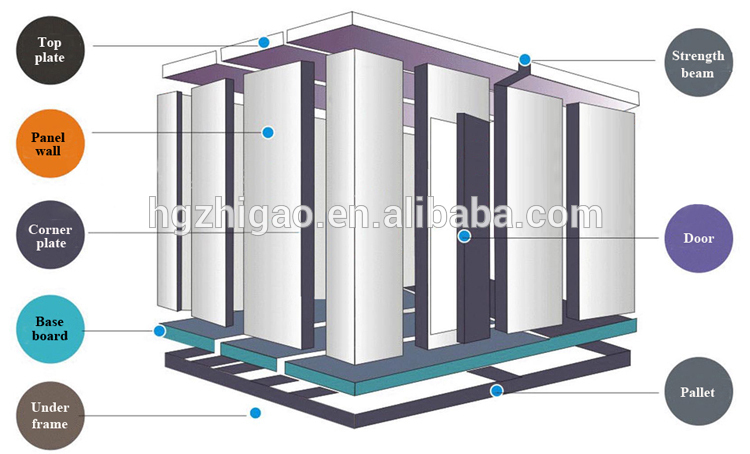

1) .Fabricated cold room;
2).Energy saving design;
3).R404a environment friendly refrigerant;
4).Bitzer or Copeland ,Maneurop,Frashcold, Refcomp compressor

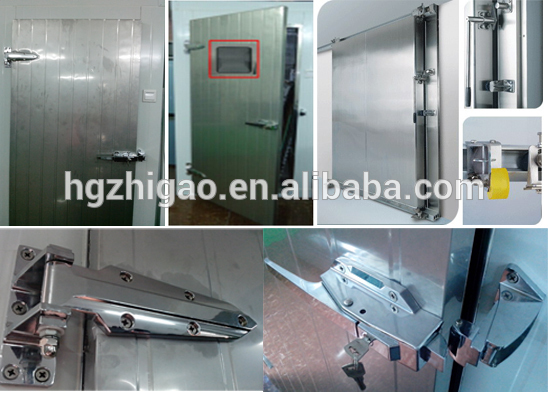

4.Doors---Multiple types of optional thermo insulated panel cold room doors
1)Hinged door,standard size:1.8m(height)*0.8m(width)
2)Hinged door with 20CM*20CM glass window ,standard size:1.8m(height)*0.8m(width)
3)Sliding door with customized size
* ** all the doors come with necessary latches and hinges,doorknob.

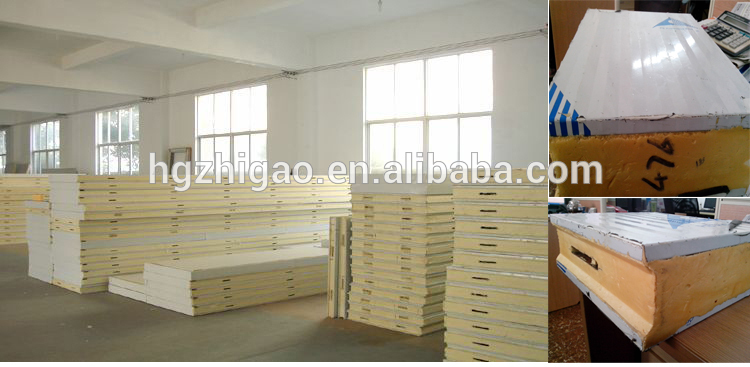

5.Panels:
Cold room insulation panel:use 100%polyurethane insulation panel,density about 38~46kg/m3,with gasket,with flame retardant,panel thickness:70mm,100mm,150mm, standard width of panel is 960mm.

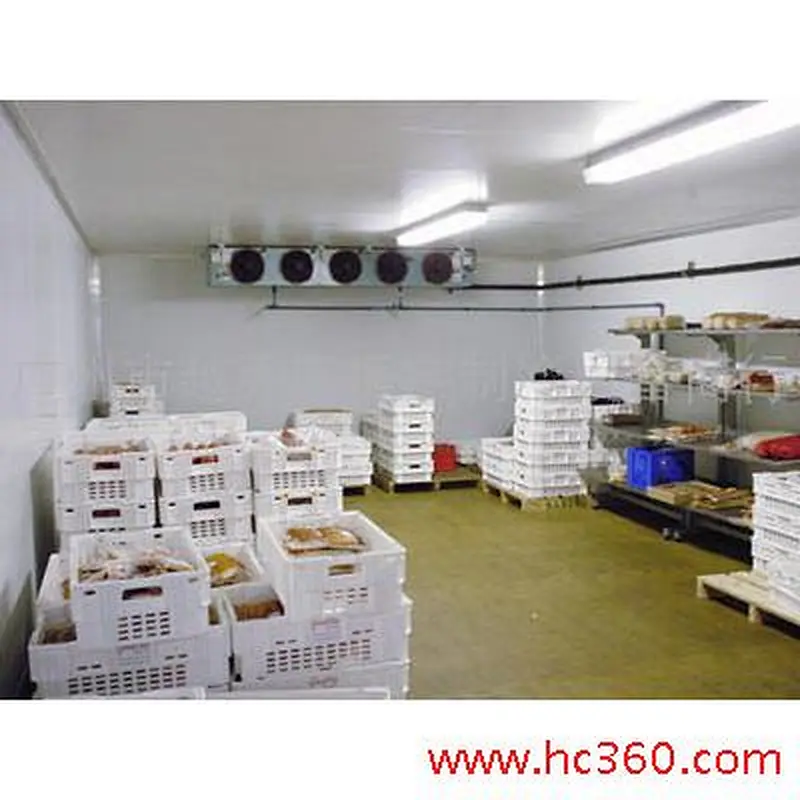

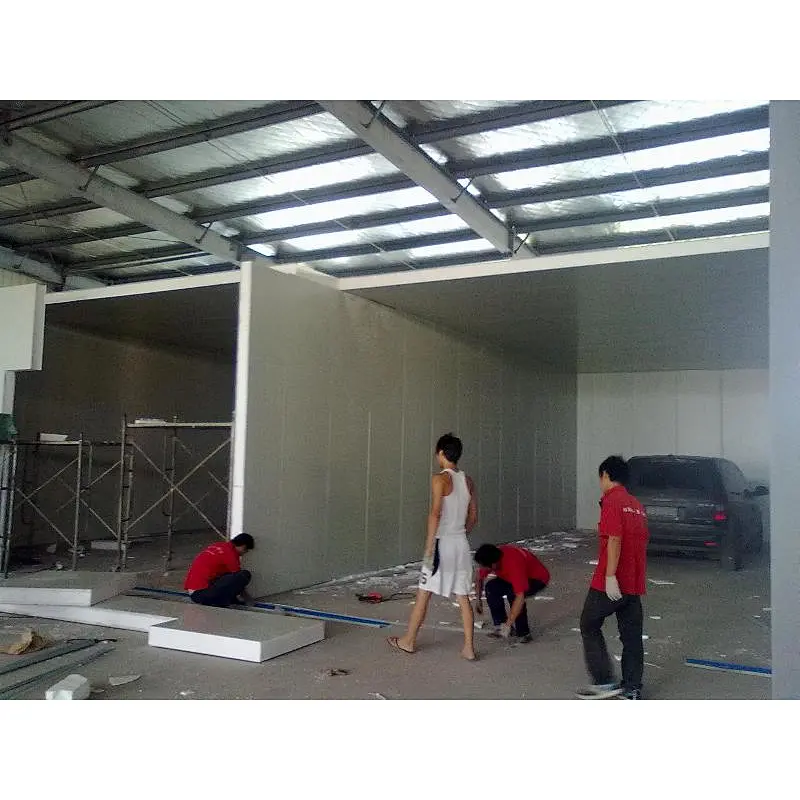

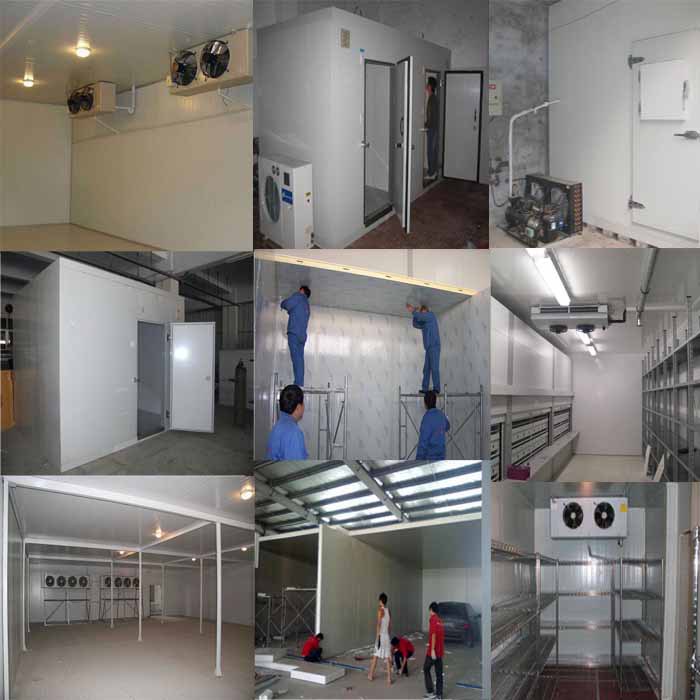

6.Project examples:
7.Advised volume and temperature:
| Cold room Volume Classification Table: | |||
| Classification of cold room | Small | Middle | Large |
| Volume Range | <500m3 | 500~10000m3 | >10000m3 |
perature Table for refere
Storage products | Storage temperature approach |
Vegetables, Fruit storage | -5~5 degree centigrade |
Drink, Beer storage | 2~8 degree centigrade |
Meat, Fish freeze storage | -18~--25 degree centigrade |
Medicine storage | 2~8 degree centigrade |
Medicine freeze storage | -20 degree centigrade |
Meat, Fish blast freezer | -35~-40 degree centigrade |
8.Other products we offering
Pistion/Rotary/Scroll/ Freezer/ Semi-hermtic compressors, Air conditioner spare parts&tools, Refrigerant gas/oil, Condensers, Air coolers, Condensing units, air curtain,sea water chiller, Etc
9.Other details for inquriy:
We suggest you tell us the dimension,the requested temperature,the goods for cooling when inquiry!
