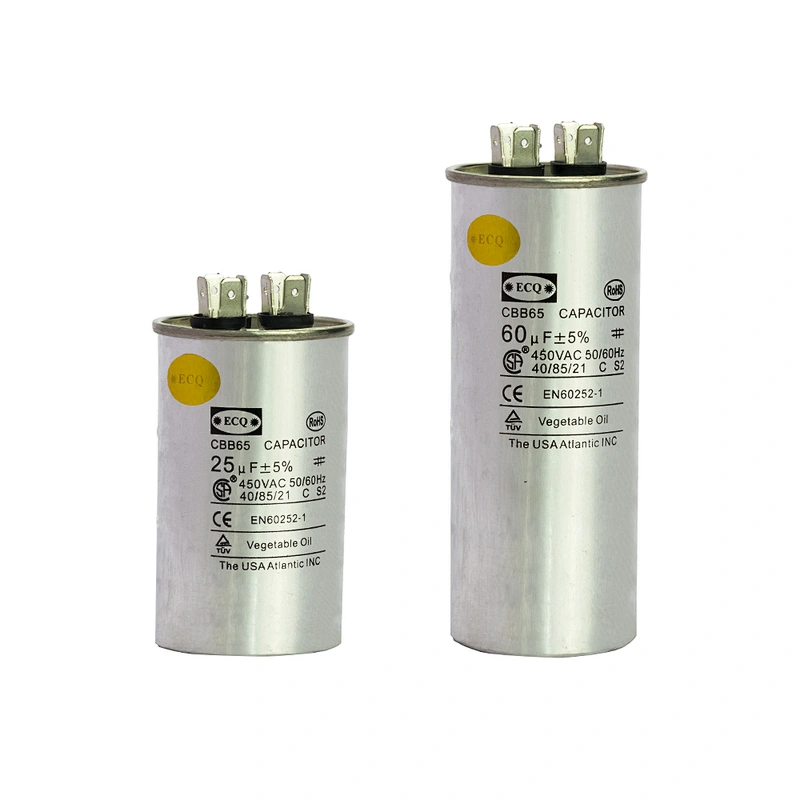

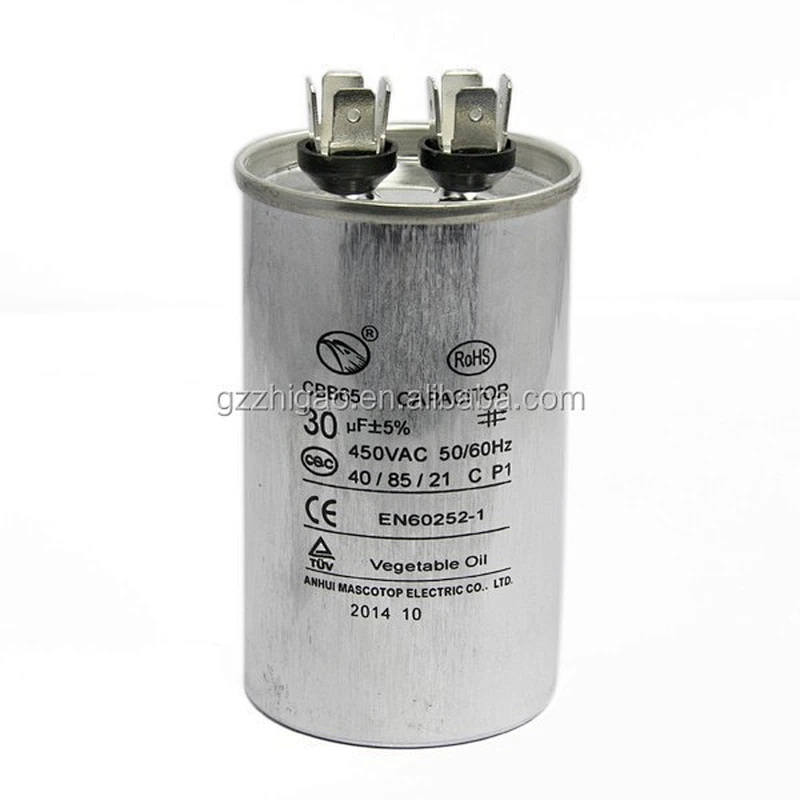

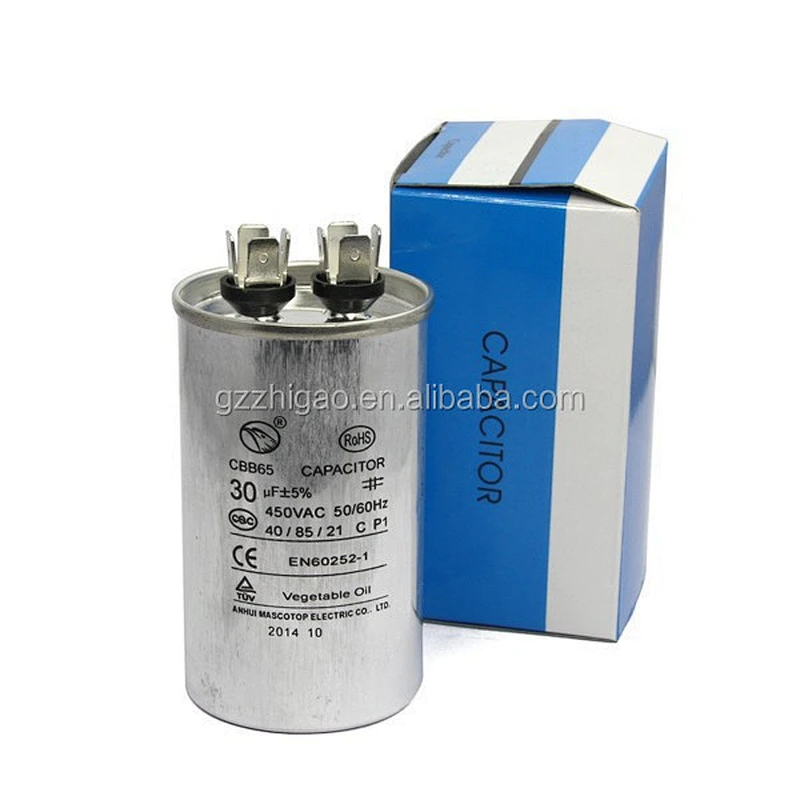

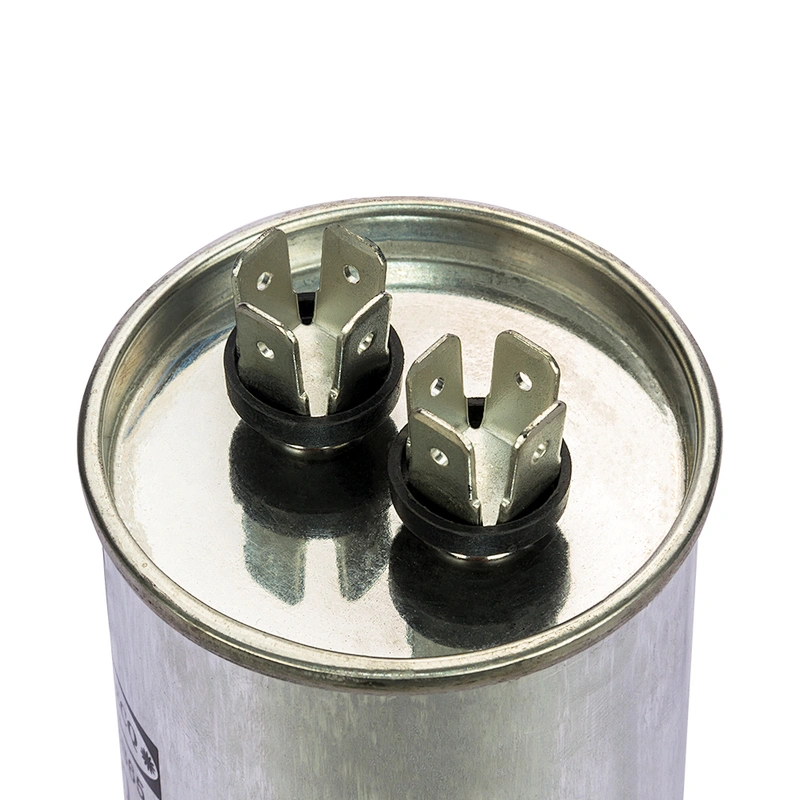

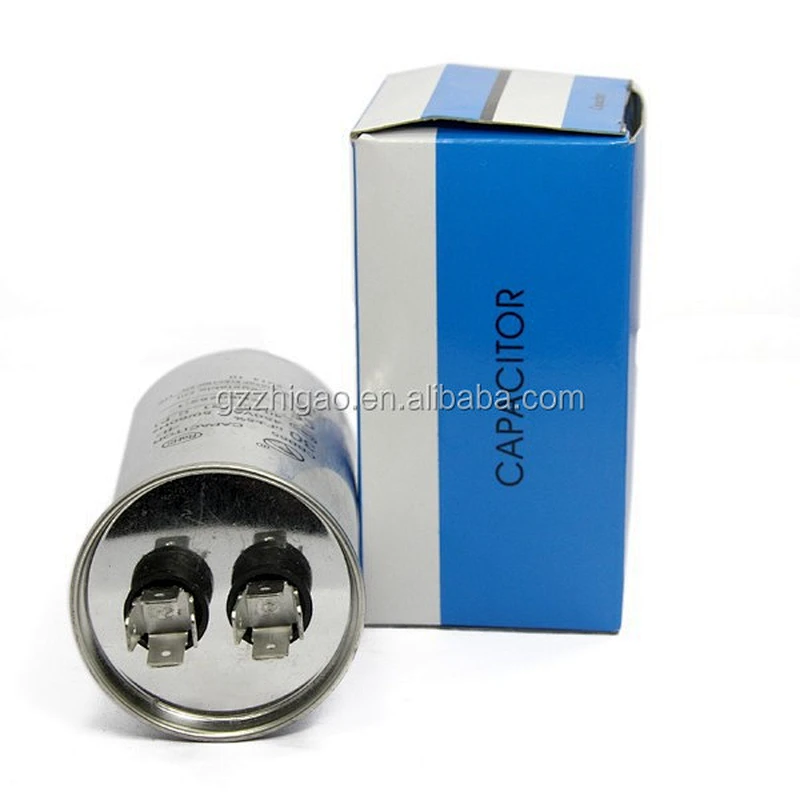

1.Product name :

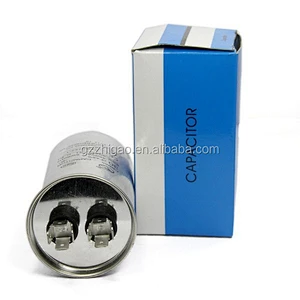

SH Capacitor 45uf, Rated Voltage :450VAC 50/60Hz, 40/70/21 C,P1
2.Model number:
CBB65 45uF±5%
3.Product description:
Configuration | Plastic shell, dry type, Flame resistant |
|
| ||
Temperature | -40~70 | ||||
Capacitance Tolerance | ±5% ±10% | ||||
Rated Voltage | 250VAC330VAC370VAC400VAC450VAC500VAC | ||||
Dissipation Factor | Tanδ≤0.002 When measured at rated voltage, 50/60Hz at 25 | ||||
Insulation Resistance | T-T: ≥3000 MΩ·μF T-C:≥5,000MΩ When measured at 100/500VDC at 20
| ||||
Release Resistance | For motor startup, adopt external connection of resistance | ||||
Test voltage | T-T:1.75Un 10s or 2.0Un 2s T-C: 2000VAC 60s
| ||||
Specification of main products
| μF | 250VAC | 370VAC | 450VAC | ||||||
| D | H | A | D | H | A | D | H | A | |
| 10 | 40 | 55 | 16 | 45 | 55 | 18 | 45 | 55 | 18 |
| 15 | 60 | 65 | |||||||
| 20 | 65 | 70 | 75 | ||||||
| 25 | 70 | 75 | 90 | ||||||
| 30 | 75 | 85 | 100 | ||||||
| 35 | 45 | 18 | 95 | 50 | 90 | ||||
| 40 | 80 | 50 | 90 | 100 | |||||
| 45 | 95 | 110 | |||||||
| 50 | 90 | 100 | 120 | ||||||
| 60 | 100 | 115 | 130 | ||||||
| 70 | 50 | 55 | 110 | 20 | 55 | 20 | |||
| 25+1.52 | 50 | 70 | 50 | 85 | 50 | 90 | |||
| 30+1.52 | 80 | 100 | 100 | ||||||
| 35+1.52 | 105 | 110 | |||||||
| 40+1.52 | 85 | 110 | 120 | ||||||
| 50+1.523 | 90 | 55 | 55 | 115 | |||||
