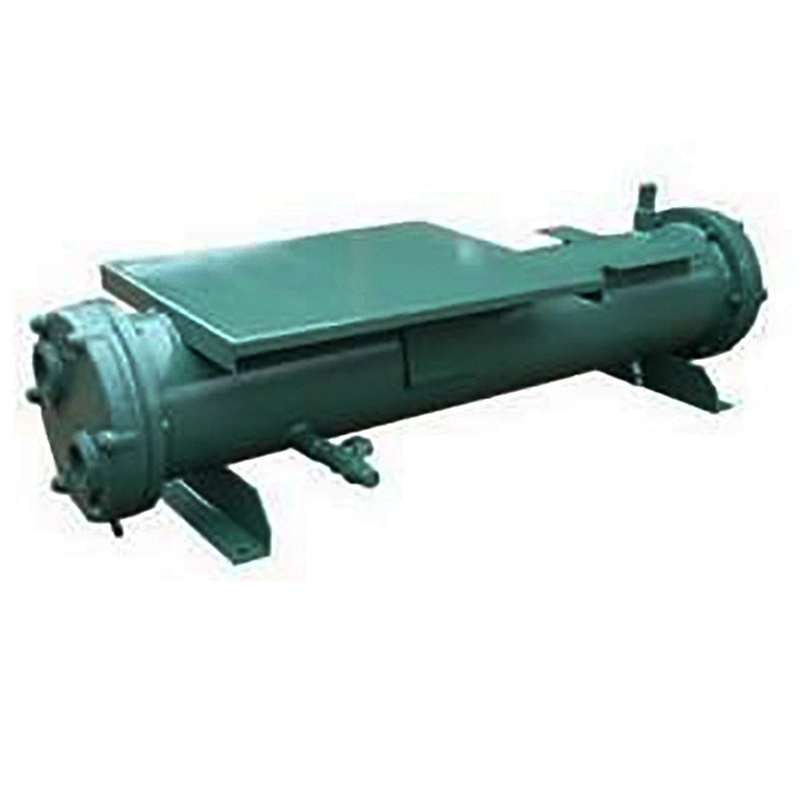

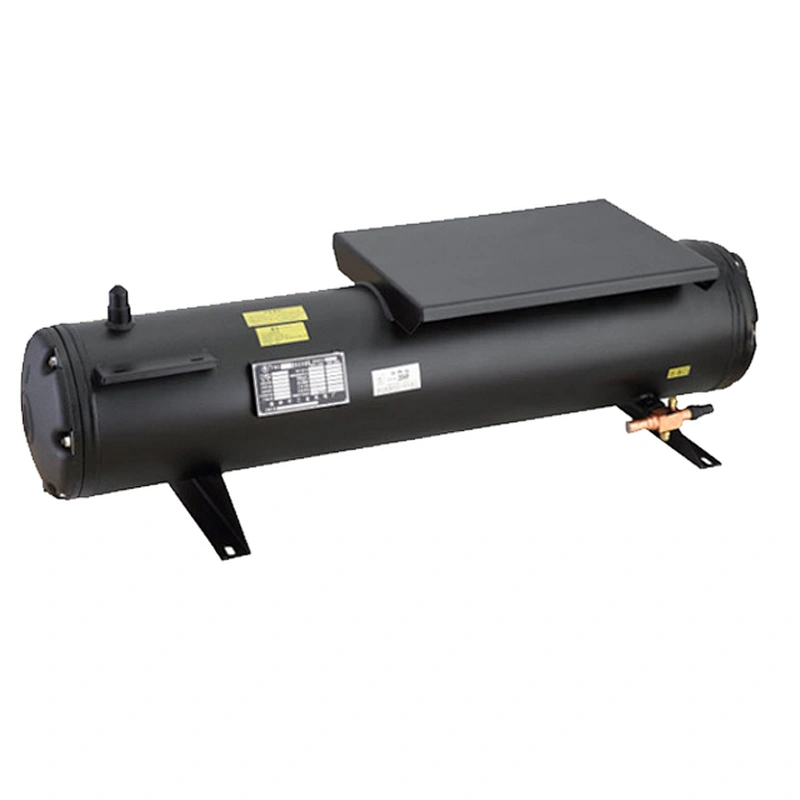

30HP Shell and Tube Type Evaporator for Water Chiller Unit Water Condenser
Product Description
What is XMK water cooling condenser ?
Our Standard and characters of shell and tube water-cooled condenser adopts high-quality heat exchange tube as main heat-passing material.It's shell material is correpondent with GB/T8163-1999 standard,the material of tube plate is measured up GB/T3274-1988,GB6654-1996 standard.The manufacture of our products is corespondent with National Standard,Mechanism lndustry Standard and Act of<>.At present,pressure vessel collection mainly consist of water-cooled condenser,dry type evaporator and liquid receiver.There are two kinds of water to be cooled in water-cooled condenser,one is ordinary water,and the other one is seawater.Generally,we produce Single-Model heat exchanger,but we can remodel it to be double-model equipment of heat exchange according to users' requirments.

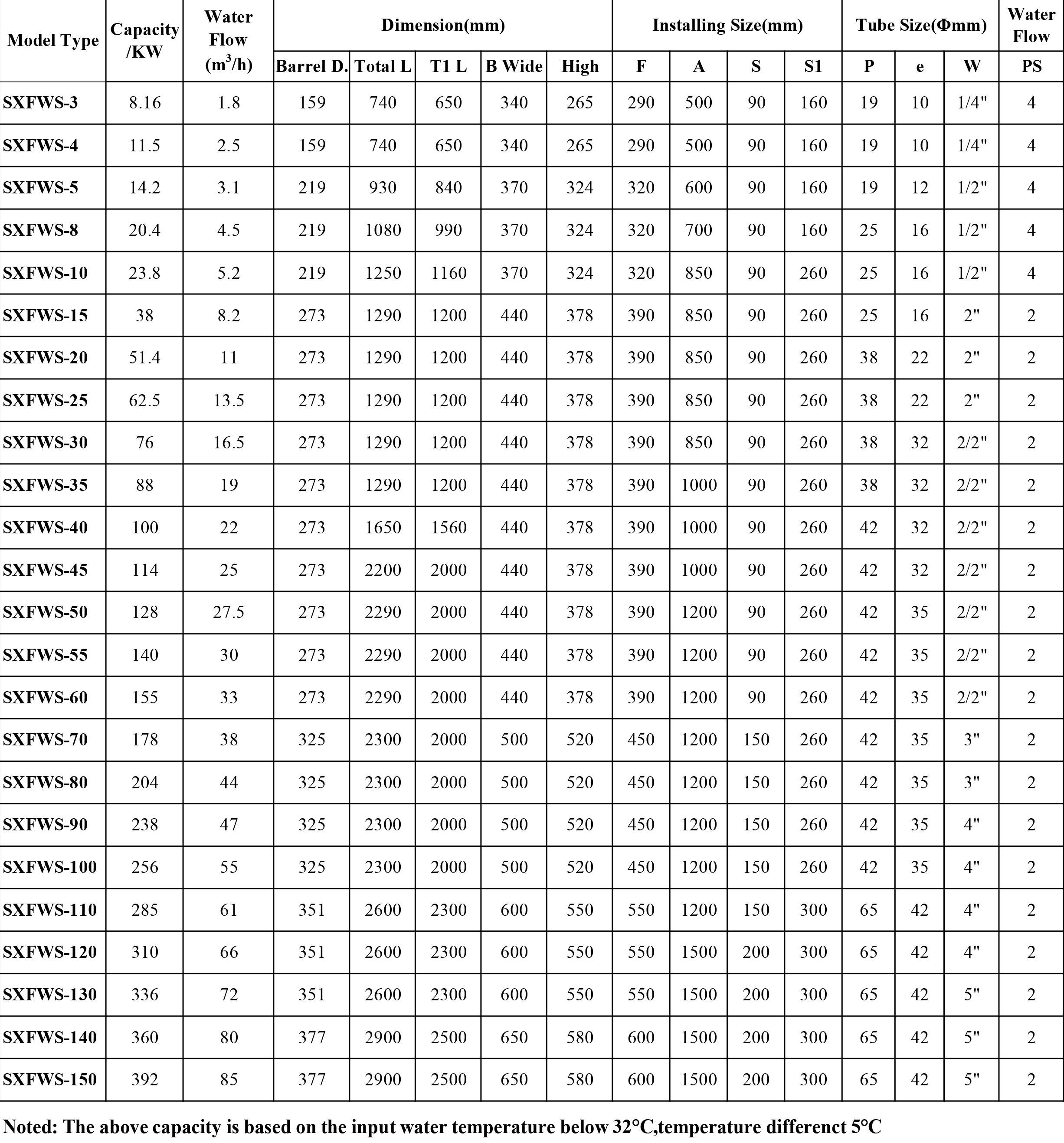

Specification
The design standard of condenser
Inflow temperature(twl)
30℃
Temperature contrast between eater inflow and drainage Δtw
+5℃,
Condensing temperature(tk)
40℃
Average water velocity among tubesw
1.5-2.5m/s
The design standard of dry type evaporator
Inflow temperature(twl)
12℃
Temperature contrast between eater inflow and drainage Δtw
-5℃
Evaporating temperature
2℃
Inspiration and superheating Dts
4℃
Average water velocity among tubesw
1-1.5m/s
Attention:We can produce different specifications produce as customer's requirment and sample.
