Place of Origin:Guangdong, China
Brand Name:zhigao
Model Number:1HP DSF4-Ways Reversing Valve
Application:air conditioner
Temperature of Media:High Temperature
Power:Pneumatic
Media:Water
Port Size:5/16"*3/8"
Structure:Reversing Valve
Standard or Nonstandard:Standard
4 way reversing valve:R22 R407C and R410.
Name:4 way reversing valve
Applicable:air conditioner
Size:5/16"*3/8"
Type:1HP,1.5-2HP,5HP
Feature:cooling
Trait:heating
Working Temperature:high temperature
material:brass

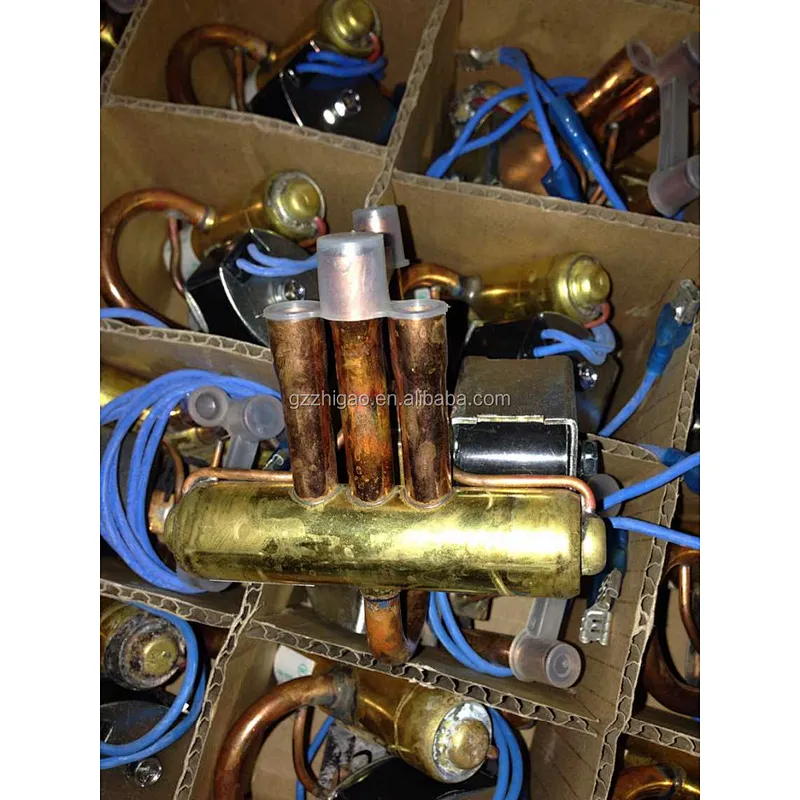

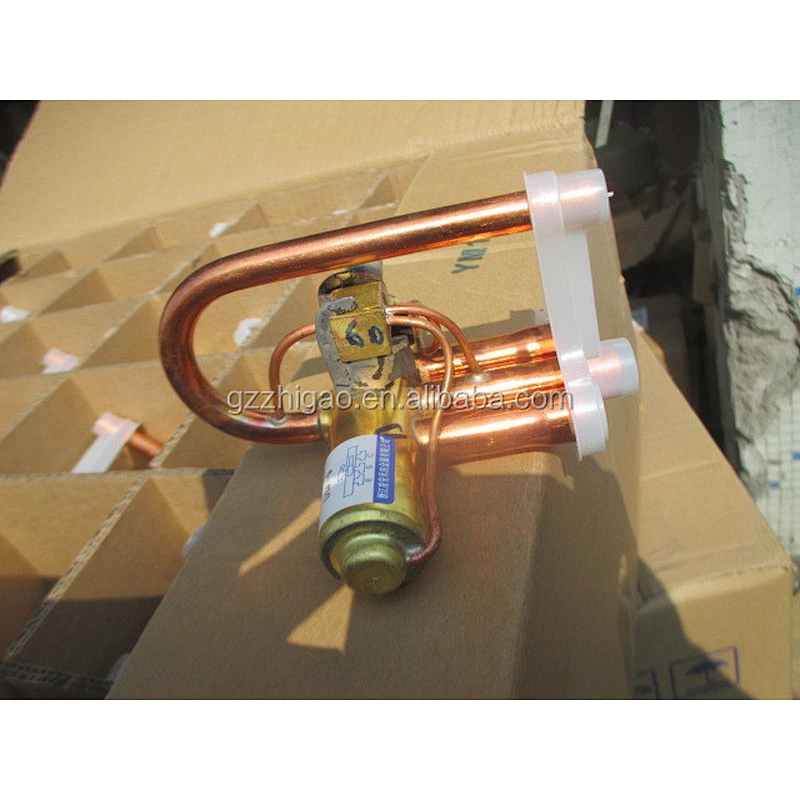

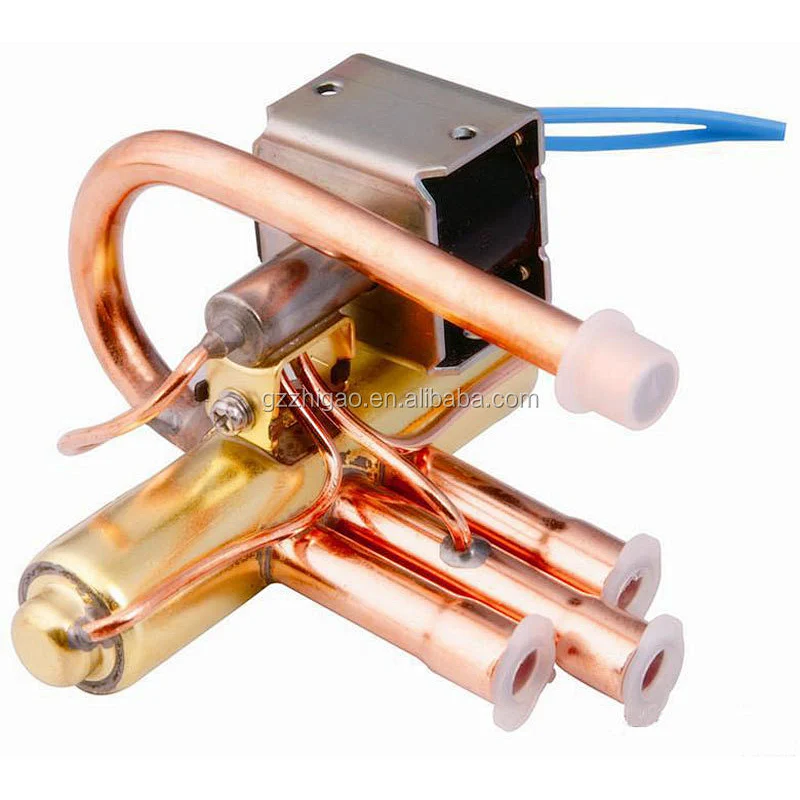

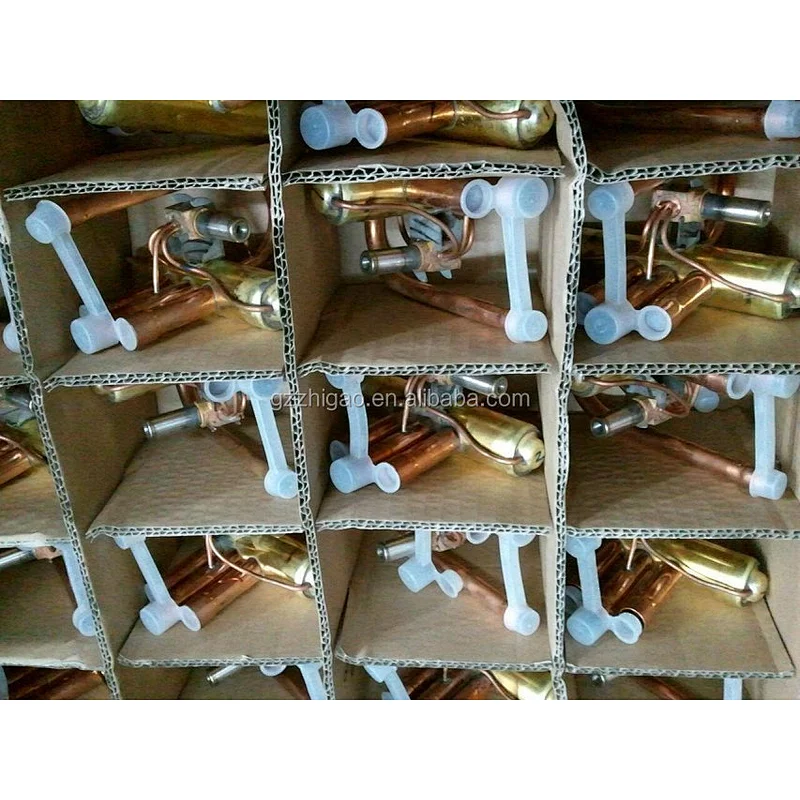

1HP bend DSF4-Ways Reversing Valve for air conditioning refrigeration

1. The valve’s maximum capacity is measured by the working pressure on the suction wire and the pump speed, while the minimum capacity should be restrained.

2. Permeation through the valve seat is measured under heat-resisting temperature of 70'C and air pressure difference 1.03 MPa.

3. Weight of the valve (not including the LB coil): 125g.

4. Valve heat-resisting temperature: 120'C

Specifications:

4-way reversing valve, reversing valve, valve for air conditioner system, valve for refrigeration system...

Type	Port Size(mm)	Connection(mm)		O.P.D(Mpa)		(ml/min) Internal Leakage P=1.0Mpaat70°C	Power(HP)
Type	Port Size(mm)	D	E.S.C.	Min	Max	(ml/min) Internal Leakage P=1.0Mpaat70°C	Power(HP)
DSF-4U	8	8.1	9.6	0.25	2.5	<1000	0.75~1.5
DSF-9U	11	9.6	12.8	0.34	2.25	<1500	2~3
DSF-11	11.5	12.8	16	0.34	2.25	<2000	2.5~4
DSF-11U	11.5	12.8	16	0.34	2.25	<2000	2.5~4
DSF-20	13	12.8	19.2	0.34	2.25	<4000	4~8
DSF-20U	13	12.8	19.2	0.34	2.25	<4000	4~8
DSF-34	20	19.05	22.2	0.34	2.25	<6000	7.5~12
DSF-45	23	7/8”	1-1/8”	0.34	2.76	<6000	5~15
DSF-45	25.6	1-1/8”	1-3/8”	0.34	2.76	<6000	5~20

Introduction:

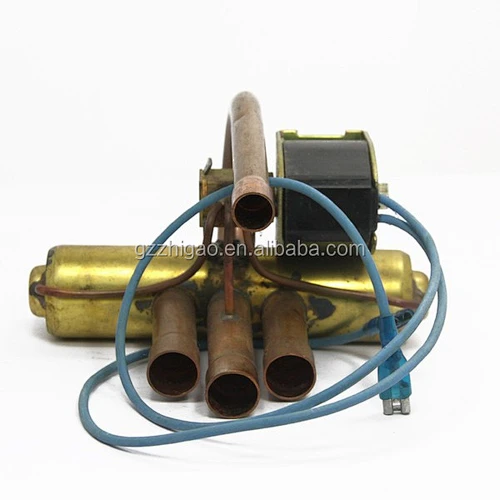

DSF Series 4-Way Reversing Valve is the component to provide heating and cooling from the system to the conditioned space by reversing the flowing direction of the refrigerant,which is used in central,room and packaged air-cconditioners.Our reversing valve are designed for heat-pump system with capacity from 0.75HP to 20HP.They are suitale for R22,R407C and R410

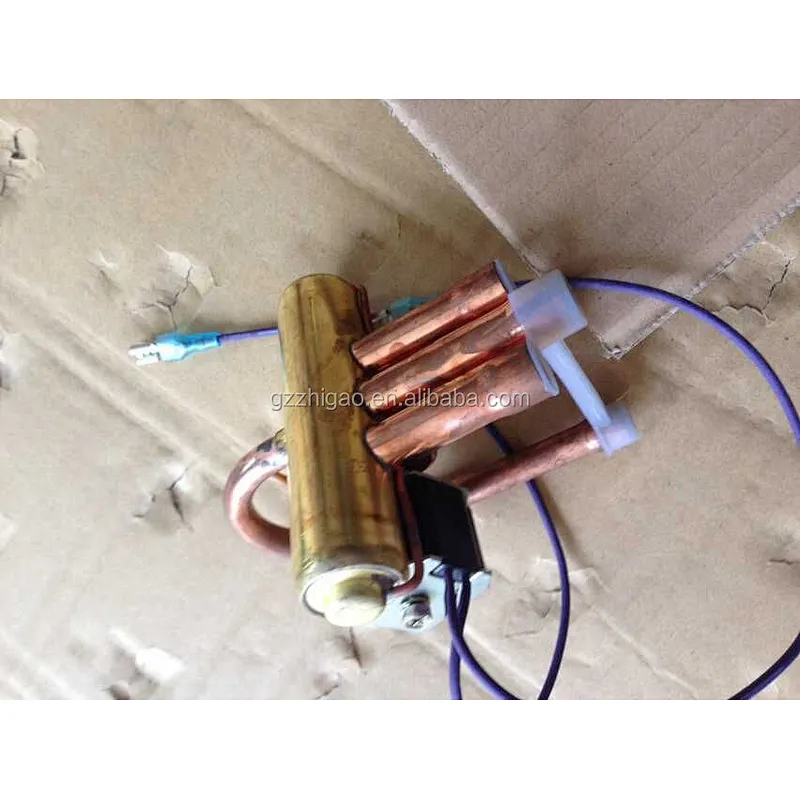

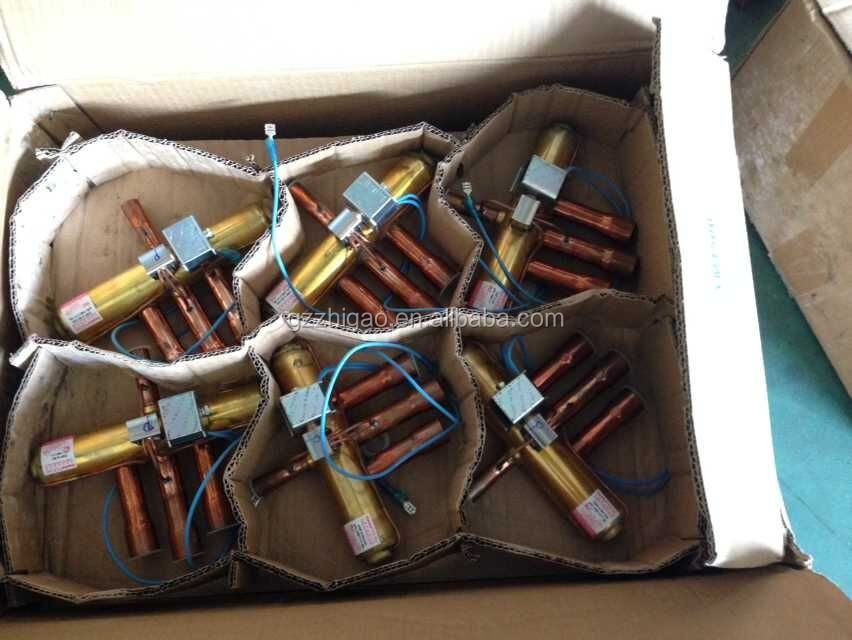

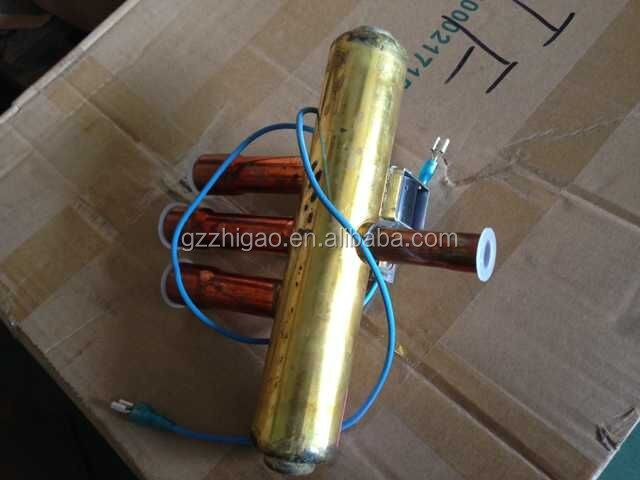

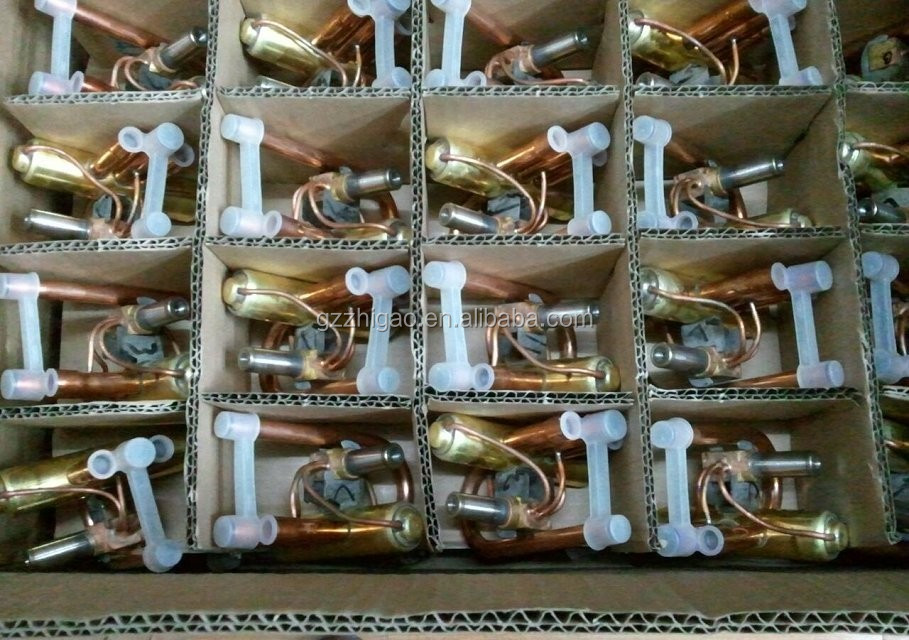

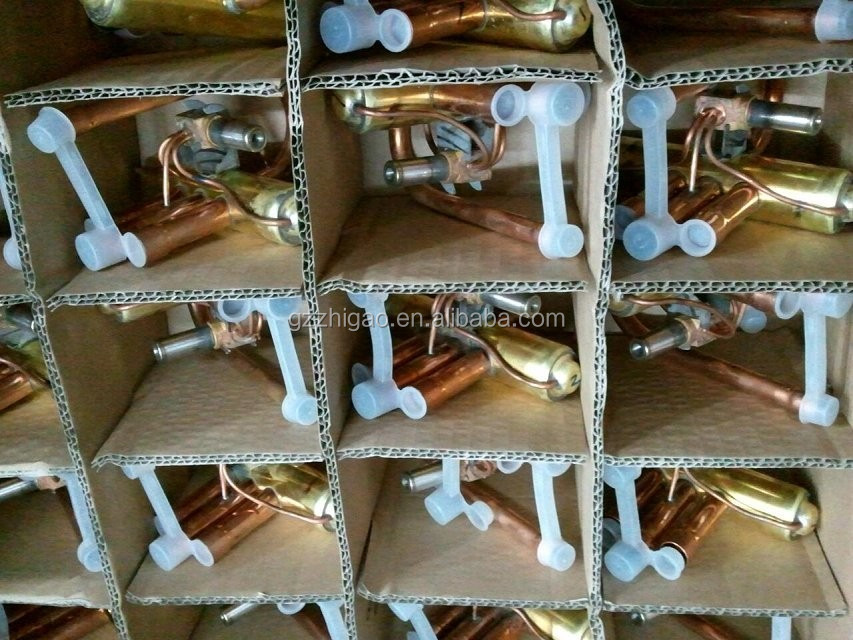

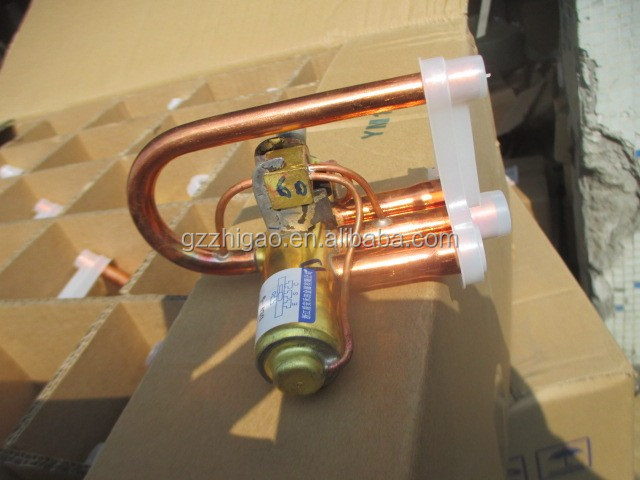

More checking picture to you

other product

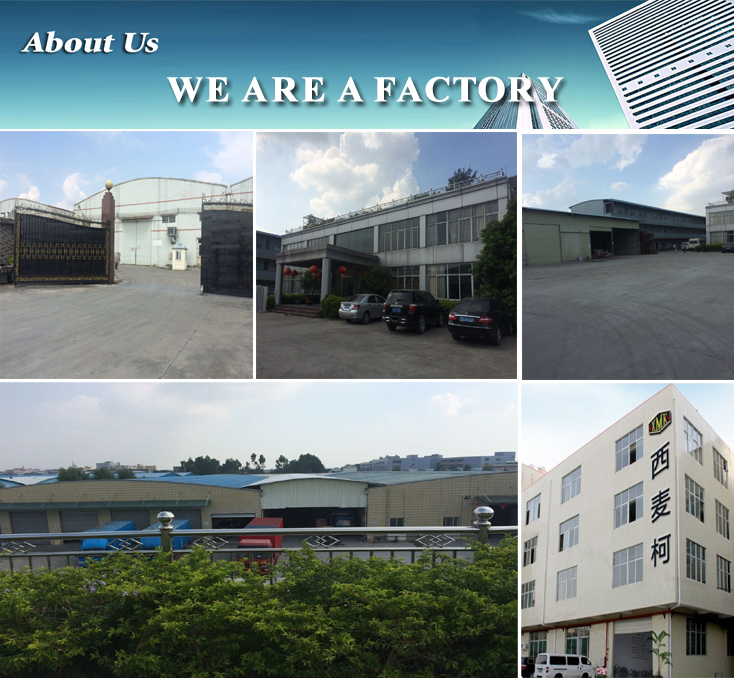

Company Information
